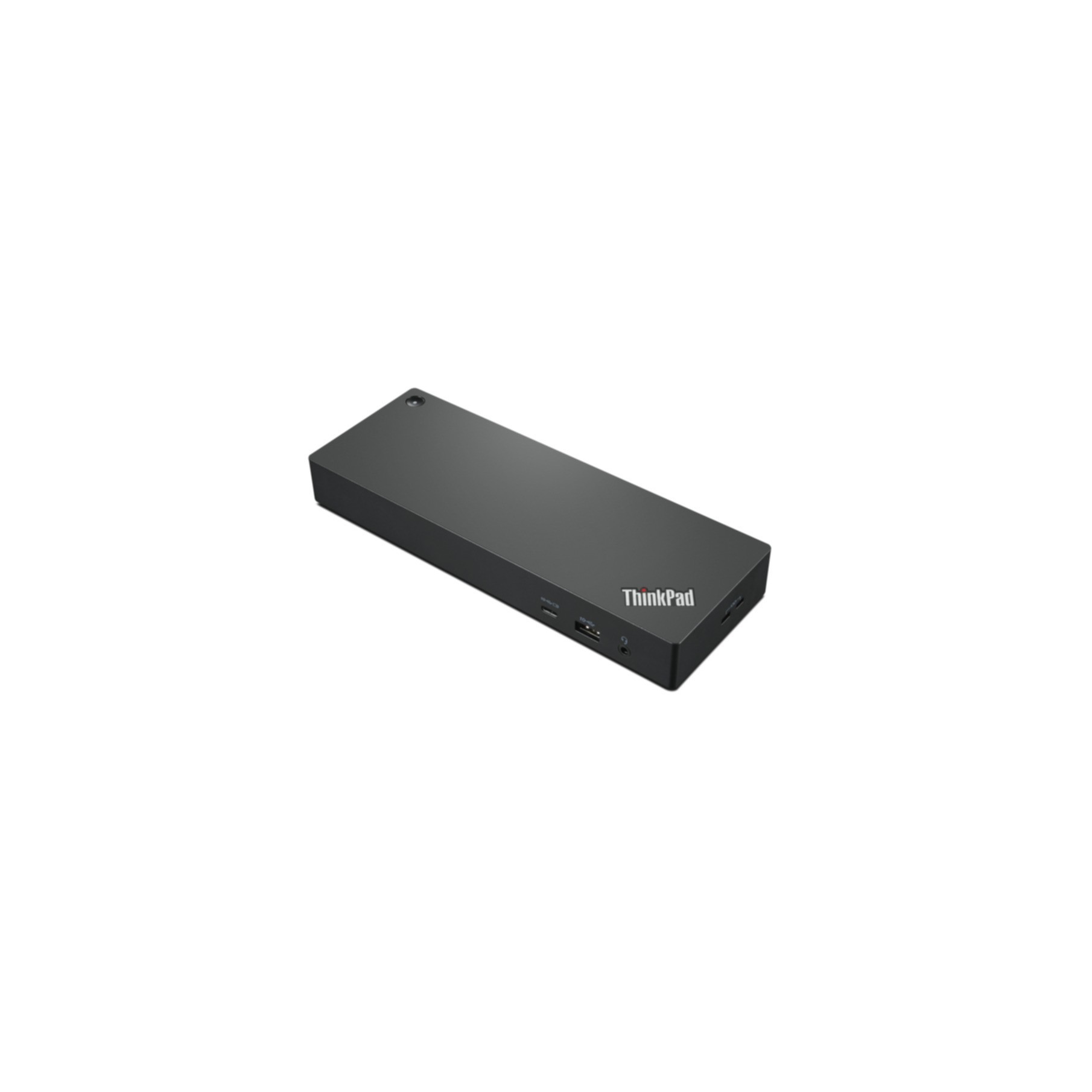

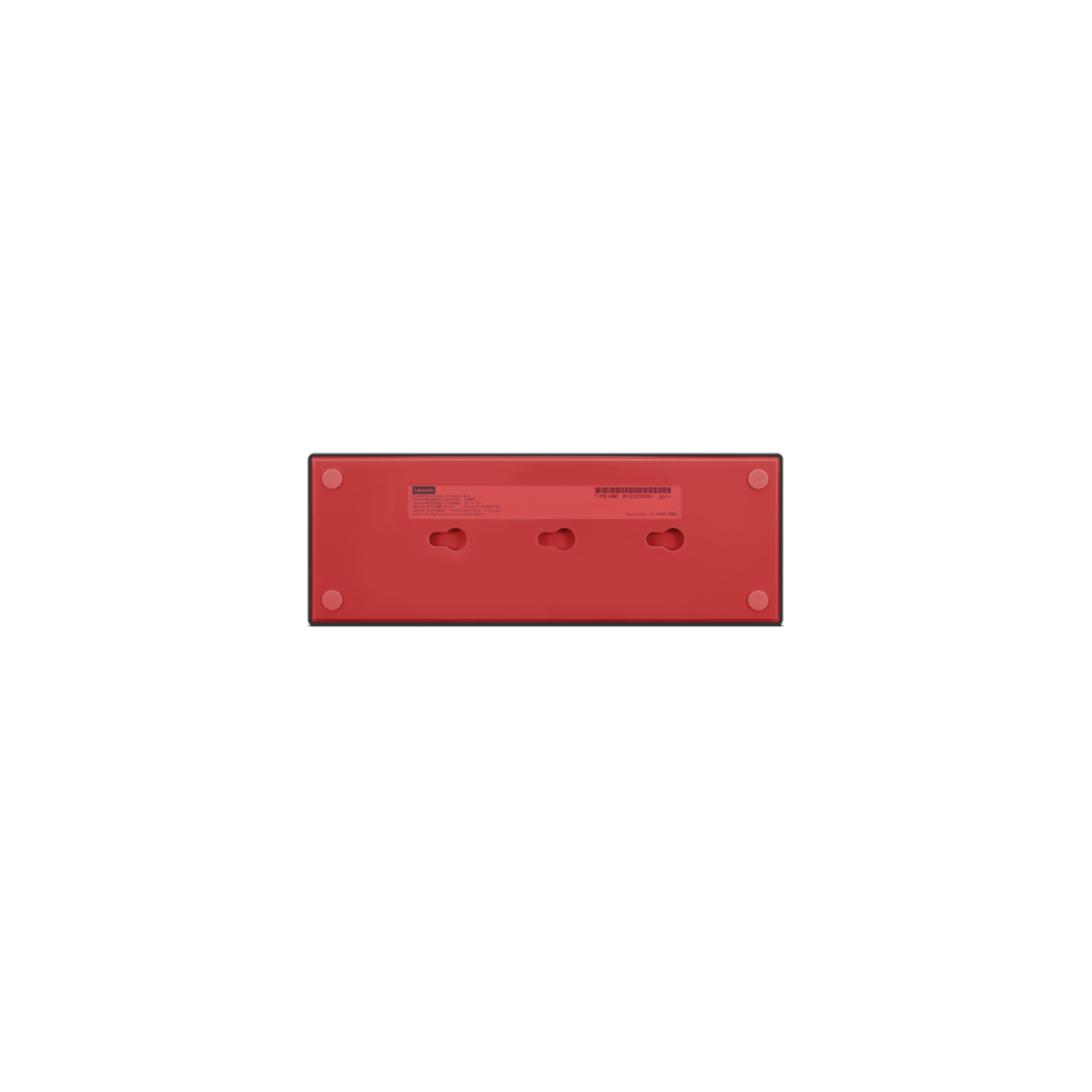

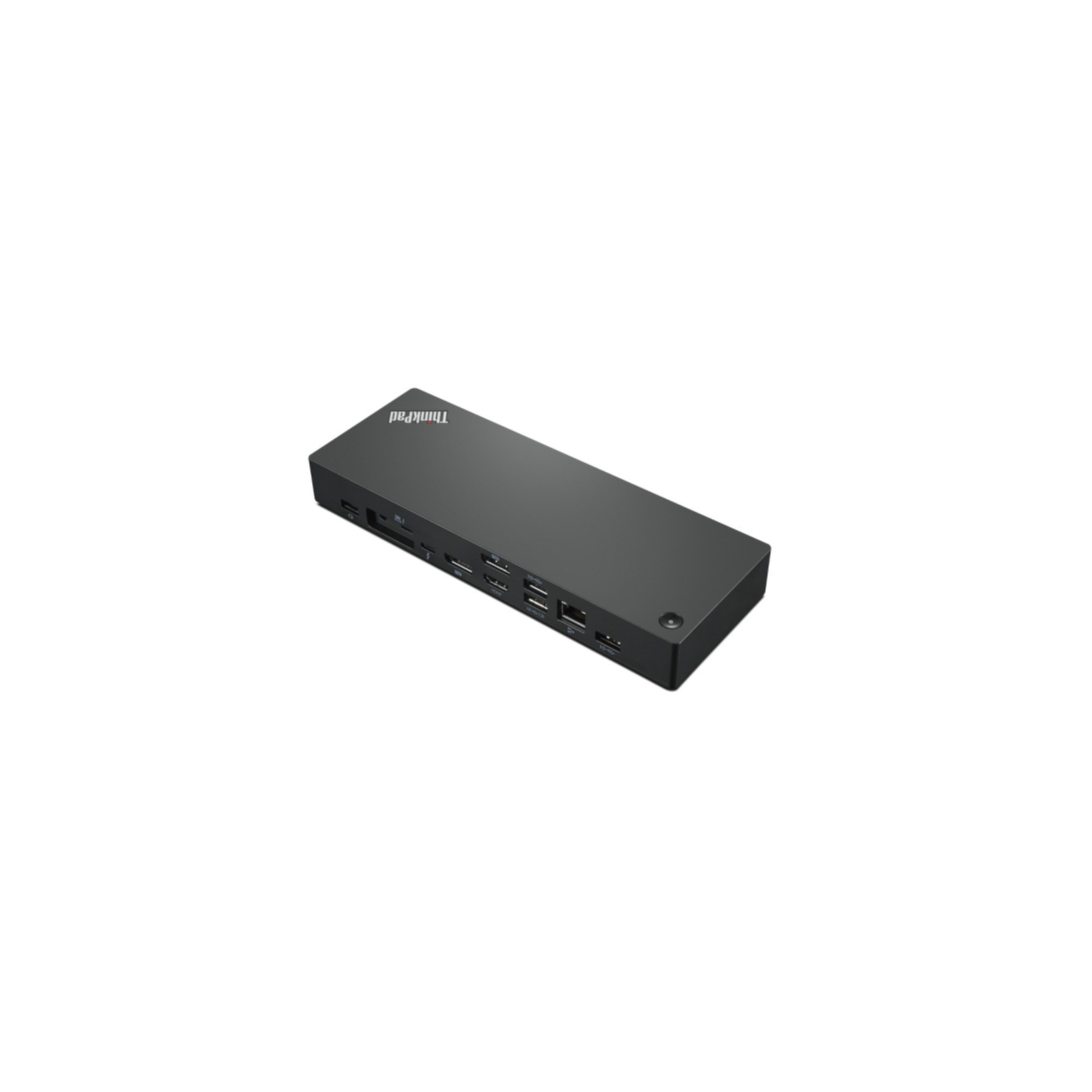

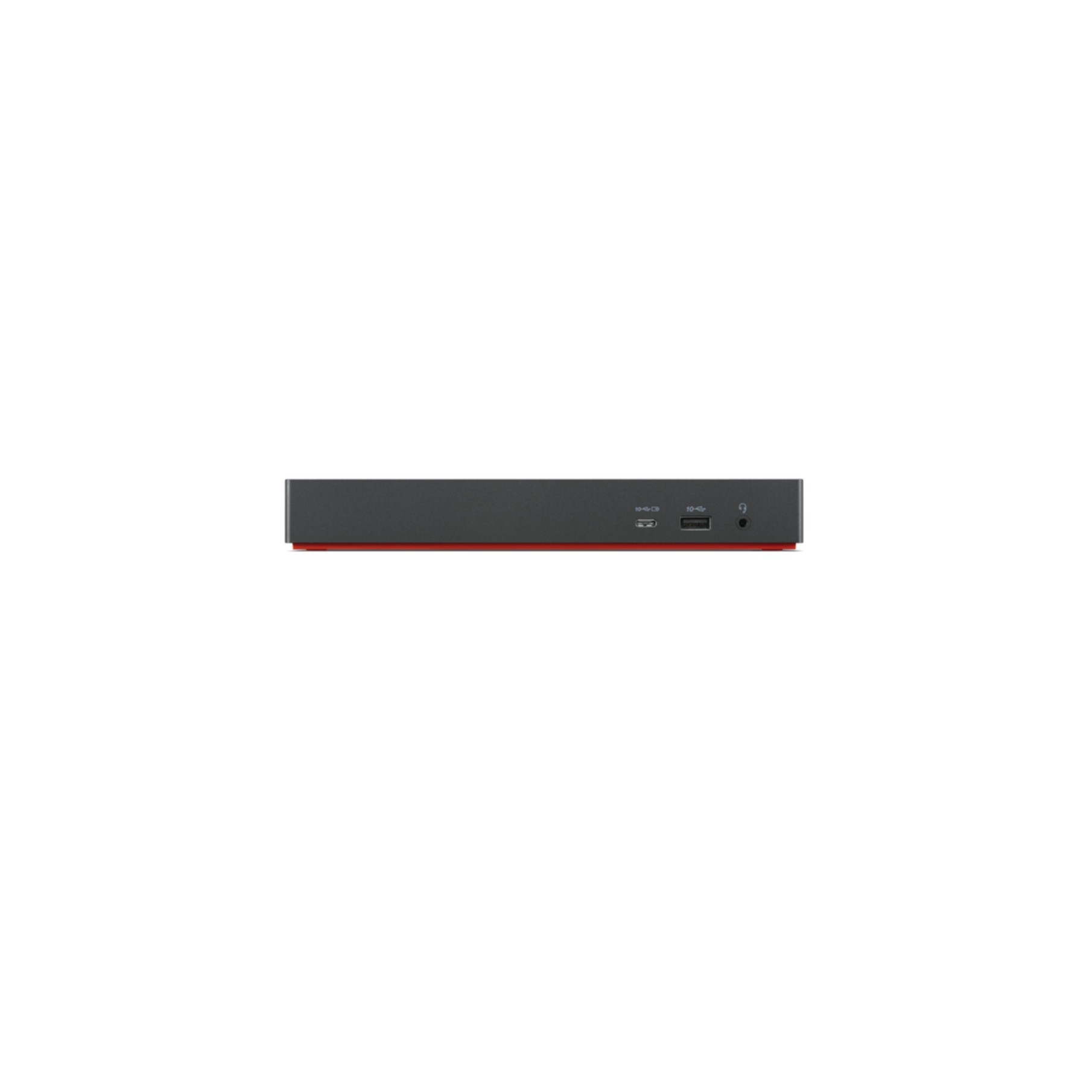

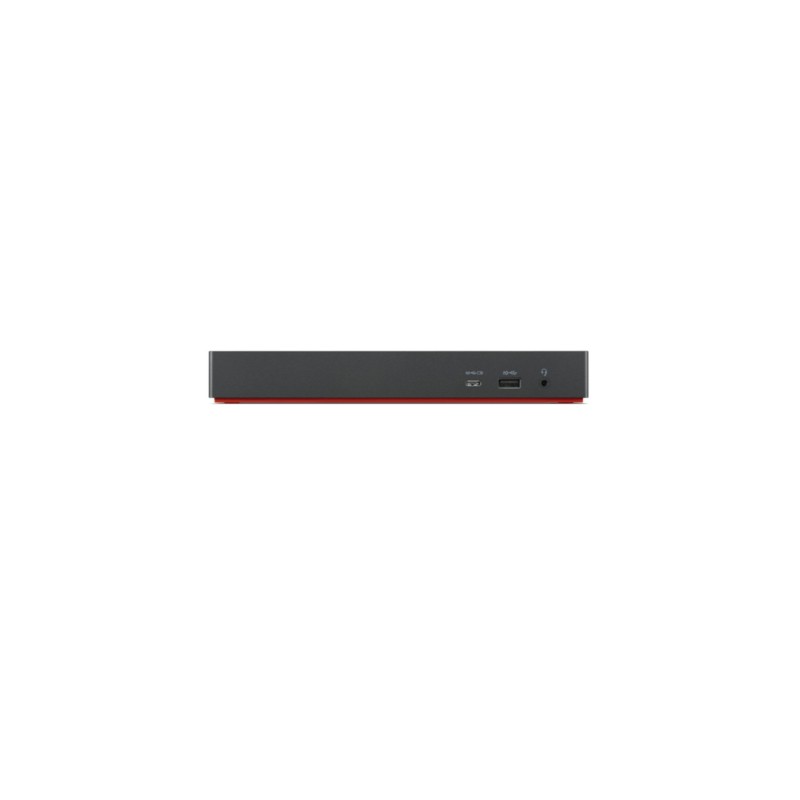

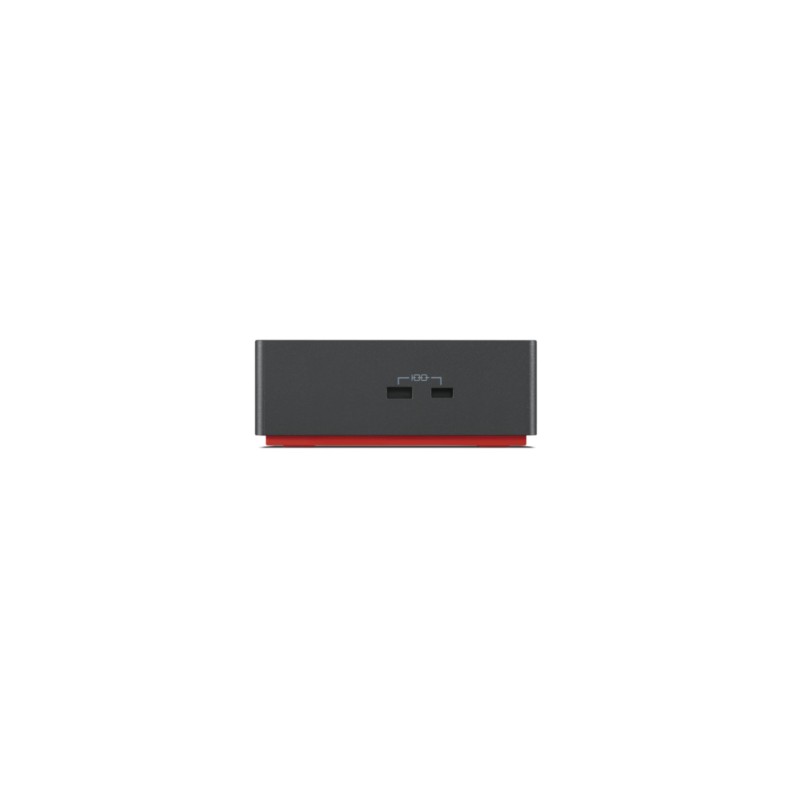

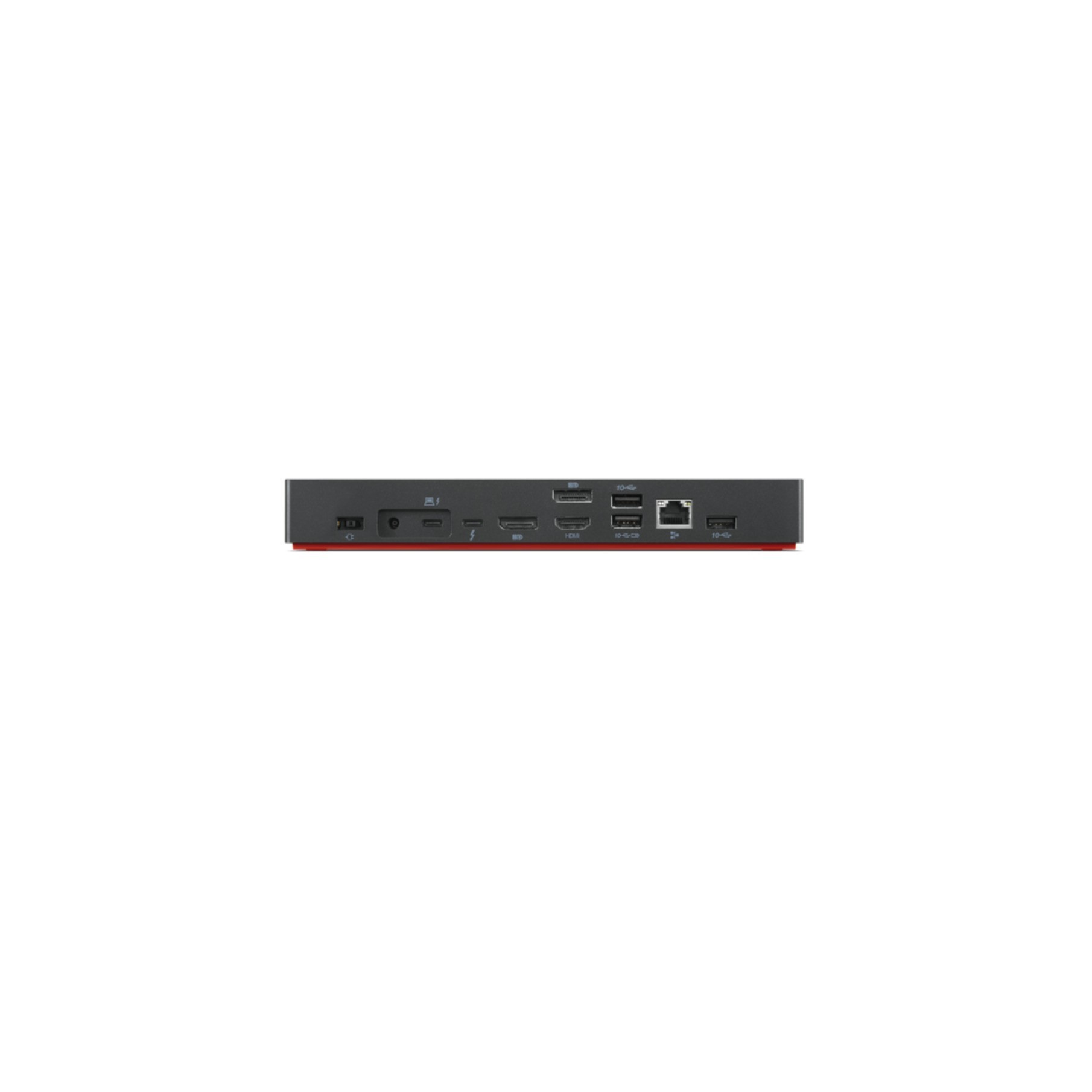

Lenovo ThinkPad Thunderbolt 4 Dock - 40B00300EU - HDMI 2.1, 2×DP1.4, TB4, 300W PSU, Black/Red
Thunderbolt 4 dock 40B00300EU — HDMI 2.1 & 2×DisplayPort 1.4, supports up to 8K (7680×4320) and 4 displays, Gigabit Ethernet, 4×USB-A, 1×USB-C, 230W PD, VESA & Kensington.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Docks & Hubs - Type | Thunderbolt 4 Dock |
|---|---|
| Docks & Hubs - Host Interface | Thunderbolt 4 |
| Docks & Hubs - Video Outputs | HDMI + DP |
| Docks & Hubs - Max Displays | 4 |
| Docks & Hubs - Ethernet | 1GbE |
| Docks & Hubs - USB Ports | USB-A + USB-C |
| Docks & Hubs - Card Reader | None |
| Docks & Hubs - Audio Jack | Yes |
| Docks & Hubs - OS Compatibility | Windows |
Premium Thunderbolt™ 4 Docking Experience: ThinkPad Thunderbolt 4 Workstation Dock delivers reliable and consistent industry leading video, data and power connectivity; Maximize Your Productivity: Expand your horizon with versatile 8K display support or multiple 4K displays support, Upto 230W Power Delivery to Workstation, silent firmware upgrades, VPro/AMT support and transfer data at lightning fast 40Gbps.; The ThinkPad Thunderbolt 4 Workstation Dock is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 230 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Thunderbolt 4 ports quantity | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Card reader integrated | No |
| Data transfer rate | 40 Gbit/s |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 pixels |
| Number of displays supported | 4 |
| Maximum refresh rate | 30 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product colour | Black, Red |
| LED indicators | Yes |
| Certification | cULus, FCC, ICES, NOM |
| Built-in speaker(s) | No |
| Power supply | 300 W |
| Output voltage | 20 V |
| Output current | 15 A |
| Power consumption (max) | 230 W |
| Windows operating systems supported | Windows 10 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 220 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 450 g |
| Quantity per pack | 1 pc(s) |
| Package width | 270 mm |
| Package depth | 195 mm |
| Package height | 85 mm |
| Package weight | 1.9 kg |
| Warranty card | Yes |
| Cables included | AC |
| AC adapter included | Yes |
| Harmonized System (HS) code | 84733020 |
