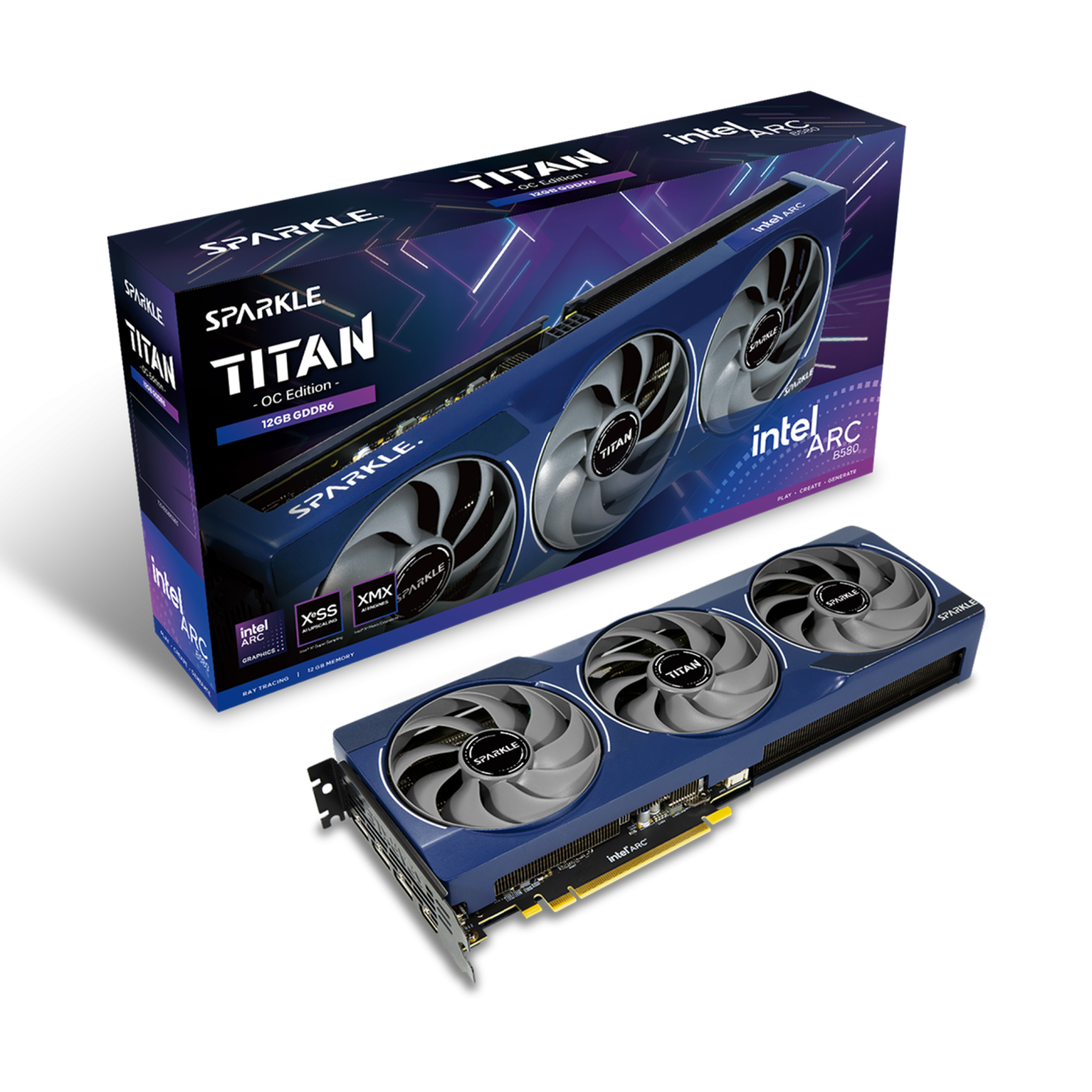

SPARKLE Intel Arc B580 TITAN OC - 12GB GDDR6, 2740 MHz, PCIe 4.0 x8 (Boxed)
Intel Arc B580 TITAN OC GPU: 12GB GDDR6, 2740 MHz boost clock, TORN 2.0 triple-fan cooler, metal backplate. Supports 8K@120Hz, ray tracing, XeSS AI upscaling. PCIe 4.0 x8, 1xHDMI 2.1, 3xDP 2.1.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | Intel Arc |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 12 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Extended (301-320 mm) |

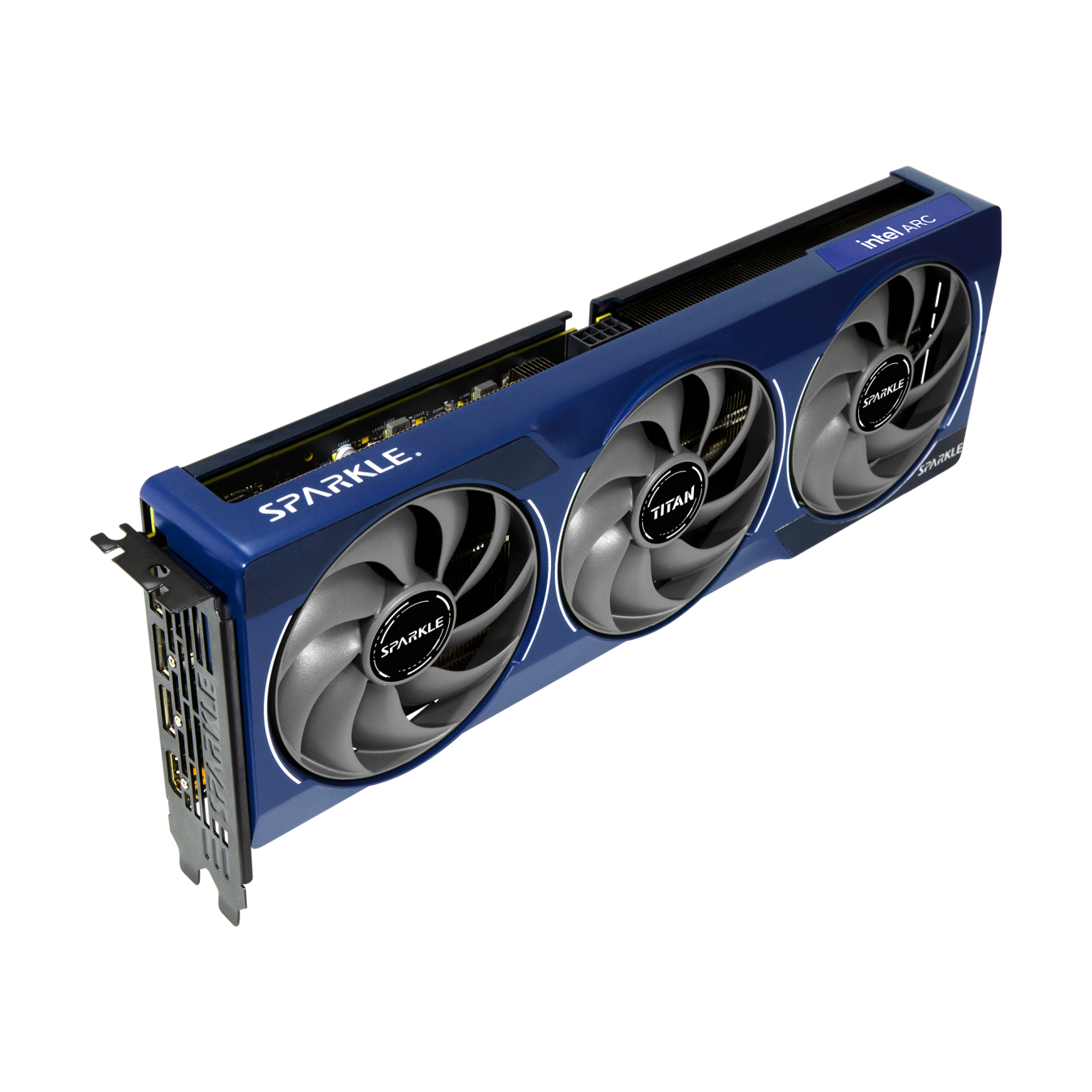

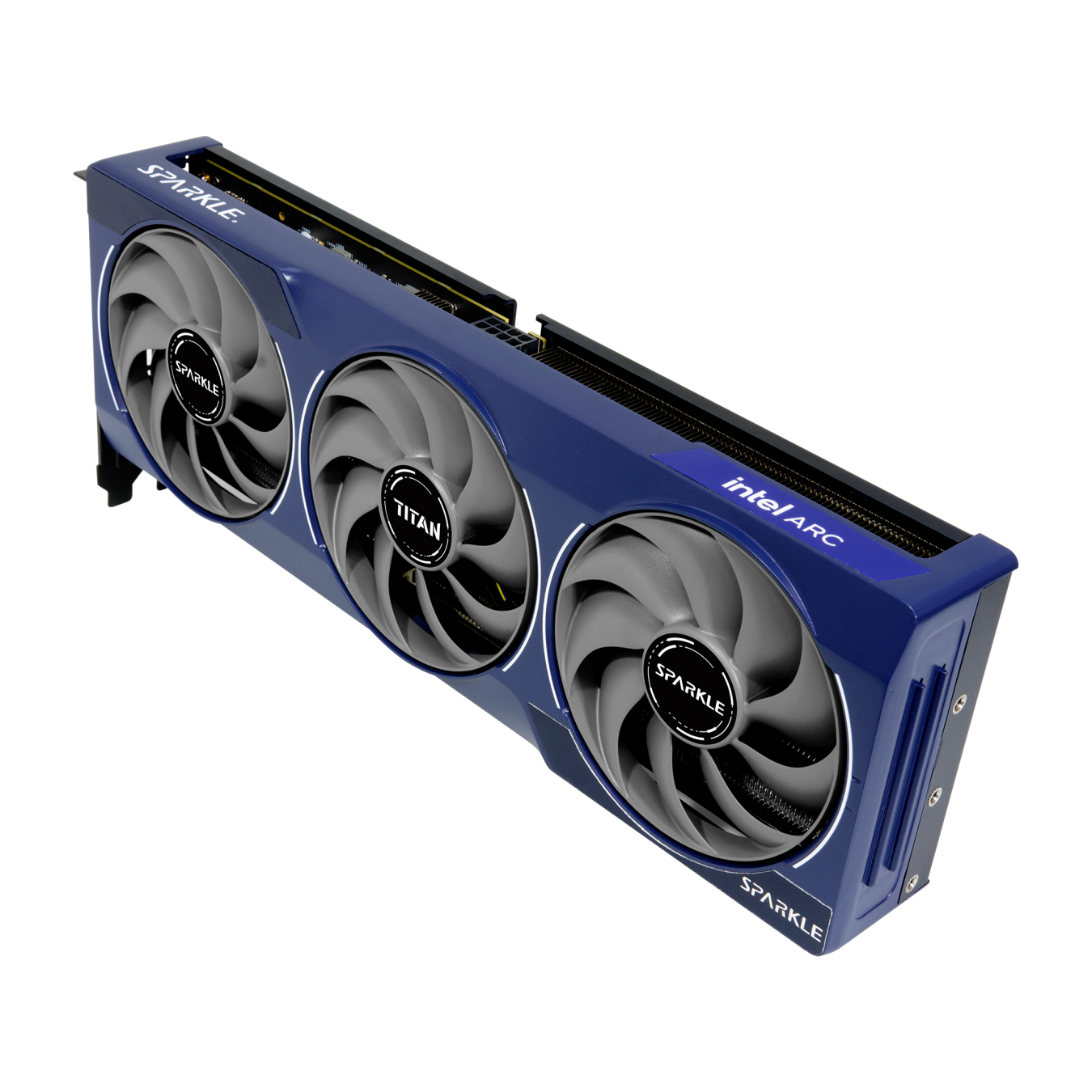

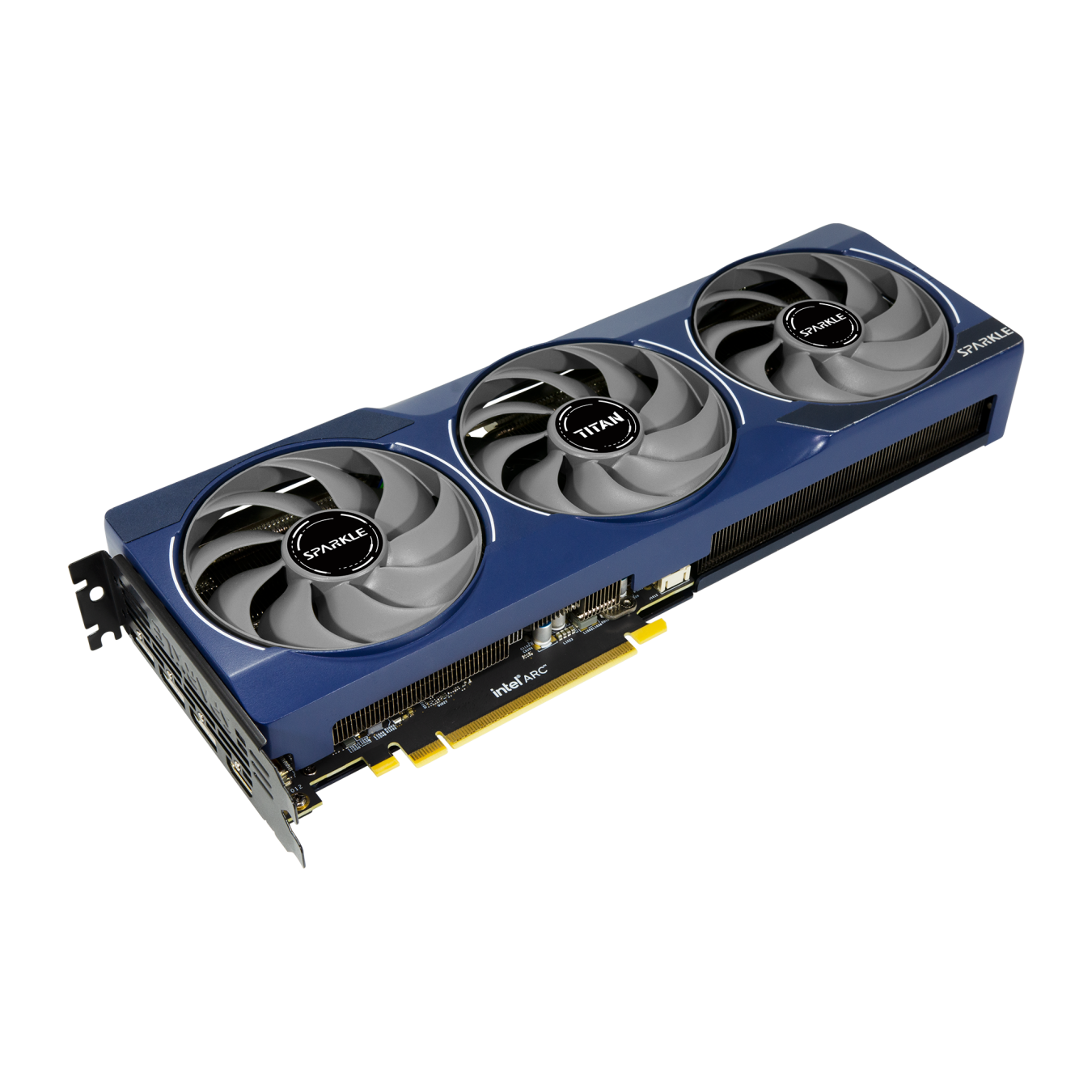

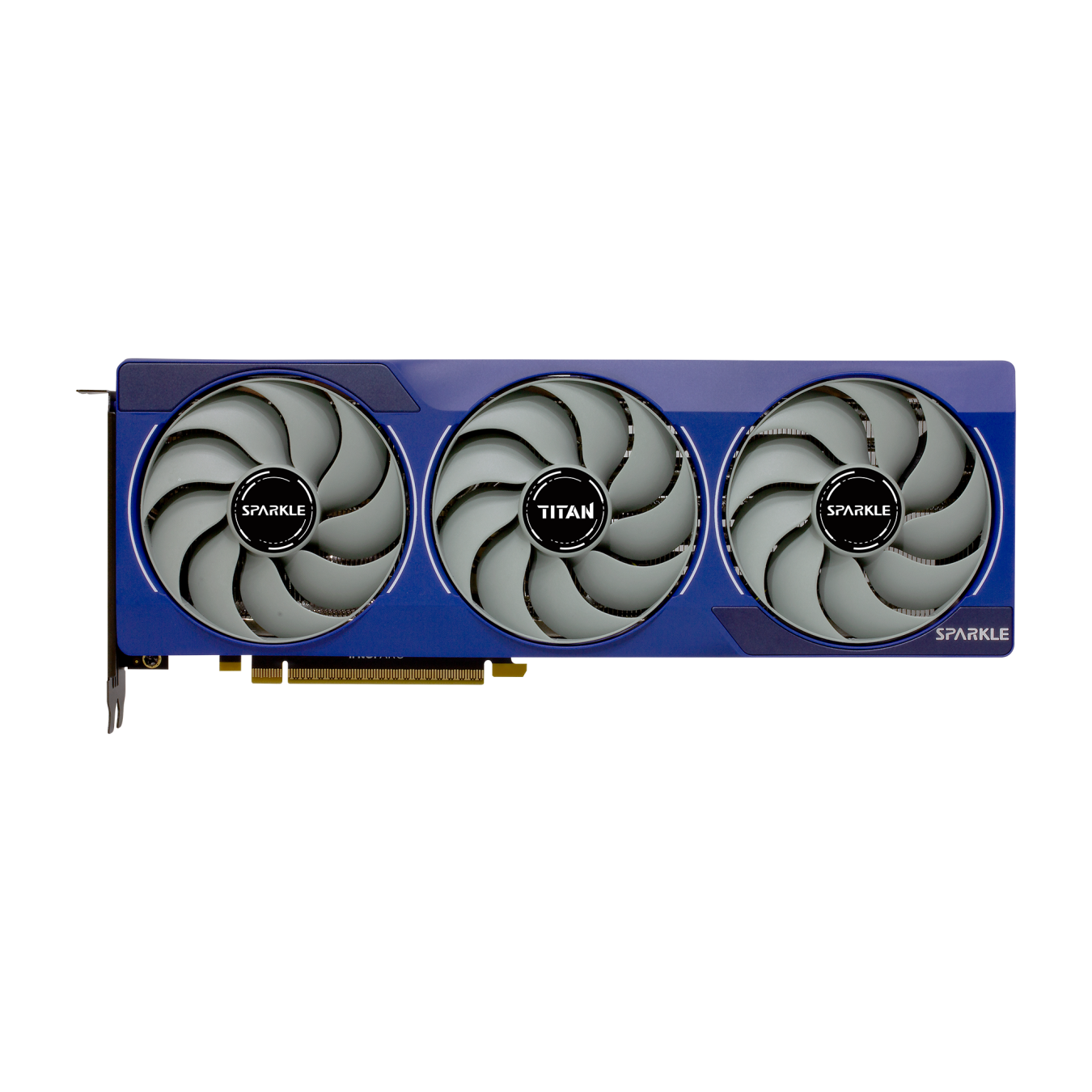

The SPARKLE Intel Arc B580 TITAN OC is a high-performance graphics card featuring the Intel Battlemage architecture with 20 Xe-Cores, 20 Ray Tracing units, and 160 XMX AI engines. Factory overclocked to a 2740 MHz boost clock, it delivers excellent 1440p and capable 4K gaming with support for ray tracing, Intel XeSS AI upscaling, and up to 8K@120Hz HDR resolution.

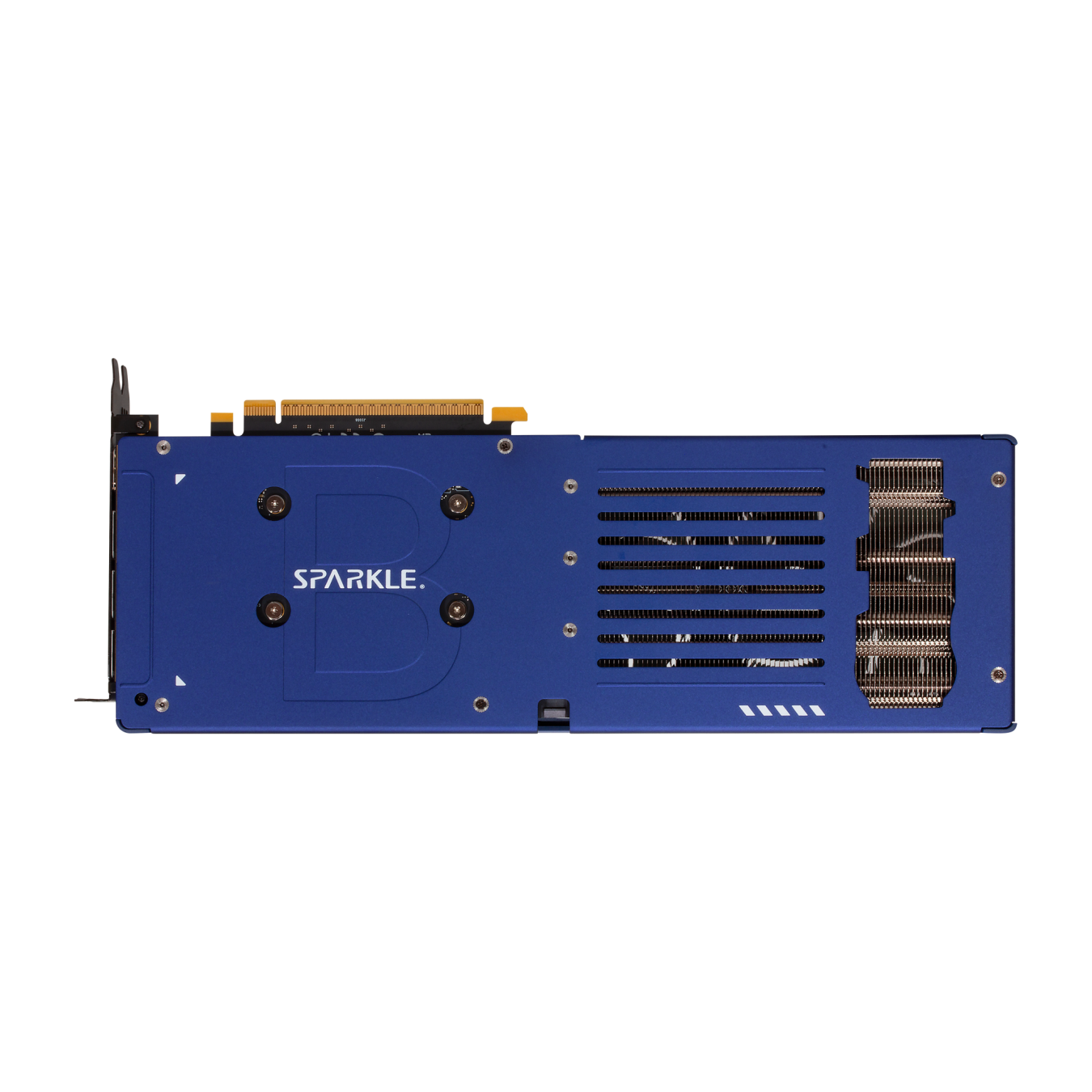

Equipped with 12GB GDDR6 memory on a 192-bit bus (456 GB/s bandwidth), the card uses PCIe 4.0 x8 interface and requires a single 8-pin power connector with a 600W PSU recommended. The TORN Cooling 2.0 system with triple axial fans, 2.2-slot design, breathing blue LED lights, and full-metal backplate ensures efficient cooling and durability. Dimensions: 315 x 117 x 44 mm, weight 954g (card only).
- ✅ 12GB GDDR6, 19 Gbps, 192-bit, 456 GB/s bandwidth

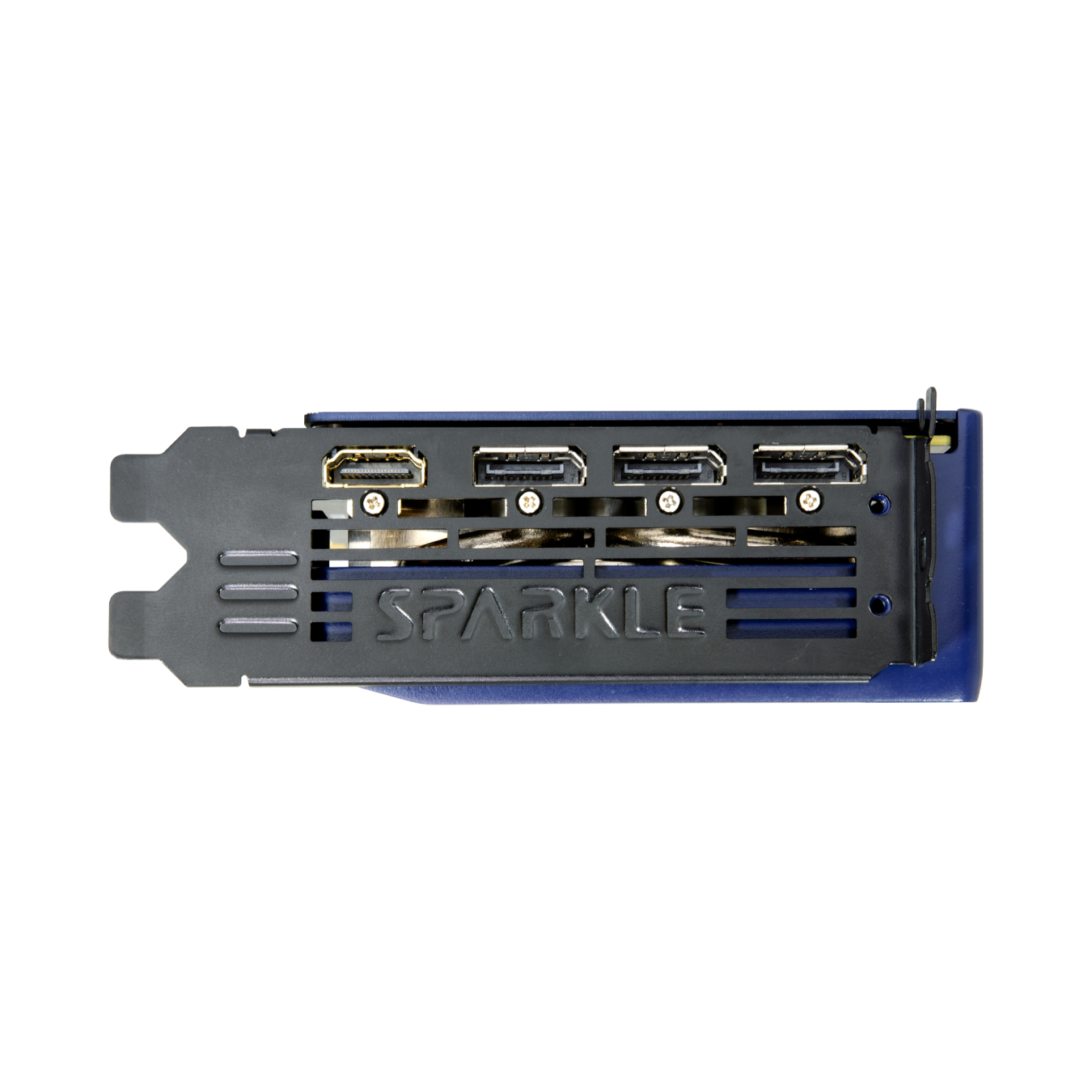

- ✅ Outputs: 1x HDMI 2.1, 3x DisplayPort 2.1
- ✅ Power: 1x 8-pin PCIe, TBP 200W

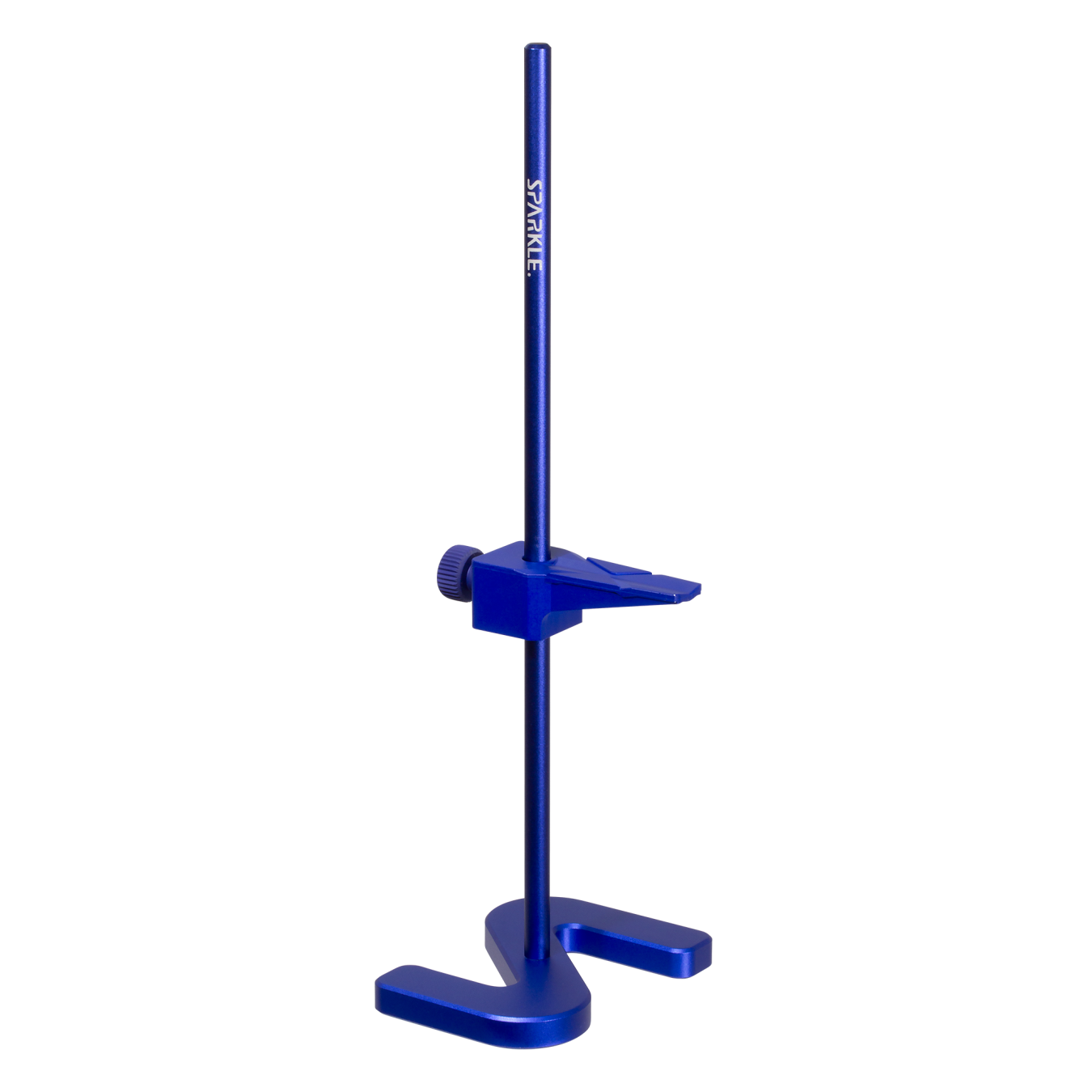

- ✅ Cooler: Triple AXL fans, metal backplate, GPU holder
- ✅ Features: XeSS, AV1 encode/decode, Resizable BAR required
| GPU Model | Intel Arc B580 |
| Boost Clock | 2740 MHz |
| Xe-Cores | 20 |
| Ray Tracing Units | 20 |
| Intel XMX Engines | 160 |
| VRAM Capacity | 12GB GDDR6 |
| Memory Interface | 192-bit |
| Memory Bandwidth | 456 GB/s |
| Memory Speed | 19 Gbps |
| PCIe Interface | PCIe 4.0 x8 |
| Outputs | 1x HDMI 2.1, 3x DisplayPort 2.1 |
| Power Connector | 1x 8-pin PCIe |
| TBP | 200 Watt |
| Recommended PSU | 600W |
| Cooler | TORN Cooling 2.0, Triple Fan, 2.2-slot |
| Backplate | Metal |
| Dimensions (Card) | 315 x 117 x 44 mm |
| Weight (Card) | 954 g |
| MPN | SB580T-12GOC |
