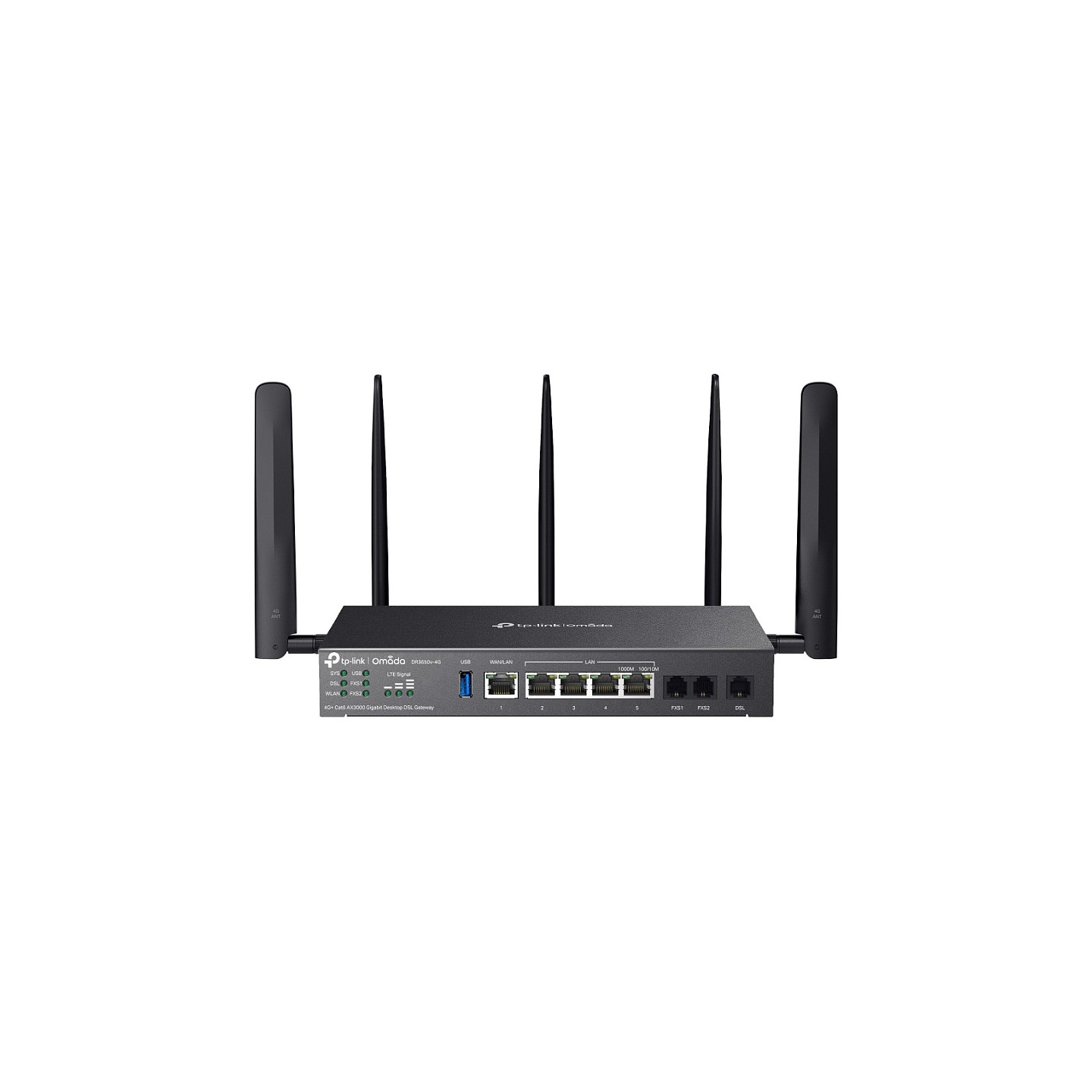

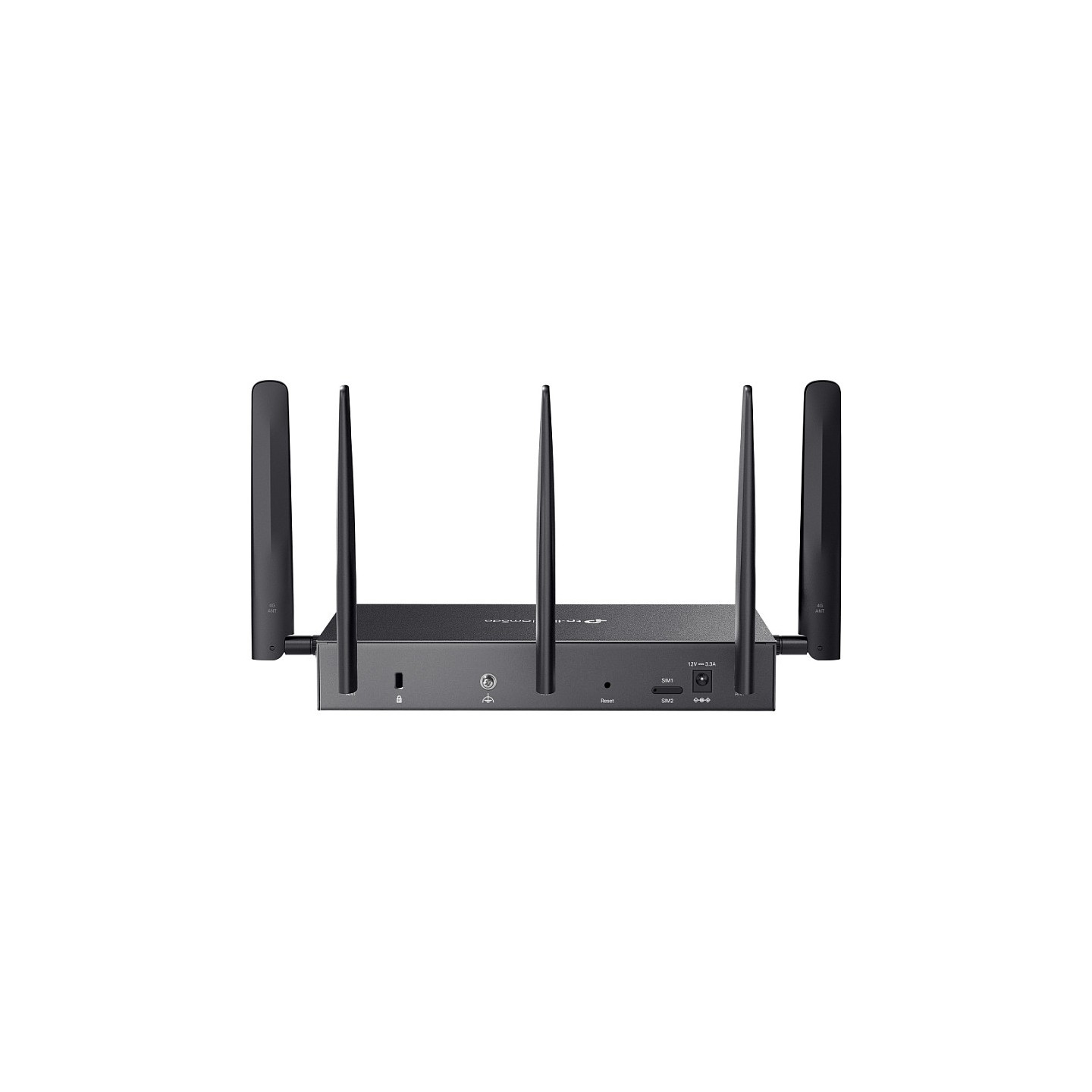

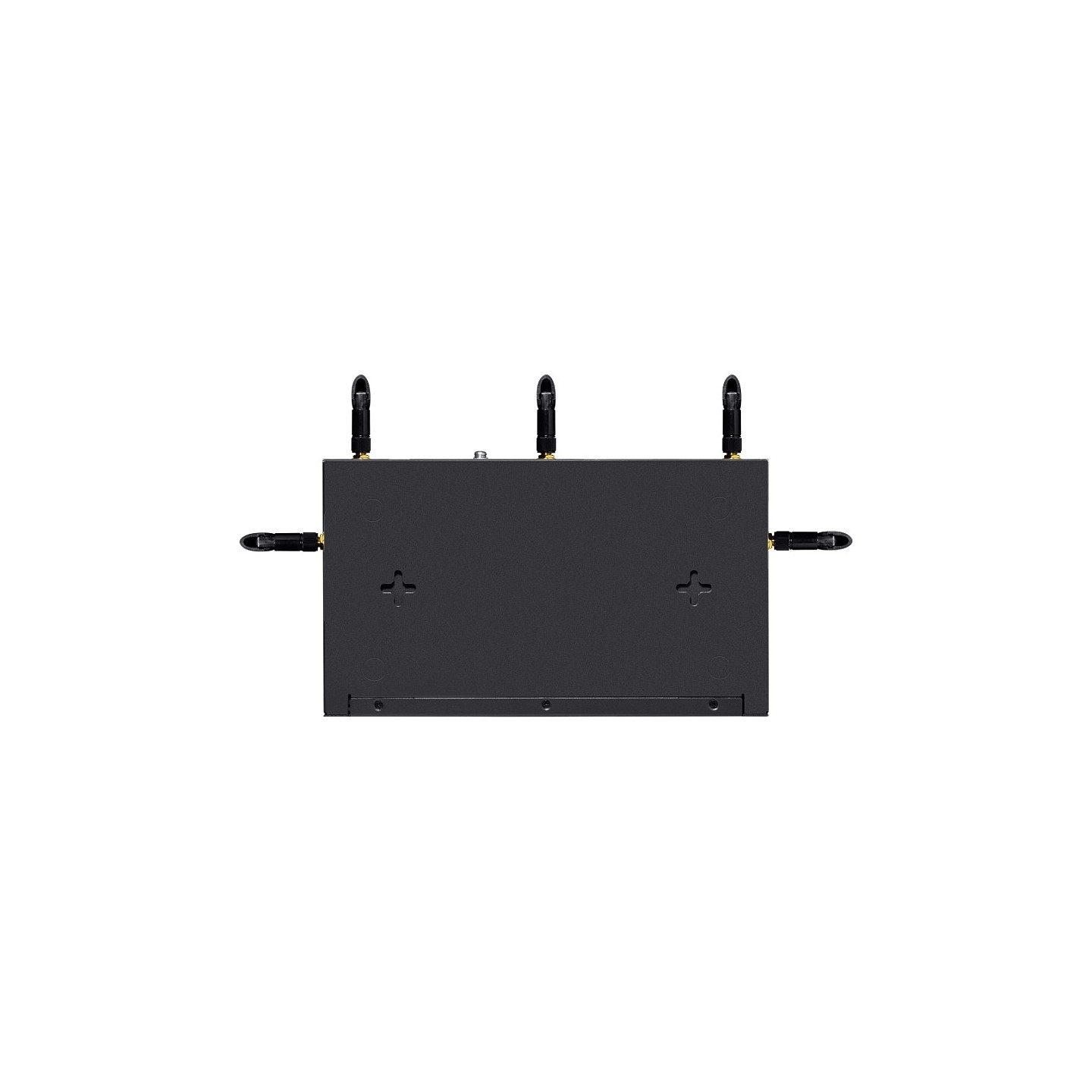

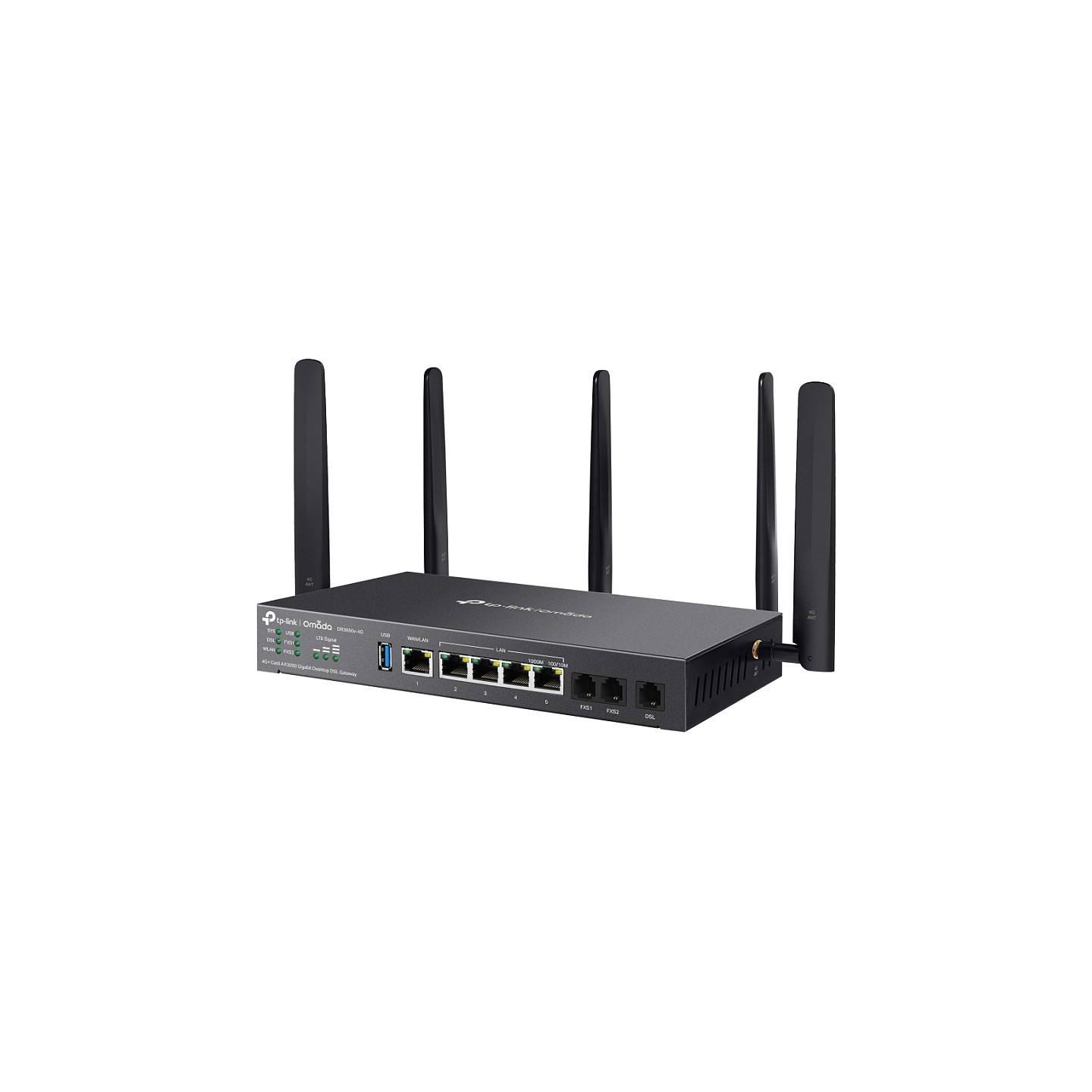

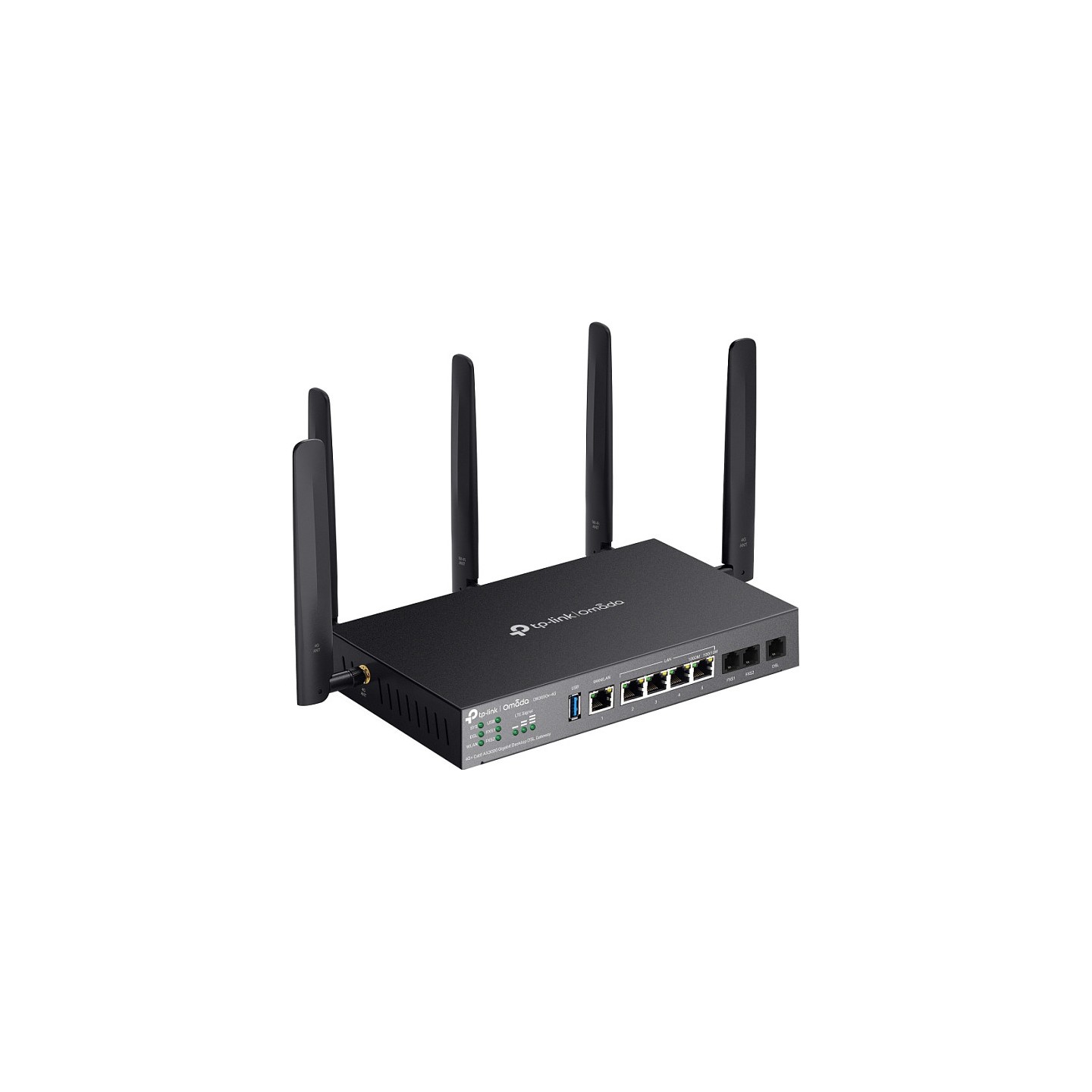

Omada DR3650v-4G AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
TP-Link Omada DR3650V-4G. Dual-Band (2.4 GHz/5 GHz). Ethernet/LAN. ADSL. ADSL2. Schwarz. Tabletop-Router
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
TP-Link Omada DR3650V-4G. WAN-Verbindungstyp: RJ-45. WLAN-Band: Dual-Band (2.4 GHz/5 GHz). WLAN Datentransferrate (max.): 2402 Mbit/s. WLAN-Standards: 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax). Schnittstellentyp Ethernet-LAN: Gigabit Ethernet. Ethernet LAN Datentransferraten: 10.100.1000 Mbit/s. Verkabelungstechnologie: 10/100/1000Base-T(X). Unterstützte Sicherheitsalgorithmen: WPA-Enterprise. WPA-Personal. WPA2-Enterprise. WPA2-Personal. WPA3-Enterprise. WPA3-Personal. NAT Funktionalität: One-to-One NAT Multi-Net NAT Virtual Server Port Triggering1 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG.... Sprachcodec: G.711a. G.711ulaw. G.722. G.726. G.729ab
| Feature | Entfernbare Antennen |
| WAN-Verbindungstyp | RJ-45 |
| WLAN-Band | Dual-Band (2.4 GHz/5 GHz) |
| WLAN Datentransferrate (max.) | 2402 Mbit/s |
| WLAN-Standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax) |
| WLAN-Datenübertragungsrate (erstes Band) | 574 Mbit/s |
| WLAN-Datenübertragungsrate (zweites Band) | 2402 Mbit/s |
| Schnittstellentyp Ethernet-LAN | Gigabit Ethernet |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Verkabelungstechnologie | 10/100/1000Base-T(X) |
| Netzstandard | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11ax. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. IEEE 802.1Q. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x |
| VPN Unterstützung | IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |
| RJ-11 ports Quantität | 3 |
| Unterstützte Sicherheitsalgorithmen | WPA-Enterprise. WPA-Personal. WPA2-Enterprise. WPA2-Personal. WPA3-Enterprise. WPA3-Personal |
| NAT Funktionalität | One-to-One NATMulti-Net NATVirtual ServerPort Triggering1NAT-DMZFTP/H.323/SIP/IPSec/PPTP ALGUPnP |
| Sprachcodec | G.711a. G.711ulaw. G.722. G.726. G.729ab |
| Produktfarbe | Schwarz |
| LED-Anzeigen | DSL. LAN. USB. WLAN |
| Produkttyp | Tabletop-Router |
| Mitgelieferte Kabel | LAN (RJ-45). Telefon |
| Antennen-Design | Extern |
| Antenne Zunahmeniveau (max) | 4.5 dBi |
| Anzahl der Antennen | 5 |
| Speicherkapazität | 512 MB |
| Interner Speichertyp | DDR4 |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 671034 h |
| Energiequelle | AC |
| Ausgangsspannung | 12 V |
| Ausgangsstrom | 3.3 A |
| Betriebstemperatur | 0 - 40 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Breite | 226 mm |
| Tiefe | 131.2 mm |
| Höhe | 35 mm |
