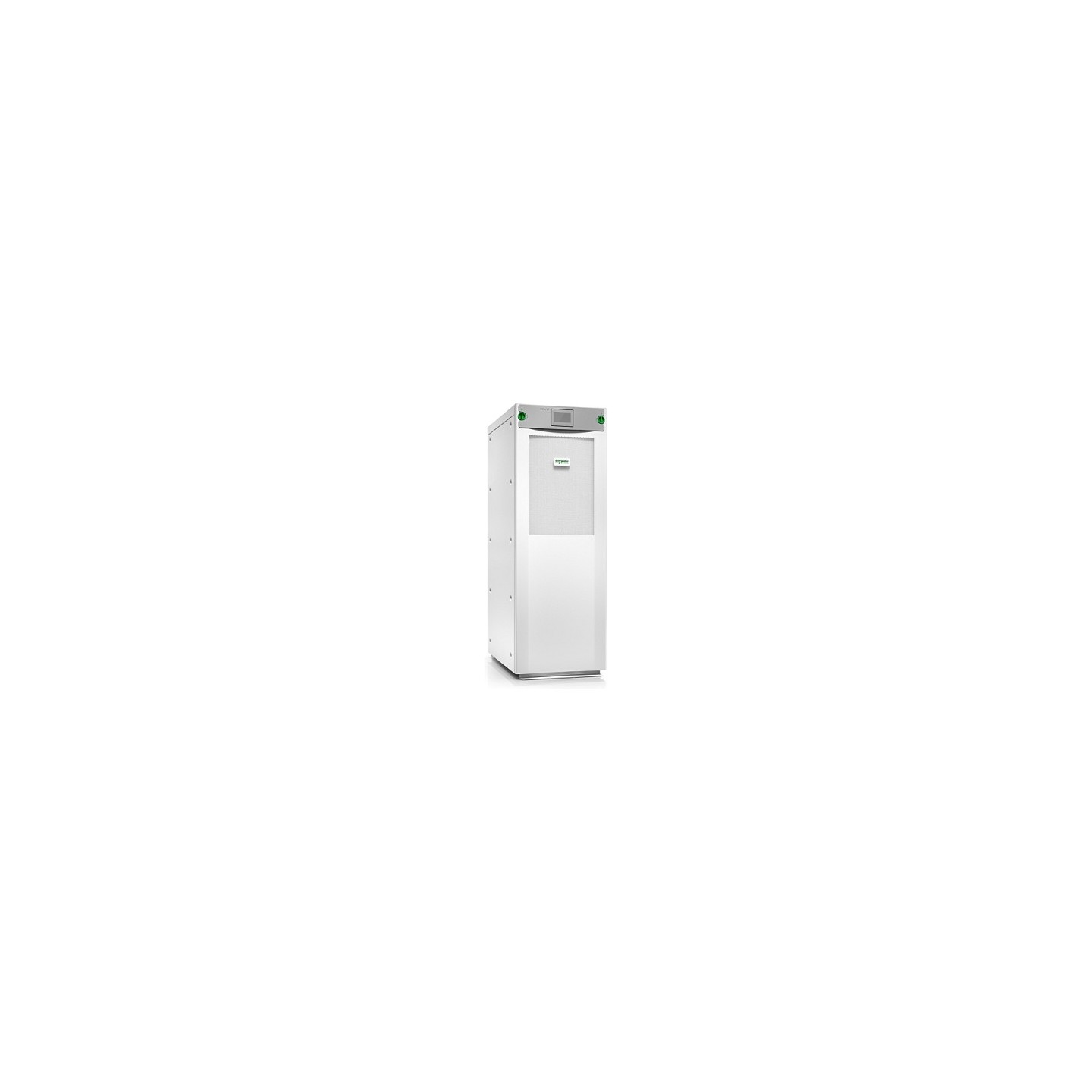

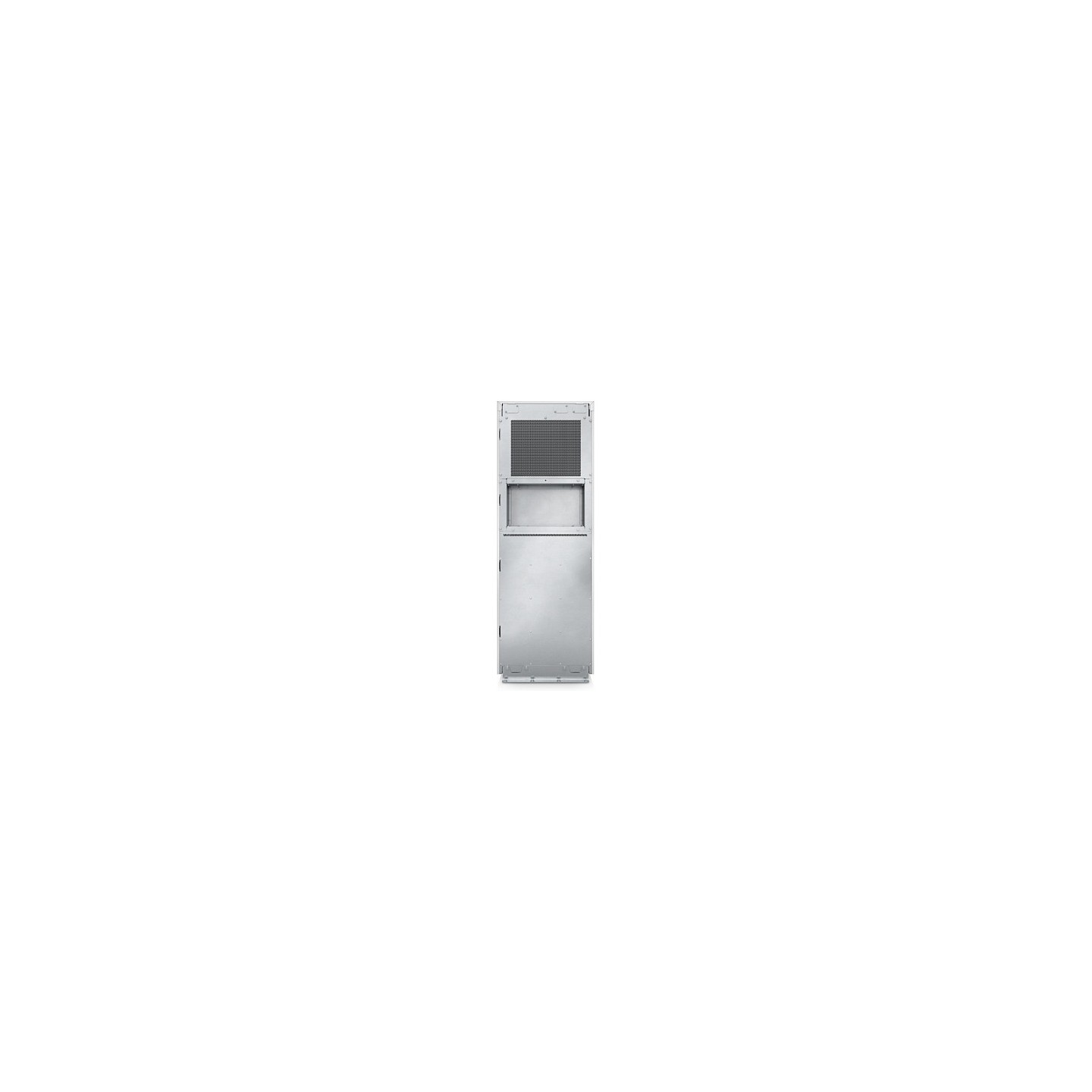

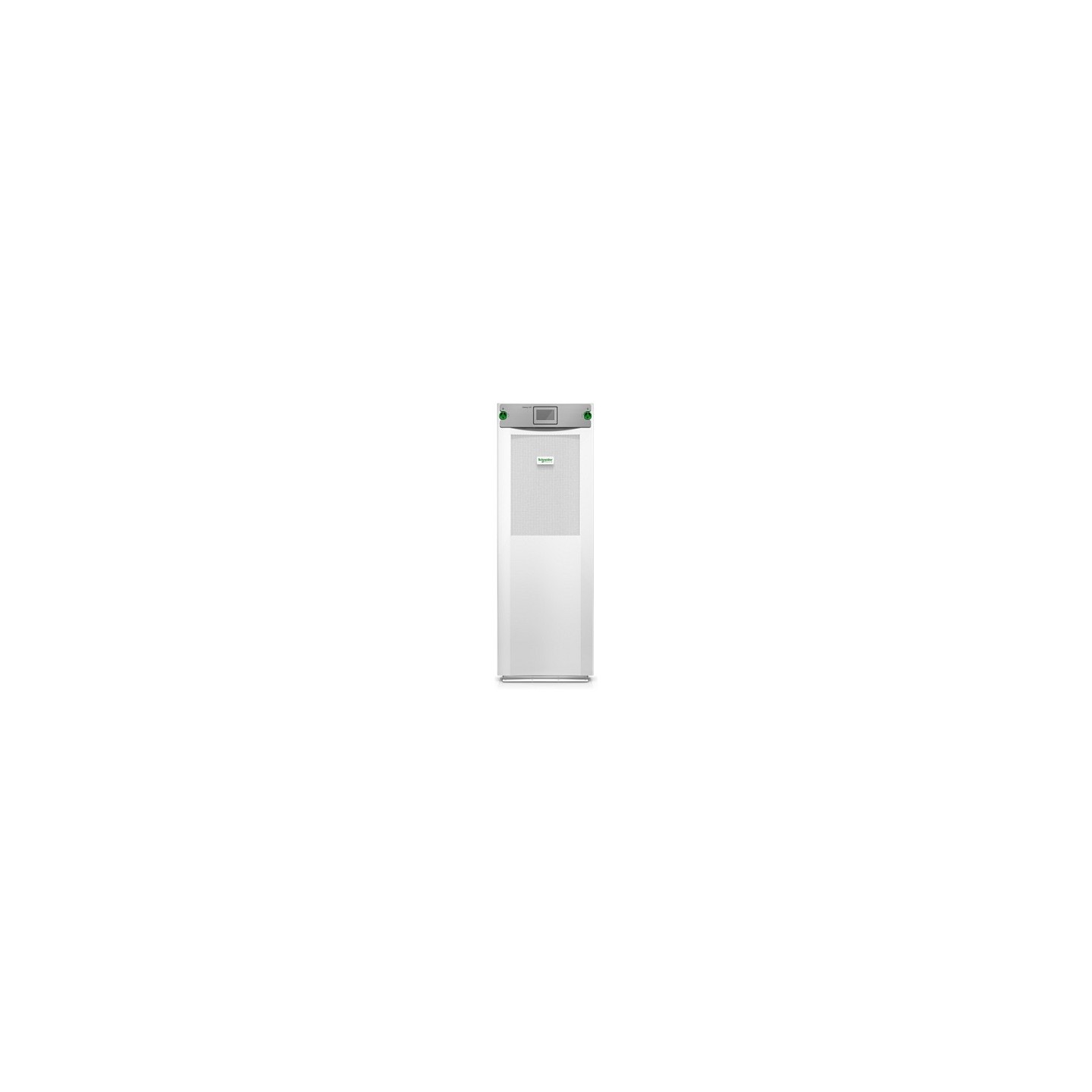

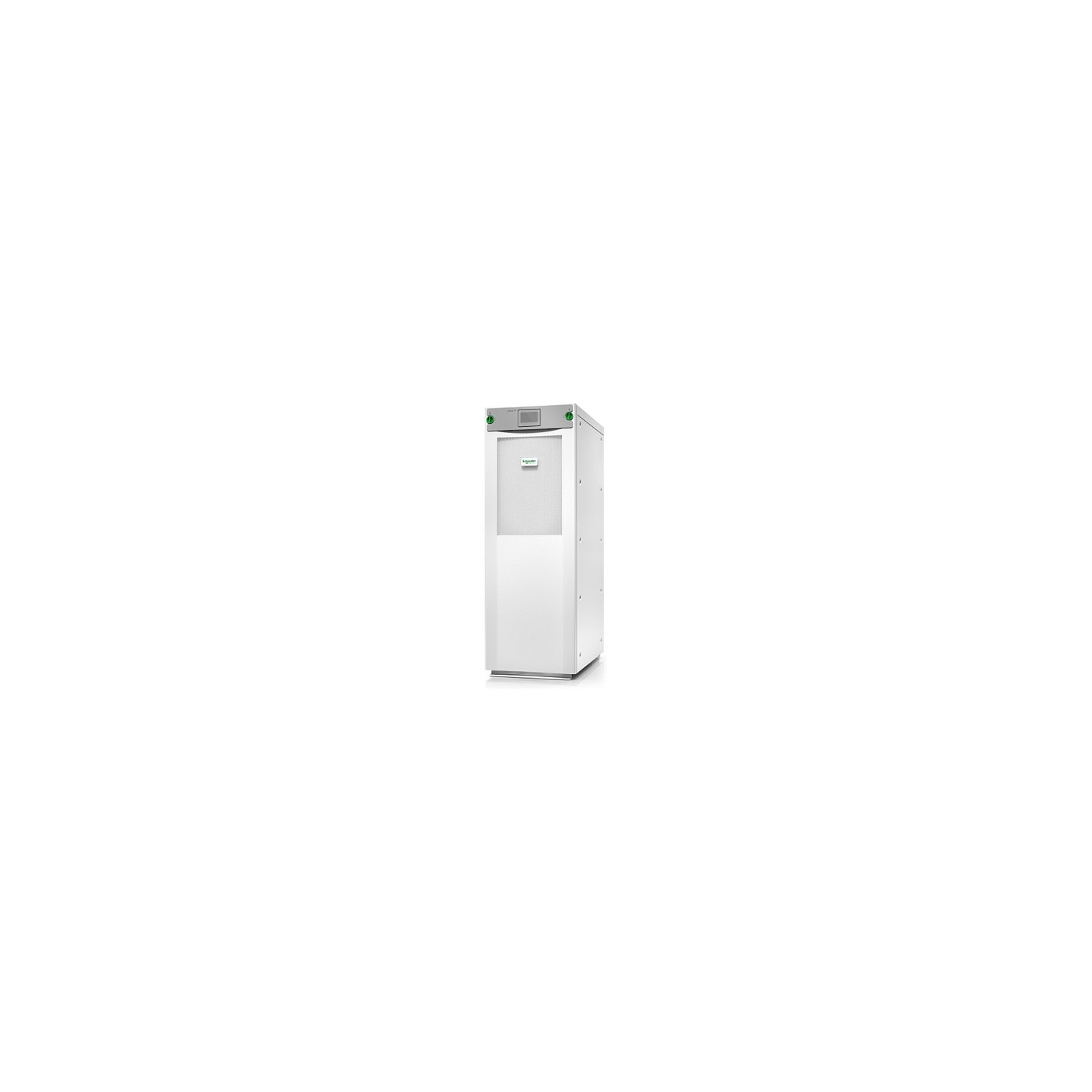

APC Galaxy VS USV 30kW 400V
APC Galaxy VS USV. 30 kW. 400 V für bis zu 4 interne intelligente modulare Batteriestränge mit 9 Ah. Start-up 5 x 8. Doppelwandler (Online). 30 kVA. 30000 W. Sine. 340 V. 460 V
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
APC Galaxy VS USV. 30 kW. 400 V für bis zu 4 interne intelligente modulare Batteriestränge mit 9 Ah. Start-up 5 x 8. USV-Topologie: Doppelwandler (Online). Ausgangskapazität: 30 kVA. Ausgangsleistung: 30000 W. AC-Steckertypen: Hard Wire 5-wire (3P + N + E). Akku-/Batterietechnologie: Plombierte Bleisäure (VRLA). Akku-/Batteriespannung: 480 V. Formfaktor: Tower. Produktfarbe: Weiß. Display-Typ: LCD. Zertifizierung: IEC 62040-1-1. IEC 62040-2. OSHPD
| USV-Topologie | Doppelwandler (Online) |
| Ausgangskapazität | 30 kVA |
| Ausgangsleistung | 30000 W |
| Wellenform | Sine |
| Eingangs-Betriebsspannung (min) | 340 V |
| Eingangs-Betriebsspannung (max) | 460 V |
| Eingangsfrequenz | 40/70 Hz |
| Ausgangs-Betriebsspannung (min) | 380 V |
| Ausgangs-Betriebsspannung (max) | 415 V |
| Output Frequenz | 50/60 Hz |
| Regulierung der Ausgangsspannung | 1% |
| Stromstärke (maximal) | 54 A |
| Anzahl der Eingangs-Phasen | 3 |
| Anzahl der Ausgangs-Phasen | 3 |
| Eingangs-Leistungsfaktor | 0.99 |
| Crest-Faktor | 2.5:1 |
| Feature | Betriebsanleitung |
| Ausgangsspannung Gesamtverzerrungsfaktor THD | 3% |
| Eingangsstrom Gesamtverzerrungsfaktor THD | 3% |
| Geräuschpegel | 65 dB |
| AC-Steckertypen | Hard Wire 5-wire (3P + N + E) |
| Akku-/Batterietechnologie | Plombierte Bleisäure (VRLA) |
| Akku-/Batteriespannung | 480 V |
| Formfaktor | Tower |
| Produktfarbe | Weiß |
| Display-Typ | LCD |
| Internationale Schutzart (IP-Code) | IP20 |
| Betriebstemperatur | 0 - 40 °C |
| Temperaturbereich bei Lagerung | -15 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Höhe bei Betrieb | 0 - 1005.8 m |
| Höhe bei Lagerung | 0 - 3048 m |
| Zertifizierung | IEC 62040-1-1. IEC 62040-2. OSHPD |
| Breite | 521 mm |
| Tiefe | 847 mm |
| Höhe | 1485 mm |
| Gewicht | 200 kg |
| Verpackungsbreite | 640 mm |
| Verpackungstiefe | 990 mm |
| Verpackungshöhe | 1680 mm |
| Paketgewicht | 200 kg |
| Warentarifnummer (HS) | 85078000 |
