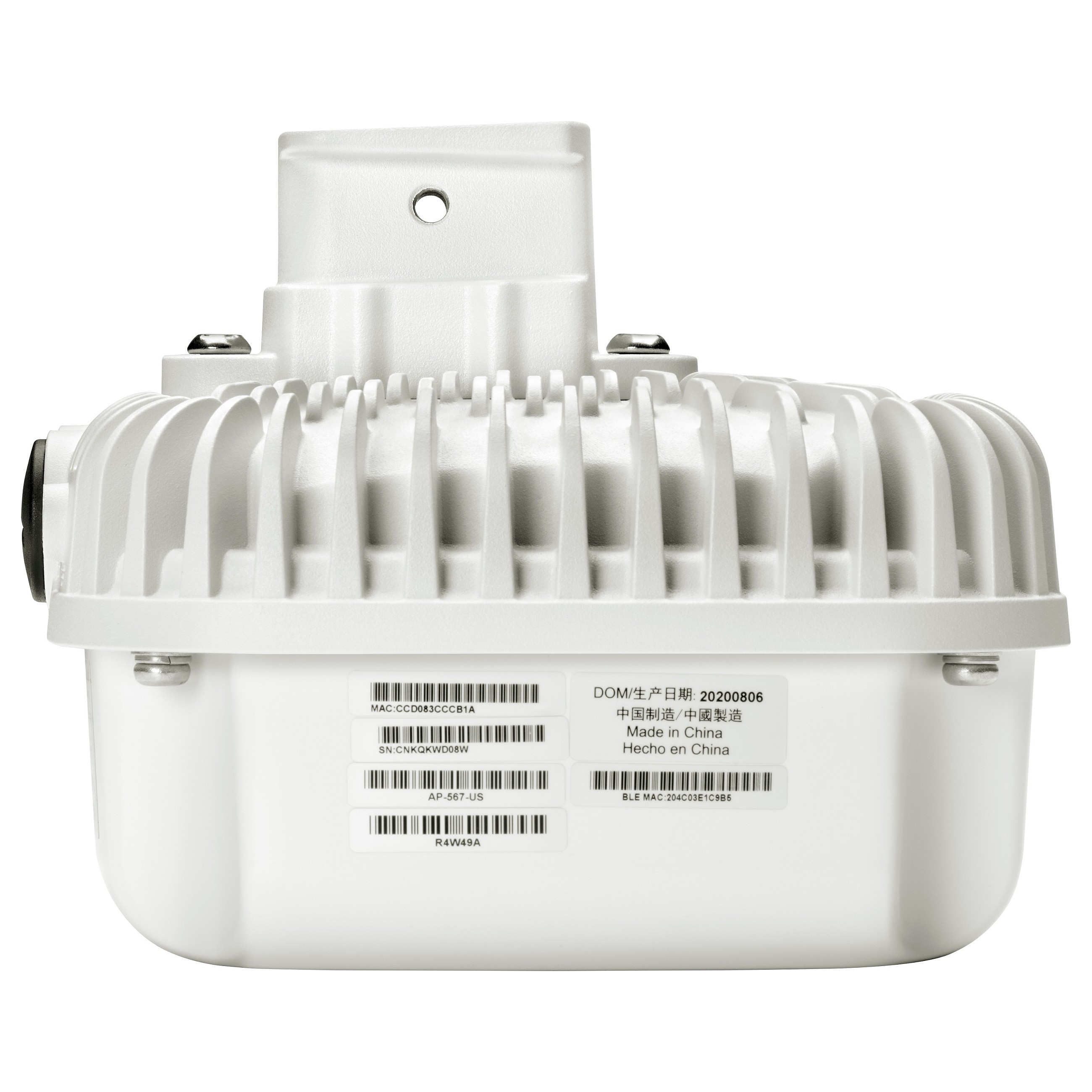

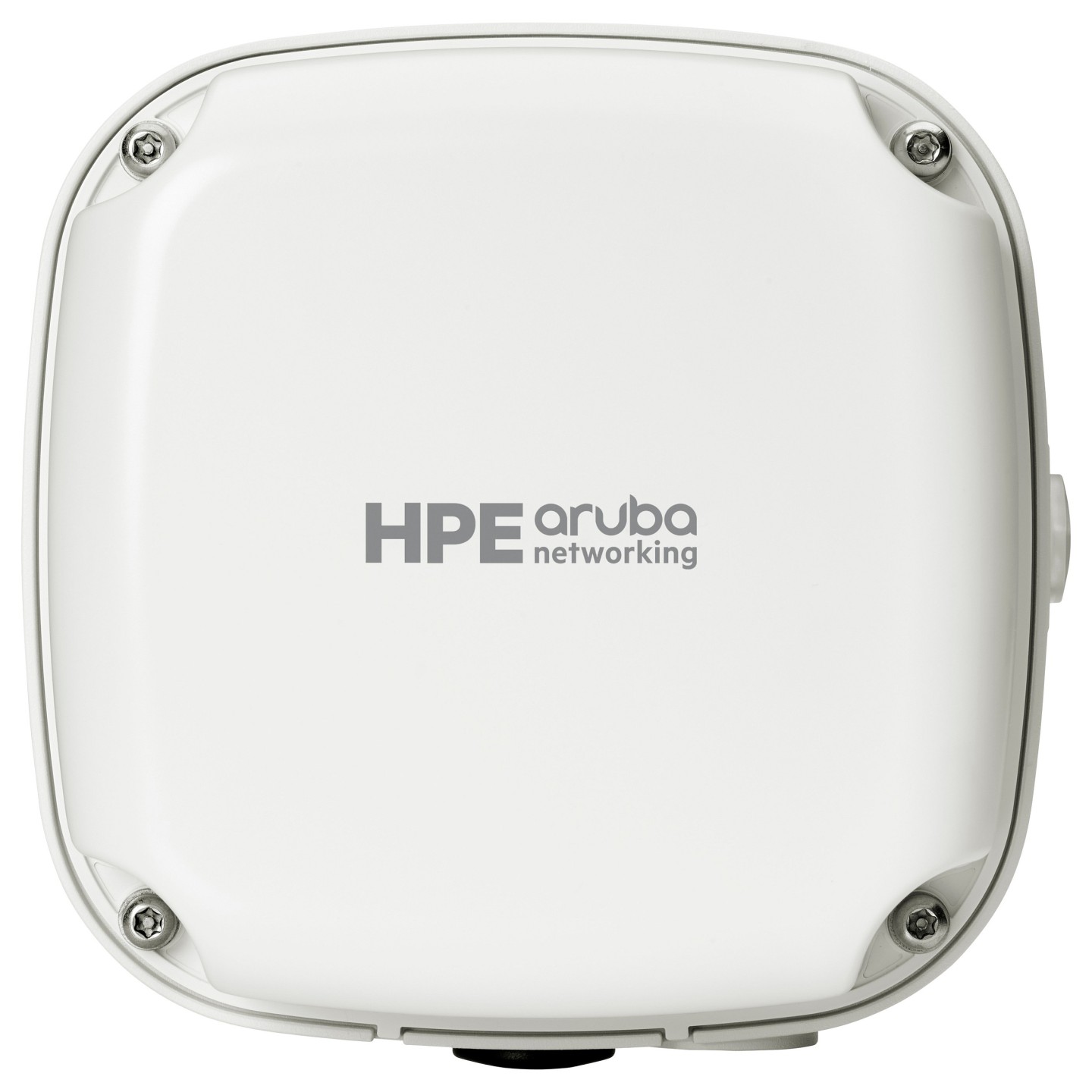

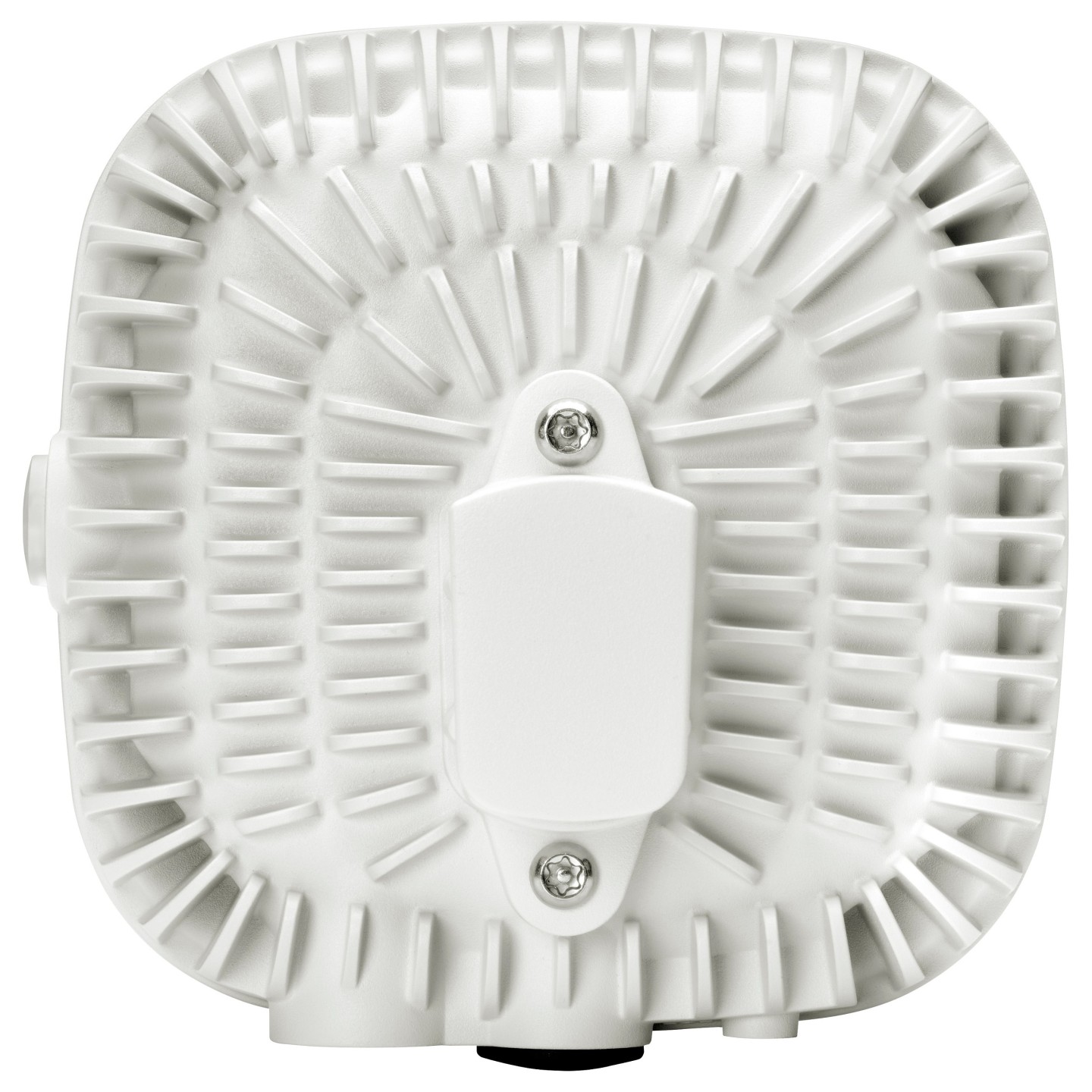

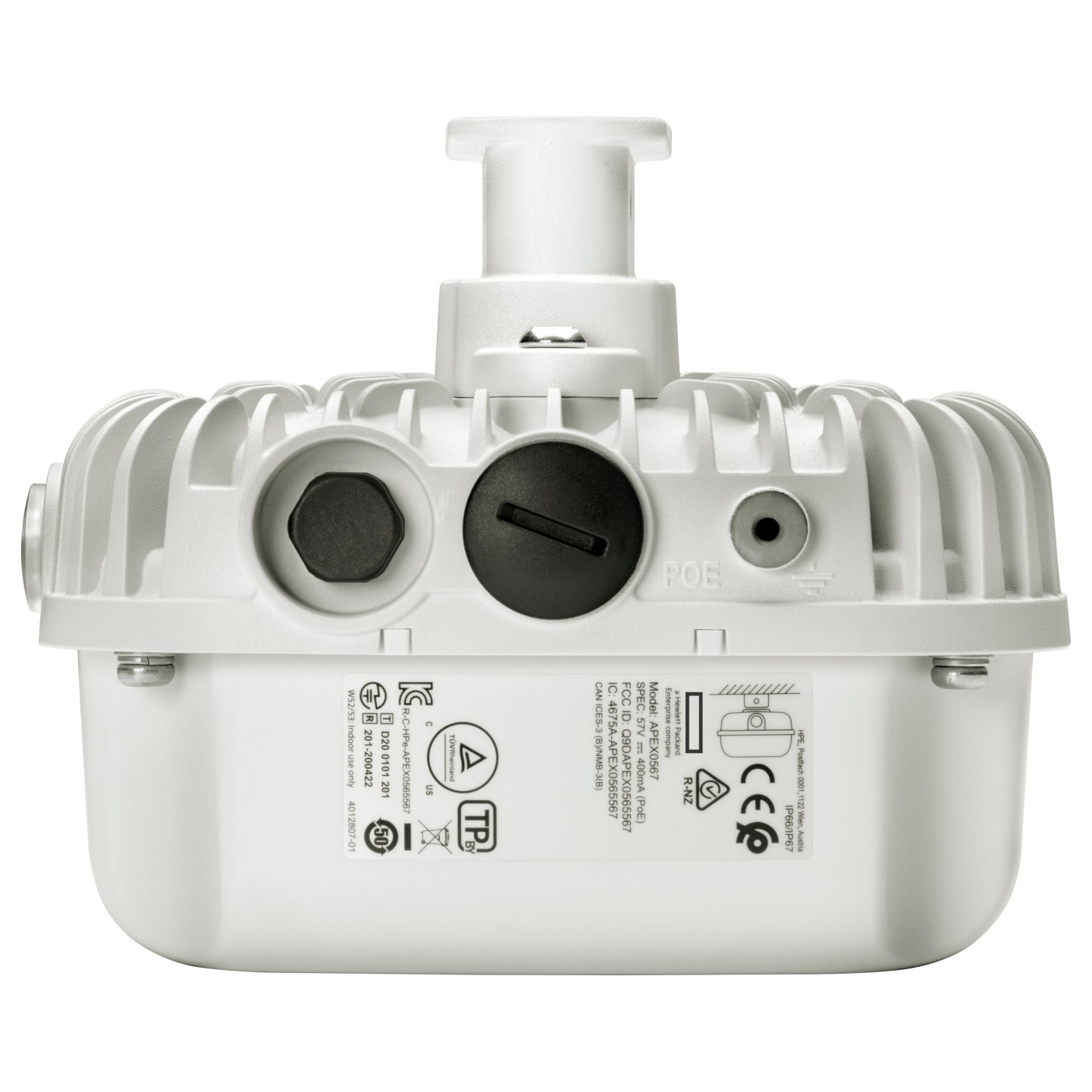

HPE Aruba AP-565 Access Point RW 802.11ax Dual 2x2:2 Radio Integrated Omni Antenna Outdoor
HPE Aruba Networking AP-565 (RW) 802.11ax Dual 2x2 Radio Integrated Omni Antennas Outdoor AP. 2.4 GHz. 5 GHz. 1774 Mbit/s. WPA2. WPA3. 1000 Mbit/s
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
HPE Aruba Networking AP-565 (RW) 802.11ax Dual 2x2 Radio Integrated Omni Antennas Outdoor AP. 2.4 GHz. 5 GHz. Maximale Datenübertragungsrate: 1774 Mbit/s. Unterstützte Sicherheitsalgorithmen: WPA2. WPA3. Ethernet LAN Datentransferraten: 1000 Mbit/s. Power over Ethernet (PoE). Produktfarbe: Weiß. Stromverbrauch (max.): 15.6 W
| Feature | Power over Ethernet (PoE) |
| Maximale Datenübertragungsrate | 1774 Mbit/s |
| Maximale Datenübertragungsrate (2.4 GHz) | 574 Mbit/s |
| Maximale Datenübertragungsrate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN Datentransferraten | 1000 Mbit/s |
| Frequenzband | 20/40 (2.4GHz). 20/40/80 (5GHz). peak data rate 1.49 Gbps. maximum data rate 1.78 Gbps |
| Netzstandard | IEEE 802.11ax. IEEE 802.11mc |
| Bluetooth-Version | 5.0 |
| MIMO-Typ | Multi User MIMO |
| Spread-Spectrum Methode | DSSS. OFDM. OFDMA |
| Modulation | 16-QAM. 64-QAM. 256-QAM. 1024-QAM. BPSK. CCK. QPSK |
| Unterstützte Sicherheitsalgorithmen | WPA2. WPA3 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| USB-Stecker | USB Typ-C |
| Stromverbrauch (max.) | 15.6 W |
| Platzierung | Stange. Wand |
| Produktfarbe | Weiß |
| Empfohlene Nutzung | Draußen |
| Antennentyp | Intern |
| Antennenrichtungsart | Mit kugelförmiger Richtcharakteristik |
| Antennenfunktionen | Integrierte Antenne |
| Antenne Zunahmeniveau (max) | 5.4 dBi |
| Kompatible Betriebssysteme | HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0 HPE Aruba Networking Wireless Operating System 10.3.0.0 |
| Konformitätsbescheinigungen | Eidgenössische Kommunikationskommission (FCC). ISED. CE. Elektromagnetische Verträglichkeit (EMV). Niederspannungsrichtlinie (LVD) |
| Breite | 165 mm |
| Tiefe | 130 mm |
| Höhe | 165 mm |
| Gewicht | 1.03 kg |
| Weitere Anschlüsse | E0: 10/100/1000BASE-T (RJ-45) USB-C console interface |
| Gewicht (imperial) | 1.03 kg (2.27 Pfund) |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Betriebstemperatur | -40 - 55 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Höhe bei Betrieb | 0 - 3000 m |
| Warentarifnummer (HS) | 85176990 |
