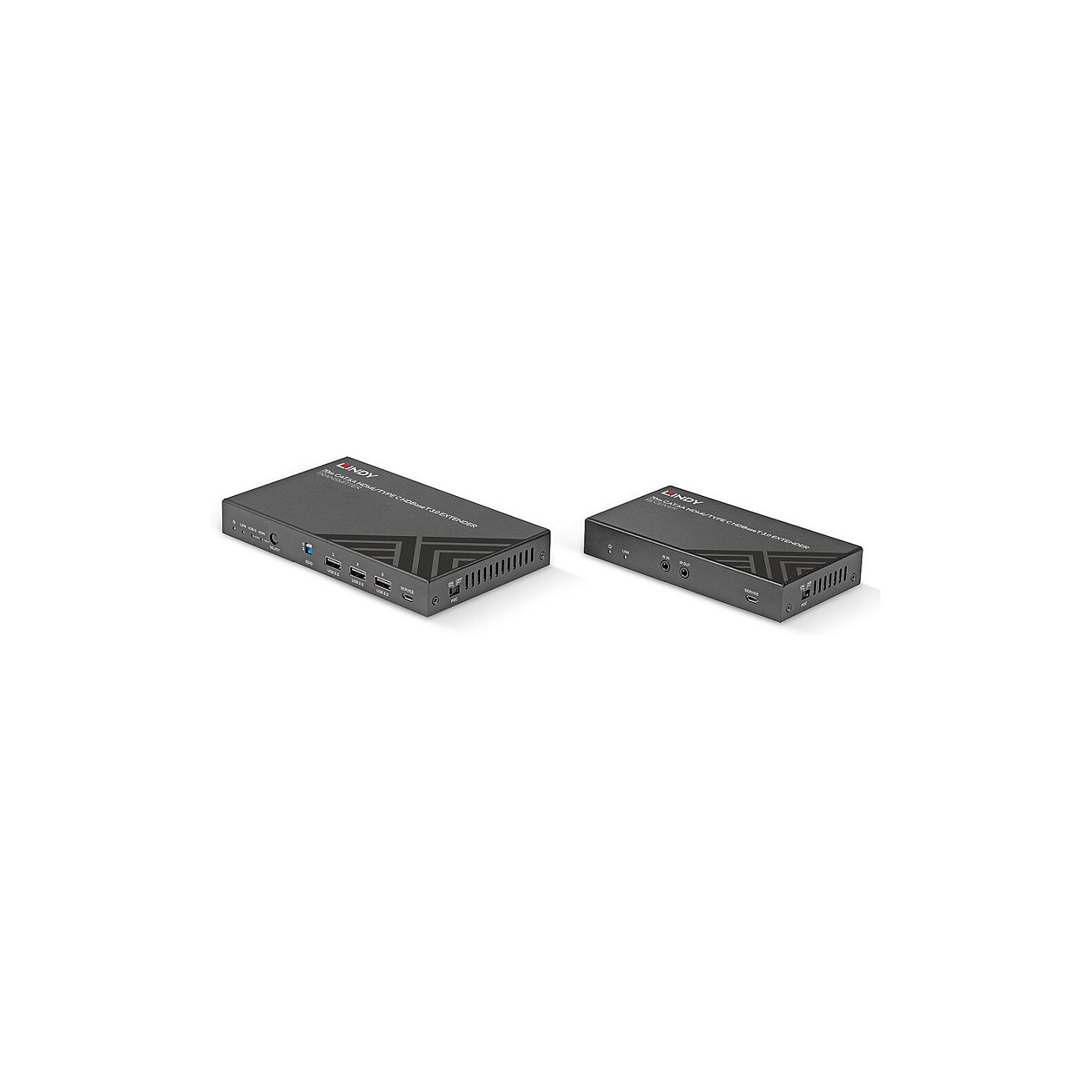

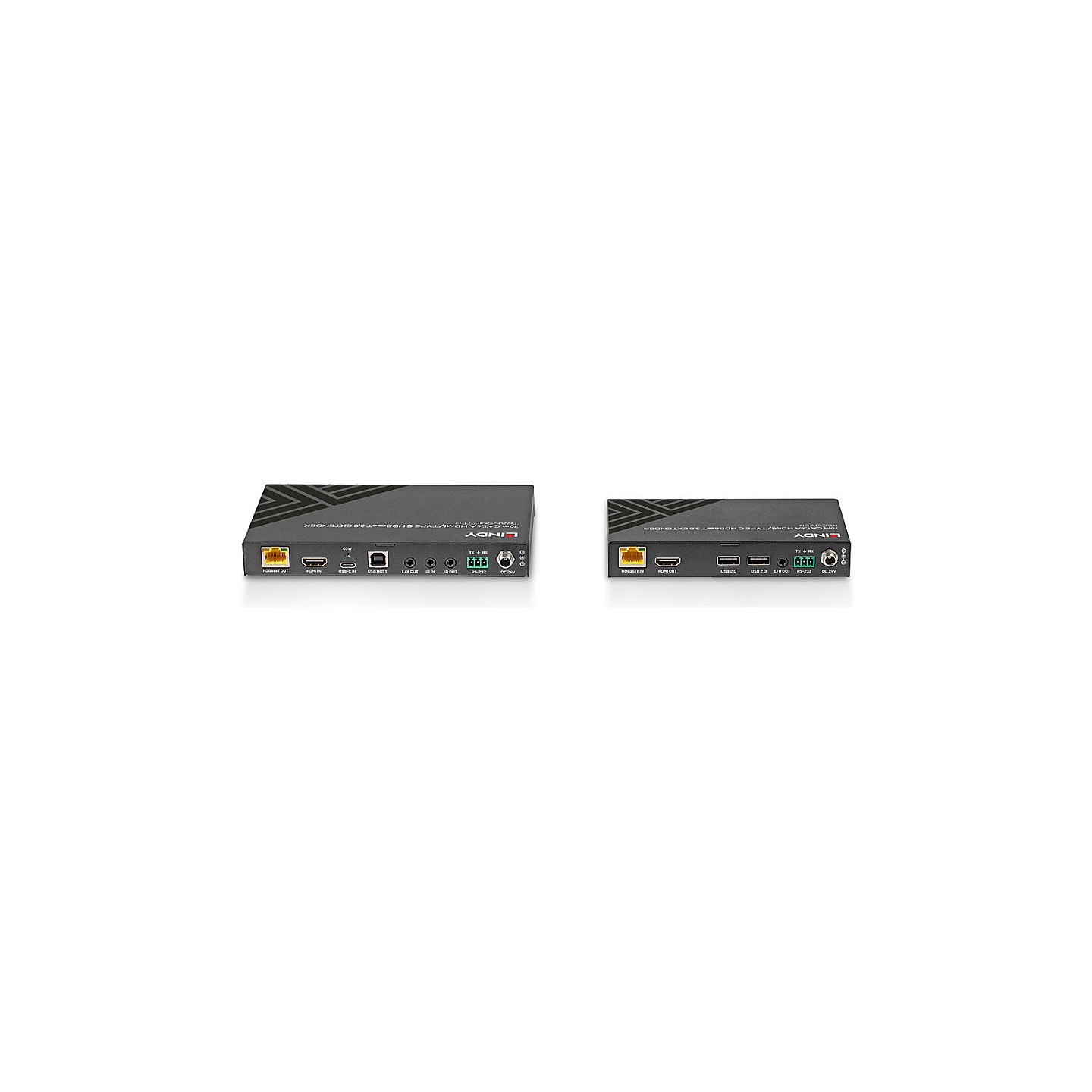

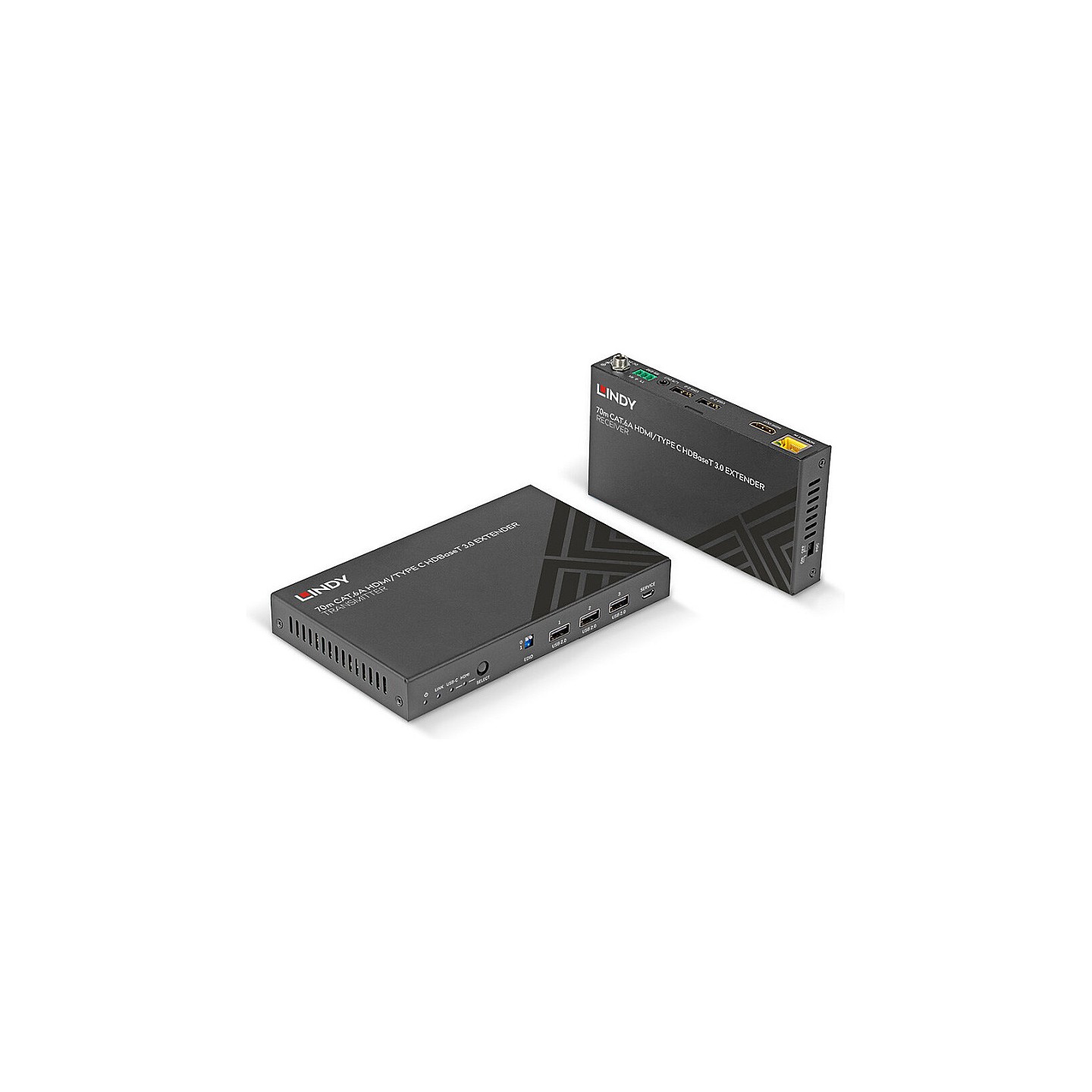

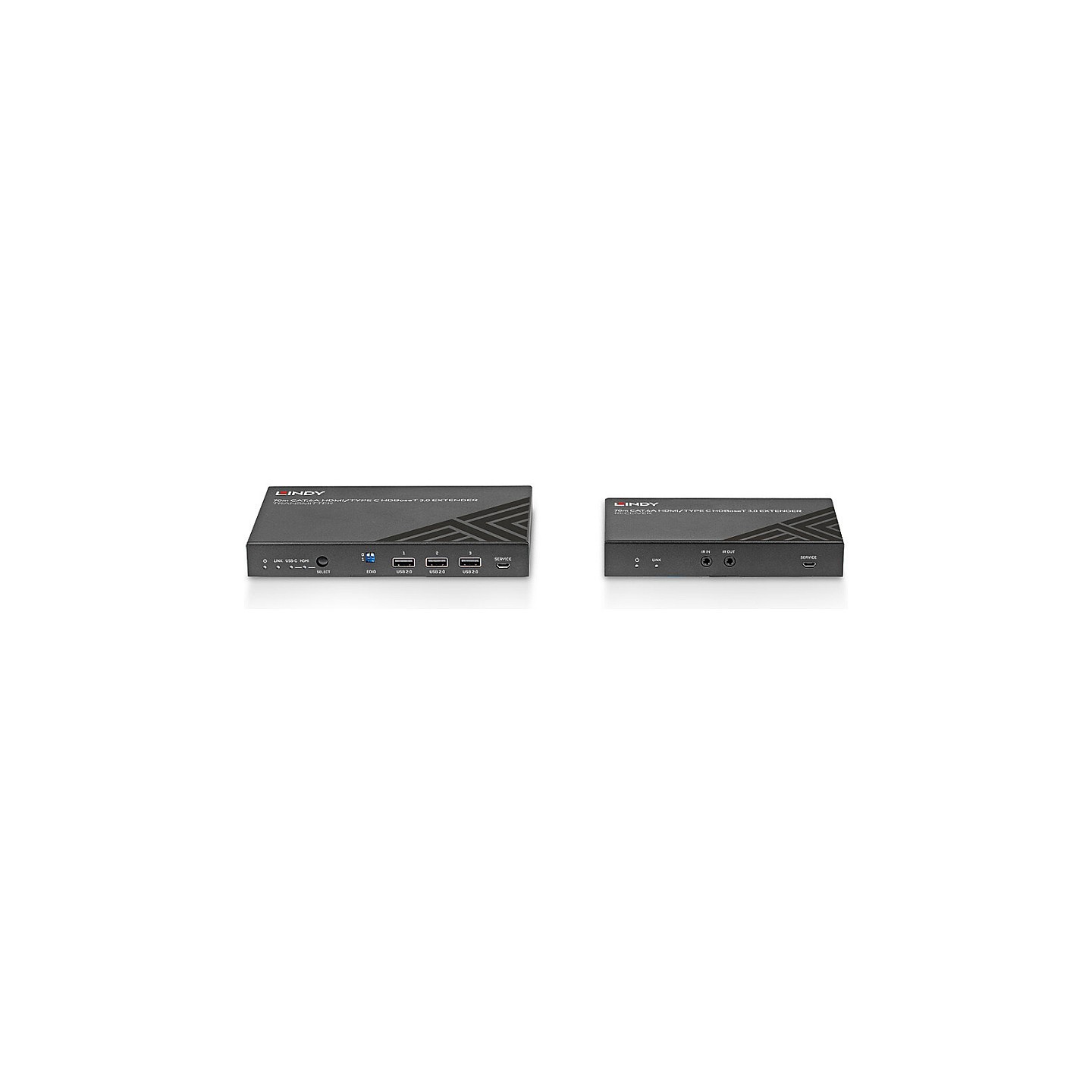

LINDY 70m Cat.6A TypeC & HDMI HDBaseT 3.0 KVM Extender
Lindy 38346. 3840 x 2160 Pixel. AV-Sender & -Empfänger. 70 m. Kabelgebunden. Schwarz. HDCP
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Lindy 38346. Typ: AV-Sender & -Empfänger. Maximale Auflösung: 3840 x 2160 Pixel. unterstütze Kabeltypen: Cat6a. Übertragungstechnik: Kabelgebunden. USB-Stecker: Micro-USB A. USB Typ-A. Digitaler optischer Audioausgangstyp: Toslink. Energiequelle: Gleichstrom. Arbeitsspannung: 24 V. Ausgangsstrom: 3.75 A. Gewicht: 1.9 kg. Empfängerdimensionen (B x T x H): 144 x 78 x 23 mm. Transmitter-Abmessungen (BxTxH): 170 x 102 x 22 mm. Menge pro Packung: 1 Stück(e). Verpackungsbreite: 290 mm. Verpackungstiefe: 75 mm
| Typ | AV-Sender & -Empfänger |
| Maximale Auflösung | 3840 x 2160 Pixel |
| unterstütze Kabeltypen | Cat6a |
| Maximal mögliche Übertragungsstrecke | 70 m |
| Chipsatz | VS300R |
| Maximale Bildwiederholrate | 60 Hz |
| Feature | Montageblöcke enthalten |
| Infrarot (IR)-Frequenzbereich | 20 - 60 kHz |
| Bandbreite | 18 Gbit/s |
| Material | Metall |
| HDCP-Version | 2.2 |
| Produktfarbe | Schwarz |
| Zertifizierung | CE. UKCA. FCC. RoHS. REACH & California Proposition 65 |
| Übertragungstechnik | Kabelgebunden |
| RJ-45-Eingangsanschlüsse | 1 |
| RJ-45-Ausgangsanschlüsse | 1 |
| Anzahl der HDMI-Ausgänge | 1 |
| HDMI-Version | 2.0 |
| USB-Version | 2.0 |
| USB-Stecker | Micro-USB A. USB Typ-A |
| RS-232 Eingangs-Ports | 1 |
| Optischer Audio-Digitalausgang | 3 |
| Digitaler optischer Audioausgangstyp | Toslink |
| Fernbedienung (IR) input | 1 |
| Energiequelle | Gleichstrom |
| Arbeitsspannung | 24 V |
| Ausgangsstrom | 3.75 A |
| Betriebstemperatur | 0 - 40 °C |
| Temperaturbereich bei Lagerung | -20 - 60 °C |
| Relative Luftfeuchtigkeit in Betrieb | 20 - 90% |
| Luftfeuchtigkeit bei Lagerung | 20 - 90% |
| Gewicht | 1.9 kg |
| Empfängerdimensionen (B x T x H) | 144 x 78 x 23 mm |
| Transmitter-Abmessungen (BxTxH) | 170 x 102 x 22 mm |
| Menge pro Packung | 1 Stück(e) |
| Verpackungsbreite | 290 mm |
| Verpackungstiefe | 75 mm |
| Verpackungshöhe | 220 mm |
| Paketgewicht | 2.18 kg |
| Verpackungsart | Box |
| Mitgelieferte Kabel | Gleichstrom. IR |
| Konformitätsbescheinigungen | CE. Eidgenössische Kommunikationskommission (FCC). REACH. RoHS. UKCA |
