APC Back-UPS BX1600MI 1600VA (900W) Line-Interactive UPS - Black (Boxed)
APC Back-UPS BX1600MI: 1600VA/900W line-interactive UPS with AVR, 6x IEC C13 outlets (4 battery backup + 2 surge), USB-B interface. 24V 7Ah VRLA battery offers ~6.5min half load runtime. Compact black tower for home/office.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | UPS Unit |
|---|---|
| UPS & Power Backup - Power Capacity (VA) | 1000 - 1999 VA |
| UPS & Power Backup - Power Output (Watts) | 500 to 999 W |
| UPS & Power Backup - Topology | Line-Interactive |
| UPS & Power Backup - Form Factor | Tower / Desktop |
| UPS & Power Backup - Input Plug | IEC C14 |
| UPS & Power Backup - Output Receptacles | IEC C13 |
| UPS & Power Backup - Outlets (Qty) | 6 |
| UPS & Power Backup - Special Features | Automatic Voltage Regulation |

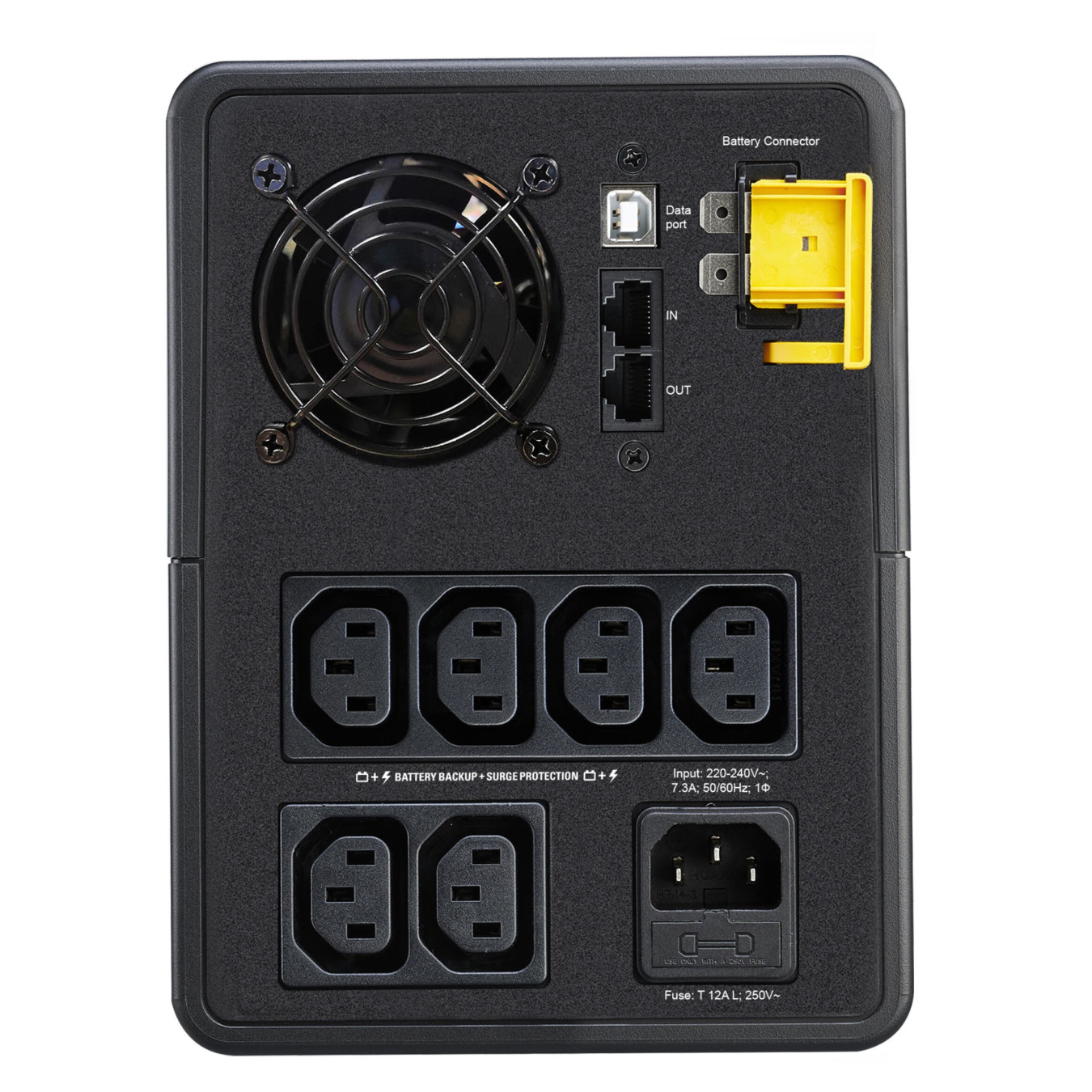

The APC Back-UPS BX1600MI provides reliable power protection for home offices, computers, networking gear, and gaming setups. This 1600VA (900W) line-interactive UPS features Automatic Voltage Regulation (AVR) to stabilize low/high voltage without switching to battery, extending battery life. It includes 6 IEC C13 outlets: 4 with battery backup and surge protection, 2 surge-only, plus 273J surge energy rating and RJ-45 data line protection.

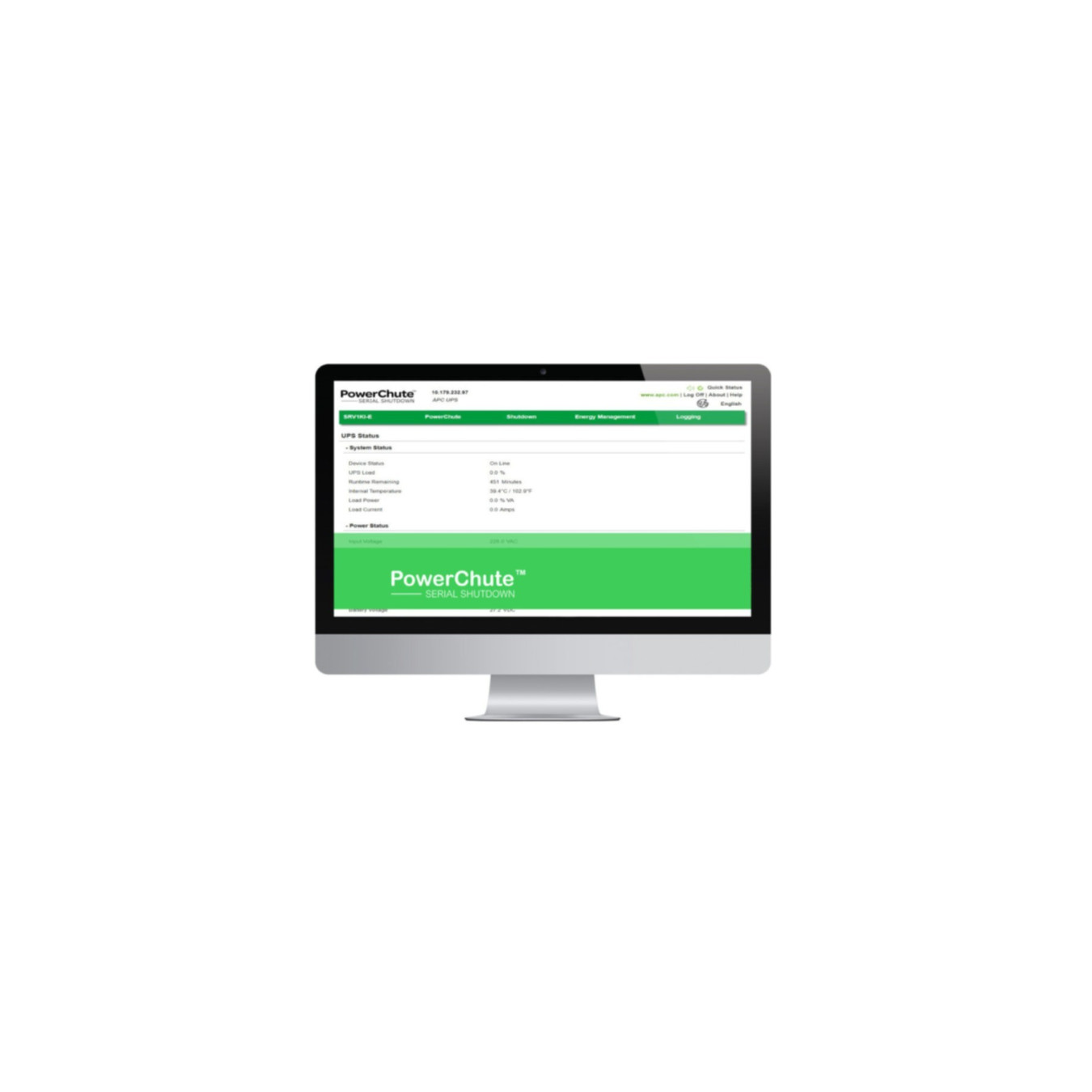

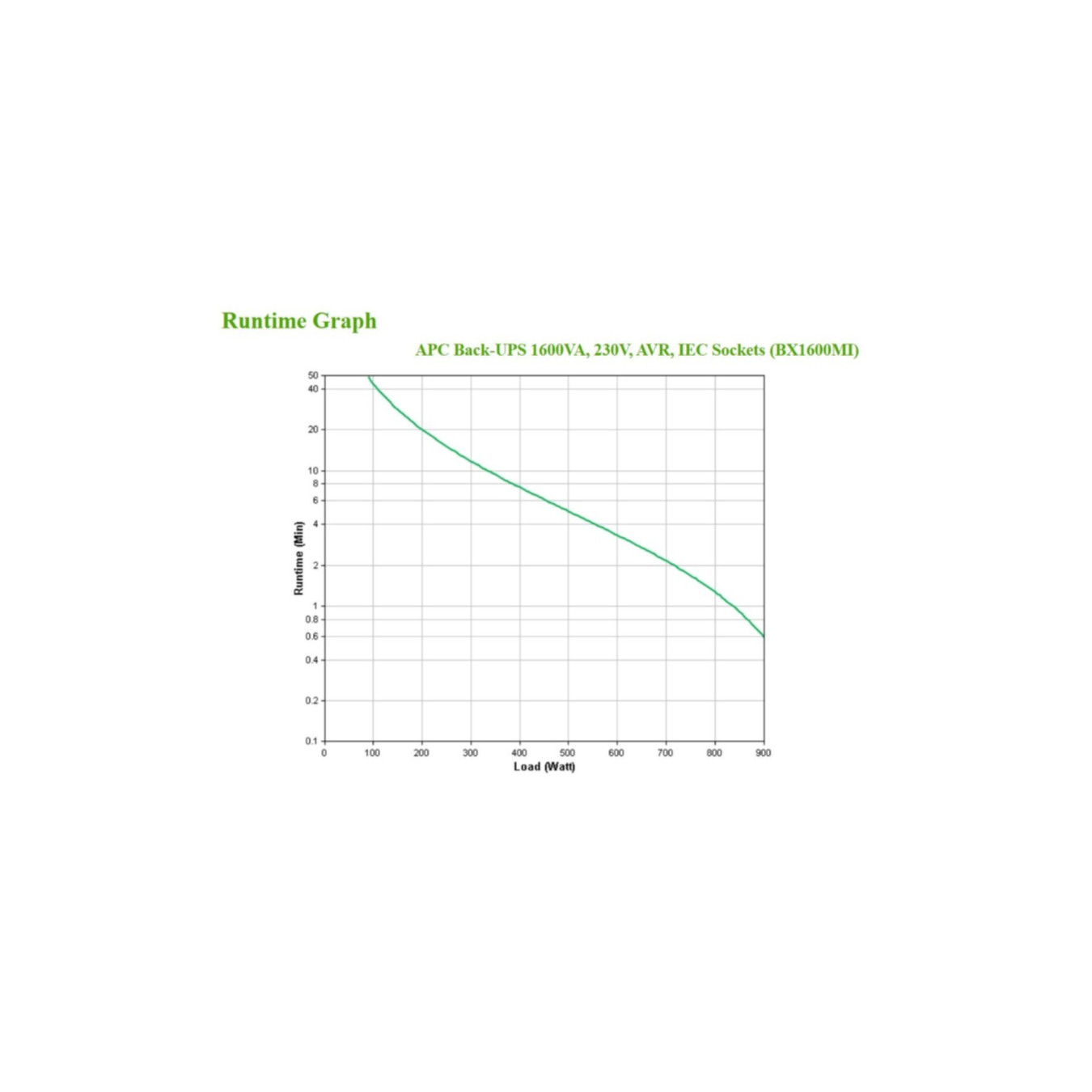

Equipped with a 24V 7Ah sealed lead-acid (VRLA) battery, it delivers approximately 6.5 minutes runtime at half load and 1 minute at full load. Connectivity includes USB Type-B for PowerChute software management and monitoring. LED indicators show power status, with audible alarms for battery mode and low battery. Compact black tower design (140x190x390mm, 10.3kg) fits easily on desks.
- Key Benefits:
- AVR corrects 140-300V input to stable 230V output
- Fast 6ms transfer time to battery
- Intelligent battery management with self-tests
- 2-year warranty, RoHS/CE certified
- 8-hour recharge time
| UPS topology | Line-Interactive |
| Output power capacity | 1.6 kVA |
| Output power | 900 W |
| Waveform | Stepped approximation to a Sine |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage | 230 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 273 J |
| Transfer time | 6 ms |
| Input power factor | 0.56 |
| AC outlet types | 6 x IEC C13 |
| USB port | Yes (USB Type-B) |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 7 Ah |
| Battery voltage | 24 V |
| Typical backup time at full load | 1 min |
| Typical backup time at half load | 6.5 min |
| Battery recharge time | 8 h |
| Form factor | Tower |
| Product colour | Black |
| Width | 140 mm |
| Height | 190 mm |
| Depth | 390 mm |
| Weight | 10.3 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Certification | CE, RoHS |
