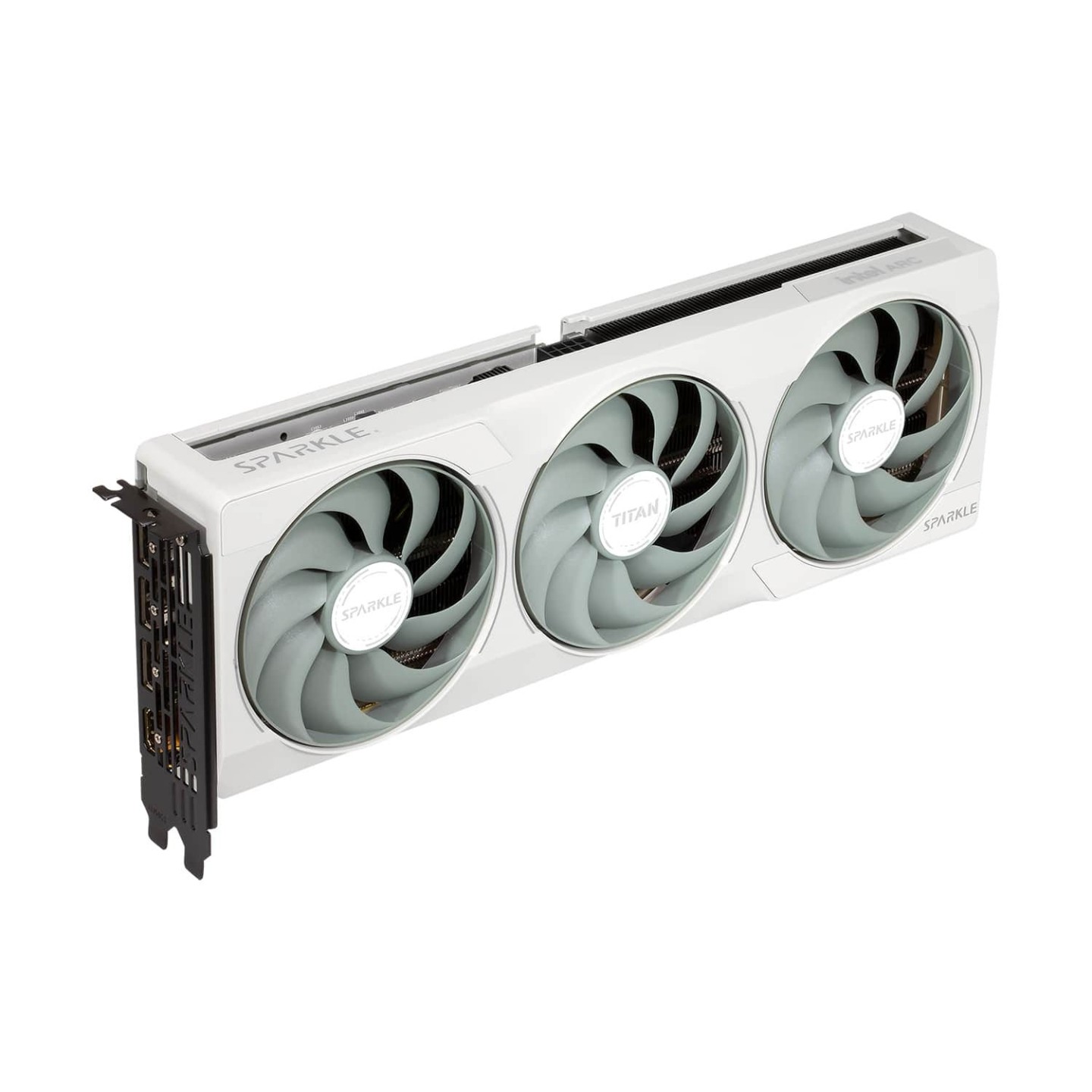

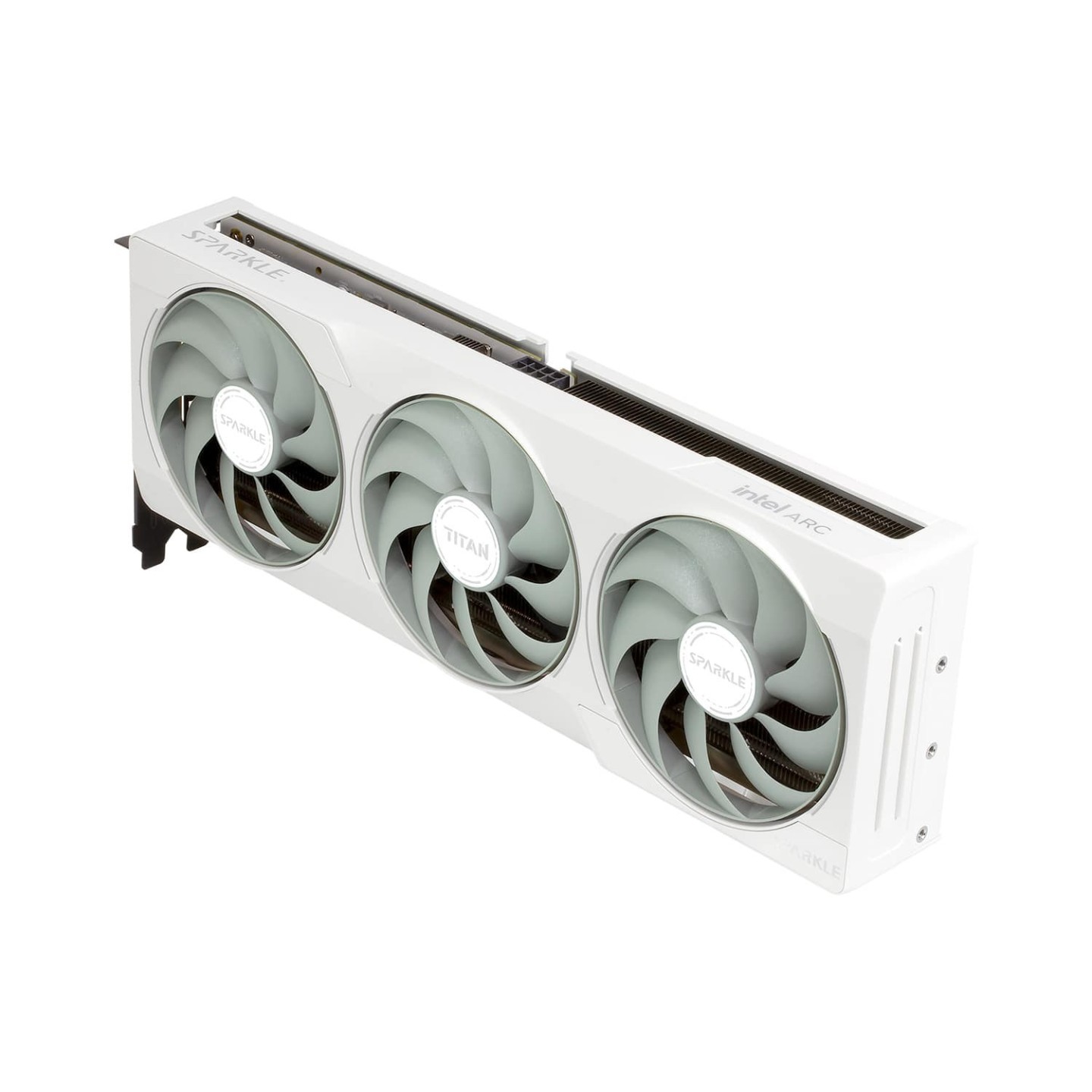

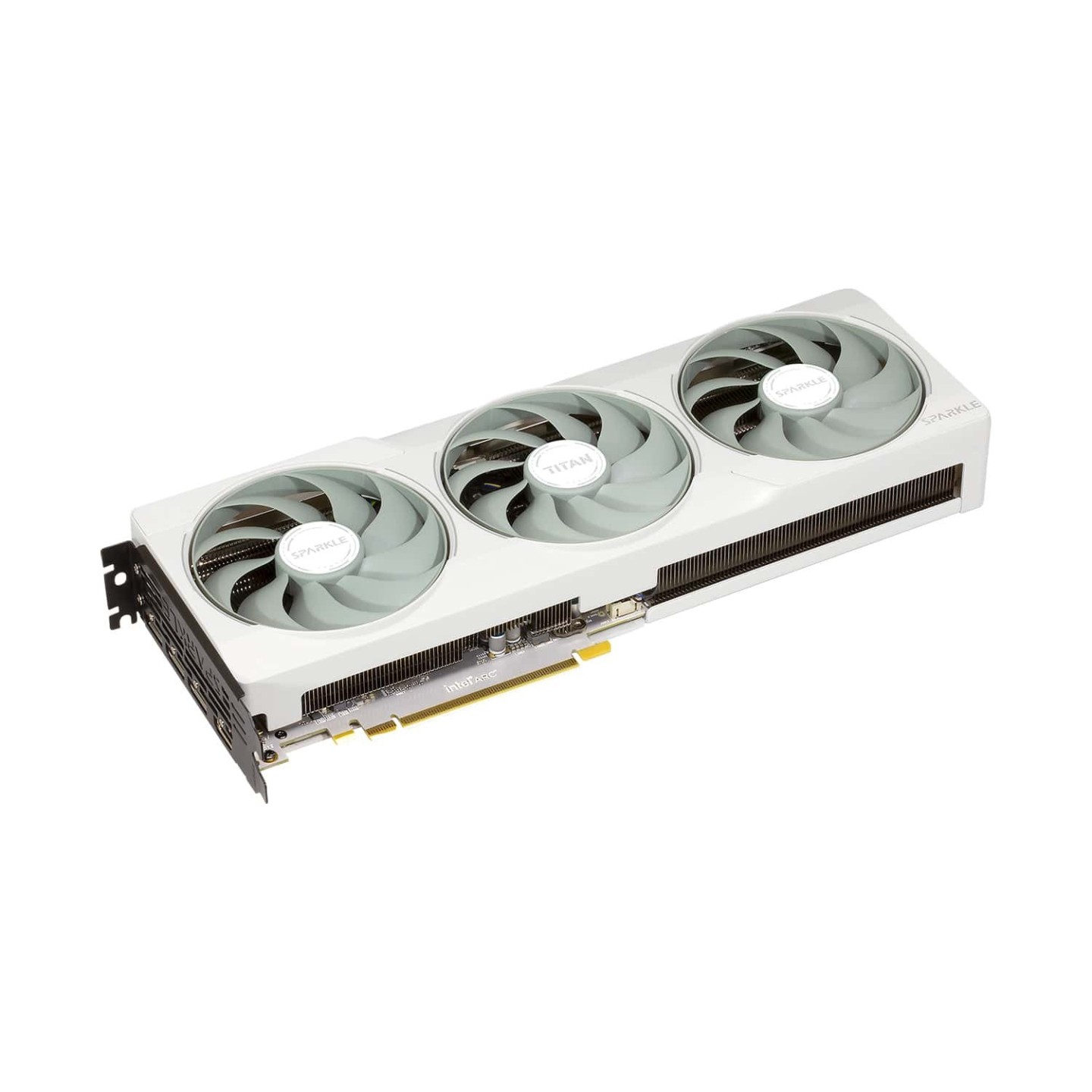

SPARKLE Intel Arc B580 TITAN Luna OC - 12GB GDDR6 - 2740 MHz, TORN 2.0 Triple-Fan, PCIe 4.0 x8 - SB580T-12GOC (Boxed)
High-performance Intel Arc B580 TITAN Luna OC GPU with 12GB GDDR6, 2740 MHz boost clock, XeSS AI upscaling, ray tracing, 8K support. Features TORN 2.0 triple-fan cooling, full-metal backplate, blue breathing light. PCIe 4.0 x8, 200W TDP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | Intel Arc |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x8 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 12 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Extended (301-320 mm) |
The SPARKLE Intel® Arc™ B580 TITAN Luna OC Graphics Card delivers exceptional high-resolution gaming performance powered by Intel XeSS AI upscaling, hardware ray tracing, and 8K media playback capabilities. It also includes accelerated AI features via Intel AI Playground for content creation and editing.

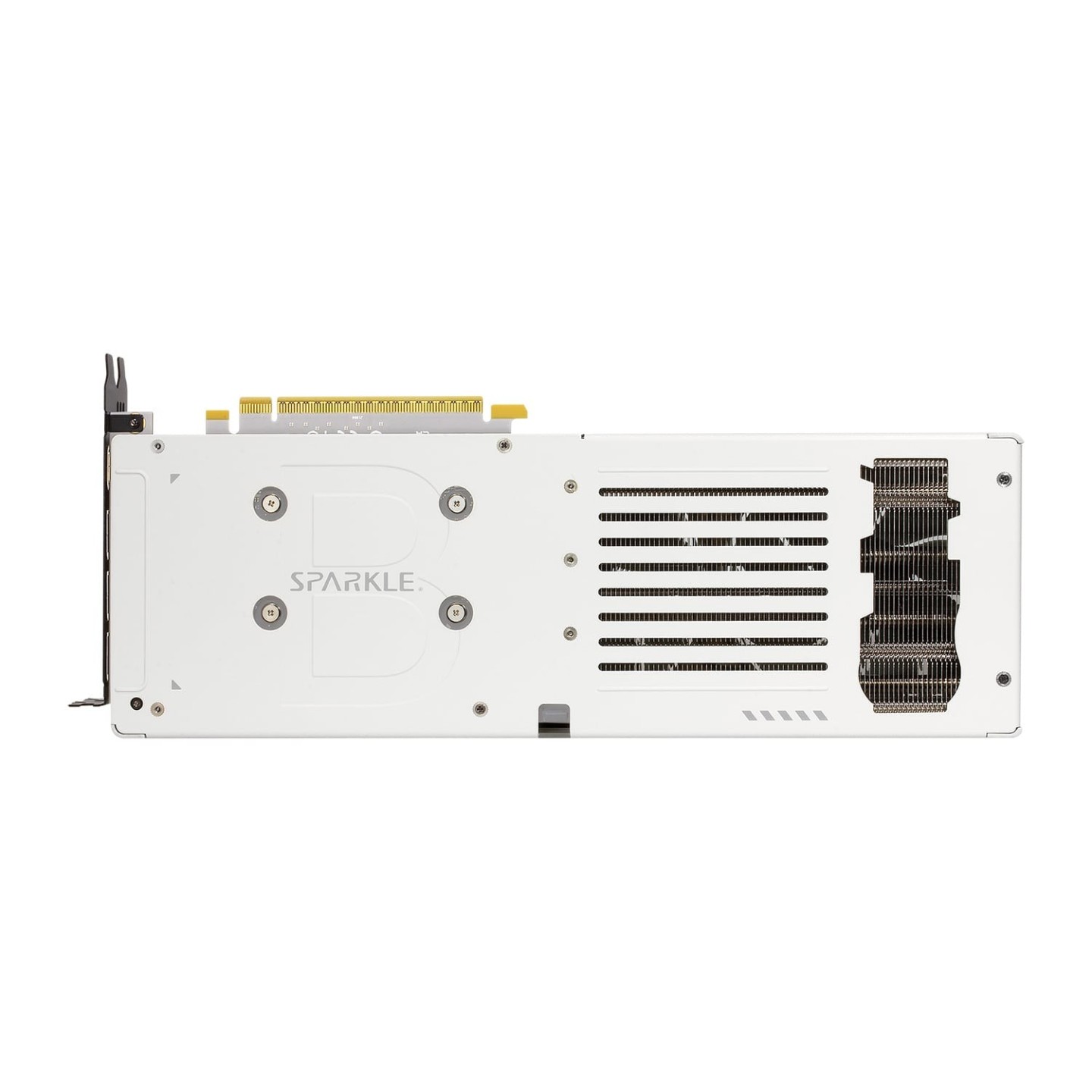

Equipped with the new TITAN series TORN 2.0 Cooling featuring triple customized axial fans, a compact 2.2-slot design, full-metal backplate for enhanced durability, and a stylish blue breathing light effect to elevate your gaming rig's aesthetics. The card measures 315 mm in length with 954 g weight for easy integration into most modern cases.
- ✅ 12GB GDDR6 memory at 456 GB/s bandwidth on 192-bit bus
- ✅ 20 Xe-cores, 20 ray tracing units, 160 XMX engines, up to 233 TOPs NPU

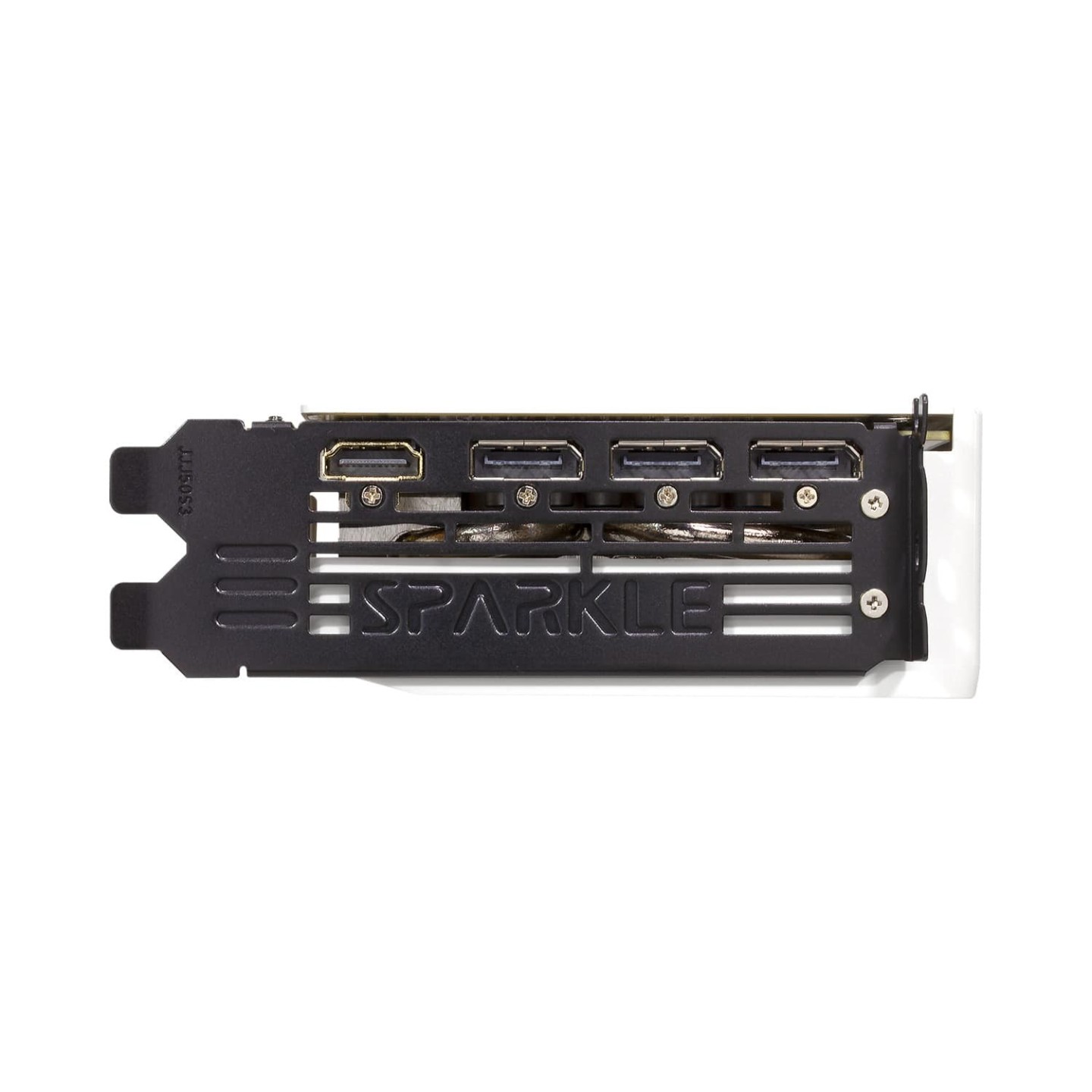

- ✅ Outputs: 1x HDMI 2.1, 3x DisplayPort 2.1 (up to 4 displays, 8K@60Hz)
- ✅ Requires 600W PSU, 1x 8-pin connector, PCIe 4.0 x8 interface
- ✅ Supports DirectX 12 Ultimate, OpenGL 4.6, OpenCL 3.0, Windows 10/11
| Graphics processor family | Intel |
| Graphics processor | Arc B580 |
| Processor frequency | 2740 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Ray accelerators | 20 |
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
| Memory bandwidth (max) | 456 GB/s |
| Interface type | PCI Express x8 4.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1 |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| OpenCL version | 3.0 |
| Dual Link DVI | No |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines | 160 |
| Xe-cores | 20 |
| NPU performance up to | 233 TOPs |
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Number of slots | 2.2 |
| Minimum system power supply | 600 W |
| Power consumption (typical) | 200 W |
| Supplementary power connectors | 1x 8-pin |
| Power supply location | Top |
| Windows operating systems supported | Windows 10, Windows 11 |
| Minimum system requirements | PCI-Express compliant MB with one x16 PCIe slot |
| Minimum processor | 10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory |
| Minimum RAM | 8000 MB |
| Weight | 954 g |
| Length | 315 mm |
| Depth | 44 mm |
| Height | 117 mm |

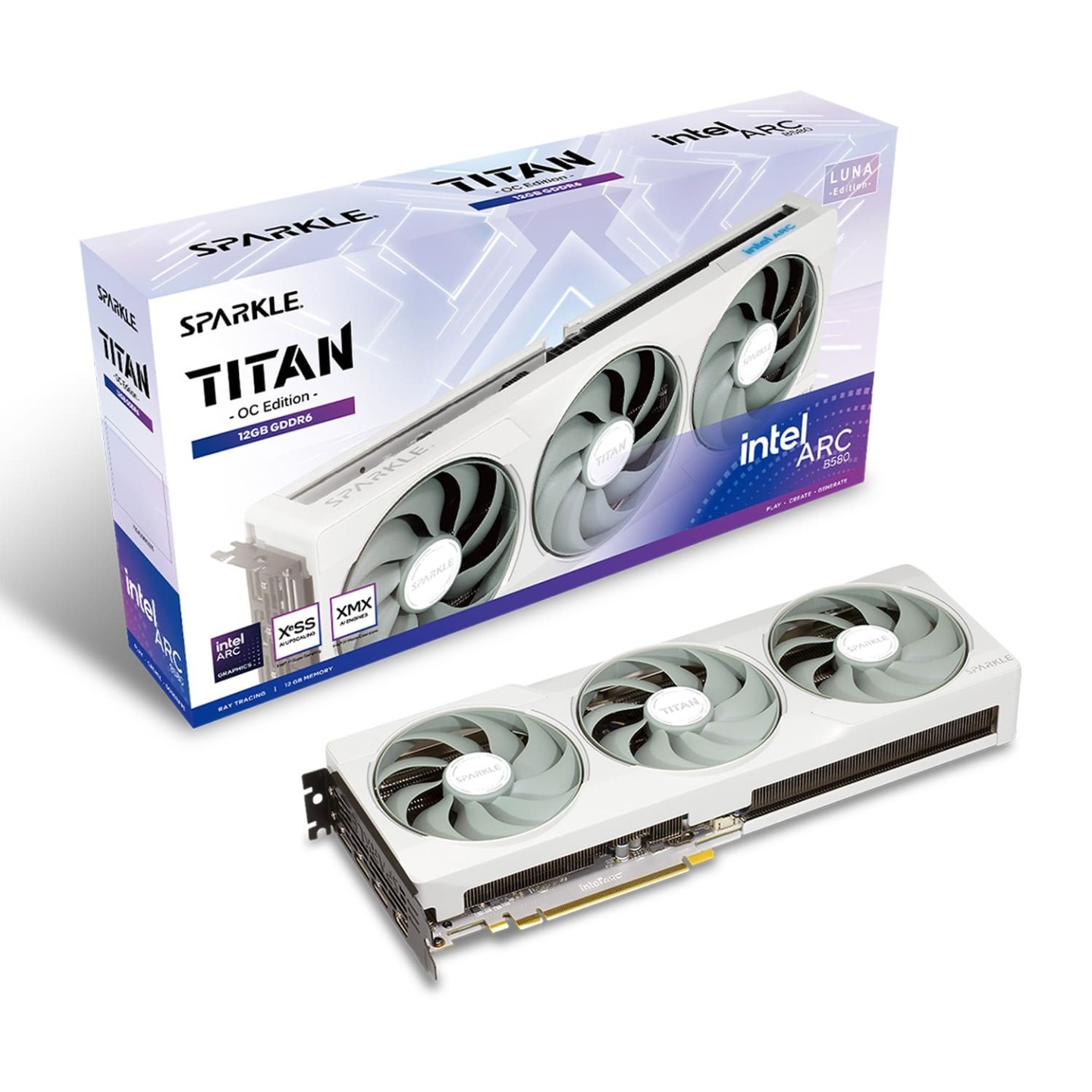

| Package type | Box |
| HDMI | Yes |
| CUDA | No |
