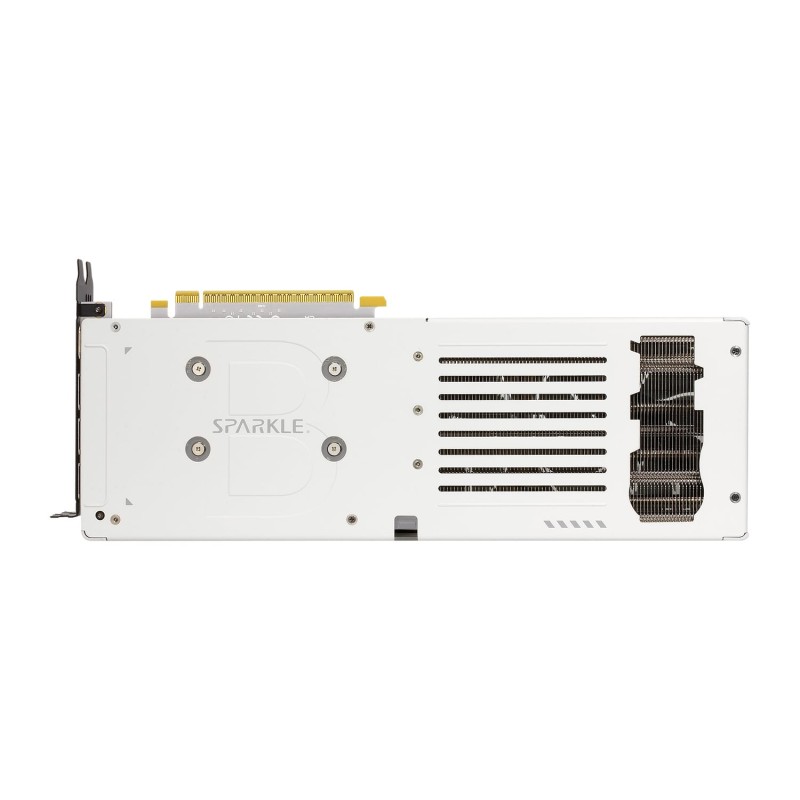

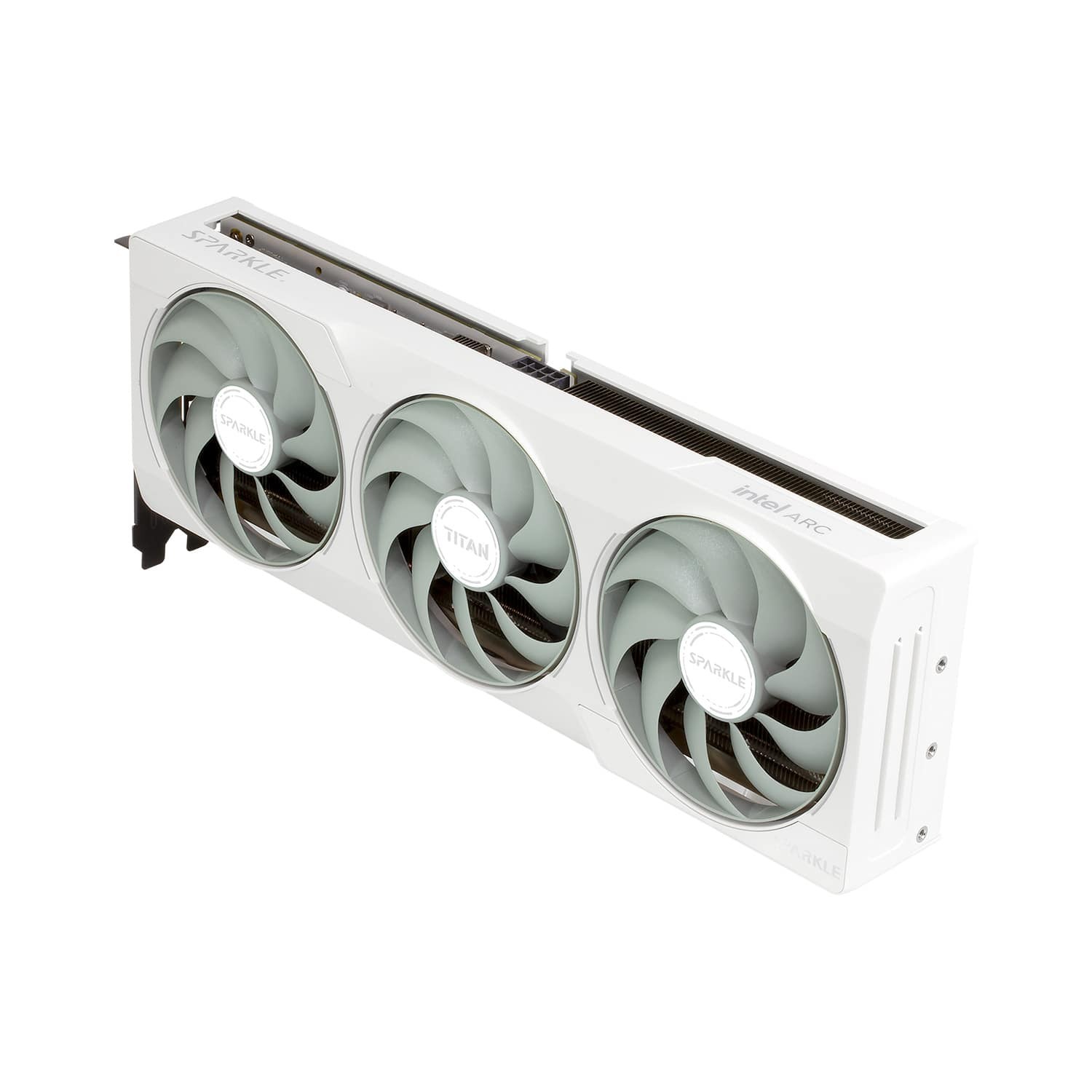

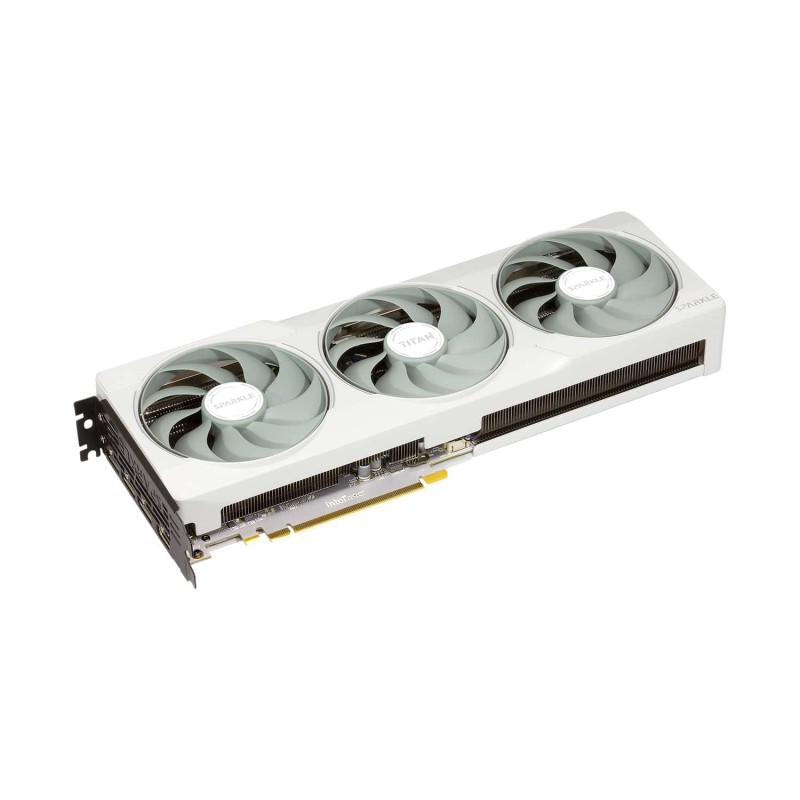

SPARKLE Intel Arc B580 TITAN Luna OC - 12GB GDDR6 - 2740 MHz, TORN 2.0 Triple-Fan, PCIe 4.0 x8
High-performance Intel Arc B580 TITAN Luna OC GPU — 12GB GDDR6, 2740 MHz boost, Intel XeSS, ray tracing, 8K media, TORN 2.0 triple axial fans, full-metal backplate.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - Series | Intel Arc A-series |
|---|---|
| GPU (Graphics Cards) - VRAM Capacity | 12 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Slot Thickness | 2.5-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
| GPU (Graphics Cards) - Backplate | Yes |
The SPARKLE Intel® Arc™ B580 TITAN Luna OC Graphics Card, offers high-resolution gaming with Intel
XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced
creation and editing through Intel AI Playground.
New TITAN series equipped TORN 2.0 Cooling with triple customized AXL fans, 2.2-slot design and fullmetal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup.
| CUDA | No |
| Graphics processor family | Intel |
| Graphics processor | Arc B580 |
| Processor frequency | 2740 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Ray accelerators | 20 |
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
| Memory bandwidth (max) | 456 GB/s |
| Interface type | PCI Express x8 4.0 |

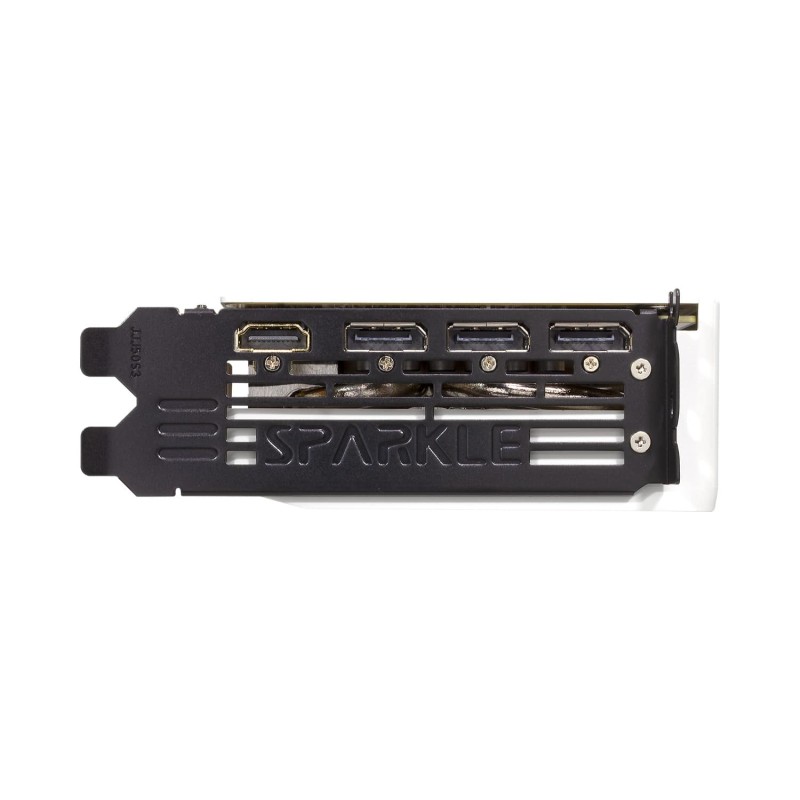

| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1 |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| OpenCL version | 3.0 |
| Dual Link DVI | No |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines | 160 |
| Xe-cores | 20 |
| NPU performance up to | 233 TOPs |
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Number of slots | 2.2 |
| Minimum system power supply | 600 W |
| Power consumption (typical) | 200 W |
| Supplementary power connectors | 1x 8-pin |
| Power supply location | Top |
| Windows operating systems supported | Windows 10, Windows 11 |
| Minimum system requirements | PCI-Express compliant MB with one x16 PCIe slot |
| Minimum processor | 10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory |
| Minimum RAM | 8000 MB |
| Weight | 954 g |
| Length | 315 mm |
| Depth | 44 mm |
| Height | 117 mm |
| Package type | Box |
| HDMI | Yes |
