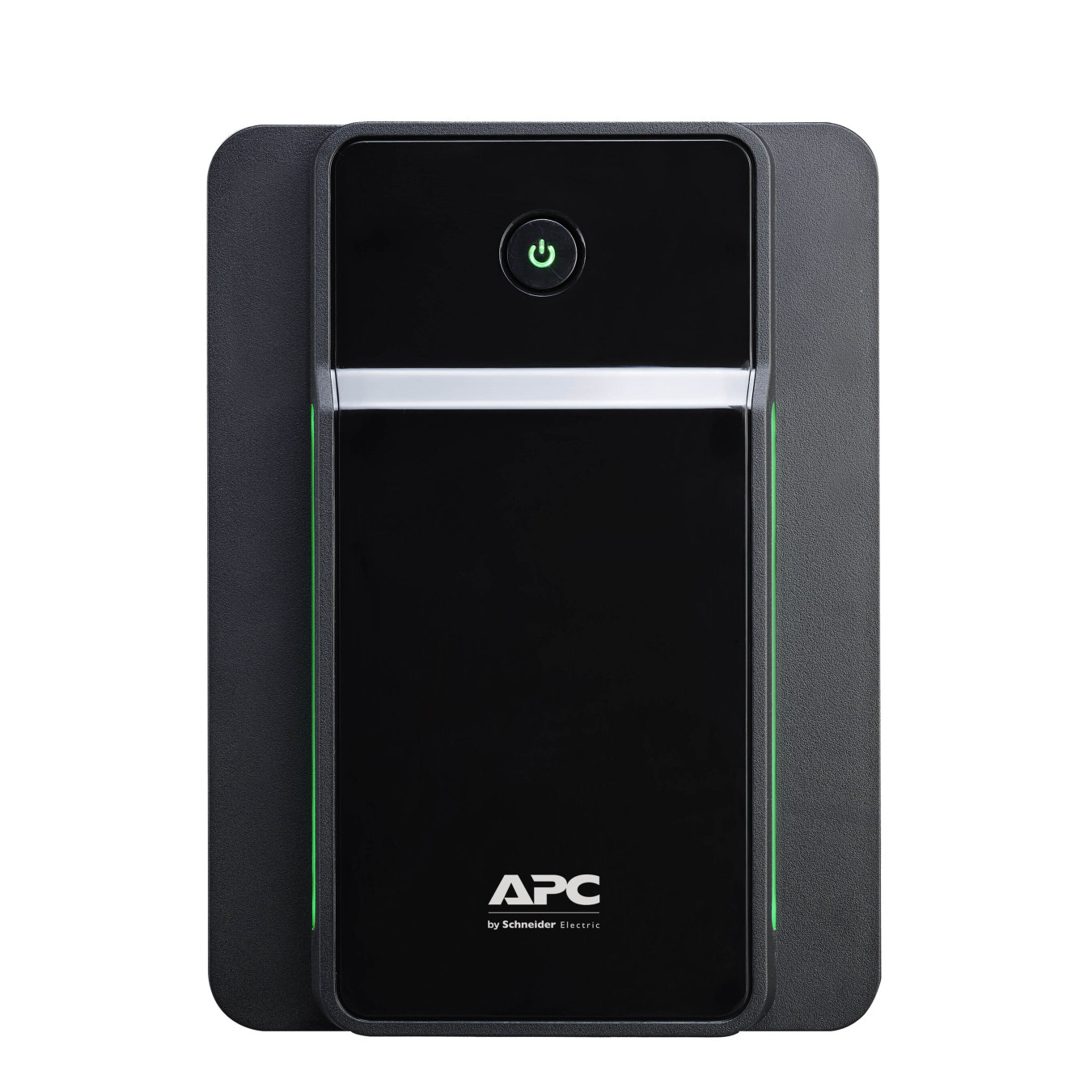

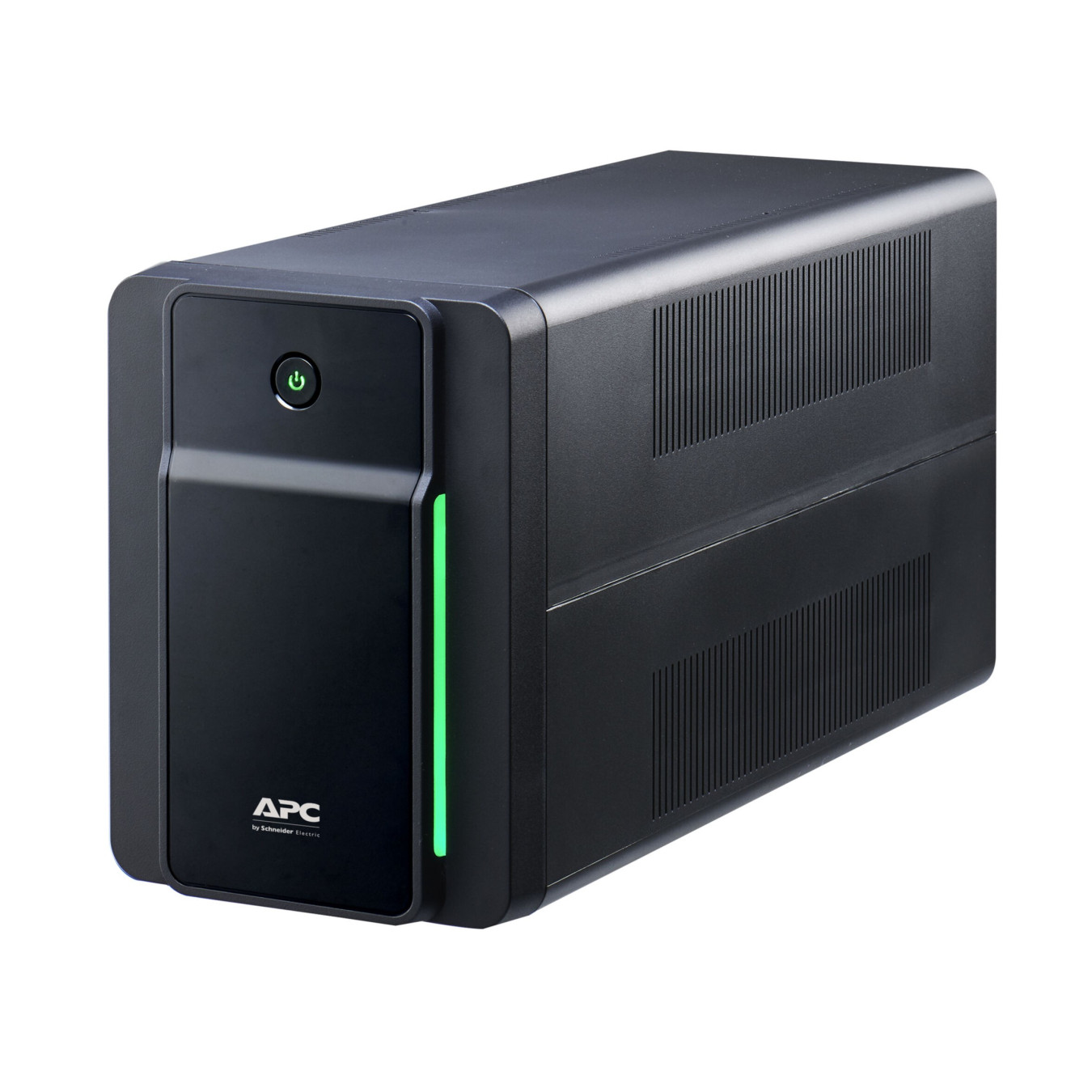

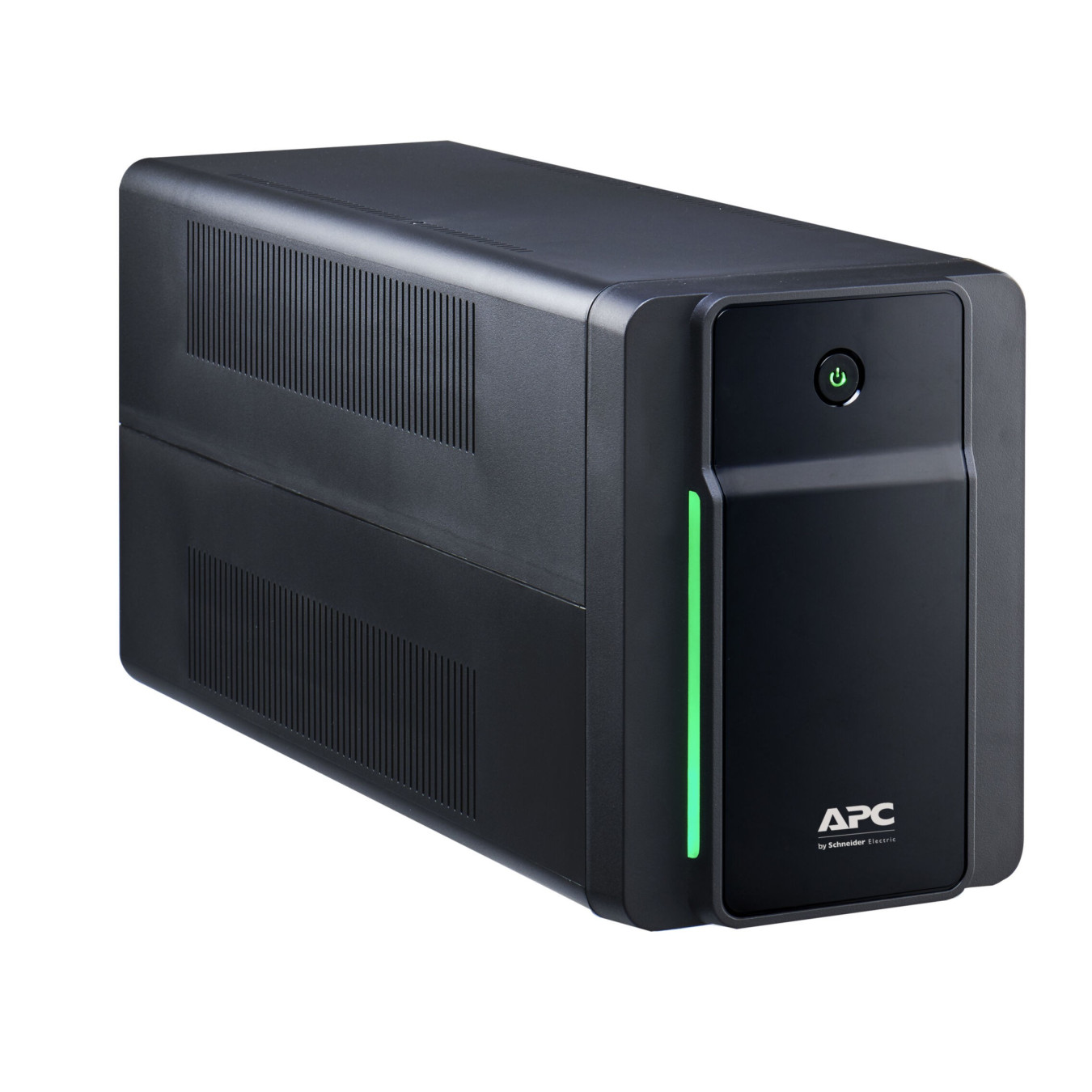

APC Back-UPS BX2200MI-GR 2.2kVA/1200W Line-Interactive UPS 4x Schuko (Boxed)
APC Back-UPS BX2200MI-GR: Line-Interactive UPS 2.2kVA/1200W, 4x Schuko outlets with battery backup+surge protection, AVR, USB port, compact tower design for home/office use.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | UPS Unit |
|---|---|
| UPS & Power Backup - Power Capacity (VA) | 2000 - 2999 VA |
| UPS & Power Backup - Power Output (Watts) | 1000 to 1499 W |
| UPS & Power Backup - Topology | Line-Interactive |
| UPS & Power Backup - Form Factor | Tower / Desktop |
| UPS & Power Backup - Input Plug | Schuko (Type F) |
| UPS & Power Backup - Output Receptacles | Schuko (Type F) |
| UPS & Power Backup - Outlets (Qty) | 4 |
| UPS & Power Backup - Special Features | Automatic Voltage Regulation |

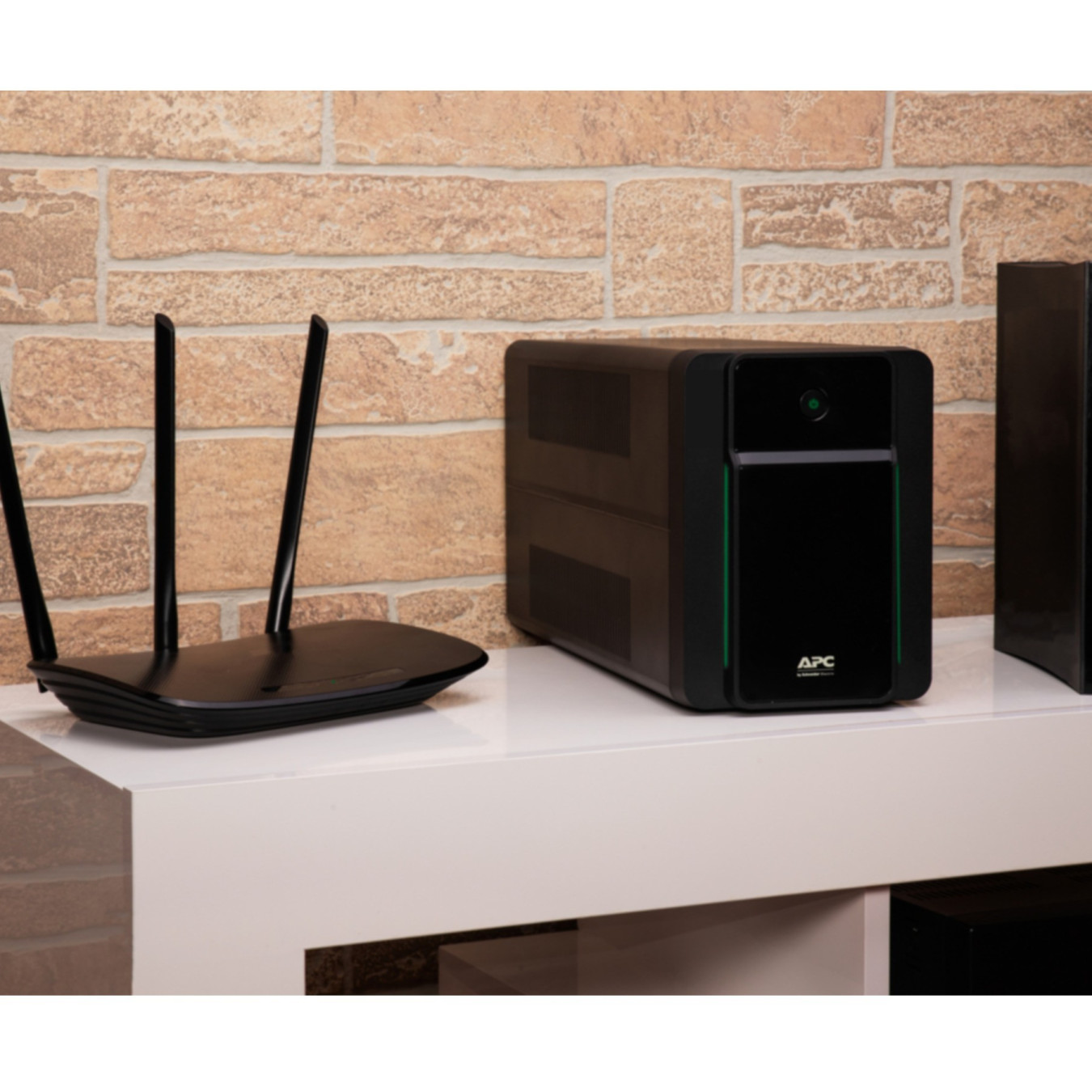

The APC Back-UPS BX2200MI-GR is a reliable line-interactive UPS designed to protect home or small office electronics like computers, networks, and gaming consoles from power issues. With 2.2 kVA (1200 W) capacity and 4 Schuko outlets—all providing battery backup and surge protection (273 J rating)—it ensures continuous operation during outages.

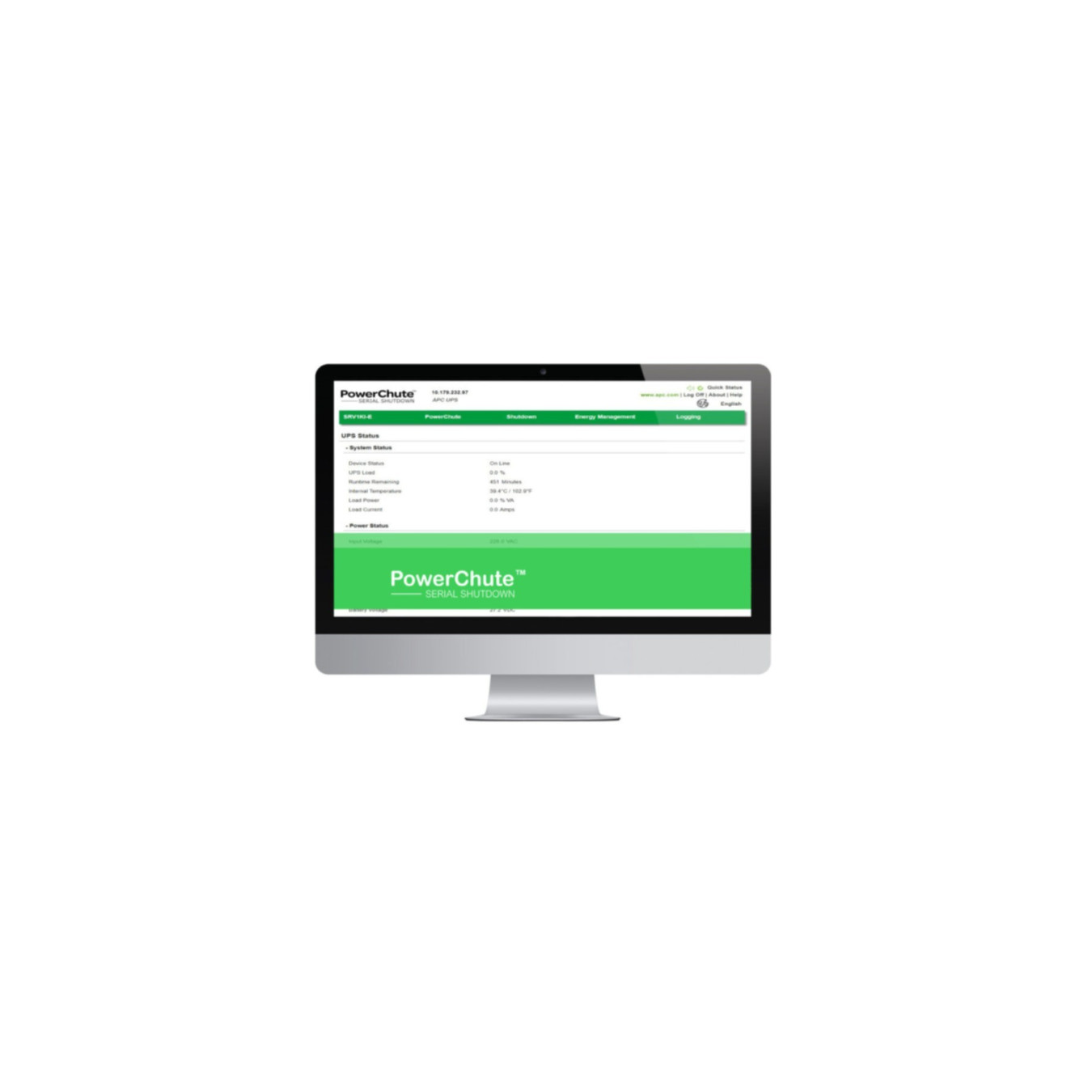

Key features include Automatic Voltage Regulation (AVR) to stabilize minor voltage fluctuations (140-300 V input range), a stepped approximation sine wave output, and fast 6 ms typical transfer time. It includes a USB Type-B port for monitoring via APC software, audible alarms, and LED indicators. The compact black tower (14x39x19 cm, 12.3 kg) uses sealed lead-acid batteries (2x 12V 9Ah), offering 1 min at full load and 8.5 min at half load.
- Topology: Line-Interactive with AVR

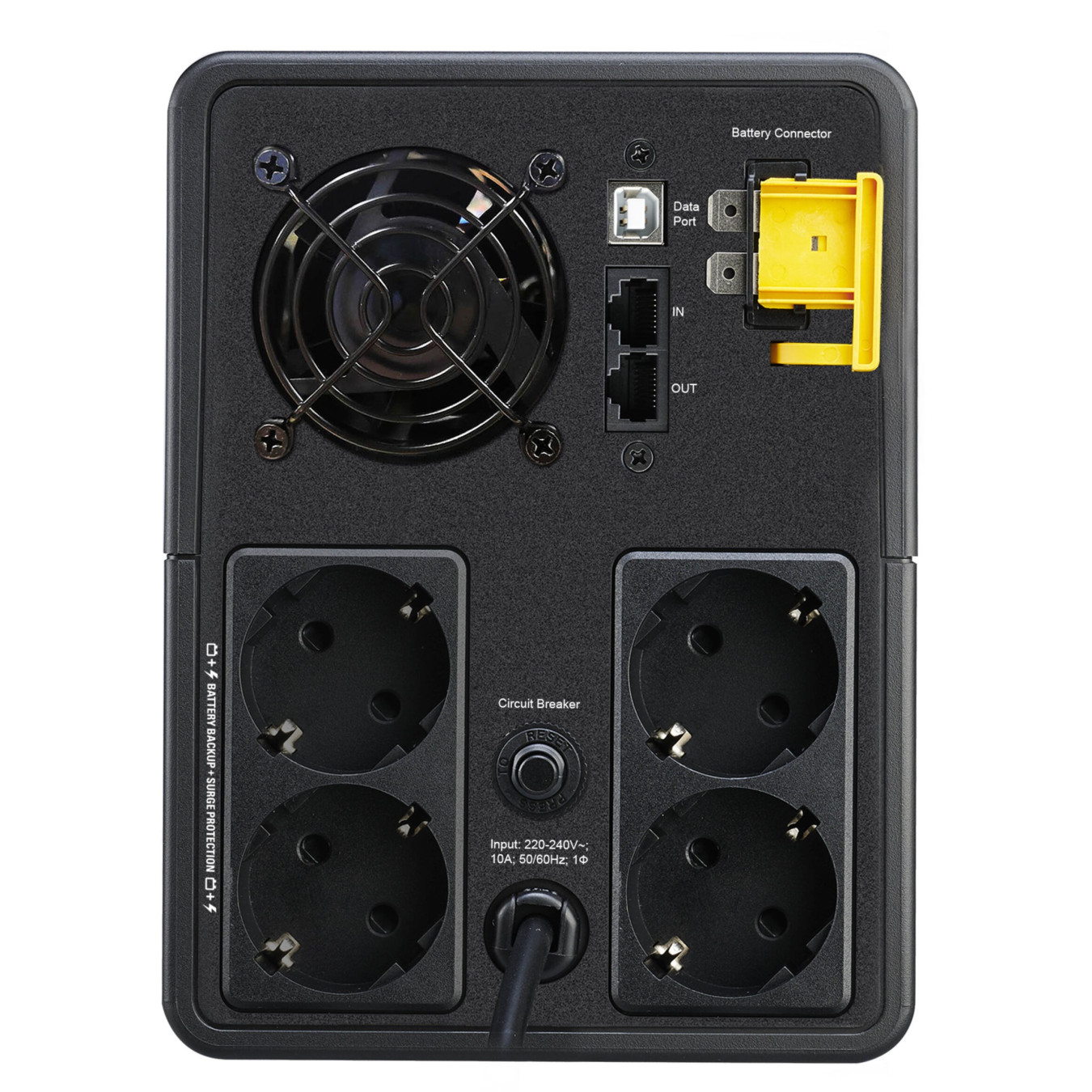

- Outlets: 4x Schuko (Type F)
- Backup Times: 1 min full / 8.5 min half load
- Connectivity: USB-B port
- Warranty: 2 years, CE certified
| UPS topology | Line-Interactive |
| Output power capacity | 2.2 kVA |
| Output power | 1200 W |
| Waveform | Stepped approximation to a sinewave |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage | 230 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 273 J |
| Response time | 6 ms typical / 10 ms maximum |
| Input power factor | 0.54 |
| Noise level | 40 dBA |
| AC outlet types | 4x Schuko (CEE 7/7 Type F) |
| USB port | Yes (USB Type-B) |
| Battery technology | Sealed Lead Acid (VRLA/GEL) |
| Number of batteries | 2 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |

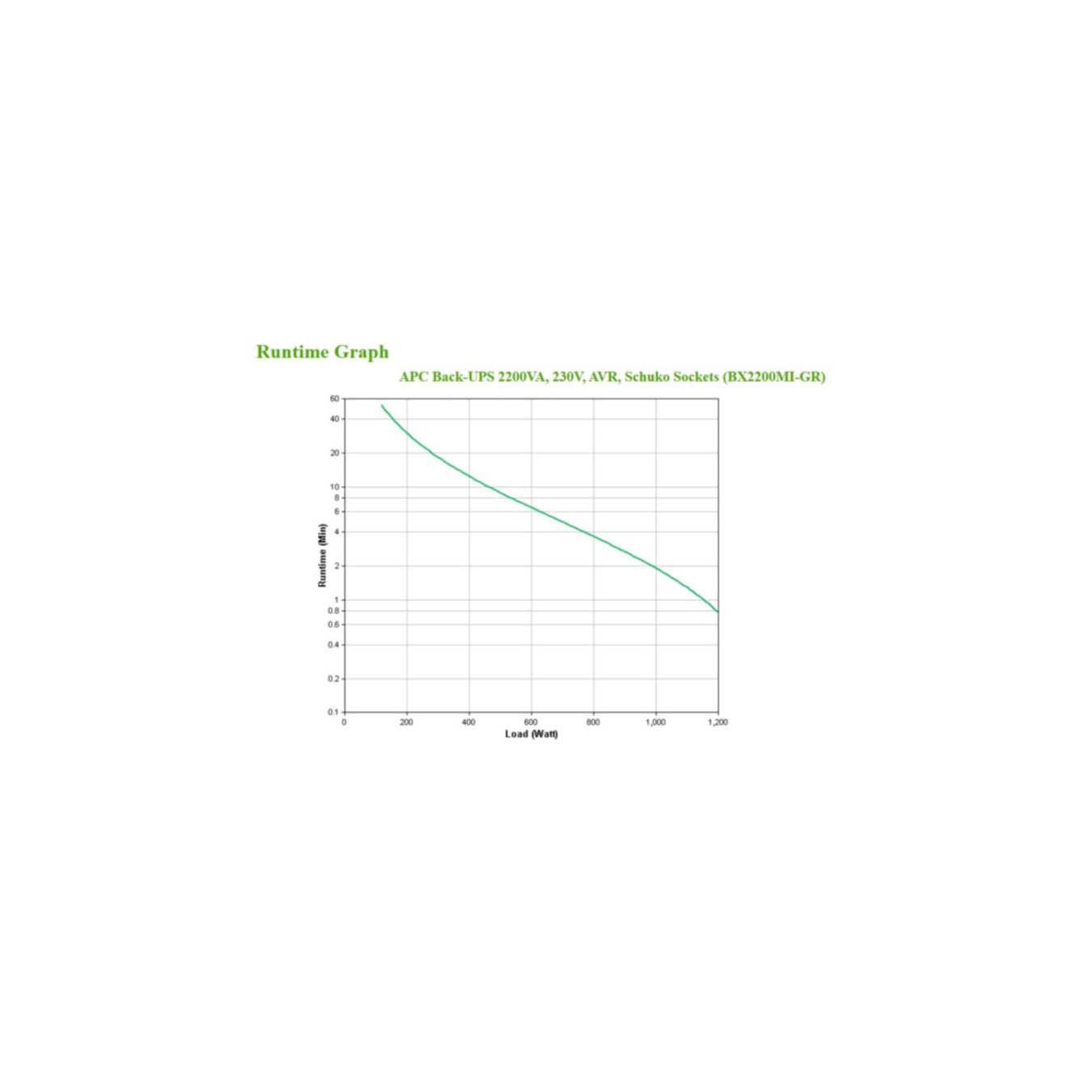

| Typical backup time at full load | 1 min |
| Typical backup time at half load | 8.5 min |
| Battery recharge time | 8 h |
| Form factor | Tower/Compact |
| Cable length | 1.2 m |
| Product colour | Black |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Certification | CE, CB, EN/IEC 62040-1, EN/IEC 62040-2 |
| Width | 140 mm |
| Depth | 390 mm |
| Height | 190 mm |
| Weight | 12.3 kg |
| Package width | 235 mm |
| Package depth | 495 mm |
| Package height | 297 mm |
| Package weight | 13.3 kg |
