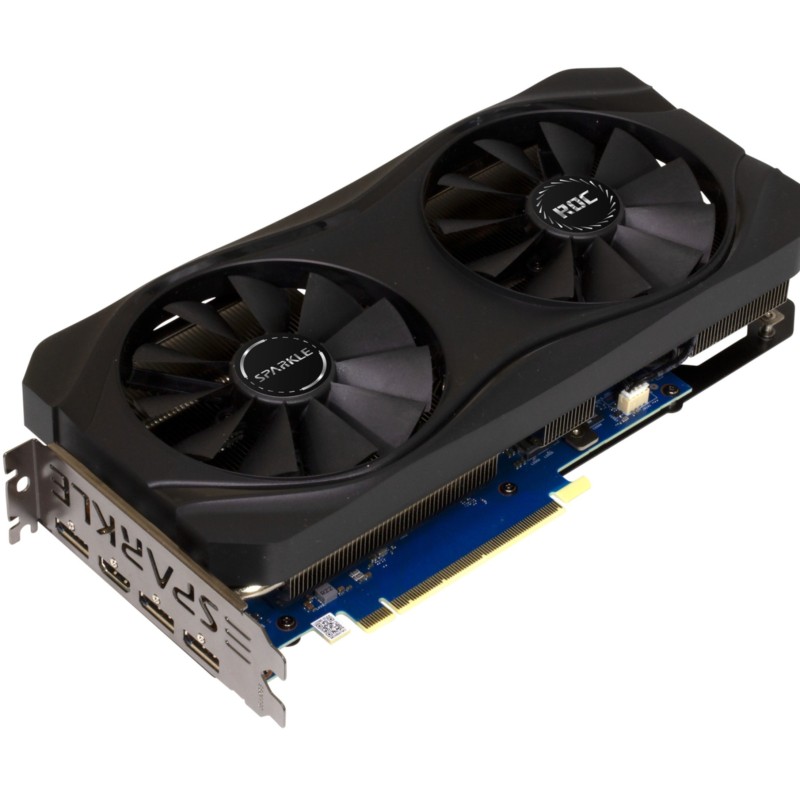

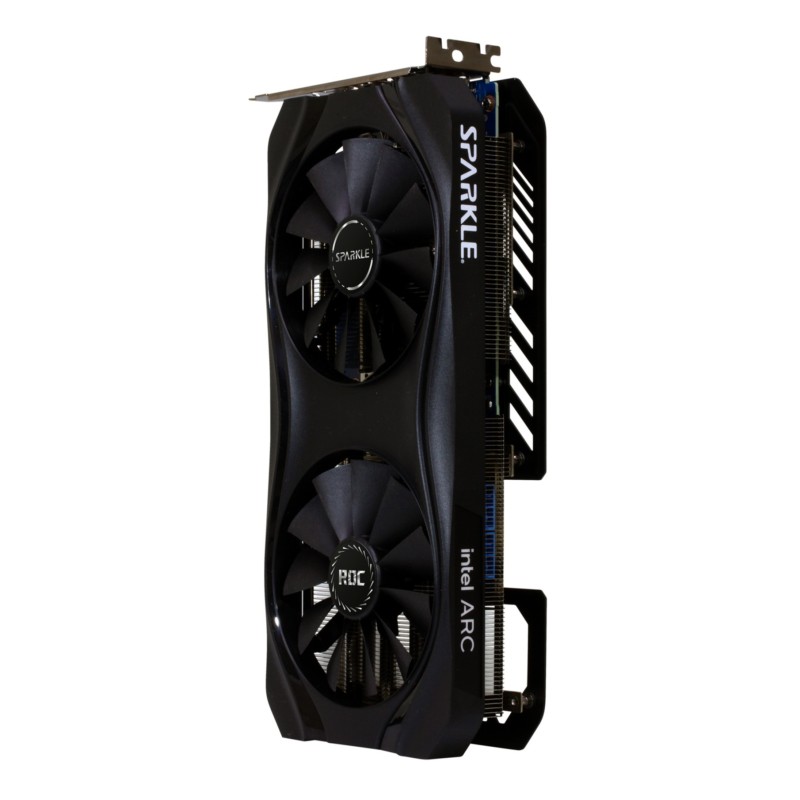

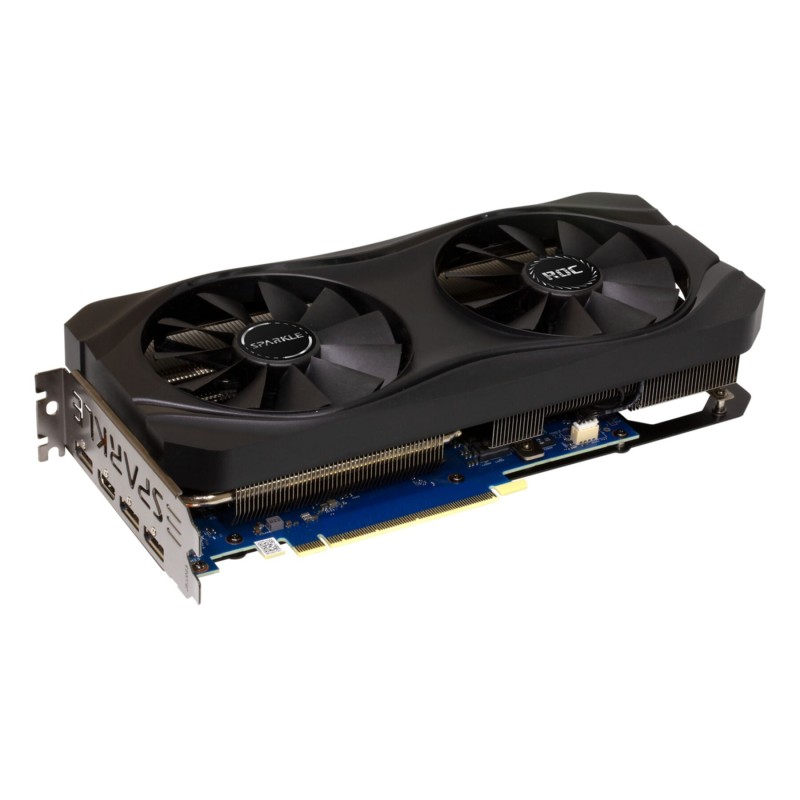

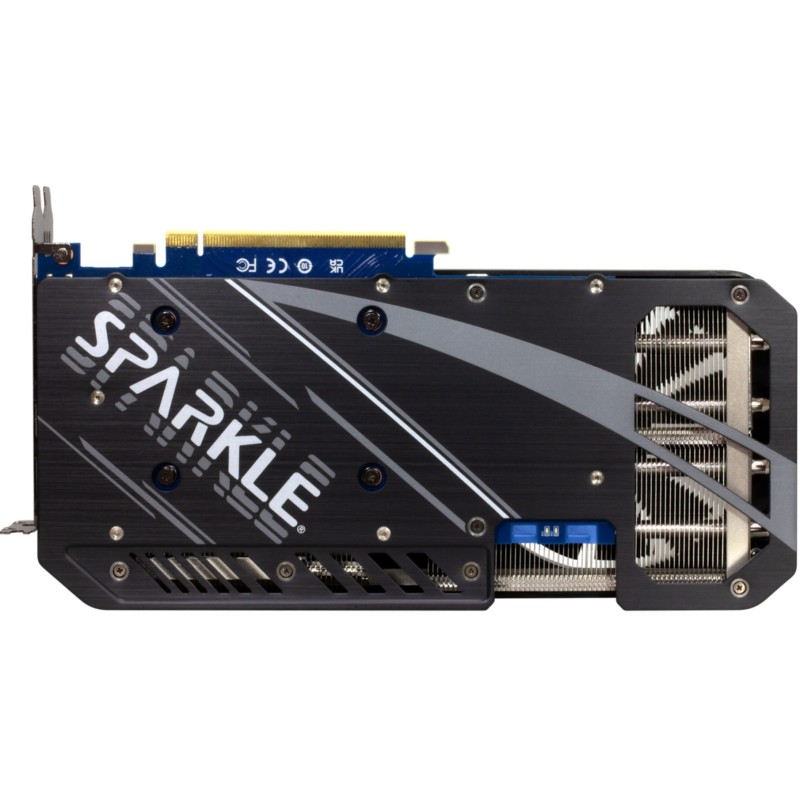

SPARKLE Intel Arc A770 ROC OC Edition - 16GB GDDR6 - 2300 MHz Boost, PCIe 4.0, Dual 100mm Fans
Intel Arc A770 GPU, 16GB GDDR6, up to 2300 MHz boost, PCIe 4.0, 3x DisplayPort 2.0 + 1x HDMI 2.0b, dual 100mm fans, 2.5-slot open-air ROC OC cooler.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - Series | Intel Arc A-series |
|---|---|
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Slot Thickness | 2.5-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
The SPARKLE Intel Arc A770 ROC OC Edition is the brand-new BEST choice of the series, comes with
Intel Arc A770 and 16GB GDDR6. This card is designed for ultimate gaming experience and
maximum productivity.
ROC series equipped dual 100mm double-ball bearing fan with 2.5-slot heatsink design, reduce the
length of card effetely and ready to fit into the compact system. Furthermore, 100mm DBB fans have
brought the higher efficiency of cooling, lead to an ultra-silence experience without compromising
performance.
| Graphics processor family | Intel |
| Graphics processor | Arc A770 |
| Processor boost clock speed | 2300 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Ray accelerators | 32 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 17.5 Gbit/s |
| Memory bandwidth (max) | 560 GB/s |
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |

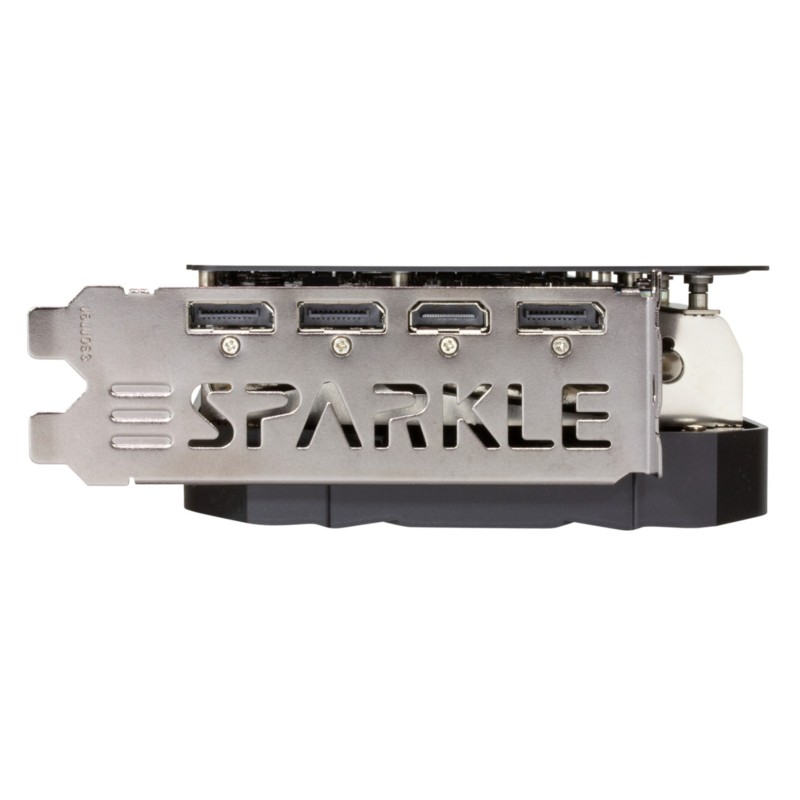

| DisplayPorts quantity | 3 |
| DisplayPort version | 2.0 |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| OpenCL version | 3.0 |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines | 512 |
| Xe-cores | 32 |
| Video formats supported | AV1, VP9 |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2.5 |
| Product colour | Black |
| Minimum system power supply | 650 W |
| Power consumption (typical) | 225 W |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Ubuntu 22.04 |
| Weight | 360 g |
| Length | 281 mm |
| Depth | 51 mm |
| Height | 131 mm |
