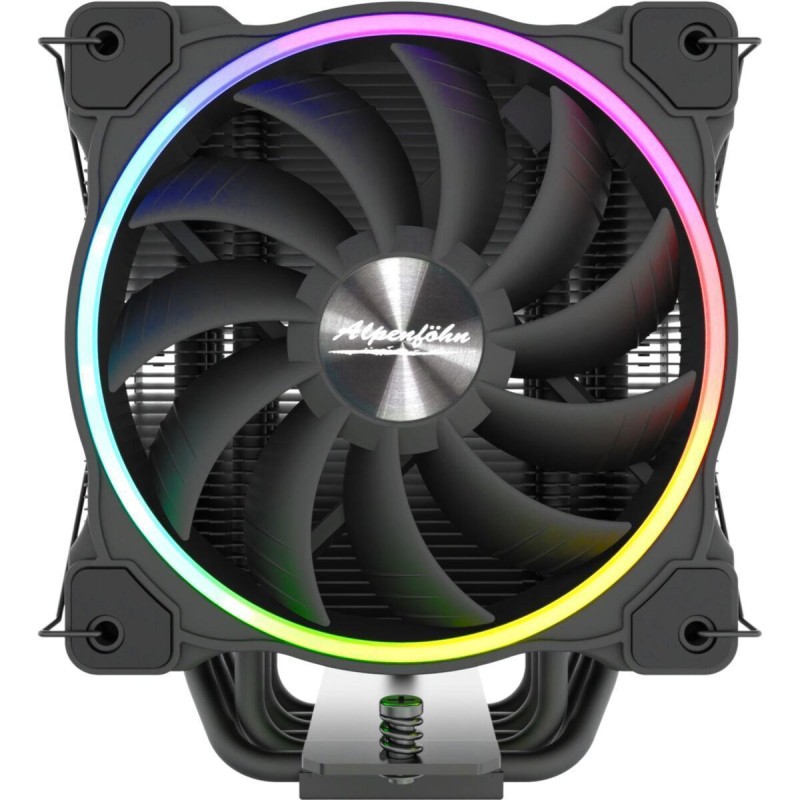

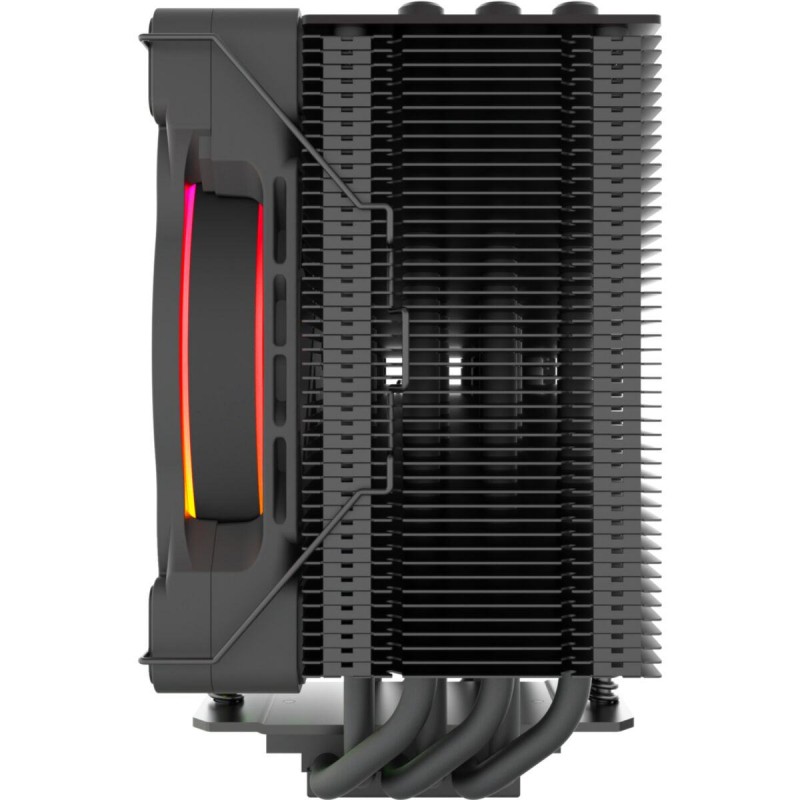

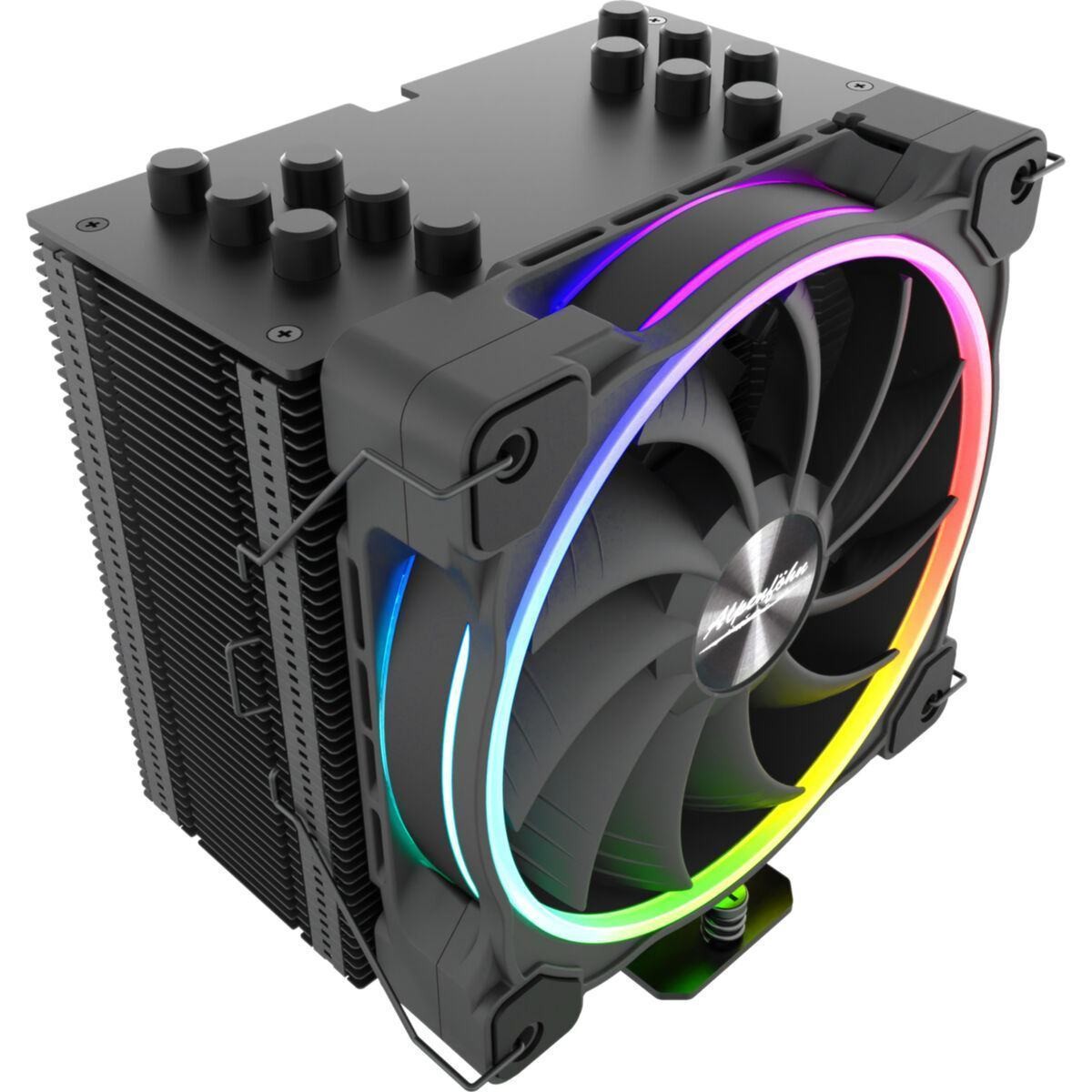

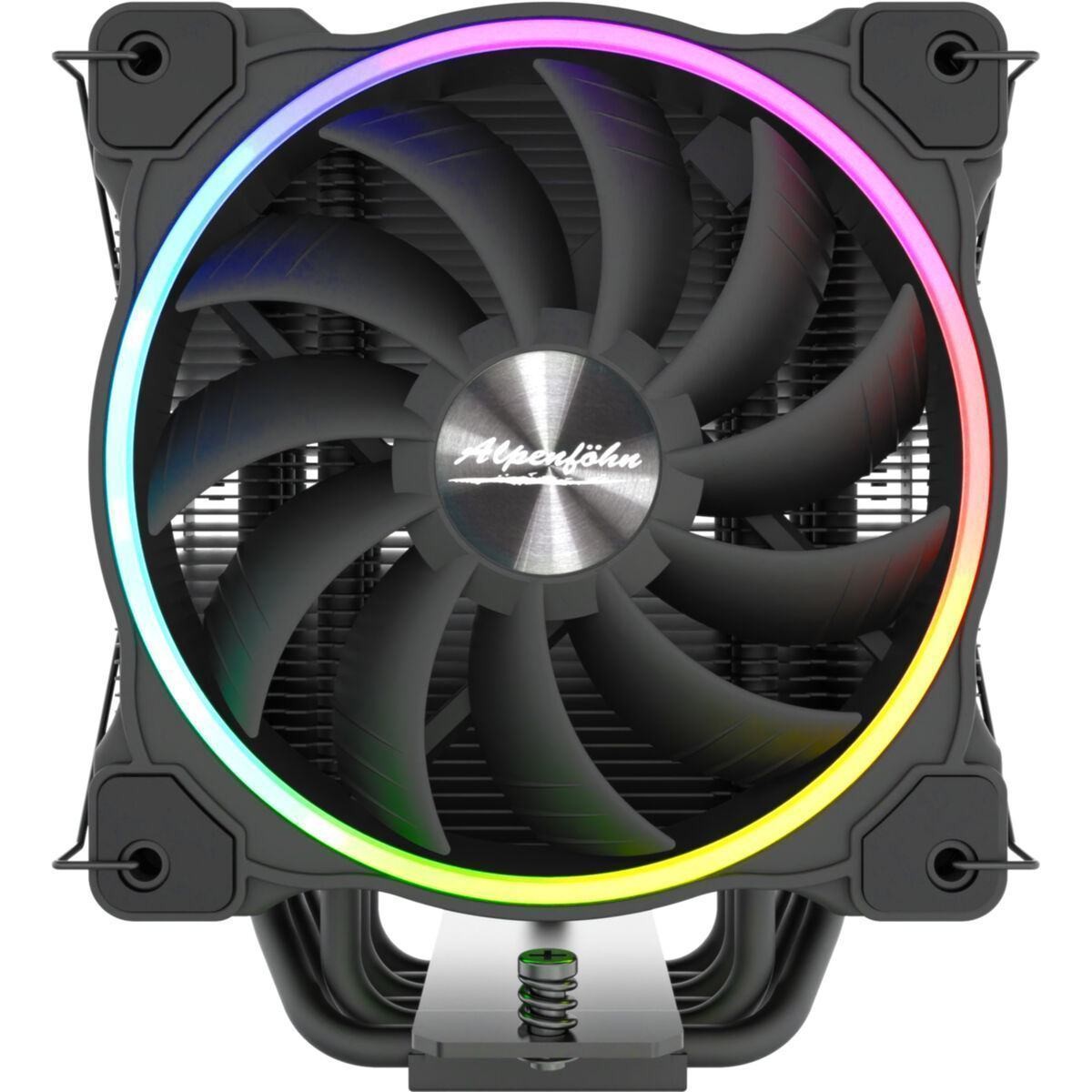

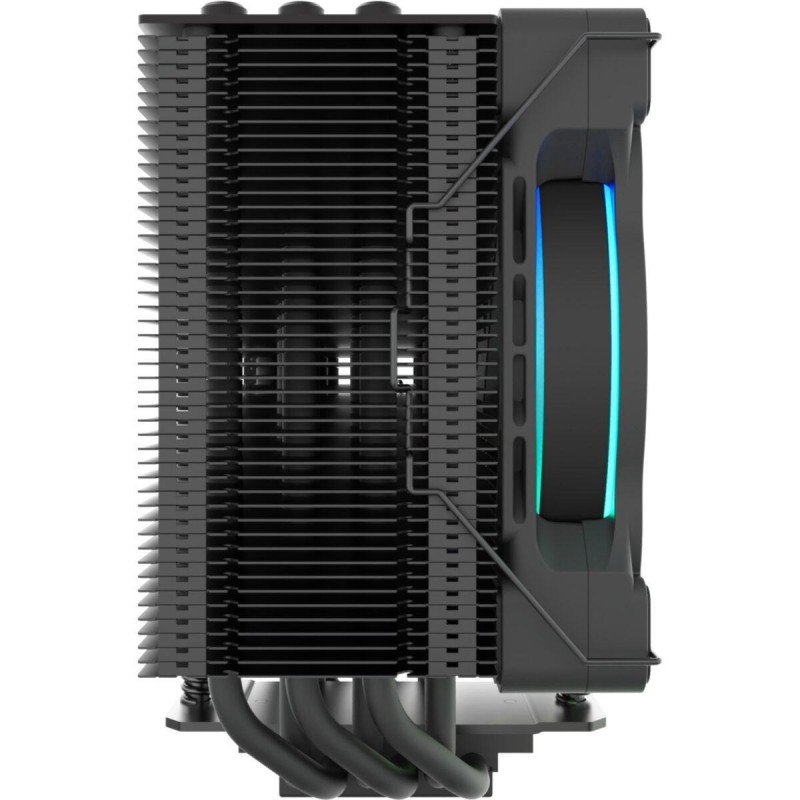

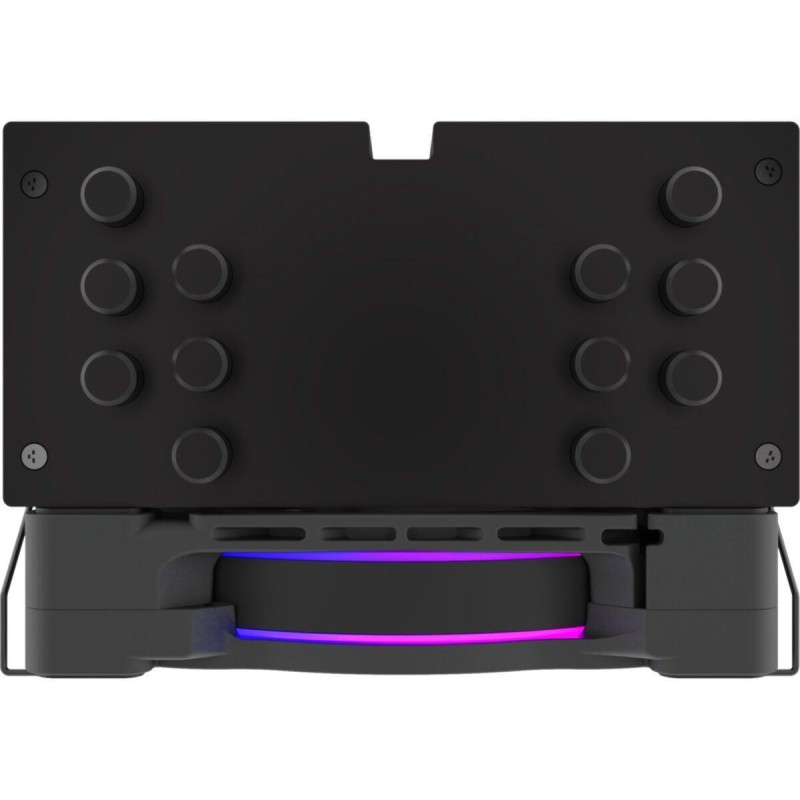

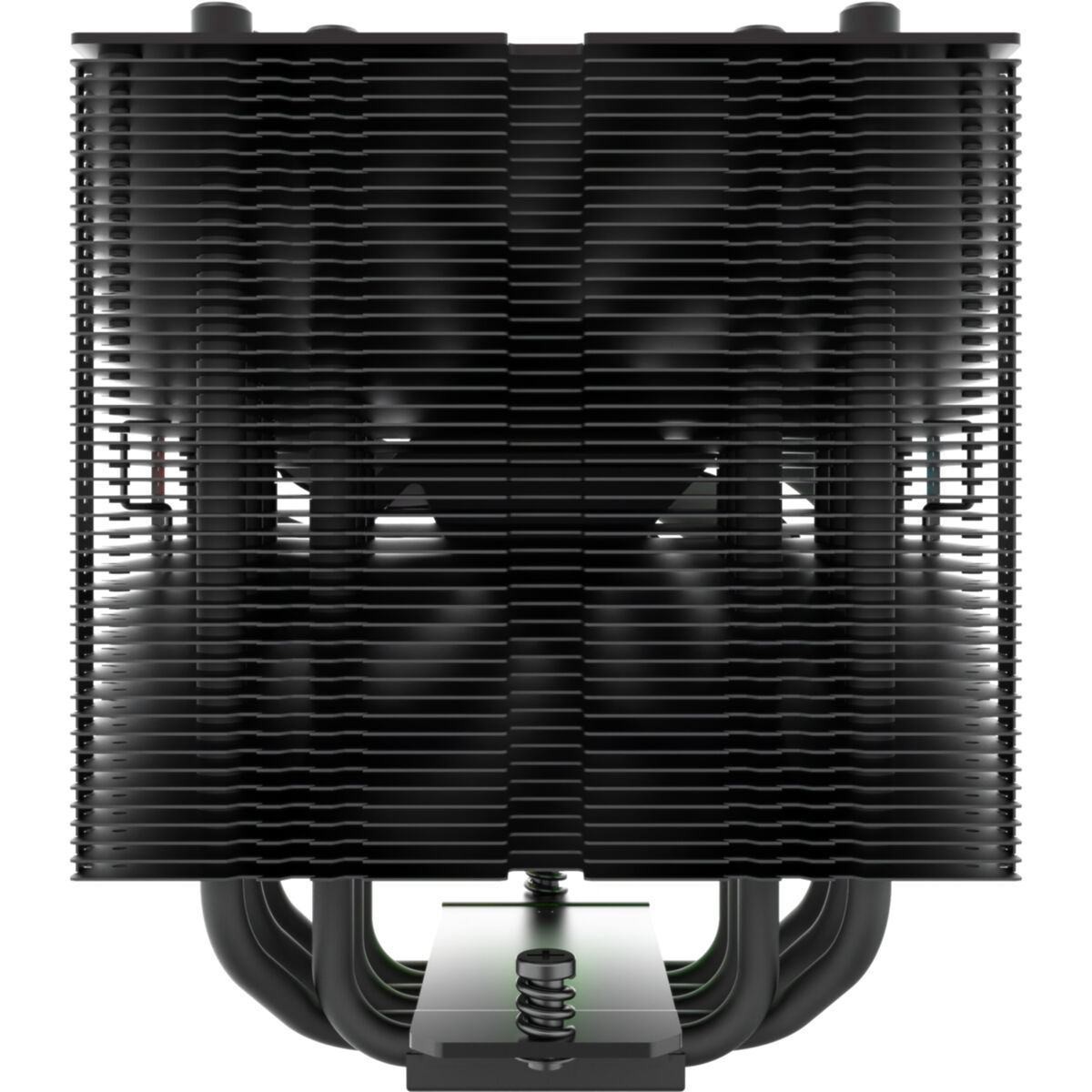

EKL Alpenföhn Dolomit Premium - Black CPU Air Tower Cooler, 120mm PWM Fan, Multi-color LED, 210W TDP
Tower CPU cooler with 120mm PWM fan (120x25mm), multi-color LED, copper base with 4×6mm heatpipes, 210W TDP, 154mm height. Compatible with Intel LGA1200 and AMD AM4.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Cooling (CPU & Case) - Type (Cooler) | Air Tower |
|---|---|
| Cooling (CPU & Case) - Socket Support | LGA1200 |
| Cooling (CPU & Case) - TDP Rating | 171-220 W |
| Cooling (CPU & Case) - Height (Air) | 48-155 mm |
| Cooling (CPU & Case) - Fans Included | 1x120 mm |
| Cooling (CPU & Case) - Noise Level | less than or equal to25 dBA |
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Fan Thickness | 25 mm (standard) |
| Cooling (CPU & Case) - Fan Connector | 4-pin PWM |
| Cooling (CPU & Case) - Speed (RPM) | 1501-2000 |
| Cooling (CPU & Case) - Use Case | Airflow |
High performance Single Tower with 210W TDP
DolomitPremiumGerman engineering, an all-black heatsink combined with the multi-award winning Wing Boost 3 ARGB fans: The Dolomit Premium offers enough spare performance to efficiently cool the most demanding systems.
High-end heat pipes & copper base plate
6 high-end heat pipes with a large contact area on the nickel-plated Copper base plate ensure good heat pick-up at the CPU. Therefore the heat can be conducted to the large area fin stack quickly and efficiently.
All-black design
The heat sink is completely black and the stylish top fin rounds the design off. Further are all mounting parts kept black too.
Asymmetrical heat sink
The asymmetrical design of the Dolomit heat sinks allows maximum freedom when choosing RAM modules. No matter how high the heat spreader of the module is, it will fit without any problems. 100% RAM compatibility on the sockets 1200, 115X und AM4.
Wing Boost 3 ARGB
With its 16.8 million colours, the Wing Boost 3 ARGB offers numerous possibilities to put your case into the right light. The addressable RGB LED lighting is integrated into the fan housing, put a light shine onto the impeller, and also shines stylish to the outside.
Upgradable fan configuration
If even more performance is required, the kit contains four fan clips. This allows the mounting of an additional 120 mm fan on the back of the heat sink, increasing the cooling performance even further.
Thermal grease
The Thermal Grizzly Hydronaut thermal paste with its excellent thermal conductivity can also be used in the overclocking market. Advantages: No hardening, silicone free and not electrically conductive.
German Engineering
A perfect balancing act between performance and compatibility was achieved through intelligent material selection and a new Rock Mount 3 mounting system.
Compatibility
The enclosed mounting material allows secure installation on the following sockets:
- Intel® LGA: 1200, 1150, 1151, 1155, 1156, 2066, 2011-v3, 2011
- AMD: AM4
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4 |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1600 RPM |
| Noise level (high speed) | 23.5 dB |
| Airflow | 92.6 m³/h |
| Maximum air pressure | 2.19 mmH2O |
| Bearing type | Hydraulic |
| Quantity per pack | 1 pc(s) |
| Product colour | Black |
| Base plate material | Copper |
| Number of fans | 1 fan(s) |
| Number of fan blades | 11 |
| Fins material | Aluminium |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Fan connector | 3-pin + 4-pin |
| Power consumption (typical) | 1.56 W |
| Voltage | 7 - 13.2 V |
| Rated voltage | 12 V |
| Rated current | 0.13 A |
| Thermal Design Power (TDP) | 210 W |
| Width | 126 mm |
| Depth | 86 mm |
| Height | 154 mm |
| Weight | 935 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
