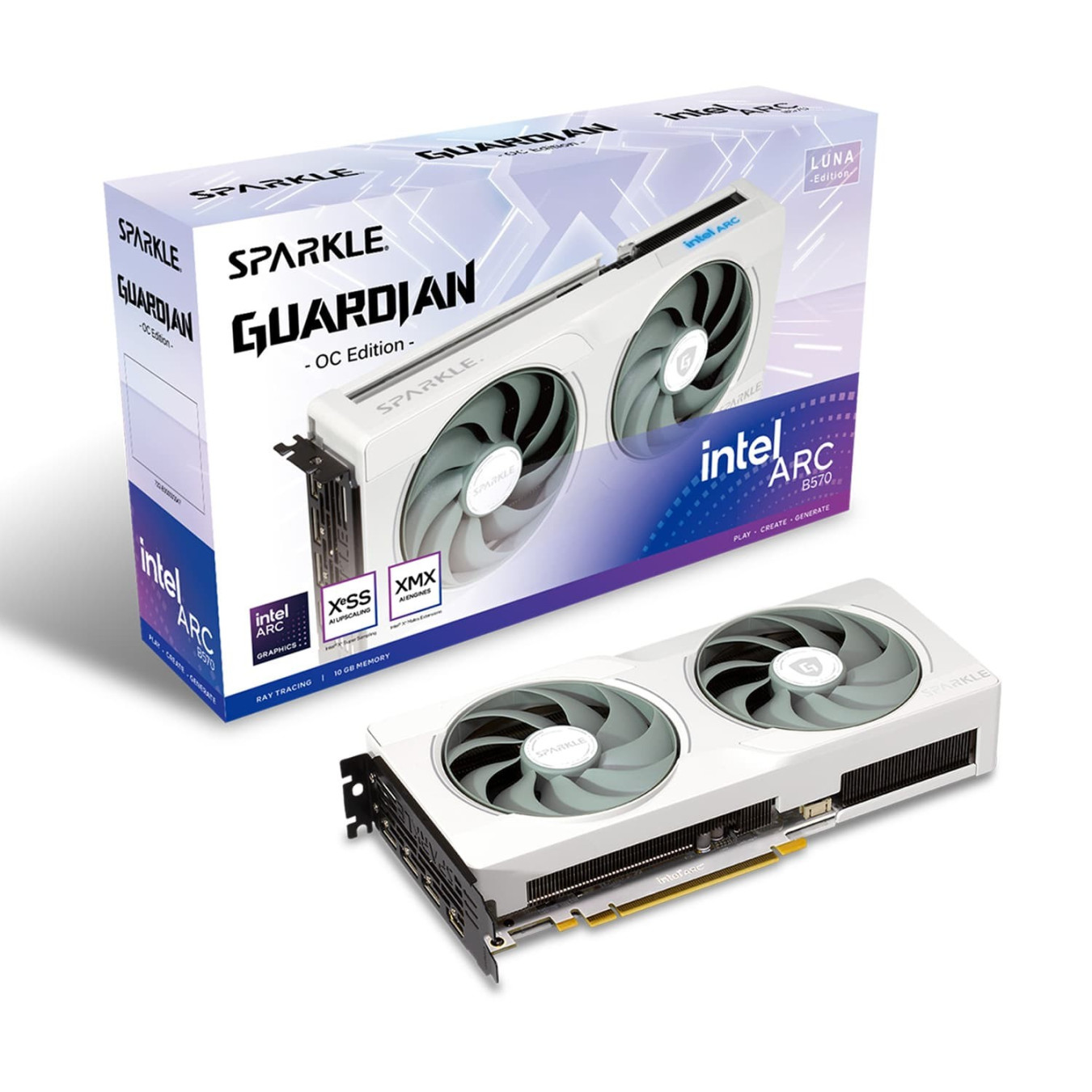

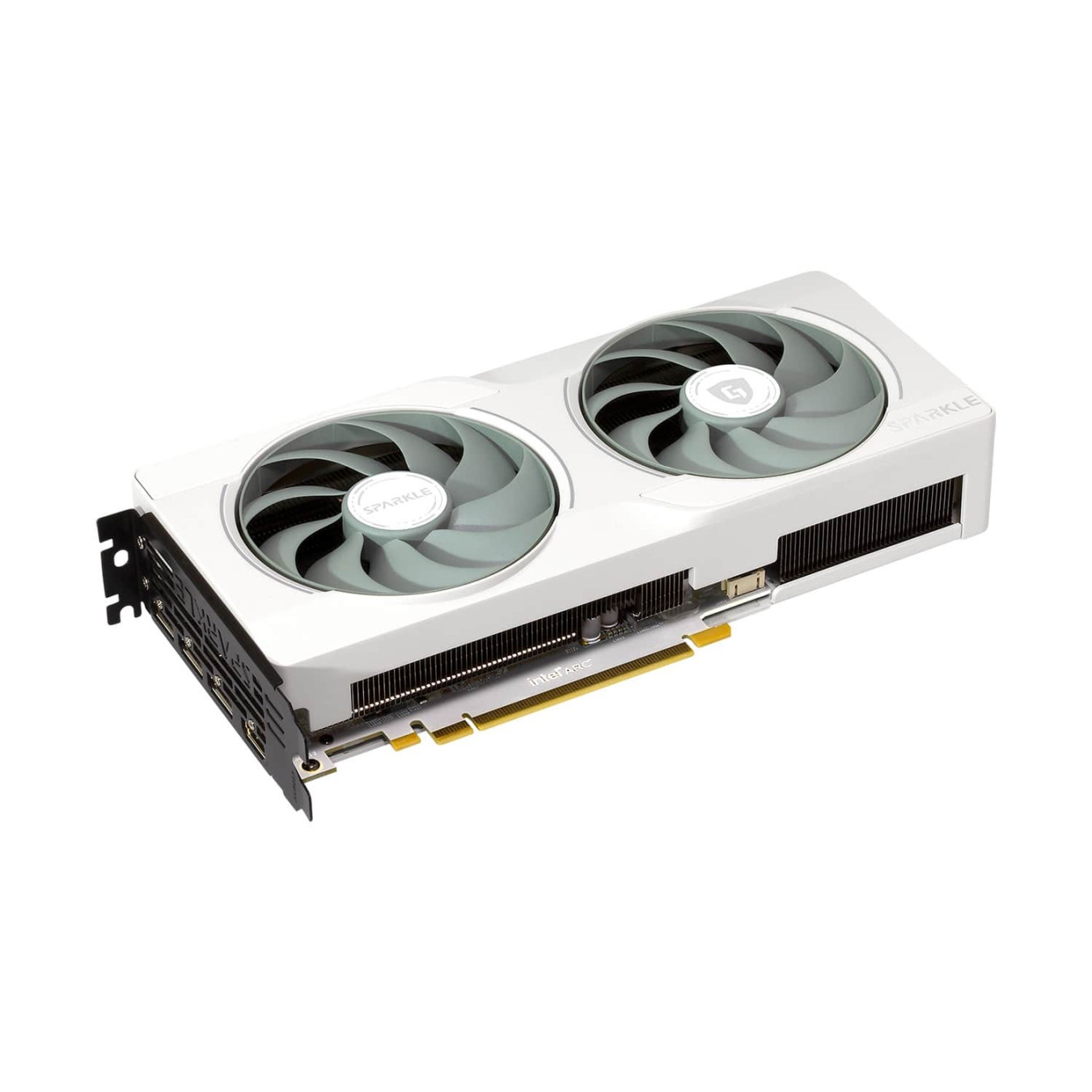

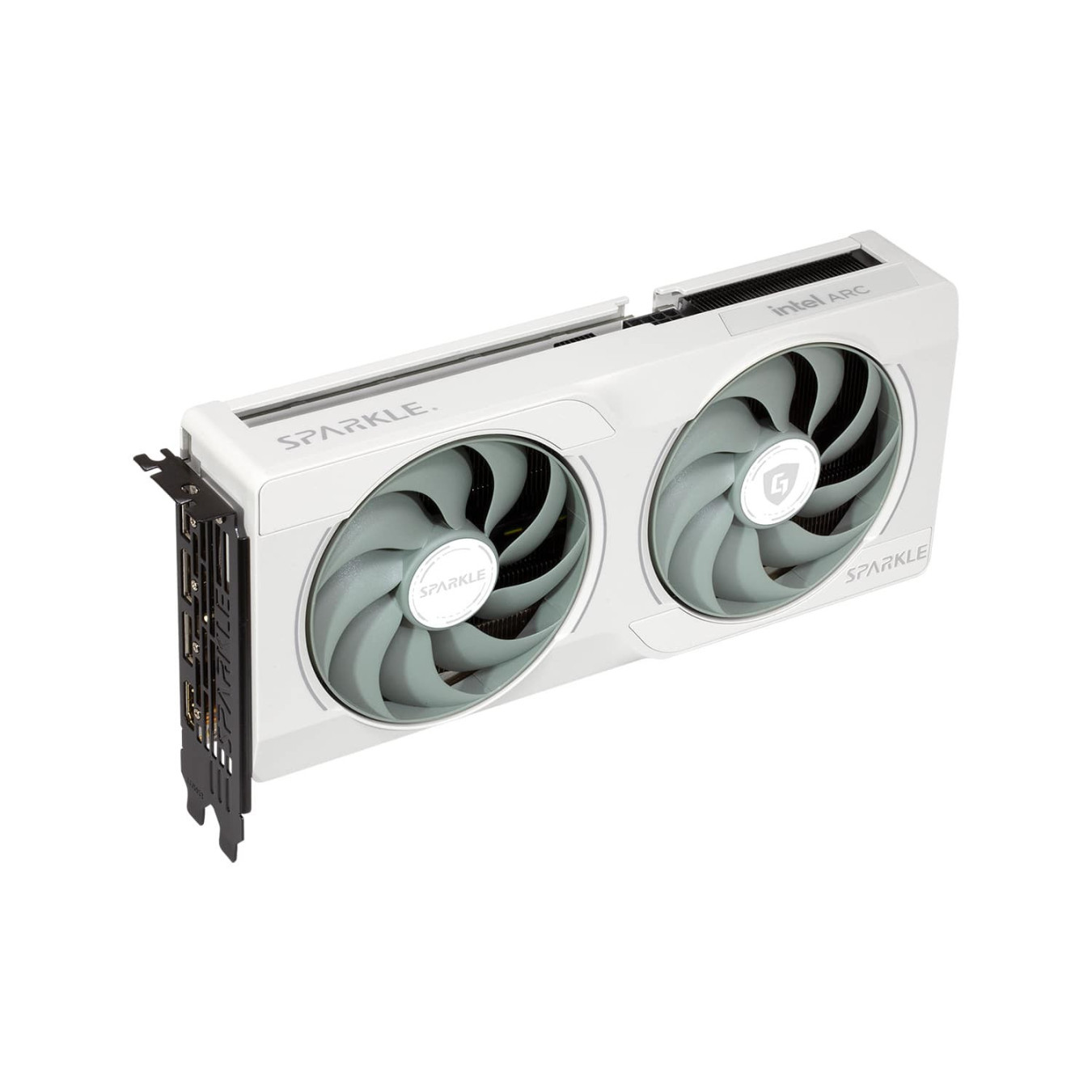

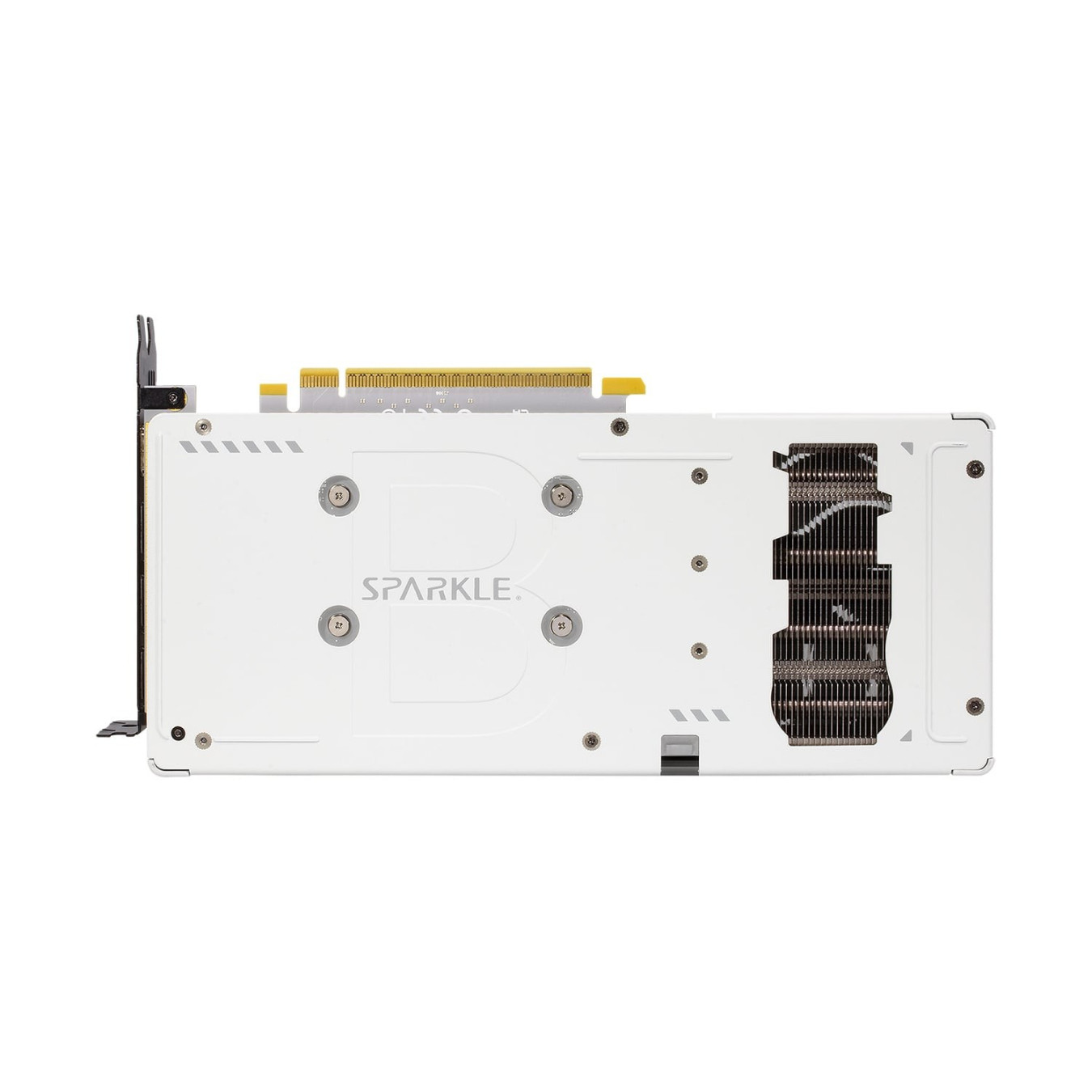

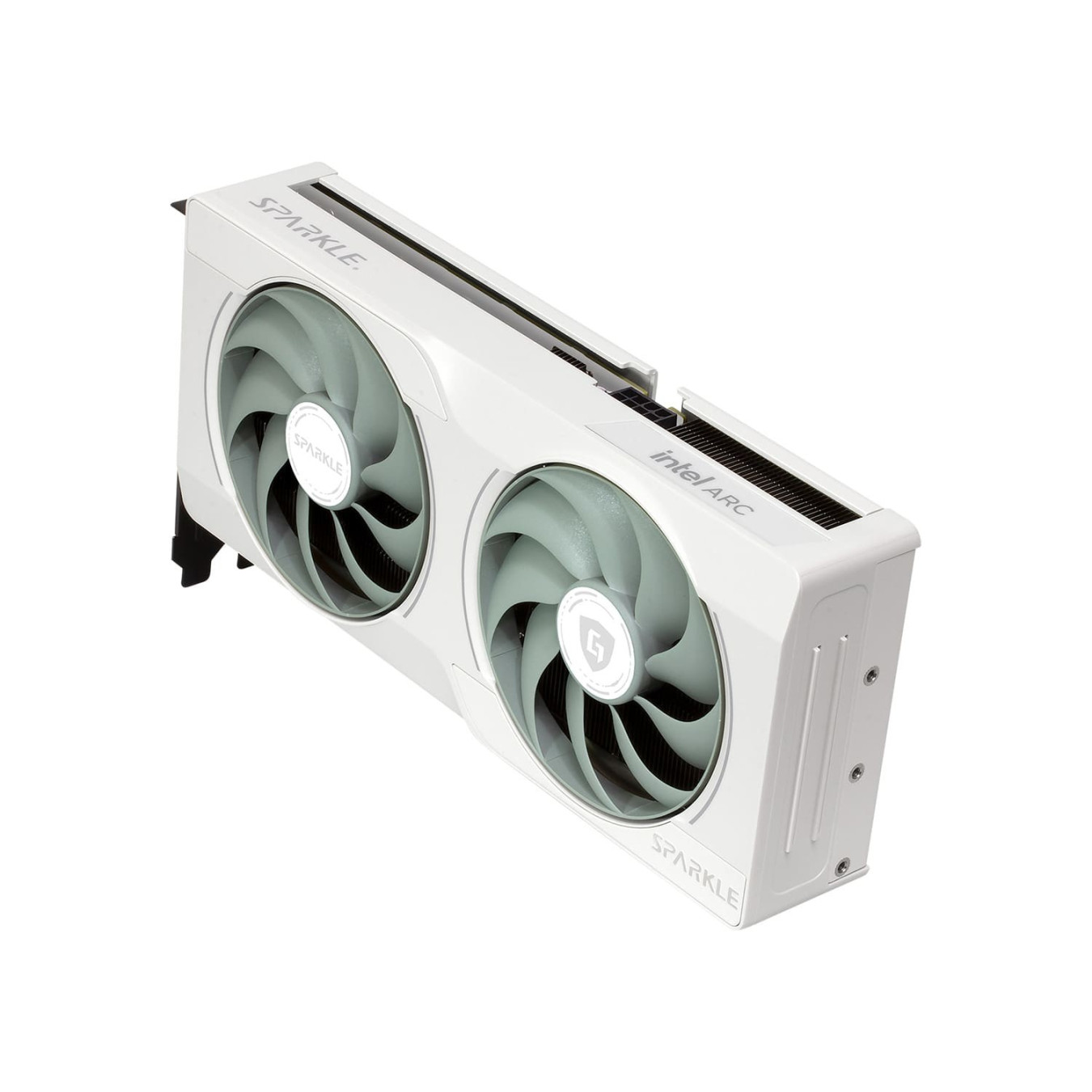

SPARKLE Guardian Luna OC - Intel Arc B570 - White, 10GB GDDR6, 2660MHz

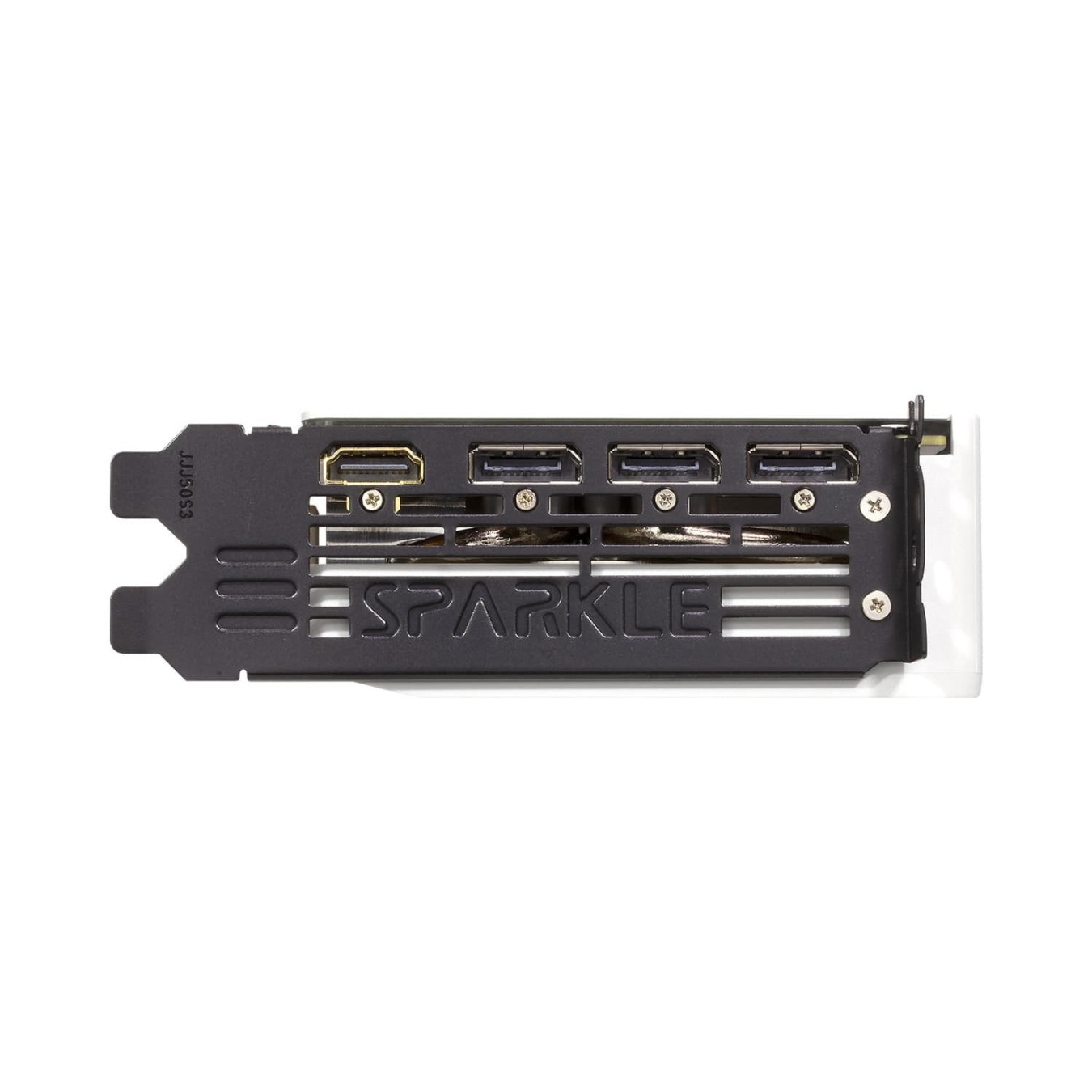

Intel Arc B570 GPU, 10GB GDDR6, 2660MHz, PCIe 4.0 x8, HDMI 2.1 + 3x DisplayPort 2.1, dual-fan open-air cooling, blue RGB, 170W TDP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Graphics processor family | Intel |
| Graphics processor | Arc B570 |
| Processor frequency | 2660 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Discrete graphics card memory | 10 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 160 bit |
| Memory bandwidth (max) | 380 GB/s |
| Interface type | PCI Express x8 4.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1 |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| OpenCL version | 3.0 |
| Dual Link DVI | No |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines | 144 |
| Xe-cores | 18 |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2.2 |
| Illumination | Yes |
| Illumination colour | Blue |
| Product colour | White |
| Minimum system power supply | 600 W |
| Power consumption (typical) | 170 W |
| Supplementary power connectors | 1x 8-pin |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight | 796 g |
| Length | 245 mm |
| Depth | 105 mm |
| Height | 44 mm |
| Package type | Box |
