TP-Link Archer MR200 - Dual-Band 4G LTE Router - Wi-Fi 5, Nano-SIM Slot
Dual-band Wi-Fi 5 router with built-in 4G LTE modem and Nano‑SIM slot. Up to 150 Mbps LTE download and combined Wi‑Fi speeds up to 733 Mbps. Tabletop design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Routers - Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Routers - Bands | Dual-band (2.4+5 GHz) |
| Routers - 3G/4G/5G Failover | Nano-SIM (built-in) |
Share Your 4G LTE Network

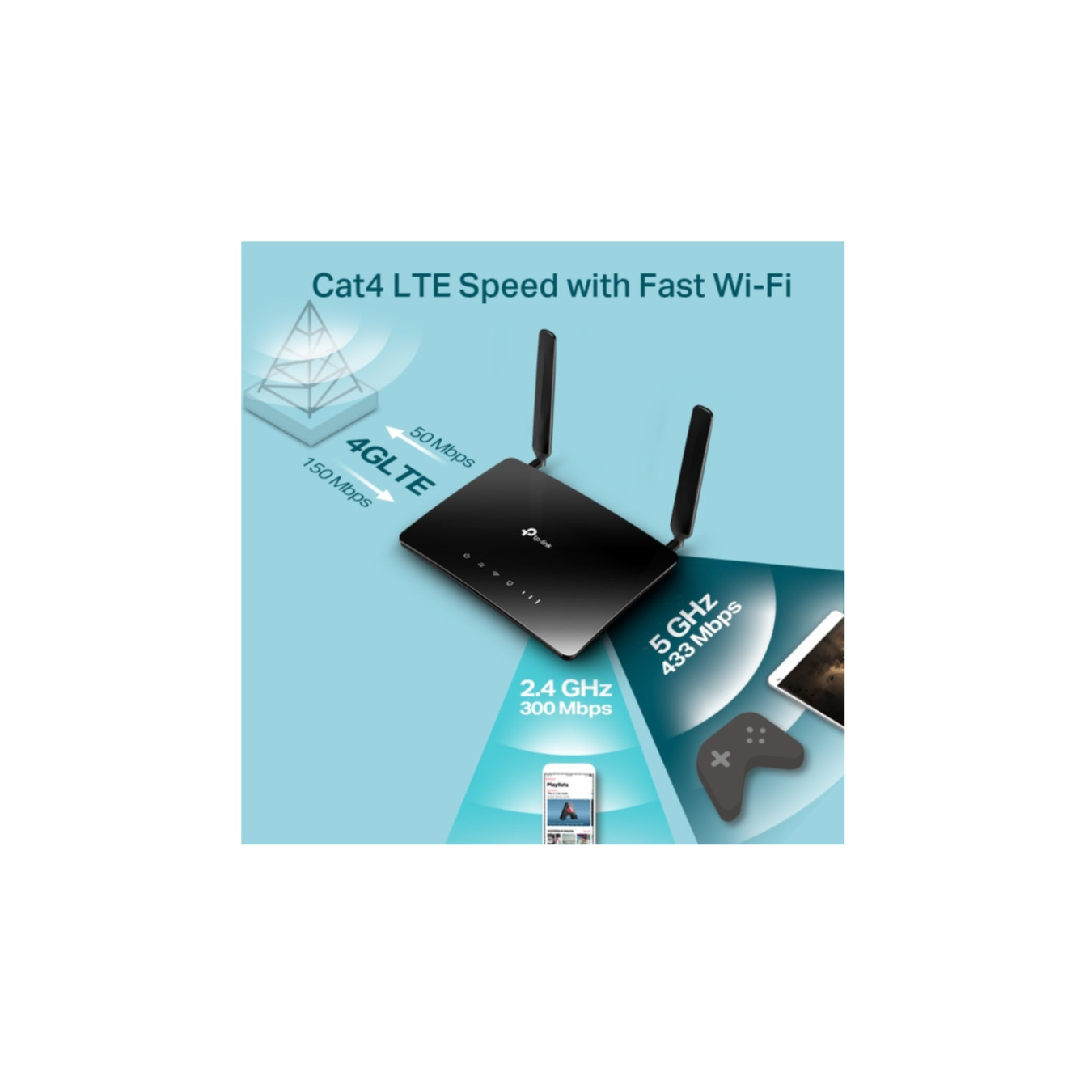

Take full advantage of your cutting-edge 4G LTE network with the Archer MR200, which can achieve download speeds of up to 150Mbps. The Archer MR200 allows you to share your 4G LTE network with multiple Wi-Fi devices so you can enjoy uninterrupted HD movies, rapid file downloads, and video chats that won't freeze up.
Great Coverage and Dual Band Wi-Fi
The 4G LTE router creates a simultaneous dual band Wi-Fi network that can deliver data at speeds of up to 733Mbps. The two distinct wireless networks, utilizing the 2.4GHz and 5GHz bands, provide optimized performance and minimize signal interference. The incorporation of advanced antennas and the latest wireless technology allows you to enjoy stable connections and incredible coverage.
No Configuration Required

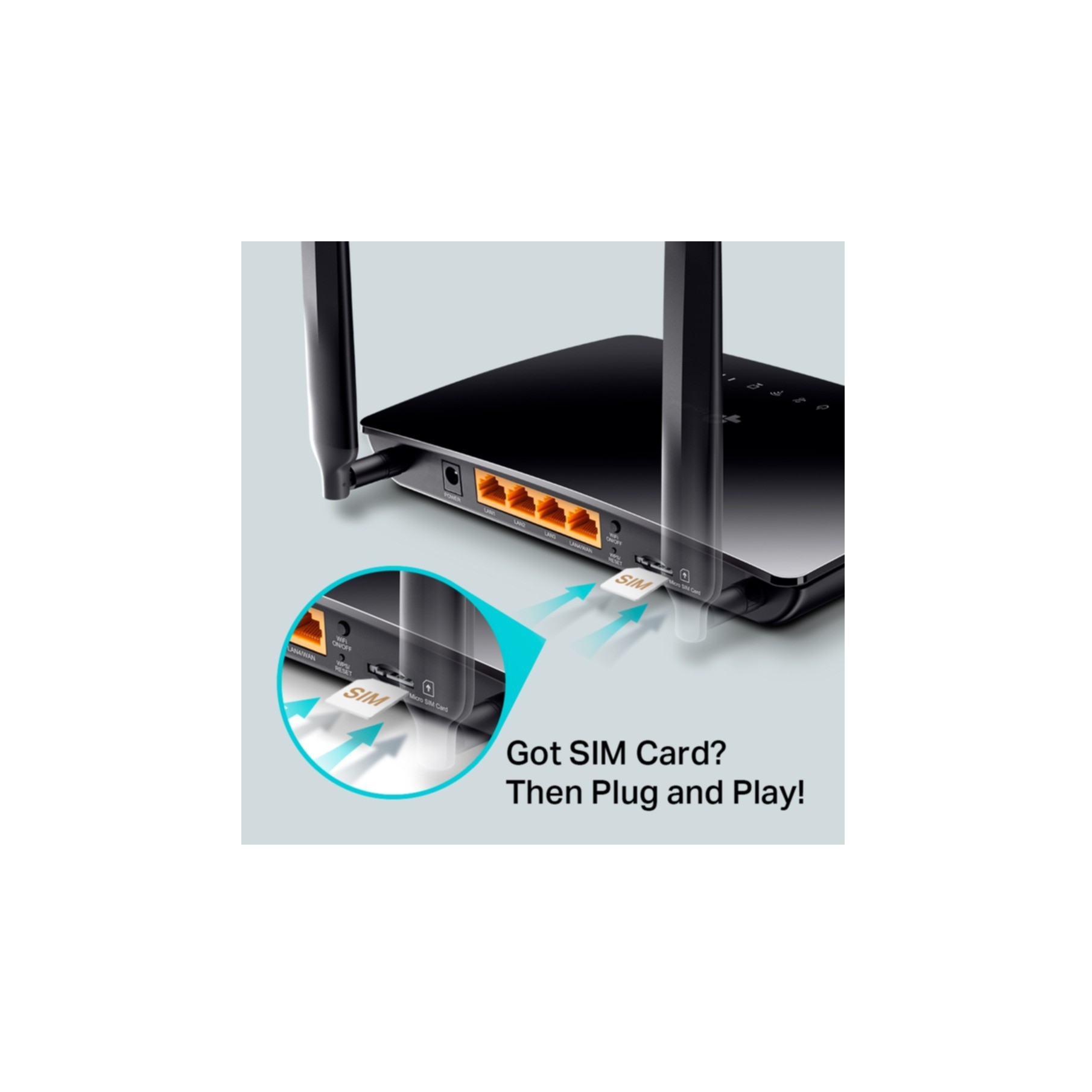

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Wi-Fi Where You Need It
The Archer MR200 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR200 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR200 has you covered.
Available WAN Connection

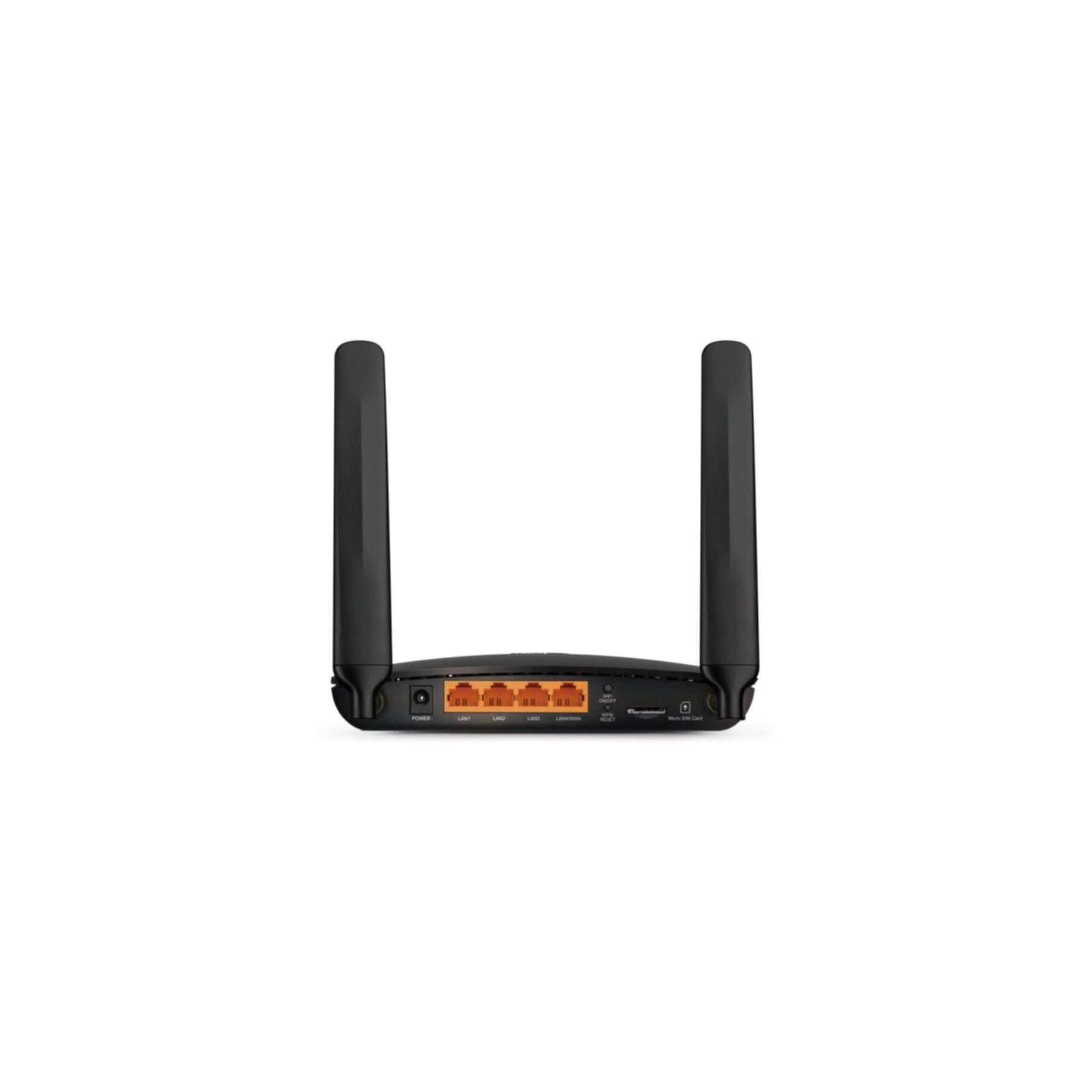

With the inclusion of the WAN/LAN port, the Archer MR200 can also support a wide variety of connection types, including cable, fiber, and DSL modems.
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 433 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 433 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10, 100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| VPN server | PPTP VPN, IPSec VPN , OpenVPN |
| VPN Passthrough | Yes |
| VPN support | PPTP, L2TP, IPSec |
| Receiver sensitivity | 5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm |
| Mobile network generation | 4G |
| 3G | Yes |
| 4G | Yes |
| 2G standards | Edge, GPRS, GSM |
| 3G standards | DC-HSPA+, HSPA, HSPA+, UMTS |
| 4G standard | LTE |
| GSM bands supported | 850, 900, 1800, 1900 MHz |
| 4G bands supported | 800, 900, 1800, 2100, 2600 MHz |
| 3G bands supported | 900, 2100 MHz |
| SIM card type | MicroSIM |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| Memory card slot(s) | No |
| DC-in jack | Yes |
| Web-based management | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
| Guest access | Yes |
| Access Control List (ACL) | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Data link protocols | IPv4, IPv6 |
| Product colour | Black |
| On/off switch | Yes |
| Product type | Tabletop router |
| Certification | CE, FCC, RoHS |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Antenna design | External |
| Antennas quantity | 2 |
| Detachable antenna(s) | Yes |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 1 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Width | 202 mm |
| Depth | 141 mm |
| Height | 33.6 mm |
| Micro to standard SIM card adapter | Yes |
| Nano to standard SIM card adapter | Yes |
| Package width | 307 mm |
| Package depth | 223 mm |
| Package height | 70 mm |
| Package weight | 670 g |
| Package type | Box |
| Harmonized System (HS) code | 85176990 |
