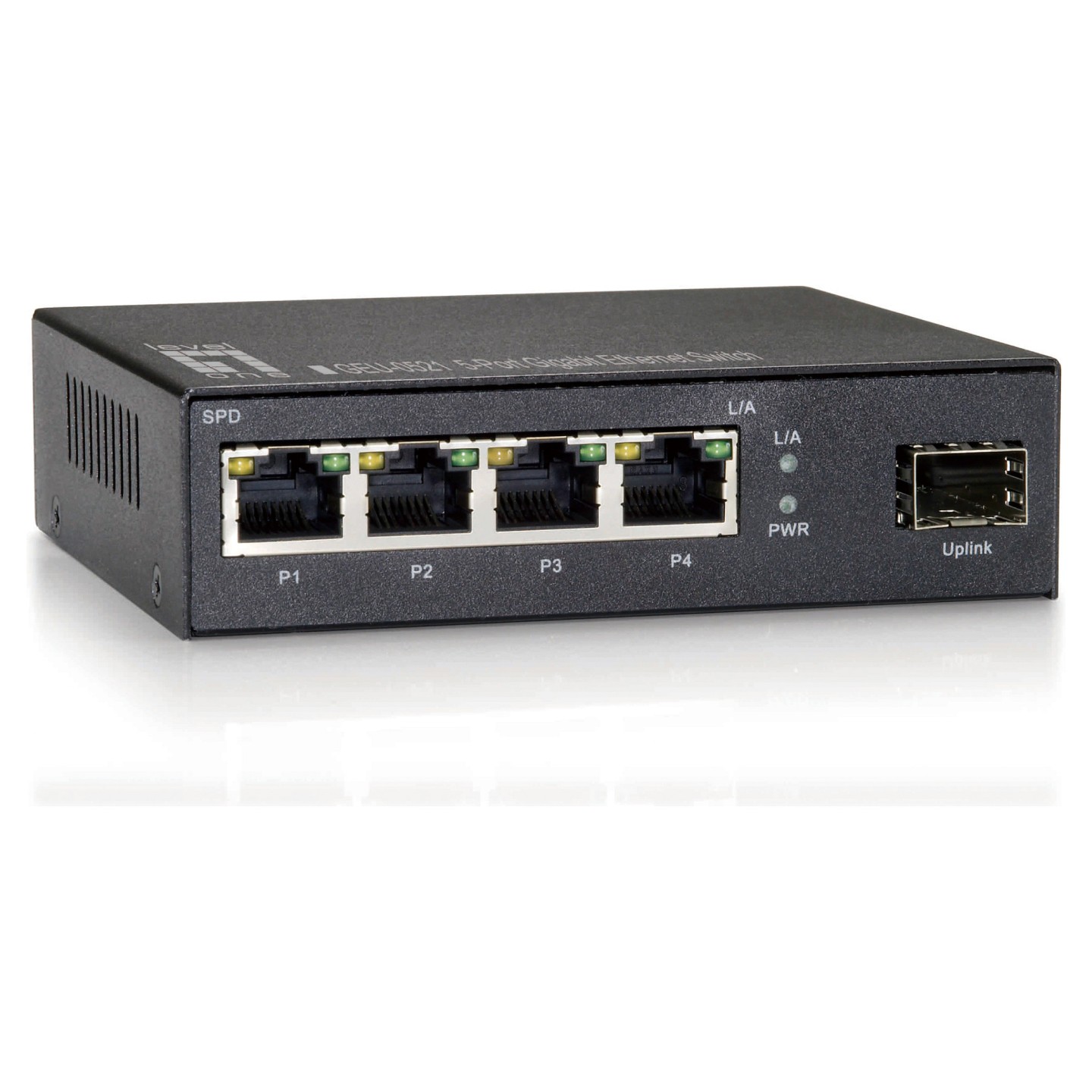

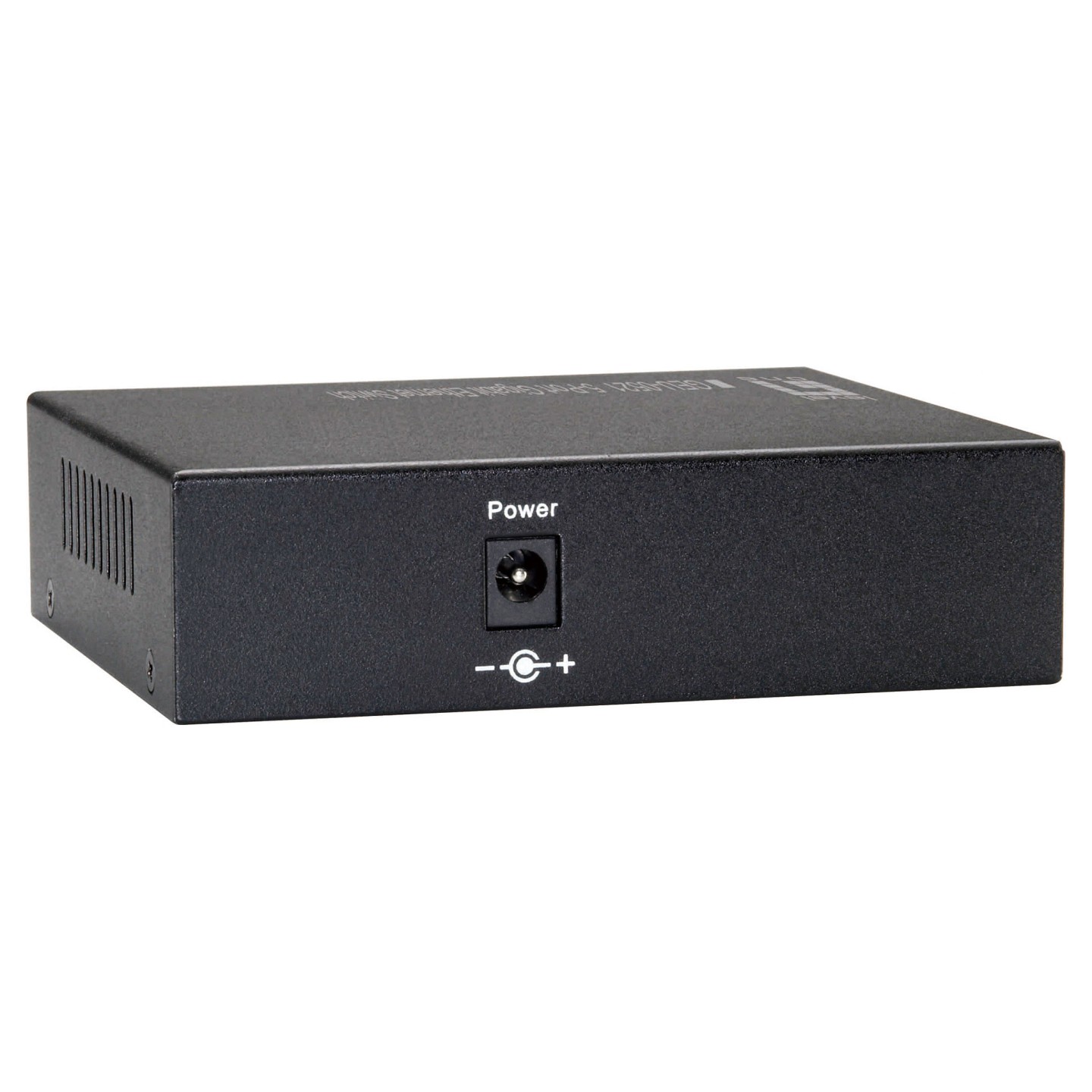

LevelOne GEU-0521 Gigabit 4 Port + 1 SFP Switch
LevelOne GEU-0521. Unmanaged. Gigabit Ethernet (10/100/1000). Vollduplex. Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne GEU-0521. Switch-Typ: Unmanaged. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 4. Vollduplex. MAC-Adressentabelle: 4000 Eintragungen. Routing-/Switching-Kapazität: 1 Gbit/s. Netzstandard: IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z. Wandmontage
| Switch-Typ | Unmanaged |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 4 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 1 |
| Optischer Kabelverbinder | SFP |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-T |
| unterstütze Kabeltypen | Cat5. Cat5e |
| Feature | Gummifüße |
| Ethernet-Kabel Verkablungstechnologie | 1000BASE‑LX. 1000BASE‑SX |
| Transmissionsentfernung (max) | 0.55 km |
| Routing-/Switching-Kapazität | 1 Gbit/s |
| MAC-Adressentabelle | 4000 Eintragungen |
| Jumbo-Frames | 9000 |
| Paketweiterleitungsrate (1 Gbit/s) | 1488000 pps |
| Paketweiterleitungsrate (100 Mbit/s) | 148800 pps |
| Paketweiterleitungsrate (10 Mbit/s) | 14880 pps |
| Datenpaket-Pufferspeicher | 1 MB |
| Produktfarbe | Grau |
| Gehäusematerial | Metall |
| LED-Anzeigen | Aktivität. Link. Leistung |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Eingangsstrom | 2.5 A |
| Betriebstemperatur | 0 - 40 °C |
| Temperaturbereich bei Lagerung | -20 - 90 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Breite | 96 mm |
| Tiefe | 112 mm |
| Höhe | 30 mm |
| Gewicht | 380 g |
| Verpackungsbreite | 140 mm |
| Verpackungstiefe | 250 mm |
| Verpackungshöhe | 55 mm |
| Paketgewicht | 540 g |
| Zertifizierung | FCC Class B. CE |
| Ursprungsland | China |
| Warentarifnummer (HS) | 85176990 |
