Mercusys

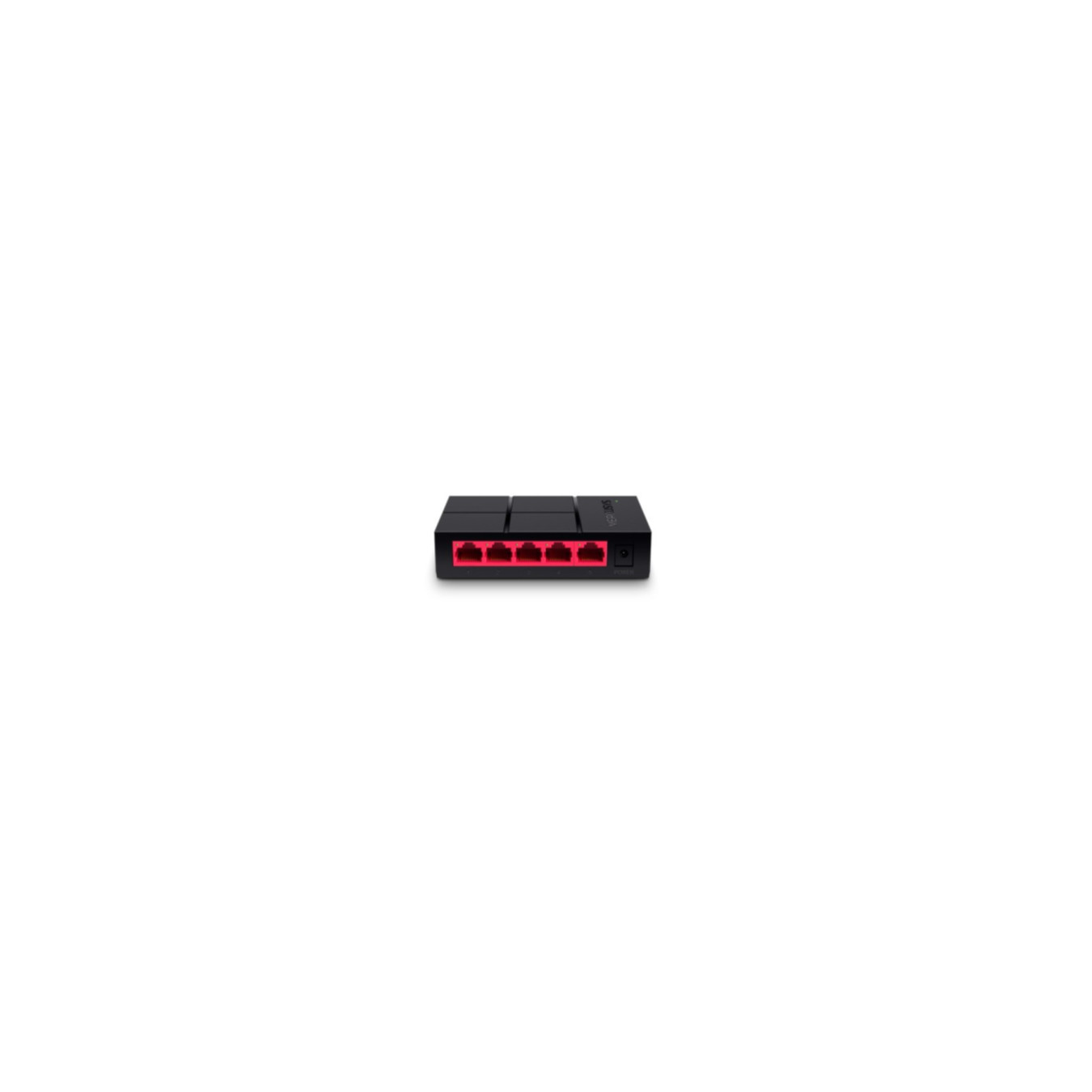

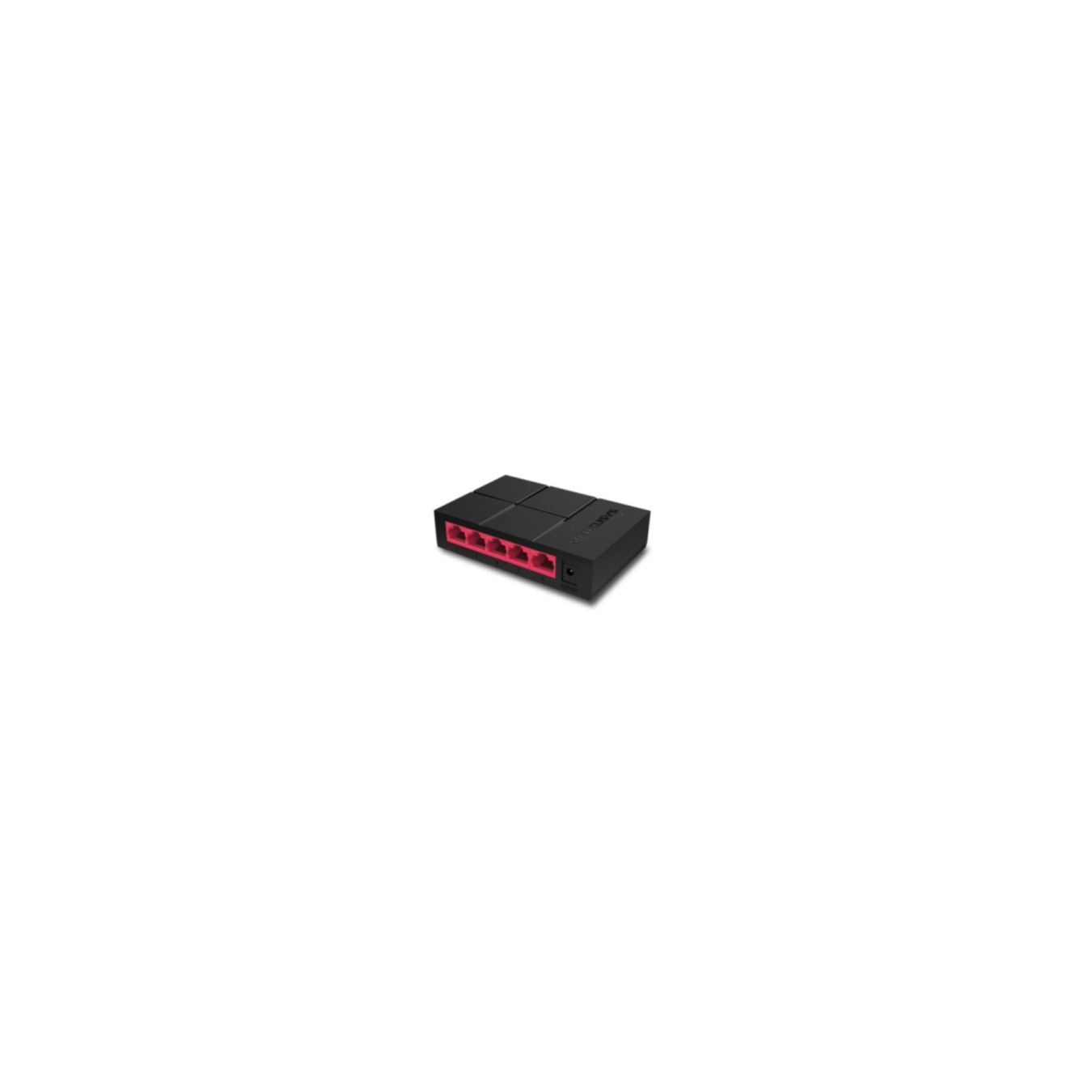

Mercusys Switch MS105G - 5-Port Gigabit Unmanaged Desktop Switch (Red/Black)

SKU 8162 Brand Mercusys EAN13 6935364099619
Unmanaged 5-port Gigabit (10/100/1000) desktop switch — plug-and-play, fanless, compact red/black design for home, office, 4K TVs, IP cameras and gaming.
Network Switches - Fanless Yes

More Efficient Transmission
5-Port 10/100/1000 Mbps Desktop Switch

Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with five 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS105G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.

Cool, Ultra-Compact Design
A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS105G sits anywhere in your home without taking up too much.

Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, MS105G provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.

Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS105G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.


Switch typeUnmanaged
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Full duplexYes
Half duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory0.512 MB
Rack mountingNo
StackableNo
Product colourBlack
LED indicatorsActivity, Power
Power sourceDC
Power supply includedYes
Input current0.6 A
Input voltage5 V
Power over Ethernet (PoE)No
Width105 mm
Depth70 mm
Height24.9 mm
Quick start guideYes
Package width110 mm
Package depth90 mm
Package height60 mm
Package weight200 g
Harmonized System (HS) code85176990
