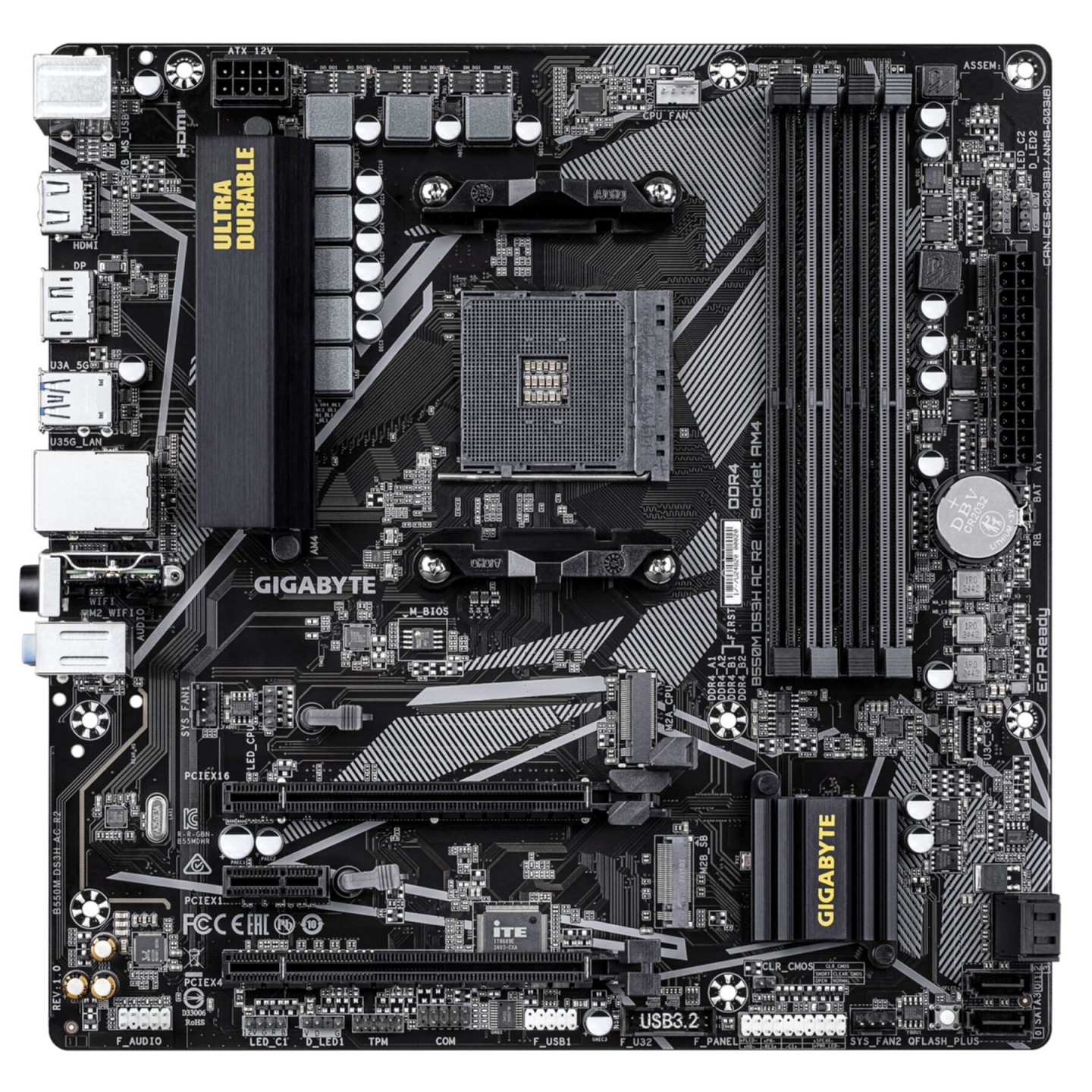

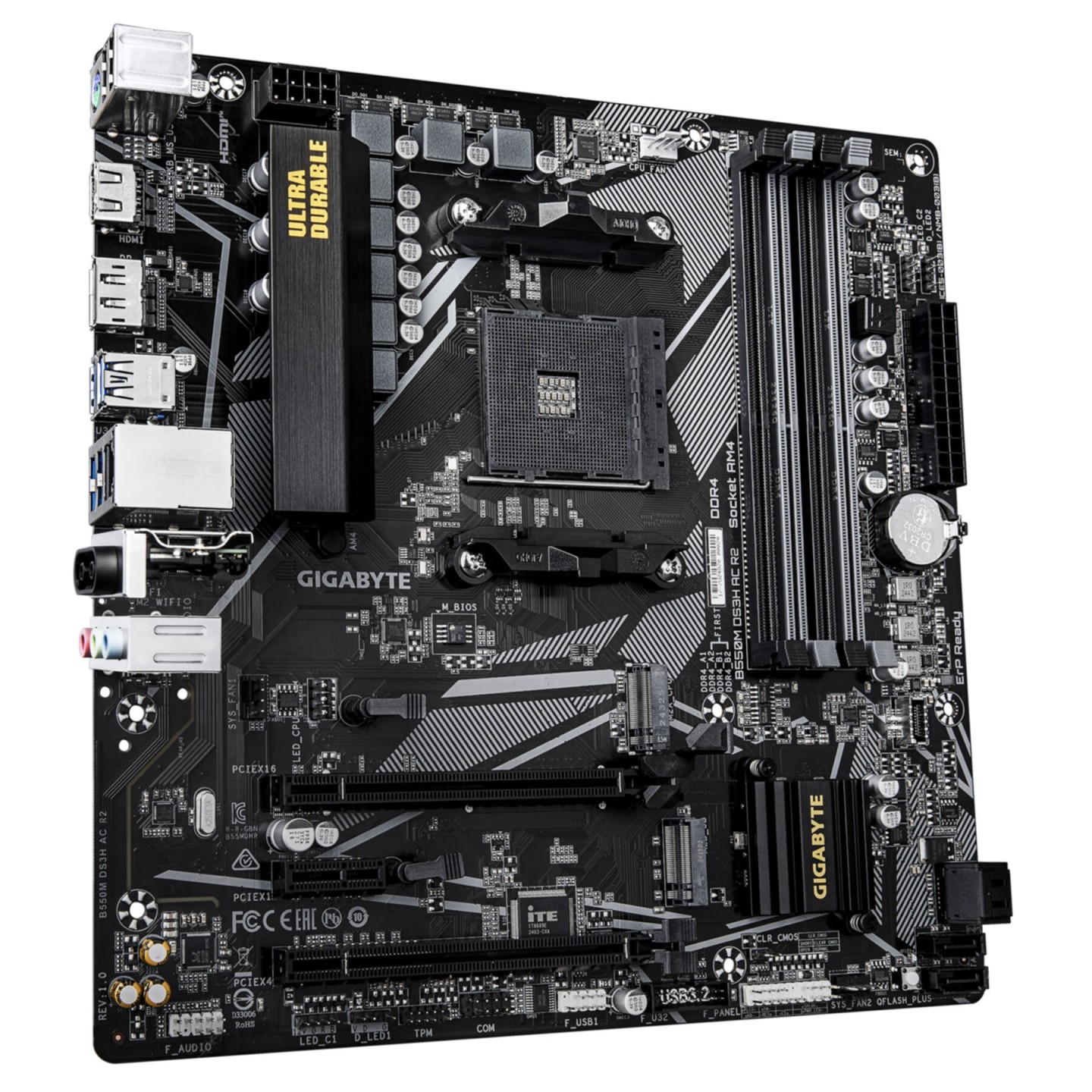

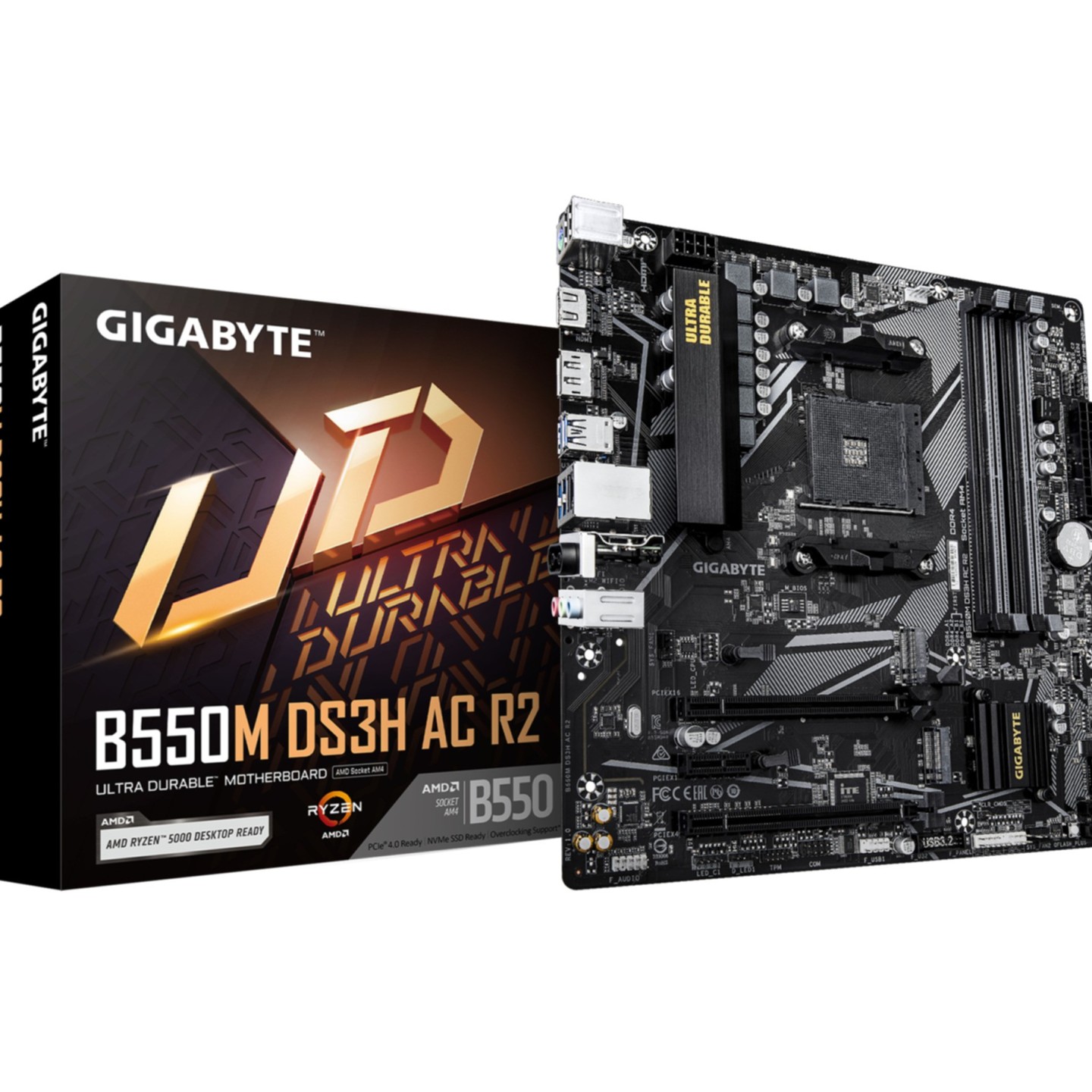

Gigabyte B550M DS3H AC R2 - B550 Micro-ATX AM4 Motherboard, DDR4, 128GB Max, Wi-Fi 5 AC, RGB LED
B550 micro-ATX motherboard for AMD Ryzen 3000/4000/5000 series. Supports DDR4 up to 128GB (4 slots), PCIe 4.0, 2x M.2 NVMe, 4x SATA, Wi-Fi 5 AC, HDMI 2.1, DisplayPort, RGB LED headers.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM4 |
|---|---|
| Motherboards - Chipset | AMD B550 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | WiFi |
The Gigabyte B550M DS3H AC R2 is a feature-rich micro-ATX motherboard designed for AMD Ryzen 3000, 4000, and 5000 series processors. Built on the AM4 socket with the B550 chipset, this board delivers PCIe 4.0 performance for next-generation storage and graphics expansion while maintaining excellent value for budget-conscious builders.
This motherboard supports up to 128GB of DDR4 memory across four DIMM slots, with support for speeds up to DDR4-4733MHz. The board features 2x M.2 NVMe slots (one PCIe 4.0 x4, one PCIe 3.0 x4) for fast SSD storage, plus 4x SATA 6Gb/s ports for traditional drives. Connectivity includes HDMI 2.1 (supporting 48Gb/s bandwidth and 21:9 cinematic ratio) and DisplayPort for video output, Gigabit Ethernet LAN, and Wi-Fi 5 AC with antenna for wireless connectivity. The board includes 3x RGB LED headers and 2x ARGB headers for customizable lighting, plus Smart Fan 6 technology with dual fan curve modes (Slope and Stair) for precise thermal management.
Additional features include a 5+3 phase digital VRM with thermal armor, 4x USB 3.0 ports and 2x USB 2.0 ports on the rear I/O, 3x PWM/DC fan headers supporting up to 24W per header, and support for AMD StoreMI technology for optimized storage performance. The compact micro-ATX form factor (244mm x 244mm) makes it ideal for smaller builds while maintaining excellent expansion options.
- Socket AM4 for Ryzen 3000/4000/5000 series processors
- B550 chipset with PCIe 4.0 support
- 4x DDR4 DIMM slots, up to 128GB capacity
- 2x M.2 NVMe slots (PCIe 4.0 and PCIe 3.0)
- 4x SATA 6Gb/s ports with RAID 0/1/10 support
- HDMI 2.1 and DisplayPort video outputs
- Wi-Fi 5 AC with antenna included
- Gigabit Ethernet LAN (Realtek RTL8111H)
- 3x RGB + 2x ARGB LED headers
- Smart Fan 6 with dual curve modes
- Micro-ATX form factor (244mm x 244mm)
| CPU Socket | Socket AM4 |
| Chipset | AMD B550 |
| Form Factor | Micro-ATX |
| Motherboard Dimensions | 244mm (W) x 244mm (D) |
| Supported Processors | AMD Ryzen 5000 / 4000 / 3000 Series |
| VRM Design | 5+3 Digital Phases with Thermal Armor |
| Memory Type | DDR4 SDRAM |
| Memory Slots | 4x DIMM |
| Maximum Memory | 128GB |
| Memory Speed Support | DDR4-4733 / 4600 / 4400 / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3400 / 3200 / 2933 / 2667 / 2400 / 2133 MHz |
| Memory Channels | Dual Channel |
| PCIe Slots | 1x PCIe 4.0 x16 (UD Slot), 1x PCIe 3.0 x16 (x4 mode), 1x PCIe 3.0 x1 |
| M.2 Slots | 2x M.2 (1x PCIe 4.0 x4, 1x PCIe 3.0 x4) |
| M.2 Maximum Length | 110mm |
| SATA Ports | 4x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 10 |
| Video Outputs | 1x HDMI 2.1, 1x DisplayPort |
| HDMI Specifications | HDMI 2.1 (48Gb/s bandwidth, 21:9 cinematic ratio, Full HDR, HDCP 2.3) |

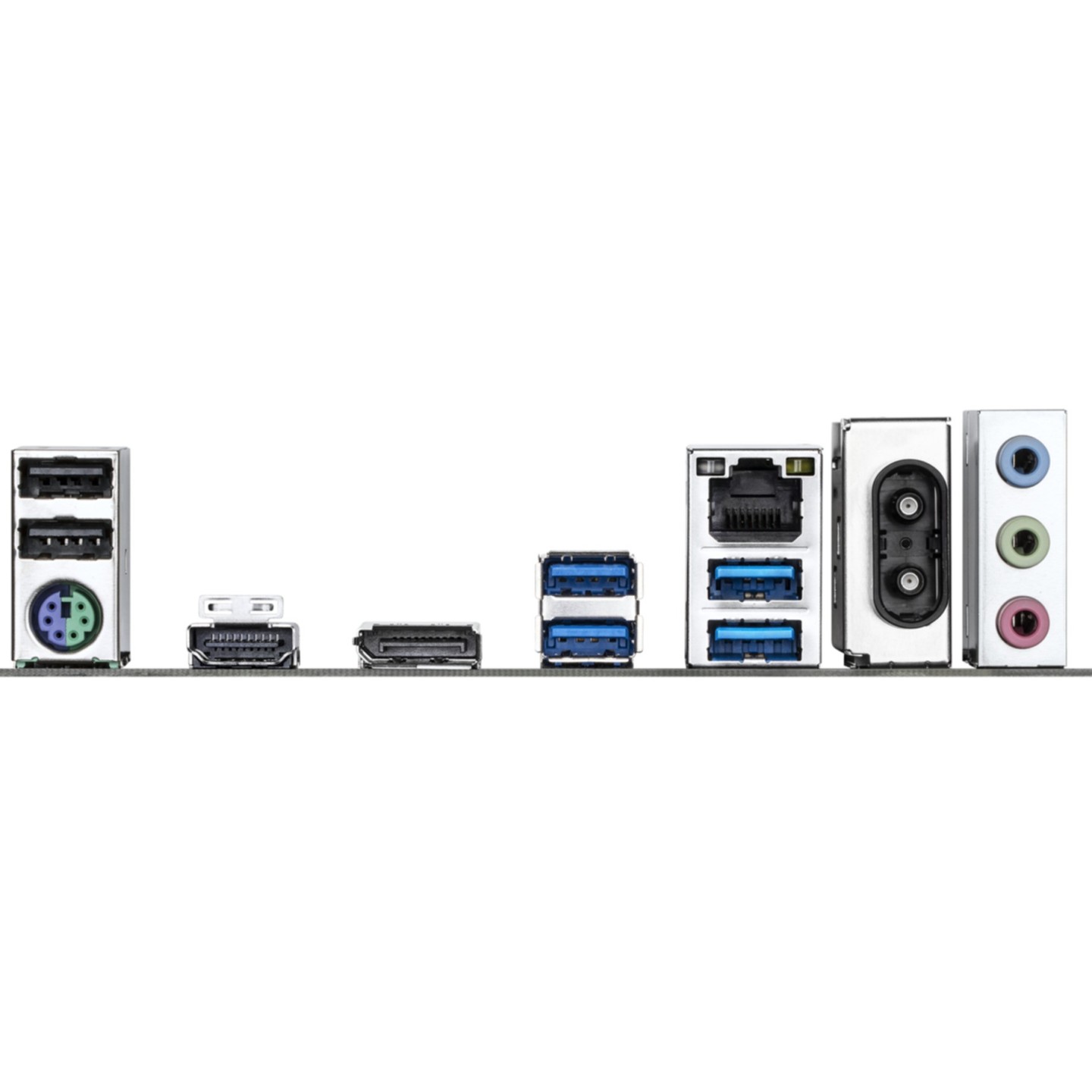

| USB 3.0 Ports | 4x USB 3.0 (Rear I/O) |
| USB 2.0 Ports | 2x USB 2.0 (Rear I/O) |
| USB Headers | 1x USB 2.0 Header, 2x USB 3.0 Headers |
| LAN | Realtek RTL8111H Gigabit Ethernet |
| Wireless Connectivity | Wi-Fi 5 AC with Antenna |
| Audio | 7.1 Channel Audio |
| Audio Connectors | 1x Microphone, 4x Line-Out 3.5mm, 1x S/PDIF Optical Out |
| Fan Headers | 3x PWM/DC Fan Headers (supports up to 24W per header) |
| Fan Control | Smart Fan 6 with Dual Curve Mode (Slope/Stair) |
| RGB LED Headers | 3x 4-pin 12V RGB Headers, 2x 3-pin 5V ARGB Headers |
| Power Connectors | 1x 24-pin ATX (UD Pin), 1x 8-pin CPU (UD Solid Pin) |
| BIOS | 128 Mbit |
| Overclocking Support | Yes (Free Multiplier, RAM Overclocking) |
| AMD StoreMI Technology | Supported |
| Color | Black |
| Motherboard Weight | 980g |
