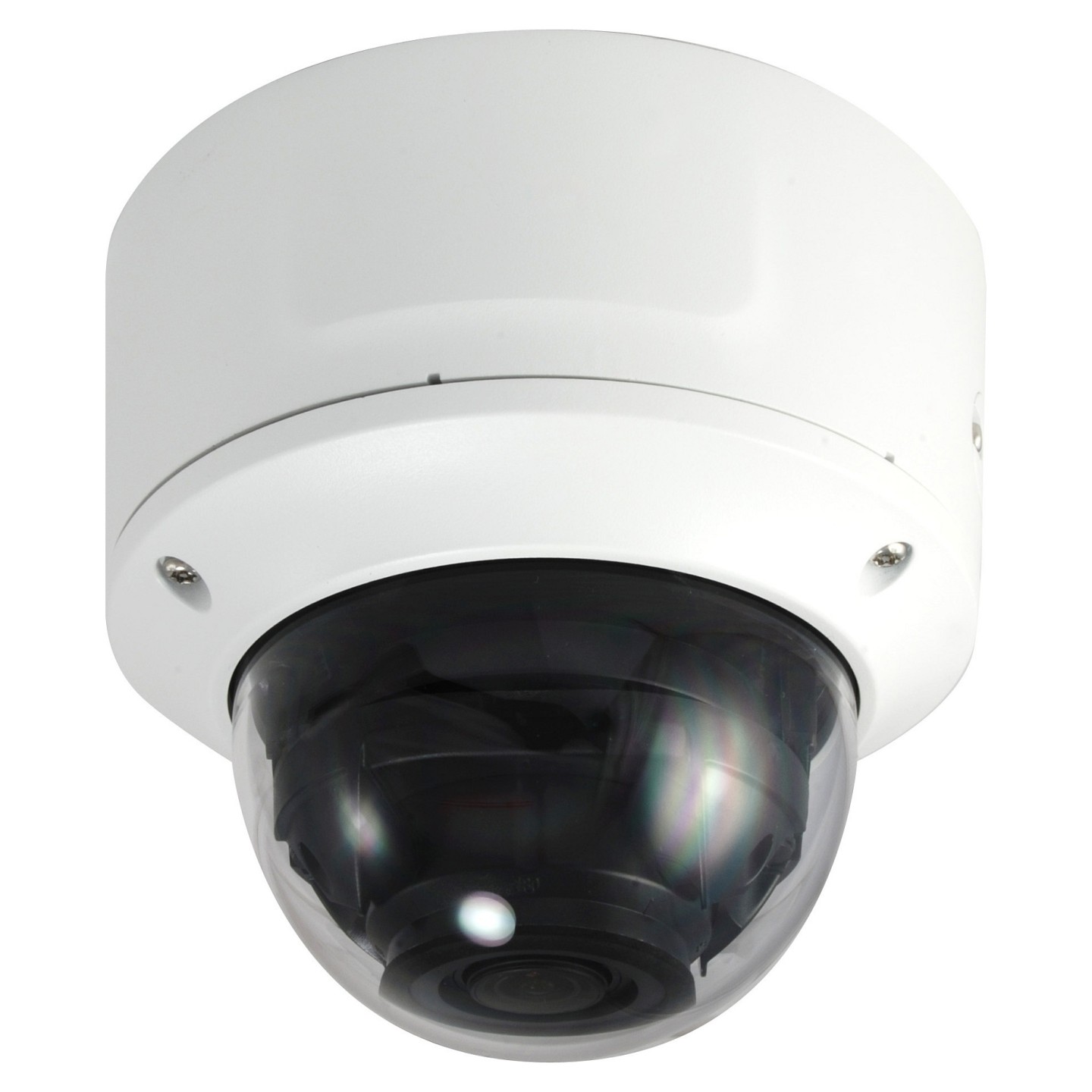

IPCam FCS-4203 Z 4x Dome Out 2MP H.265 IR5.5W PoE
LevelOne FCS-4203. IP-Sicherheitskamera. Innen & Außen. Kabelgebunden. CE/FCC. Decke/Wand. Weiß
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne FCS-4203. Typ: IP-Sicherheitskamera. Unterstützte Positionierung: Innen & Außen. Übertragungstechnik: Kabelgebunden. Befestigungstyp: Decke/Wand. Produktfarbe: Weiß. Formfaktor: Dome. Mindestbeleuchtung: 0.014 Lux. Blickwinkel (FOV): 112°. Kamera Verschlusszeit: 1/3 - 1/10000 s. Sensor-Typ: CMOS. Größe des Bildsensors: 25.4 / 3 mm (1 / 3"). Optischer Zoom: 4.3x. Brennweitenbereich: 2.8 - 12 mm
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Innen & Außen |
| Übertragungstechnik | Kabelgebunden |
| Feature | Ressourcen-CD |
| Zertifizierung | CE/FCC |
| Formfaktor | Dome |
| Befestigungstyp | Decke/Wand |
| Produktfarbe | Weiß |
| LED-Anzeigen | Leistung |
| Schutzfunktion | Vandalismussicher |
| Internationale Schutzart (IP-Code) | IP66 |
| IK-Kodex | IK10 |
| Ursprungsland | China |
| Mindestbeleuchtung | 0.014 Lux |
| Blickwinkel (FOV) | 112° |
| Kamera Verschlusszeit | 1/3 - 1/10000 s |
| Größe des Bildsensors | 25.4 / 3 mm (1 / 3") |
| Sensor-Typ | CMOS |
| Optischer Zoom | 4.3x |
| Anzahl der Linsen | 1 |
| Brennweitenbereich | 2.8 - 12 mm |
| Fokuseinstellung | 1.4 |
| Nachtsichtdistanz | 30 m |
| LED Typ | IR |
| Maximale Auflösung | 1920 x 1080 Pixel |
| Megapixel insgesamt | 2 MP |
| Unterstützte Videoformate | AVI |
| Videokompressionsformate | H.264. M-JPEG |
| Unterstützte Grafik-Auflösungen | 1280 x 720 (HD 720). 1920 x 1080 (HD 1080) |
| Bis zu 30 Frames pro Sekunde | 30 fps |
| Bildqualitätsanpassung | Helligkeit. Kontrast. Farbsättigung. Schärfe |
| Audio-System | 2-Wege |
| Audio input Kanäle | 1.0 Kanäle |
| Audio Kanäle | 1.0 Kanäle |
| Unterstützte Audioformate | G.711. G.726 |
| Sprachcodec | MP2L2. G.711. G.722.1. G.726 |
| Ethernet Schnittstellen Typ | Schnelles Ethernet |
| Netzstandard | IEEE 802.3af |
| Unterstützte Netzwerkprotokolle | TCP/IP (IPv4). UDP. ICMP. HTTP. HTTPS. FTP. DHCP. DNS. DDNS. RTP. RTSP. RTCP. PPPoE. NTP. UPnP. SMTP. SNMP. IGMP. 802.1X. QoS. IPv6. Bonjour |
| Verkabelungstechnologie | 10/100Base-T(X) |
| Zahl der Benutzer | 16 Benutzer |
| Kompatible Speicherkarten | SD. SDHC. SDXC |
| Max. Speicherkartengröße | 128 GB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Schnittstelle | RJ-45 |
| Energiequelle | PoE |
| Stromverbrauch (max.) | 5.5 W |
| DC-Ausgang Volt | 12 |
| Betriebstemperatur | -30 - 60 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Unterstützt Windows-Betriebssysteme | Windows 10. Windows 7. Windows 8. Windows Vista. Windows XP Home. Windows XP Home x64. Windows XP Professional. Windows XP Professional x64 |
| Breite | 133.1 mm |
| Tiefe | 153.4 mm |
| Höhe | 153.4 mm |
| Gewicht | 1.29 kg |
| Verpackungsbreite | 174 mm |
| Verpackungstiefe | 173 mm |
| Verpackungshöhe | 244 mm |
| Paketgewicht | 1.82 kg |
| Verpackungsart | Box |
| Konformitätsbescheinigungen | RoHS |
| Anzahl der Kameras | 1 |
| Datenübertragungsrate | 16 Mbit/s |
| Unterstützter Browser | Internet Explorer 9 |
| Warentarifnummer (HS) | 85258900 |
| Breite des Versandkartons | 365 mm |
| Länge des Versandkartons | 372 mm |
| Höhe des Versandkartons | 504 mm |
| Gewicht Versandkarton | 14.6 kg |
| Anzahl Produkte pro Versandkarton | 8 Stück(e) |
