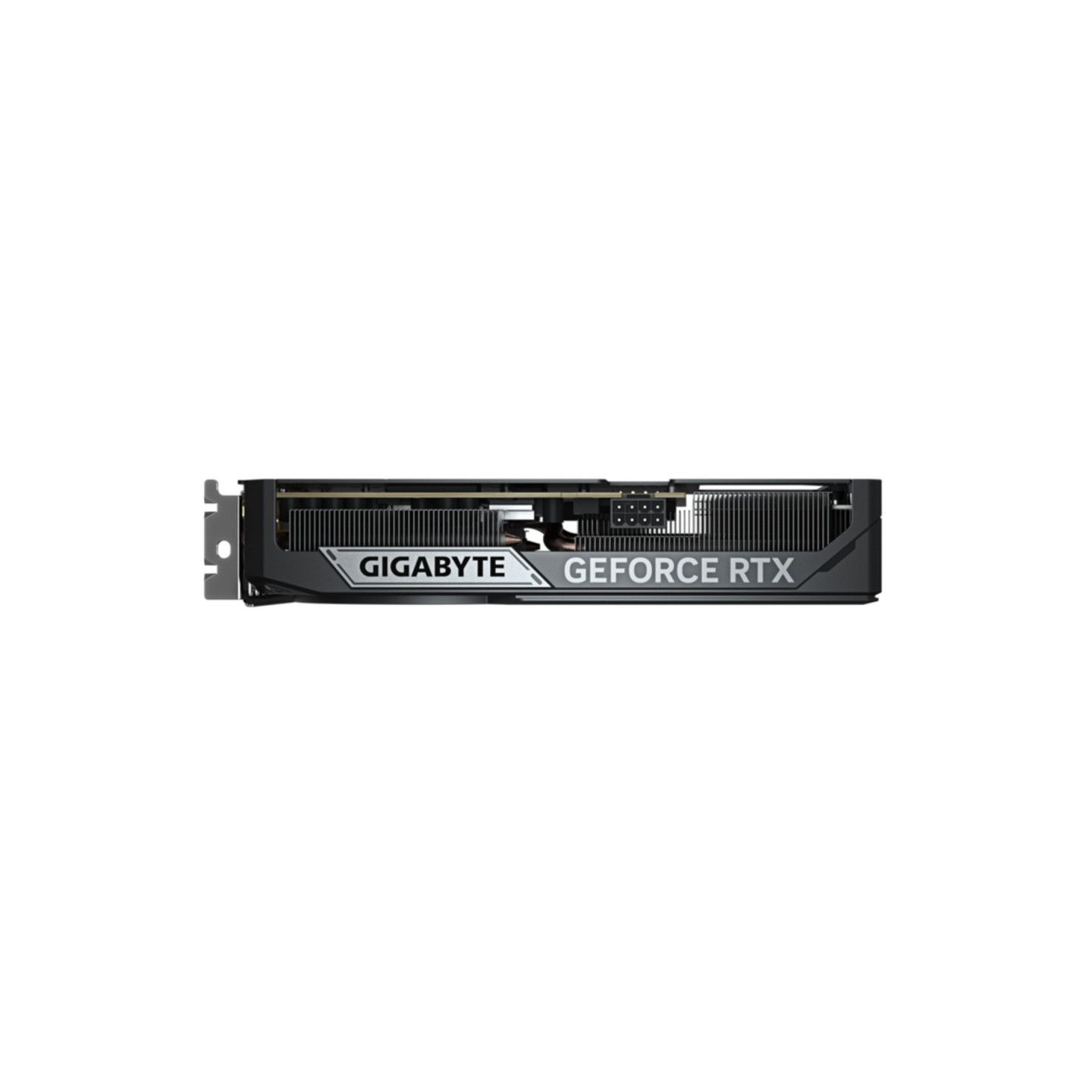

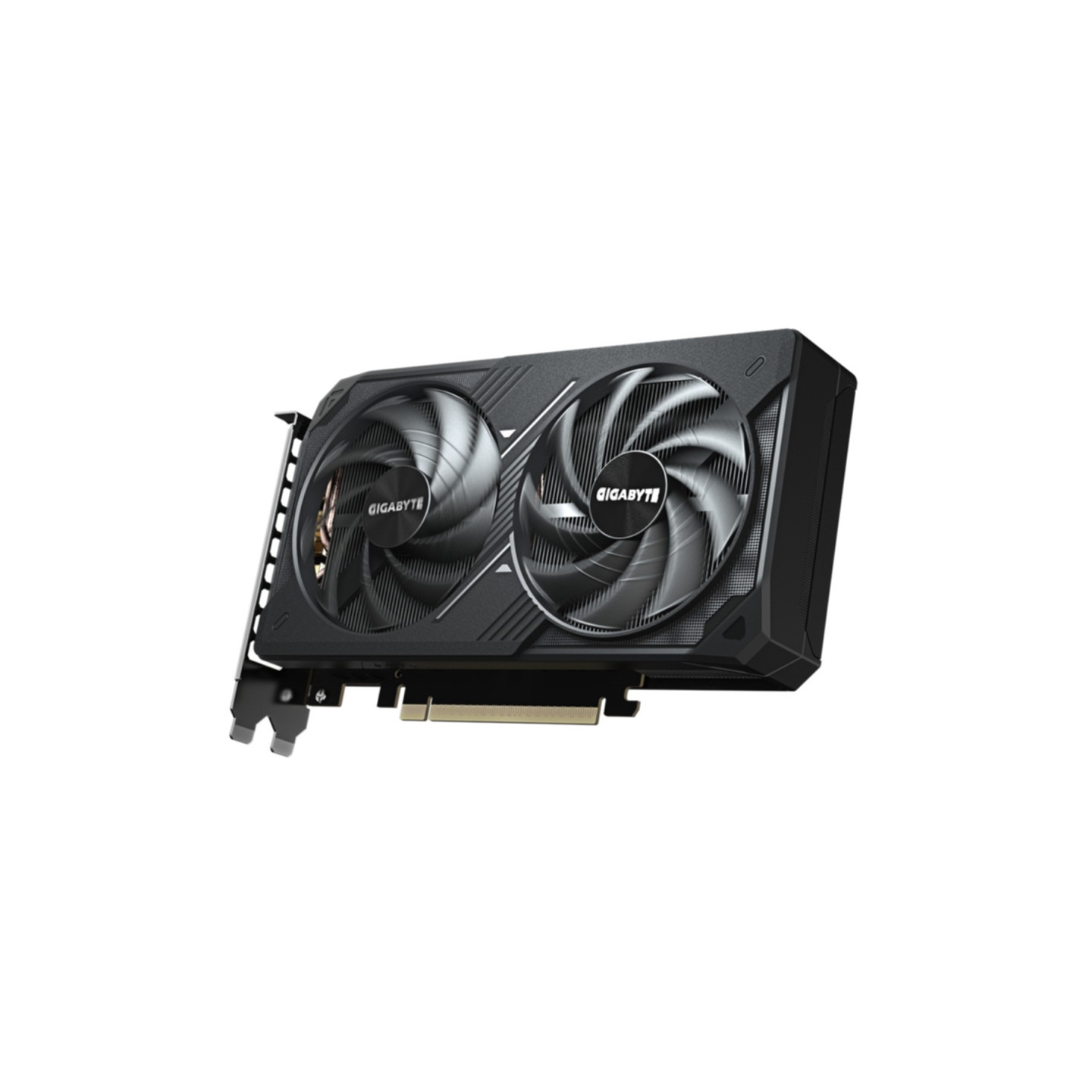

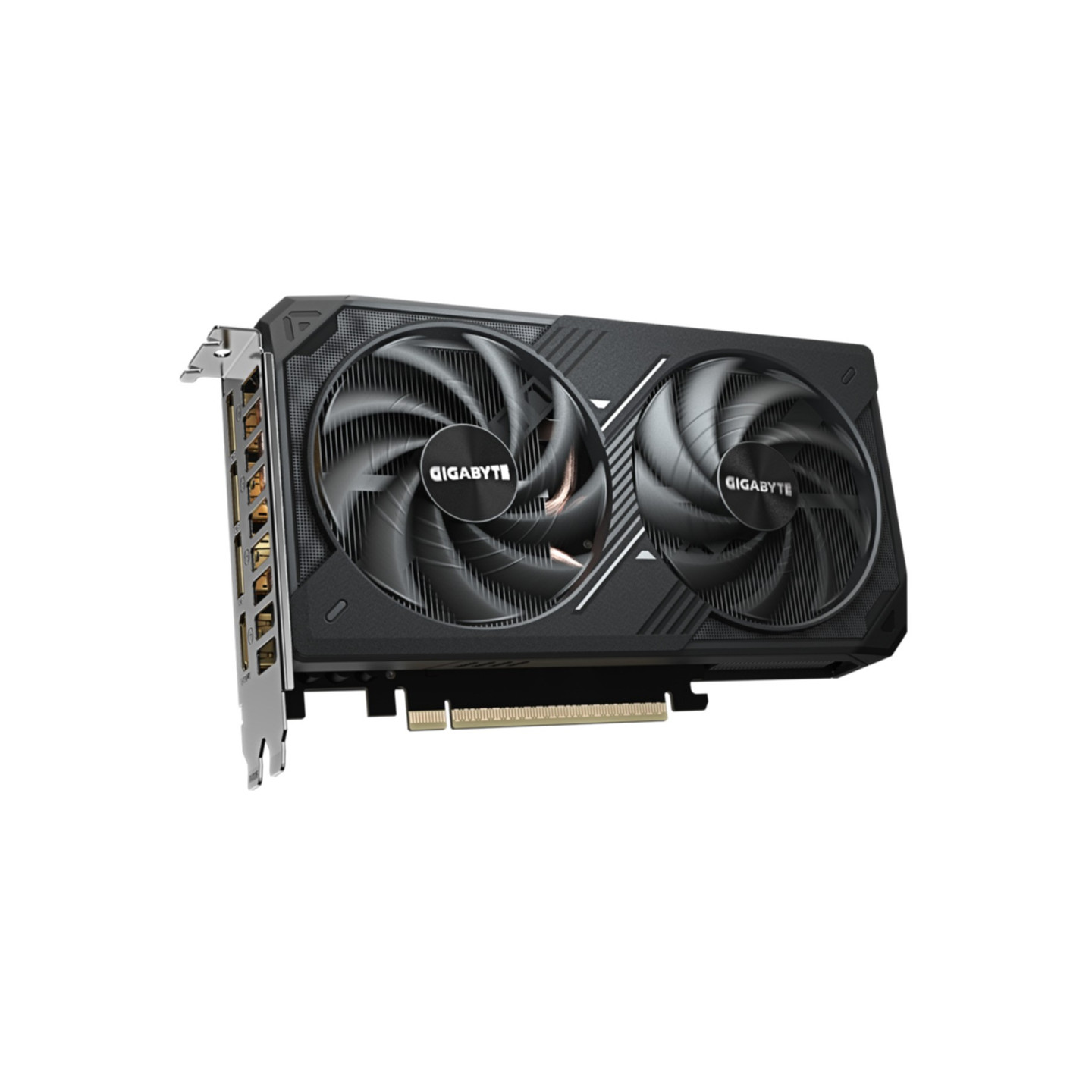

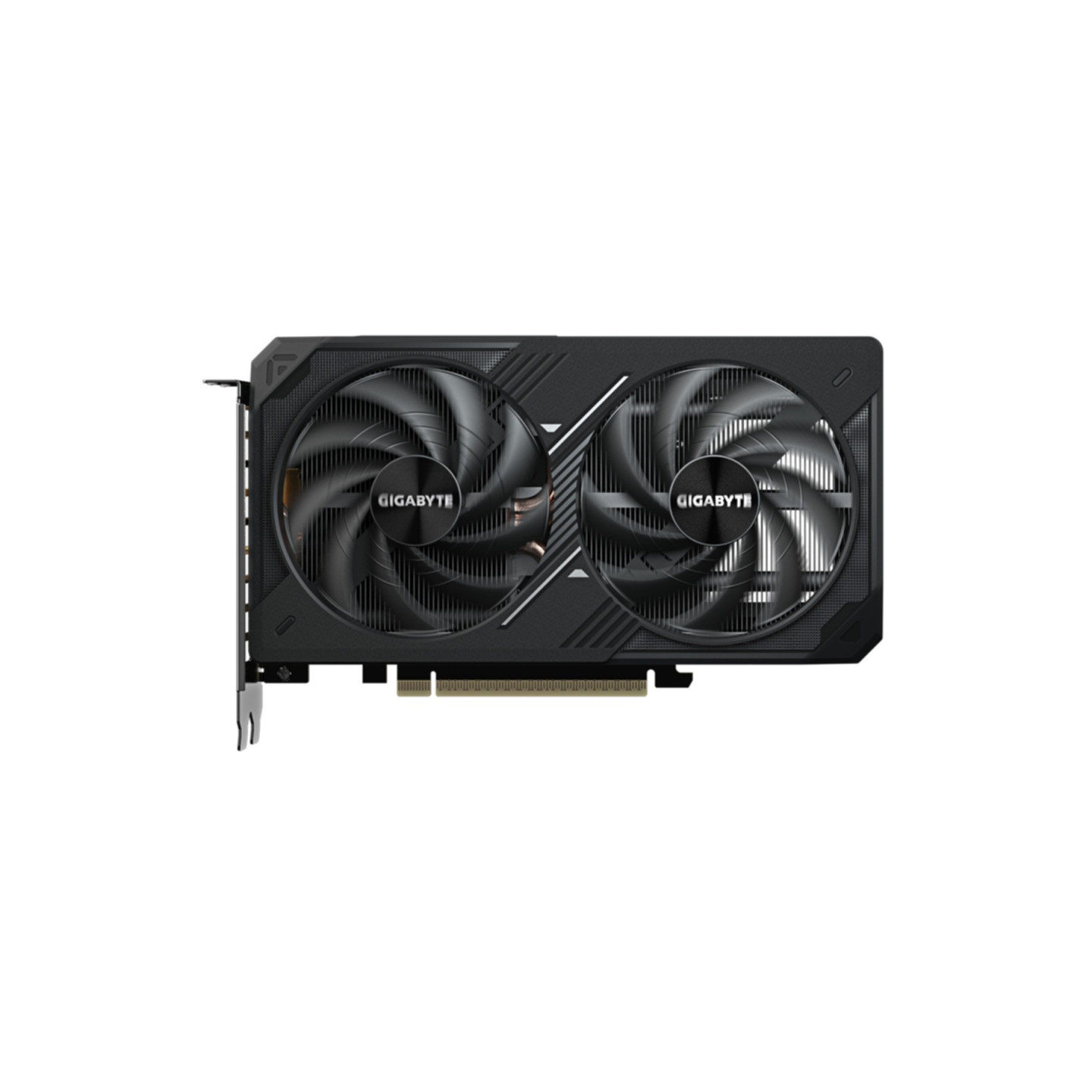

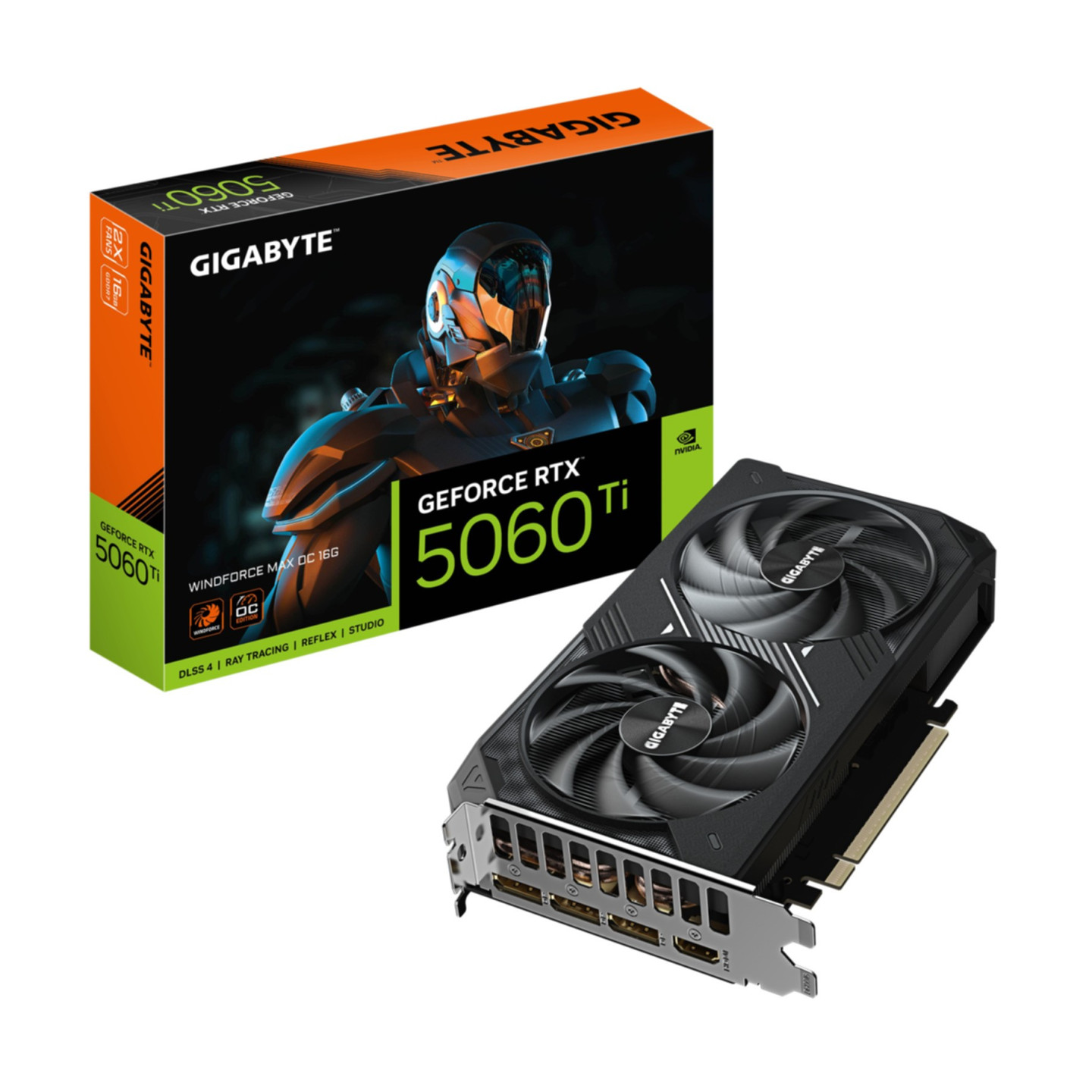

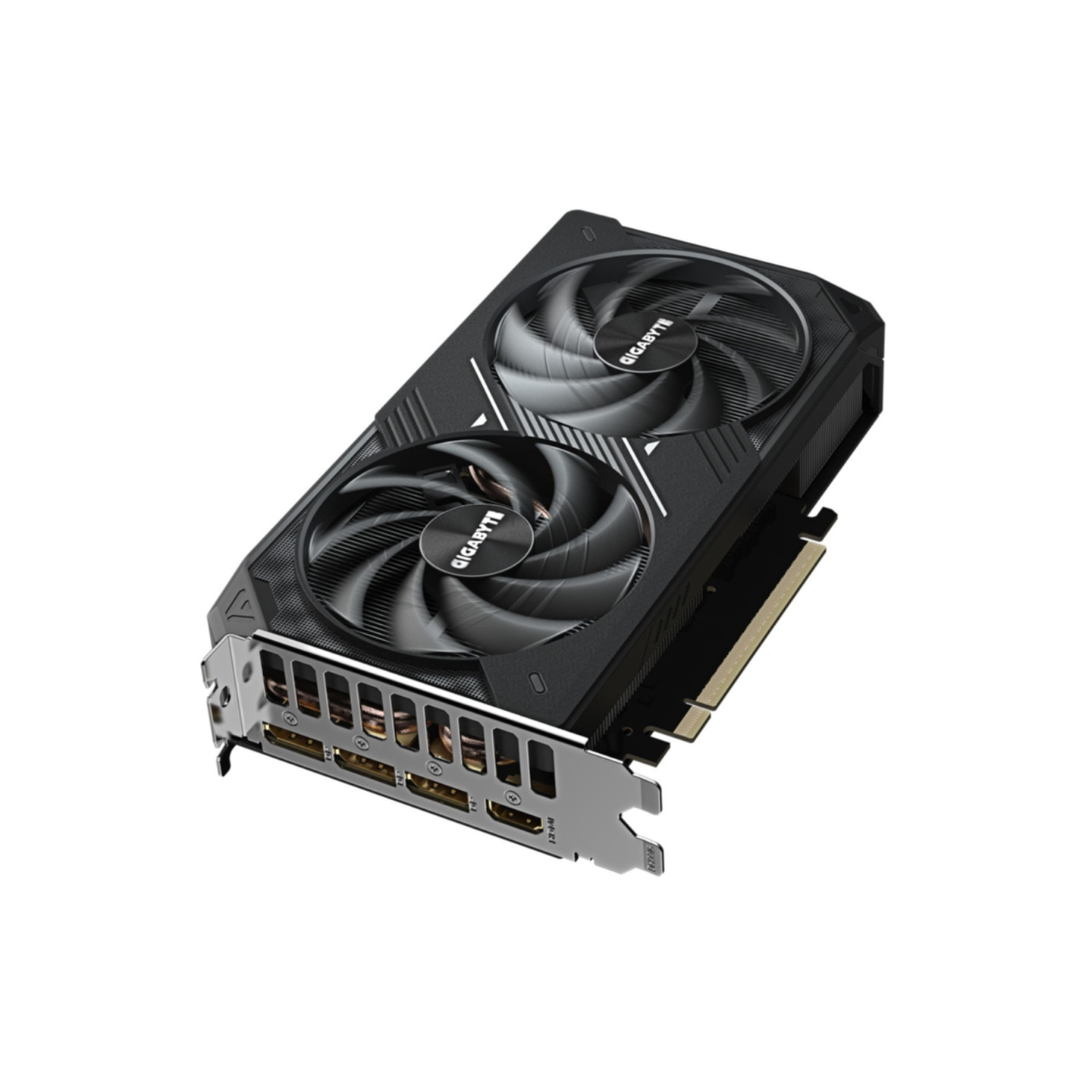

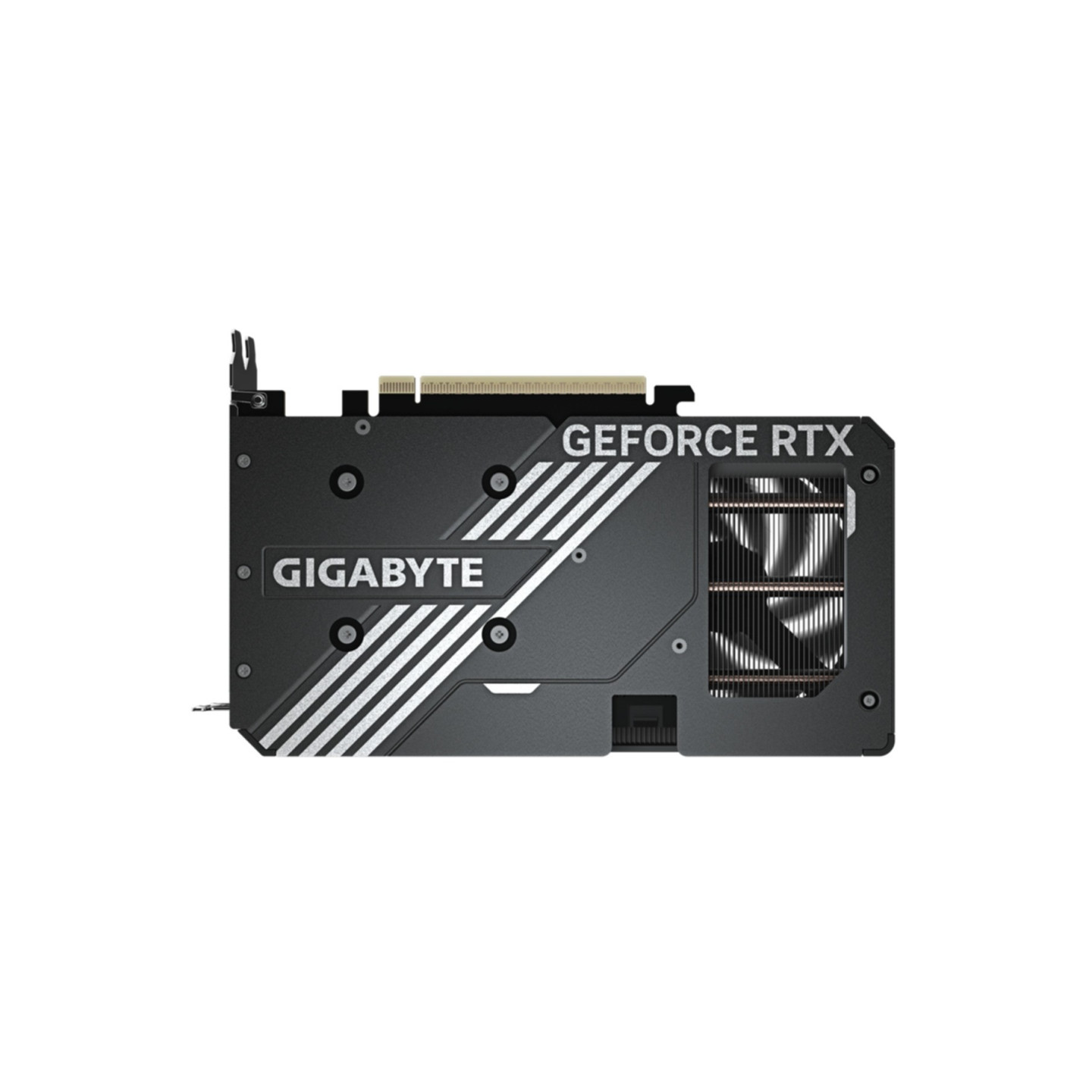

GIGABYTE GeForce RTX 5060 Ti Windforce Max OC 16GB GDDR7 - 2587 MHz - PCIe 5.0 (Boxed)
GeForce RTX 5060 Ti with 16GB GDDR7, 4608 CUDA cores, 2587 MHz boost clock. WINDFORCE dual-fan cooling, PCIe 5.0 x16, 1x HDMI 2.1b + 3x DP 2.1b. 135W TDP, 1x 8-pin power. Max res 7680x4320. Blackwell arch + DLSS 4.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Compact (170-200 mm) |
The GIGABYTE GeForce RTX 5060 Ti WINDFORCE MAX OC 16G delivers exceptional performance powered by NVIDIA's Blackwell architecture and DLSS 4. Featuring 4608 CUDA cores, a 2587 MHz boost clock, and 16GB of GDDR7 memory on a 128-bit bus with 28 Gbps speed, this card excels in 1440p gaming and content creation.
Advanced WINDFORCE cooling includes dual Hawk fans with alternate spinning, server-grade thermal conductive gel, composite copper heat pipes, and a copper plate for optimal thermals. It supports up to 4 displays at 7680x4320 resolution via 1x HDMI 2.1b and 3x DisplayPort 2.1b. With a compact 208mm length, 2-slot design, and 135W TDP requiring a single 8-pin connector and 650W PSU minimum, it's ideal for modern builds.
- Powered by GeForce RTX 5060 Ti (Blackwell) + DLSS 4 AI upscaling
- PCIe 5.0 x16 interface for future-proofing
- 1x 8-pin power connector
- Dimensions: 208 x 120 x 40 mm
- 3-Year warranty
| Graphics Processor | GeForce RTX 5060 Ti |
| Architecture | Blackwell |
| CUDA Cores | 4608 |
| Boost Clock | 2587 MHz |
| VRAM Capacity | 16 GB |
| VRAM Type | GDDR7 |
| Memory Bus | 128 bit |
| Memory Clock | 28000 MHz (28 Gbps) |
| PCIe Interface | PCIe 5.0 x16 |
| Outputs | 1x HDMI 2.1b, 3x DisplayPort 2.1b |
| Power Connector | 1x 8-pin |
| TDP | 135 W |
| Min PSU | 650 W |
| Max Resolution | 7680 x 4320 |
| Cooler | WINDFORCE Dual Fan |
| Card Length | 208 mm |
| Card Width | 120 mm |
| Card Height | 40 mm |
| Slots | 2-slot |
