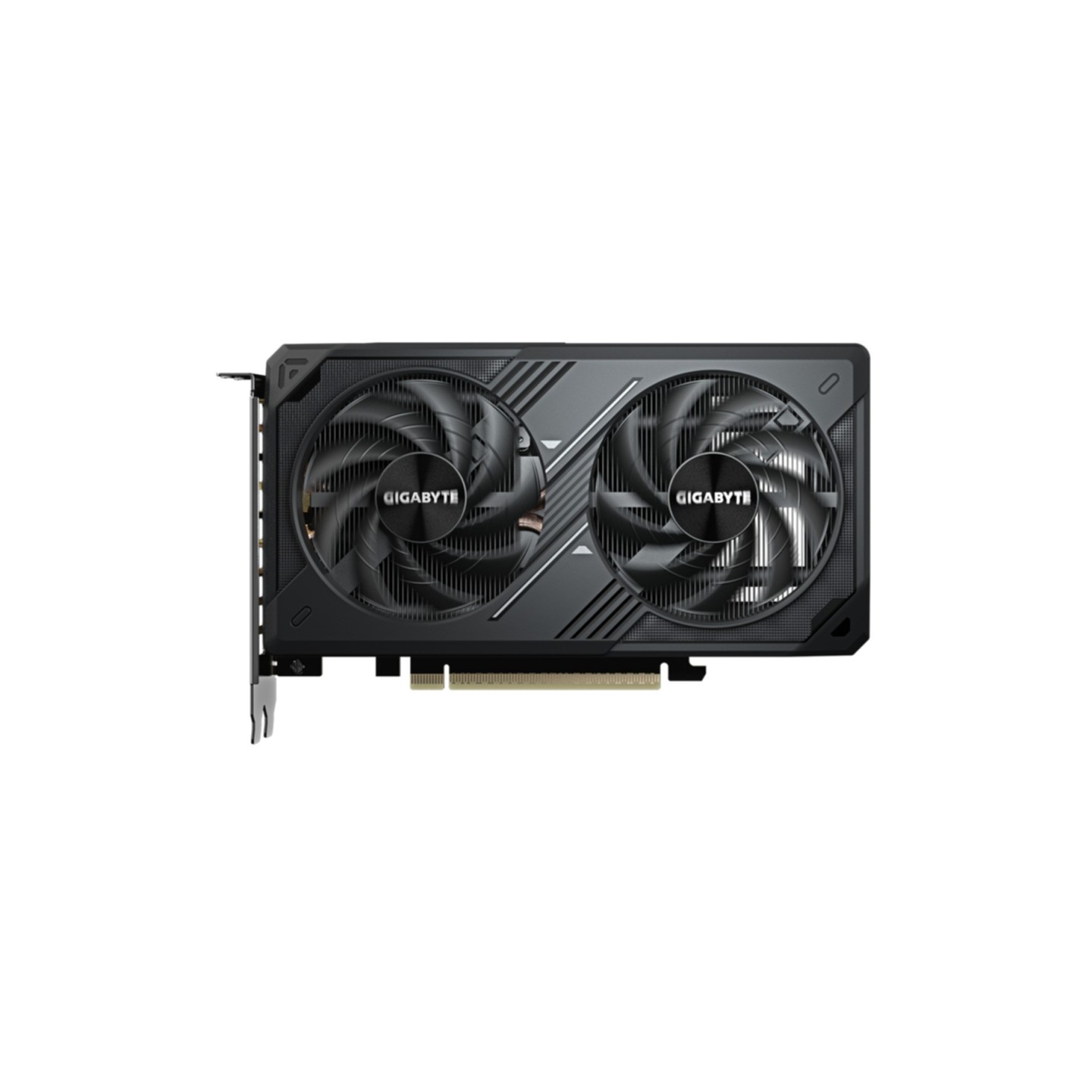

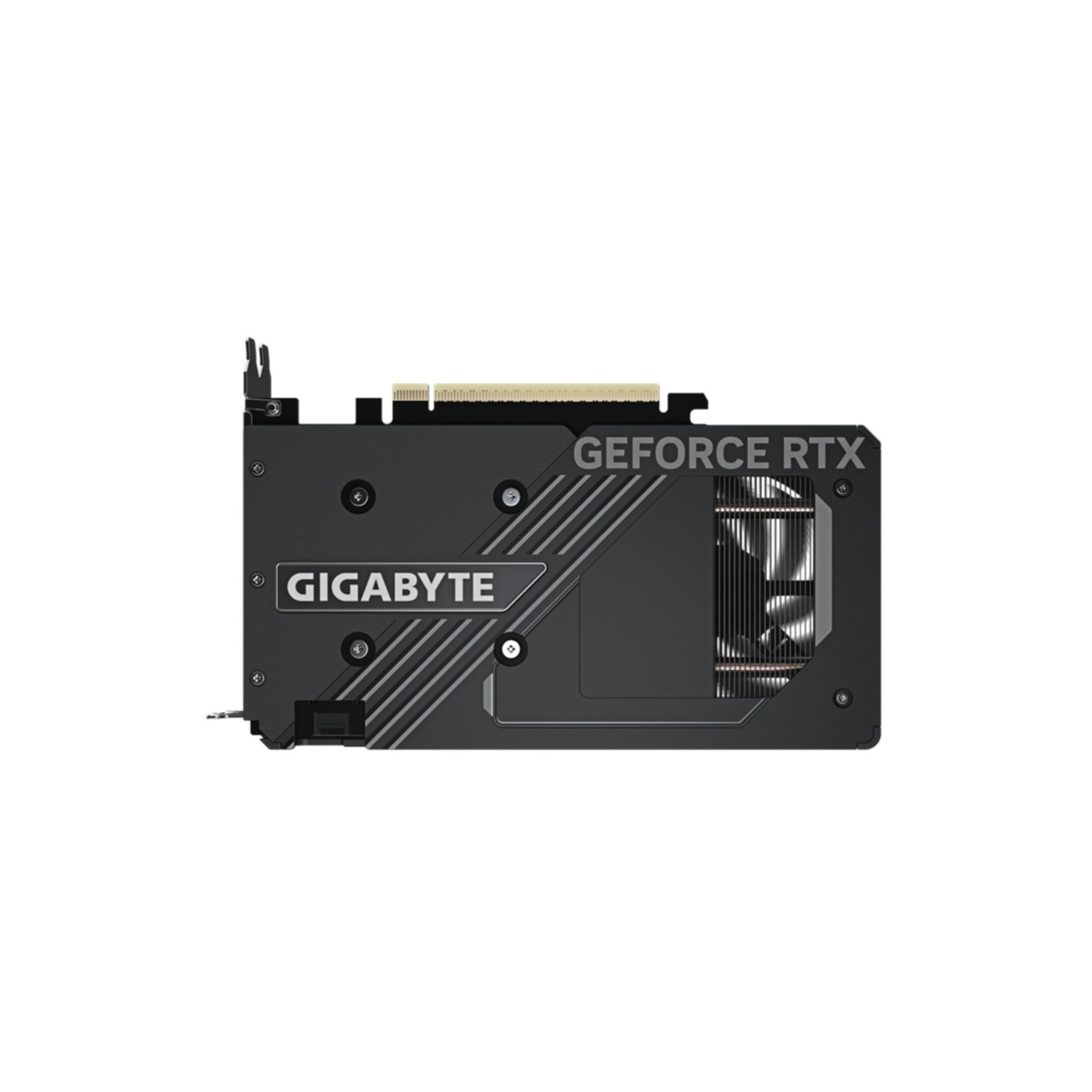

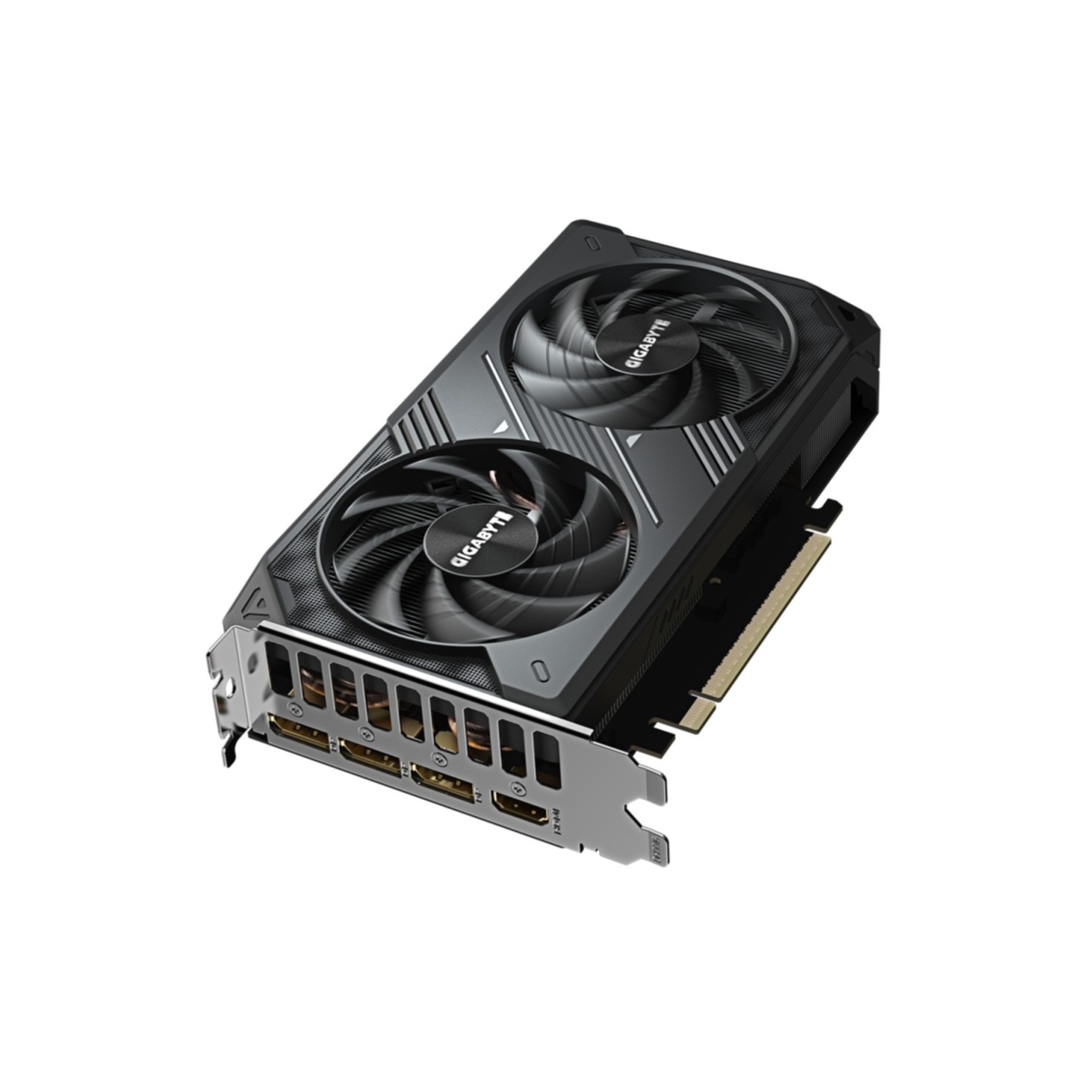

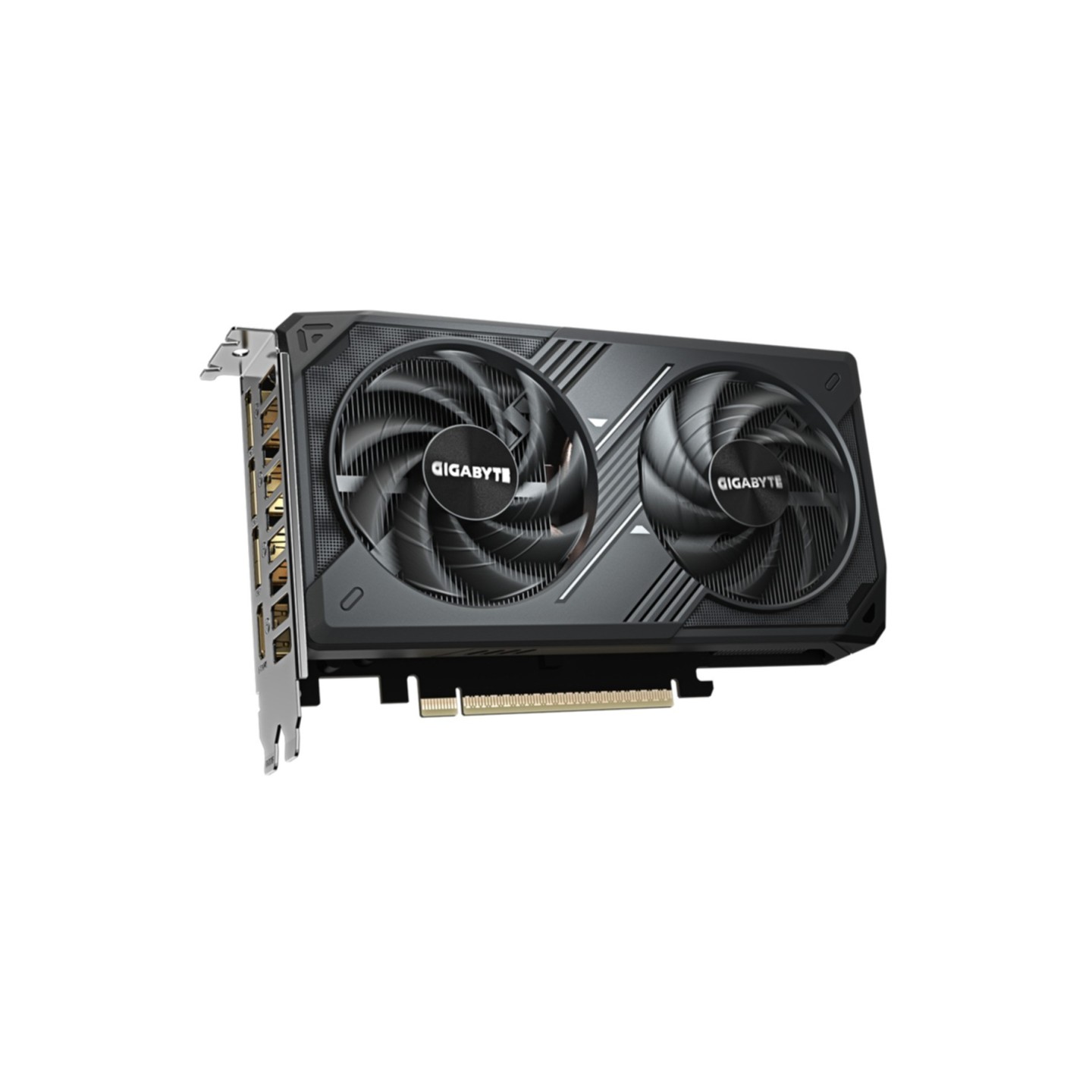

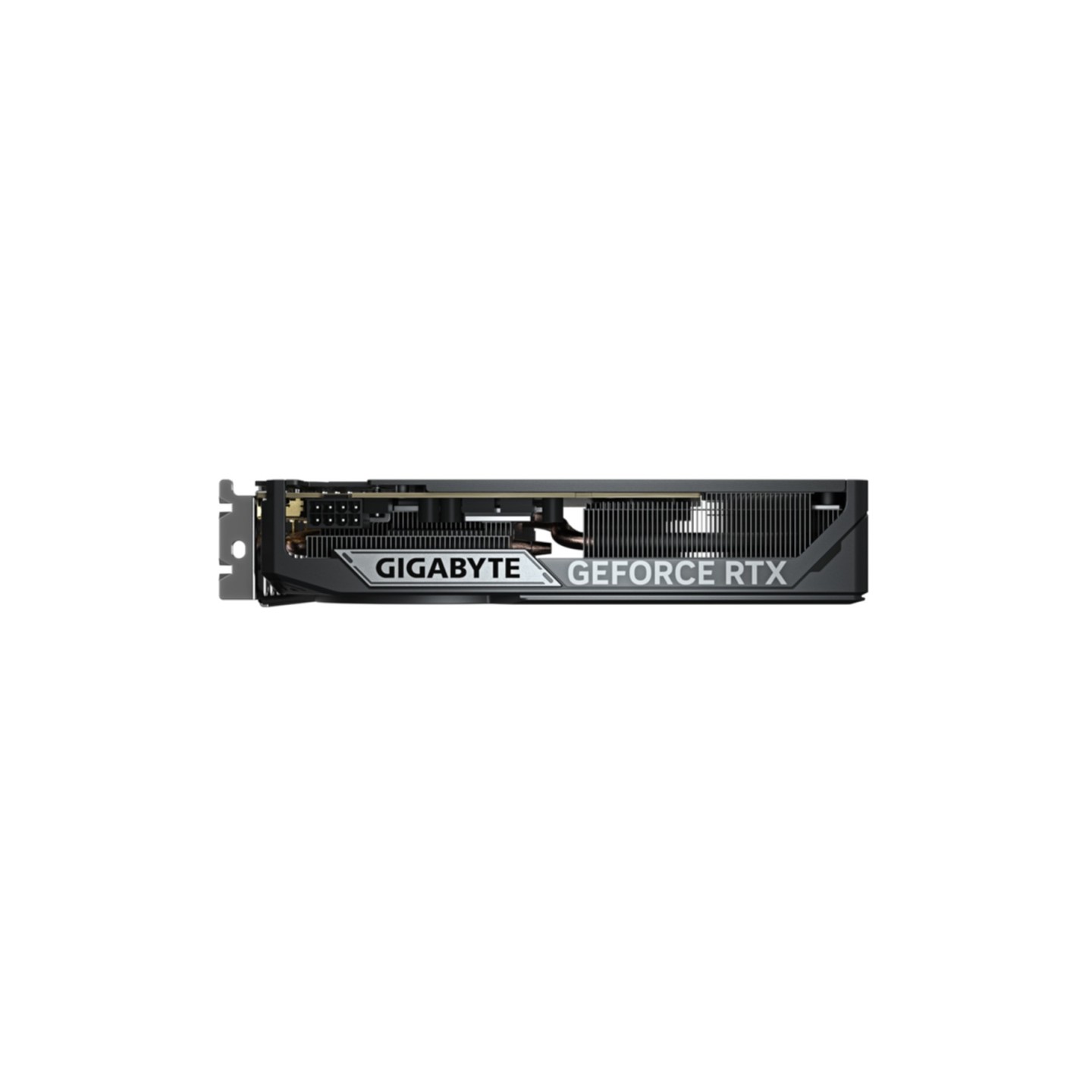

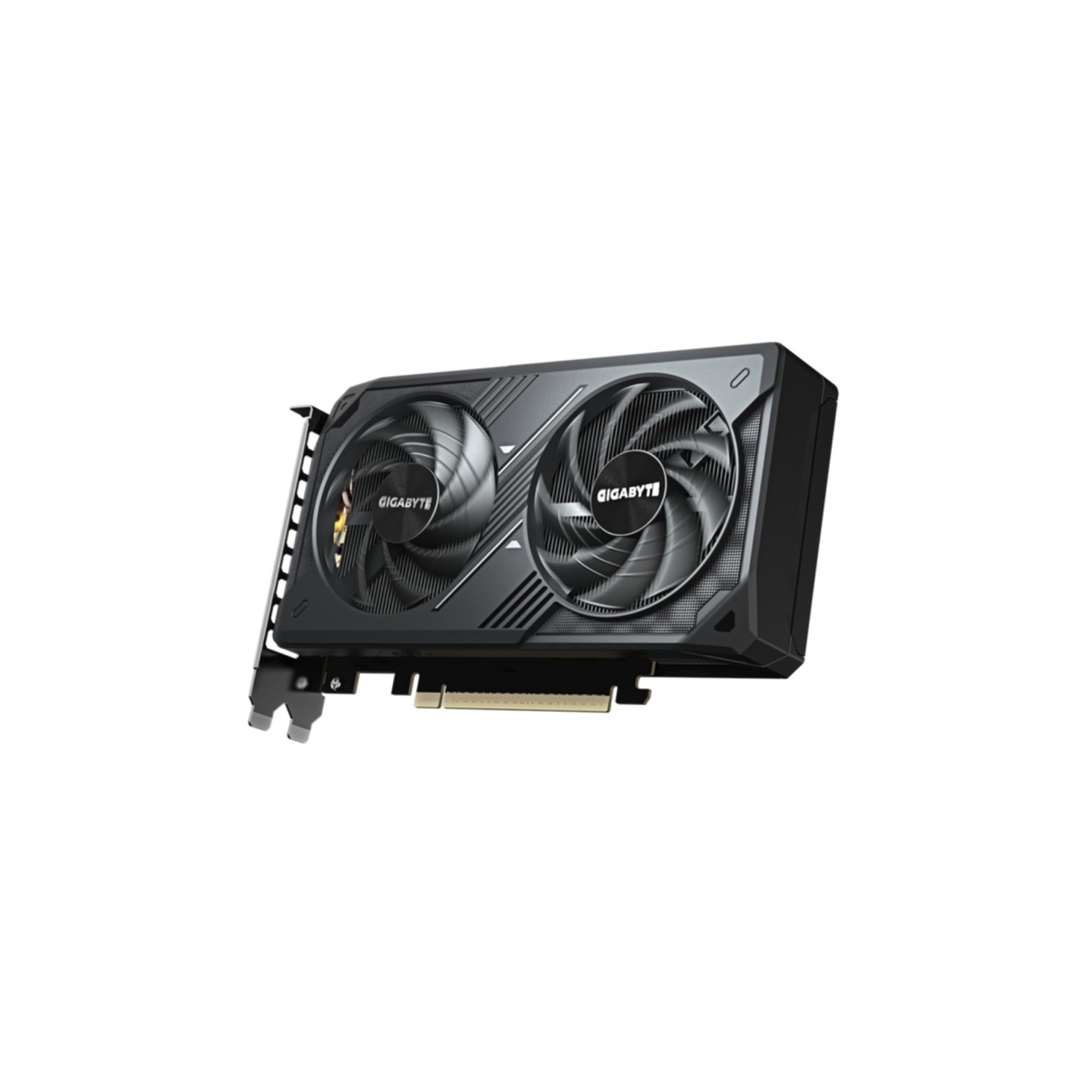

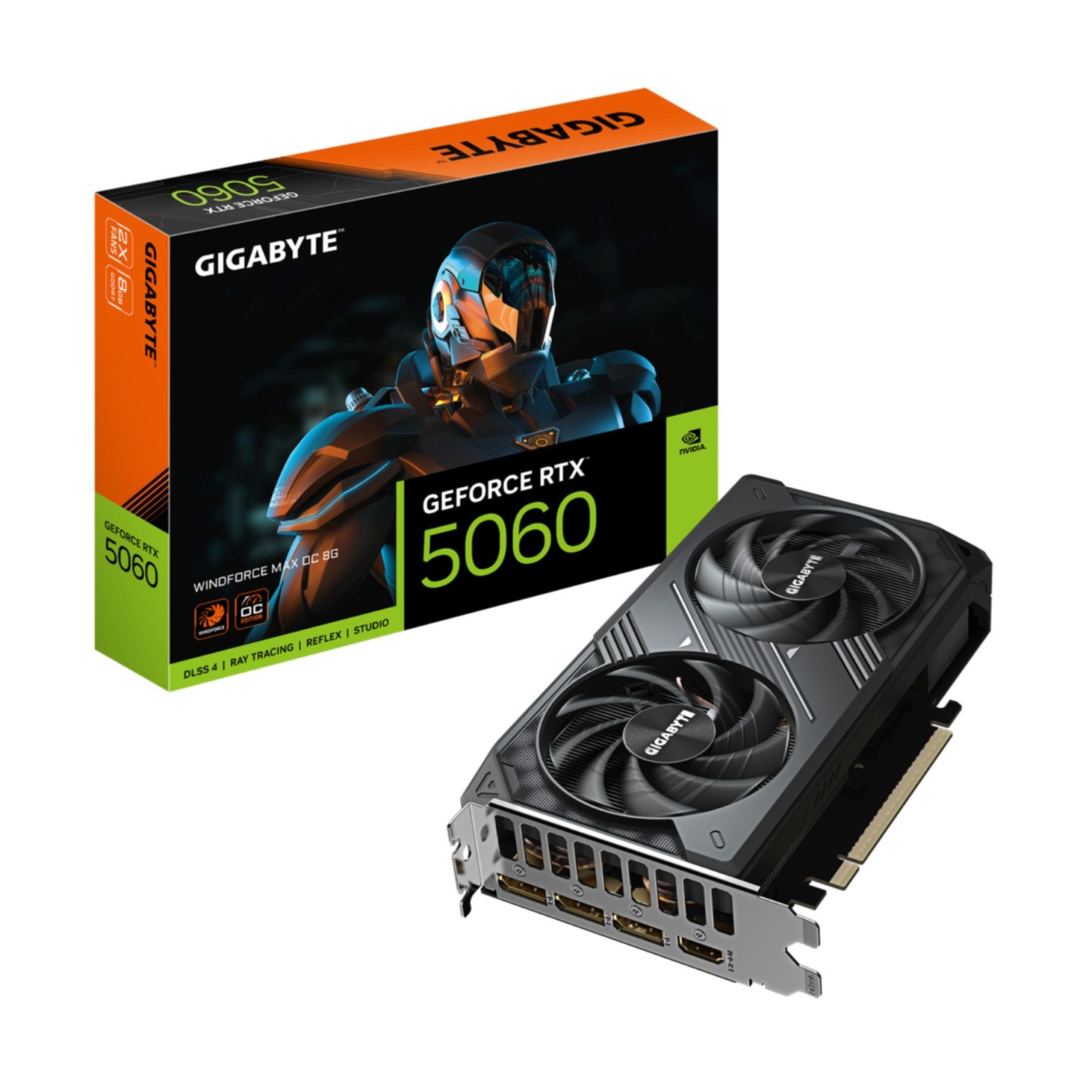

Gigabyte GeForce RTX 5060 Windforce Max OC 8GB GDDR7 2512 MHz PCIe 5.0 (Boxed)
GeForce RTX 5060 with NVIDIA Blackwell architecture, 8GB GDDR7 128-bit, 2512 MHz boost clock (ref 2497 MHz), PCIe 5.0 x16. Features WINDFORCE dual-fan cooling w/ Hawk fans, 3x DP 2.1b + HDMI 2.1b, 8-pin power.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Compact (170-200 mm) |
The Gigabyte GeForce RTX 5060 WINDFORCE MAX OC 8G delivers exceptional performance powered by NVIDIA's Blackwell architecture and DLSS 4 technology. Featuring a 2512 MHz boost clock (reference 2497 MHz), 3840 CUDA cores, and 8GB GDDR7 memory on a 128-bit bus at 28 Gbps, this GPU excels in 1440p gaming with full ray tracing, AI-enhanced graphics, and Multi Frame Generation.
Equipped with the advanced WINDFORCE cooling system including Hawk fans with alternate spinning, server-grade thermal conductive gel, composite copper heat pipes, and a large copper plate for optimal thermal performance. The compact ATX form factor measures 199 x 116 x 40 mm, supports up to 4 displays at 7680x4320 resolution via 3x DisplayPort 2.1b and 1x HDMI 2.1b, and requires a single 8-pin power connector with 550W PSU recommendation.
- Key Technologies: DLSS 4, NVIDIA Reflex 2, fourth-gen RT Cores, fifth-gen Tensor Cores
- Cooling: Dual-fan WINDFORCE MAX w/ 3D active fans & screen cooling
- Power & Interface: 1x 8-pin, PCIe 5.0 x16, ~145W TDP
- Outputs: 3x DP 2.1b, 1x HDMI 2.1b, max 8K
- Dimensions: 199mm length, dual-slot
| Graphics Processing | GeForce RTX 5060 |
| Core Clock | 2512 MHz (Reference: 2497 MHz) |
| CUDA Cores | 3840 |
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Bus | 128 bit |
| Memory Clock | 28 Gbps |
| Card Bus | PCI-E 5.0 |
| Digital Max Resolution | 7680x4320 |
| Multi-View | 4 |
| Card Size | L=199 mm W=116 mm H=40 mm |
| PCB Form | ATX |
| Power Connectors | 8 Pin x1 |
| Recommended PSU | 550W |
| Outputs | DisplayPort 2.1b x3, HDMI 2.1b x1 |
| DirectX | DirectX 12 API |
| OpenGL | 4.6 |
