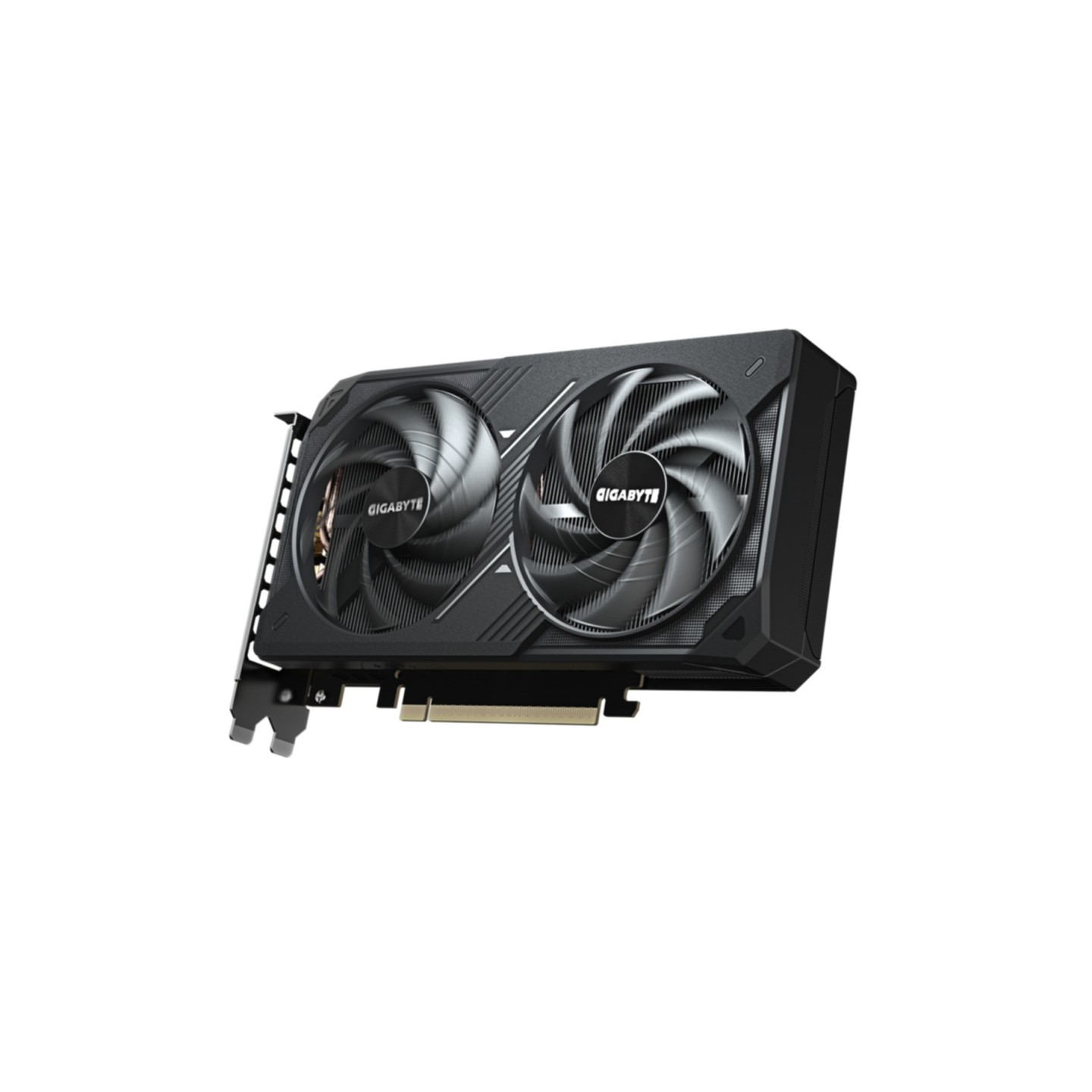

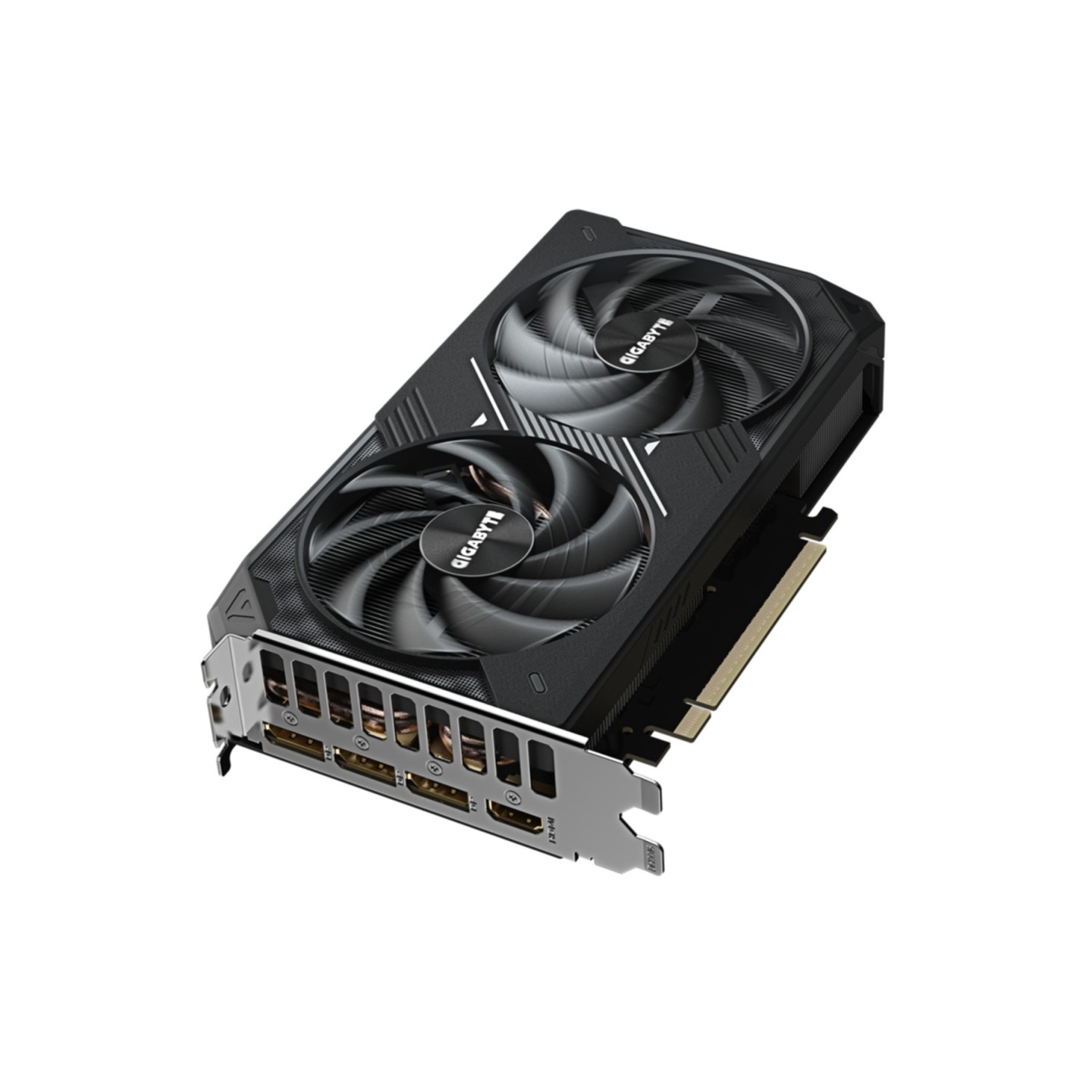

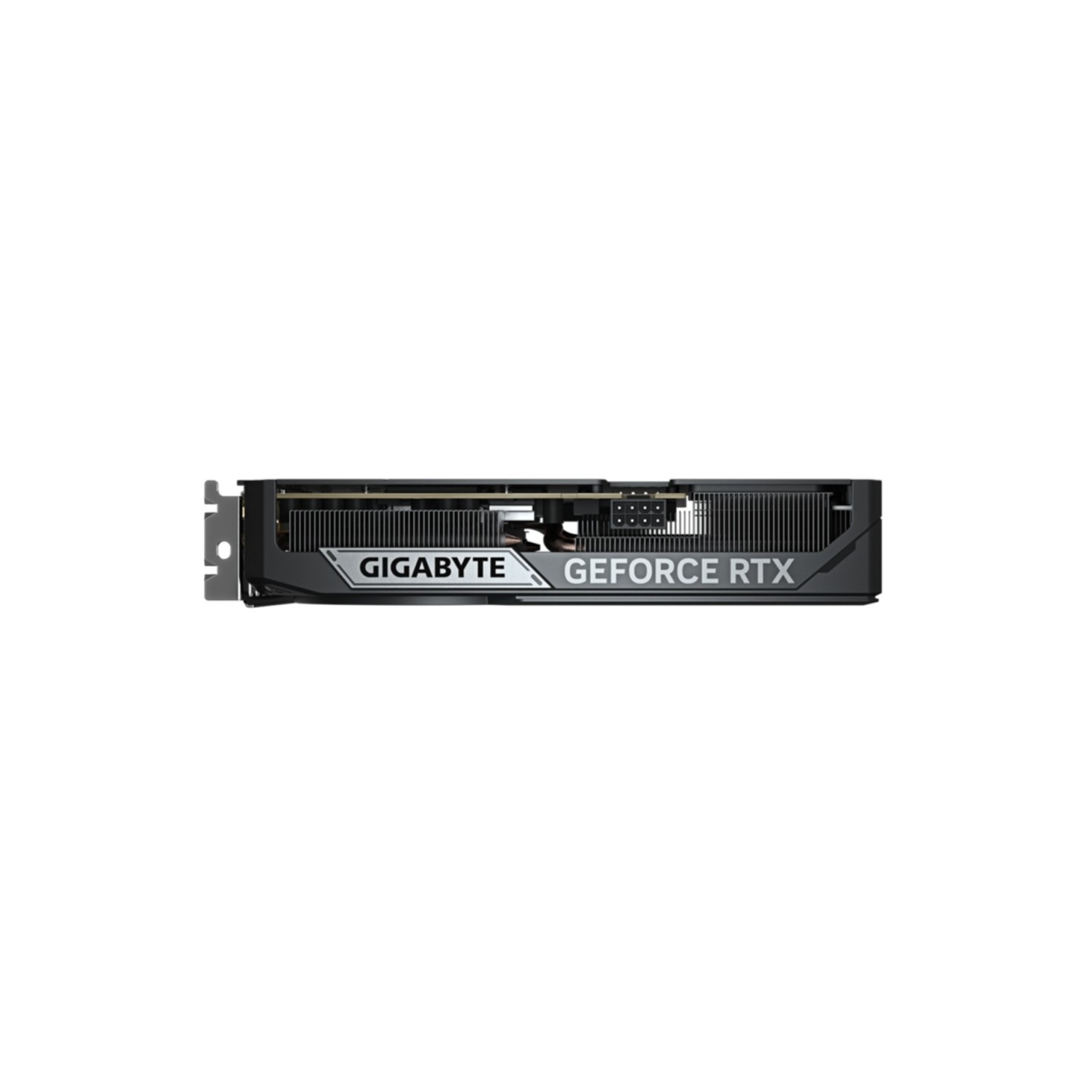

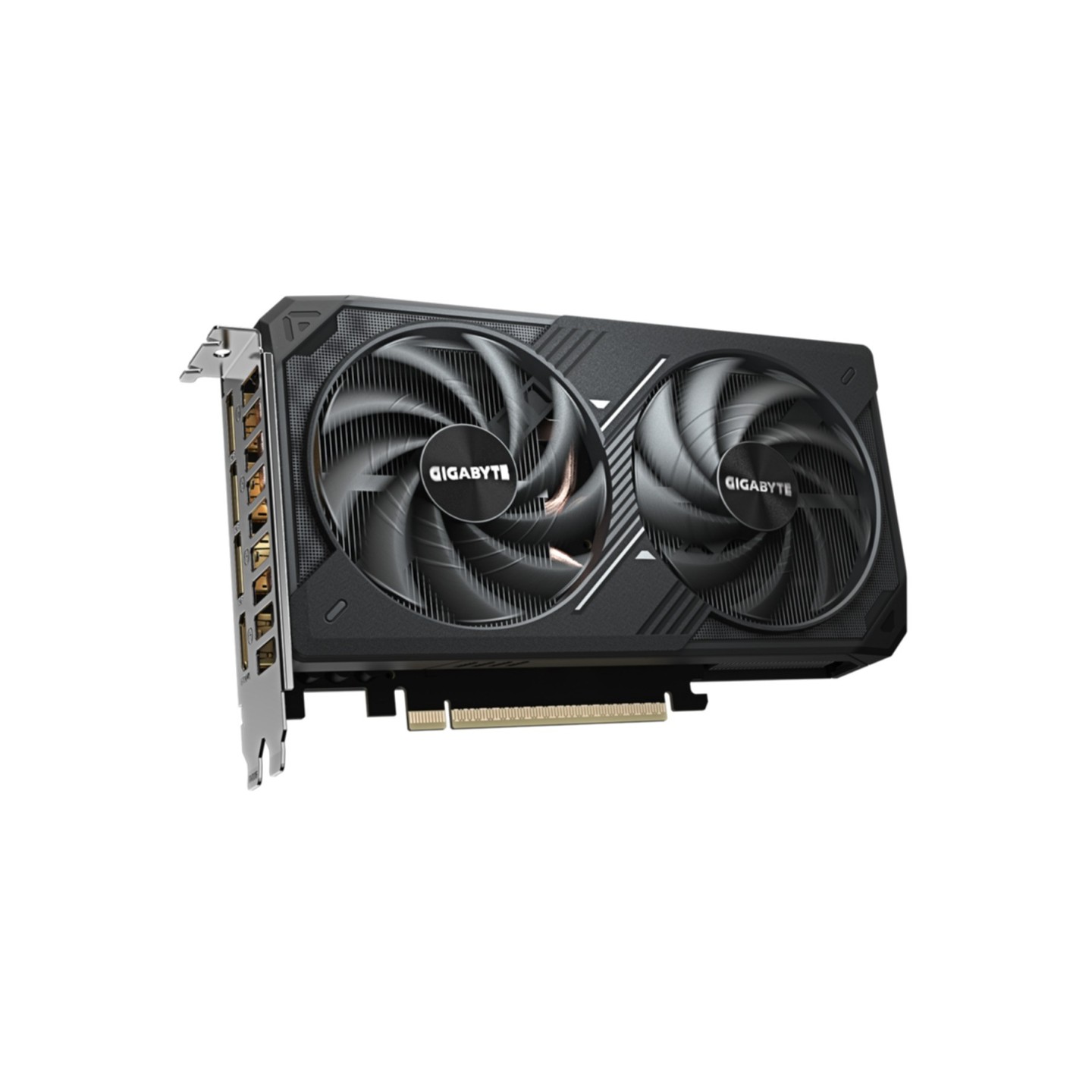

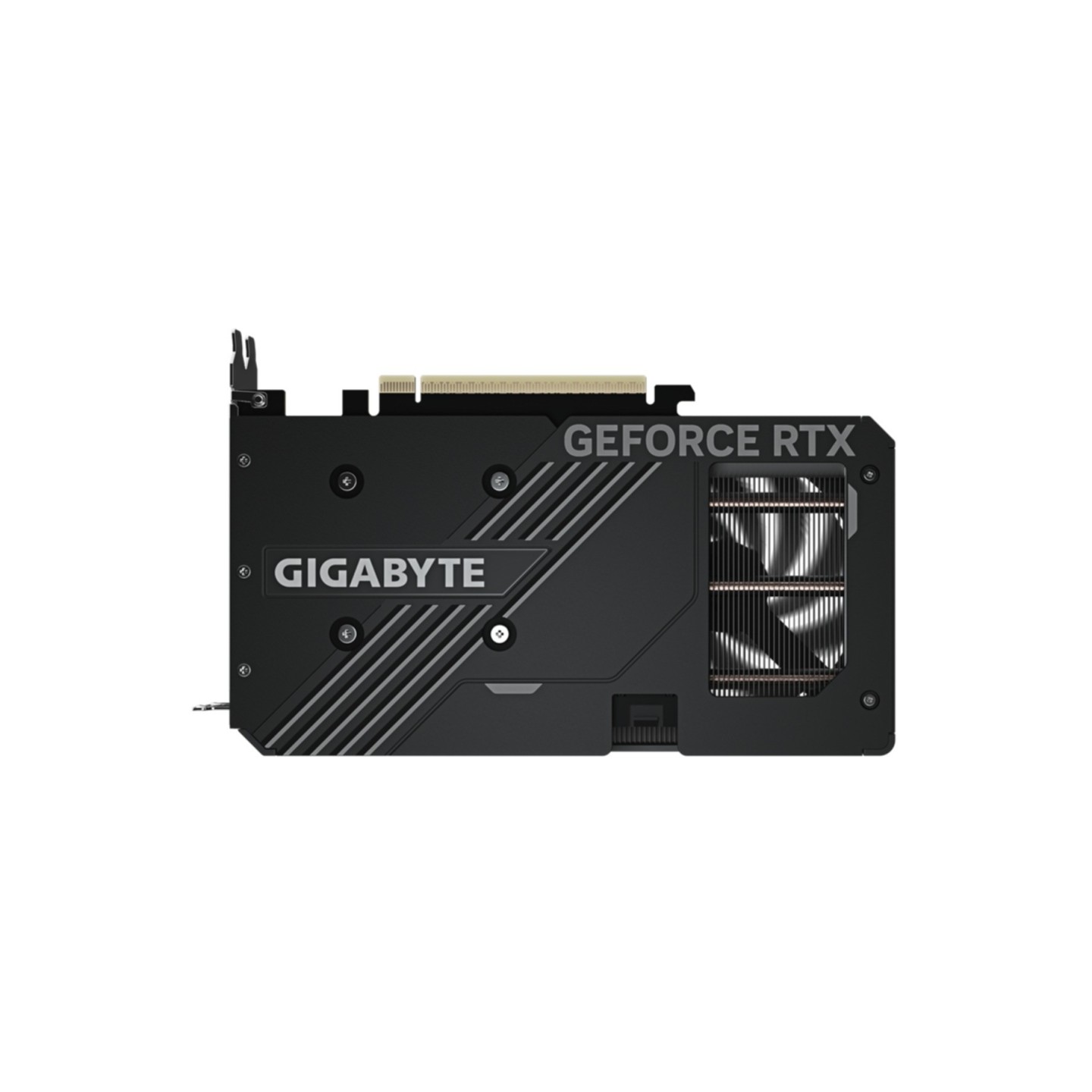

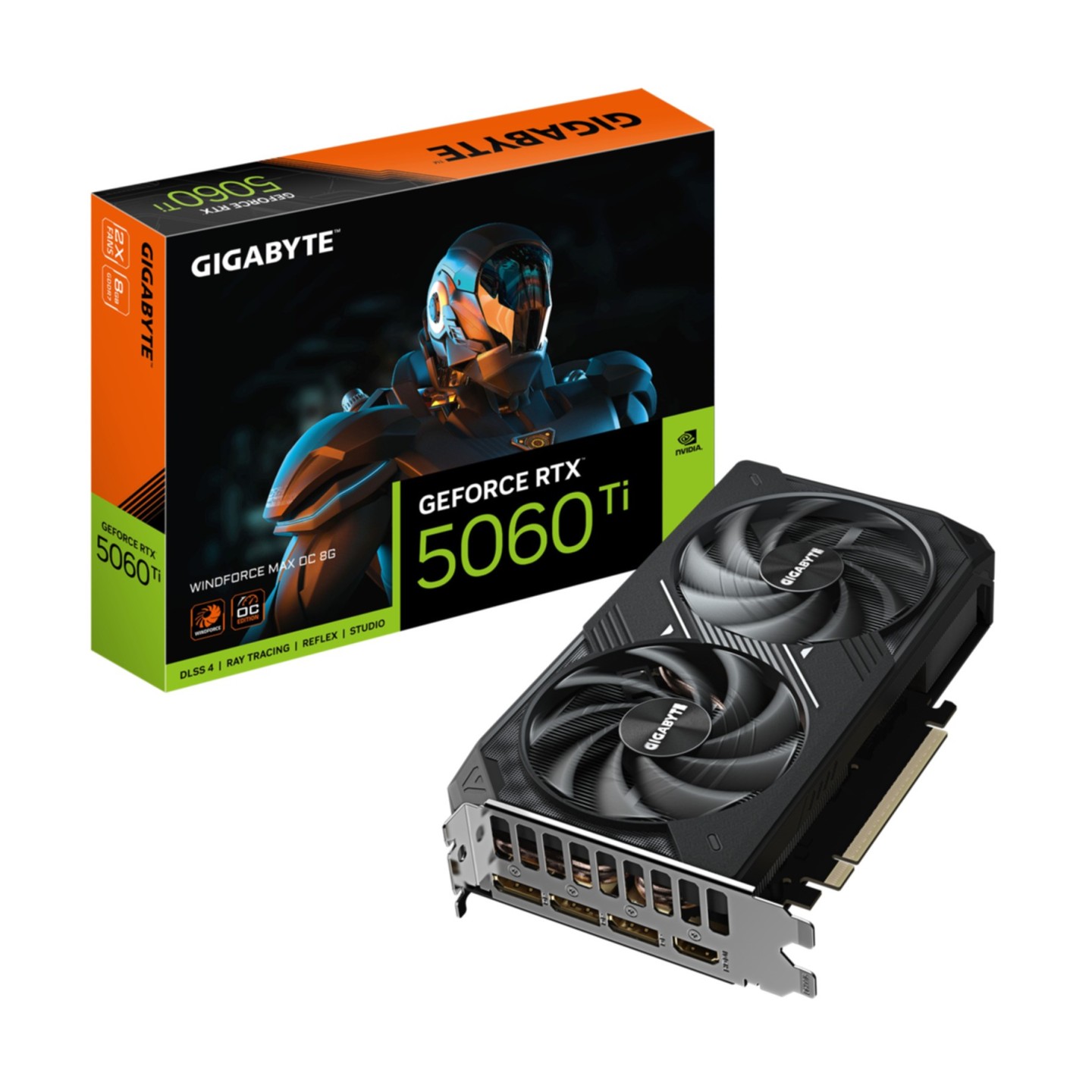

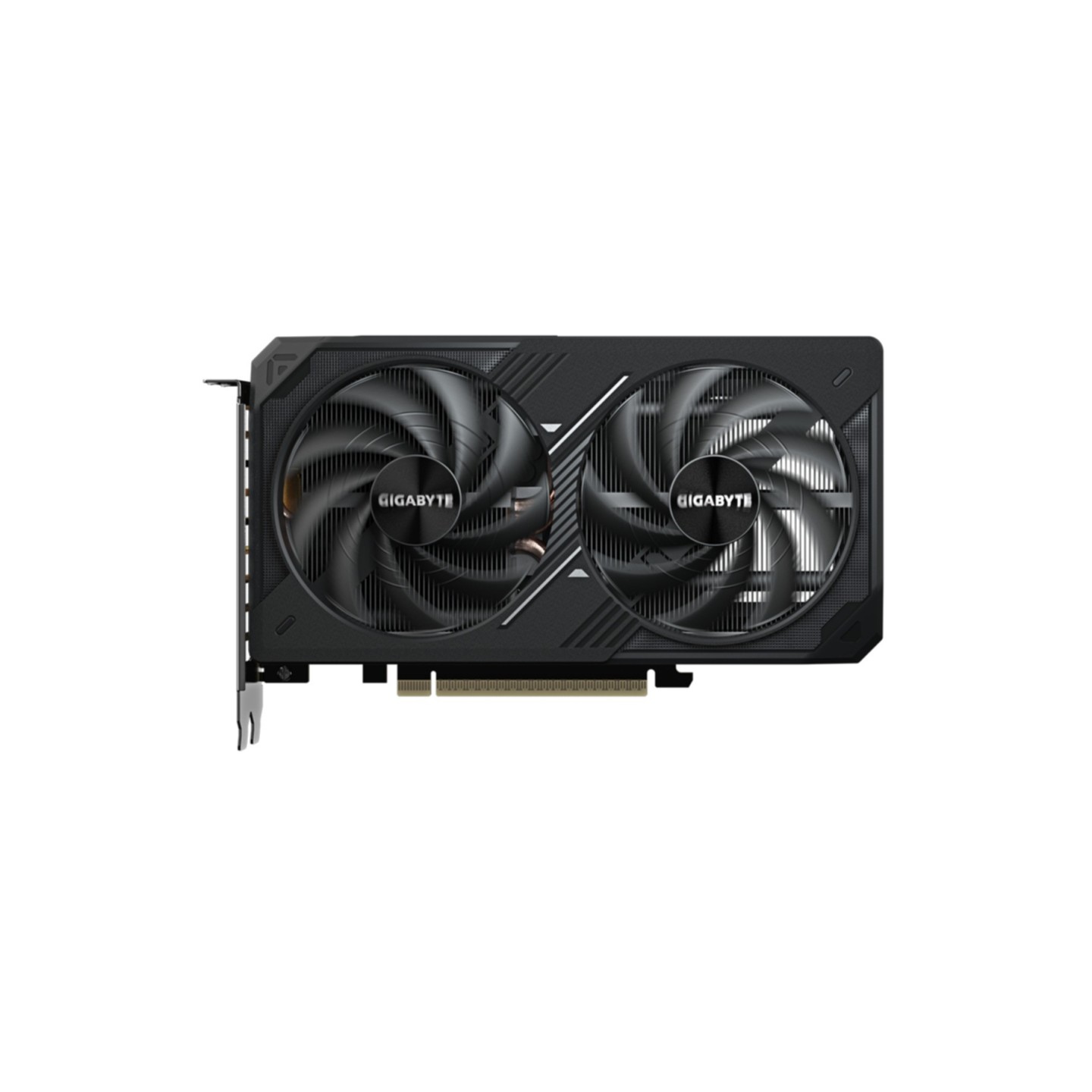

GIGABYTE GeForce RTX 5060 Ti EAGLE MAX OC - 8GB GDDR7, 2617 MHz, PCIe 5.0 (Boxed)
GIGABYTE GeForce RTX 5060 Ti EAGLE MAX OC: 16GB GDDR7, 2617 MHz boost, PCIe 5.0, WINDFORCE 2X cooling, 3x DP 2.1b + HDMI 2.1b, 7680x4320, 4608 CUDA cores.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | No |
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Large (281-300 mm) |
Experience next-level gaming with the GIGABYTE GeForce RTX 5060 Ti EAGLE MAX OC, powered by NVIDIA Blackwell architecture and DLSS 4 for AI-enhanced performance. This OC edition boosts to 2617 MHz, delivering stunning visuals and smooth gameplay at up to 7680x4320 resolution across 4 displays.
Featuring 16GB GDDR7 memory on a 128-bit bus, 4608 CUDA cores, and advanced WINDFORCE cooling with Hawk fans and server-grade thermal gel, it ensures quiet, efficient operation under load. Reinforced structure and PCIe 5.0 interface make it ready for modern builds, with a single 8-pin power connector and 650W PSU recommendation.
Key technologies include full ray tracing with neural rendering, NVIDIA Reflex 2, and ACE for digital humans. Ideal for 1440p gaming and content creation.
- WINDFORCE 2X cooling system
- DisplayPort 2.1b x3, HDMI 2.1b x1
- Compact: 281 x 115 x 40 mm, 2-slot
- NVIDIA G-SYNC support
| CUDA | Yes |
| CUDA cores | 4608 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 Ti |
| Processor frequency | 2617 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| TV tuner integrated | No |
| DirectX version | 12 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | Yes |
| Warranty period | 3 year(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2 |
| Product colour | Black |
| Minimum system power supply | 650 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 135 W |
| Weight | 730 g |
| Length | 281 mm |
| Depth | 40 mm |
| Height | 115 mm |
| Package width | 182.5 mm |
| Package depth | 354 mm |
| Package height | 75 mm |
| Package weight | 1.23 kg |
| Package type | Box |
| Products per shipping (inner) case | 1 pc(s) |
