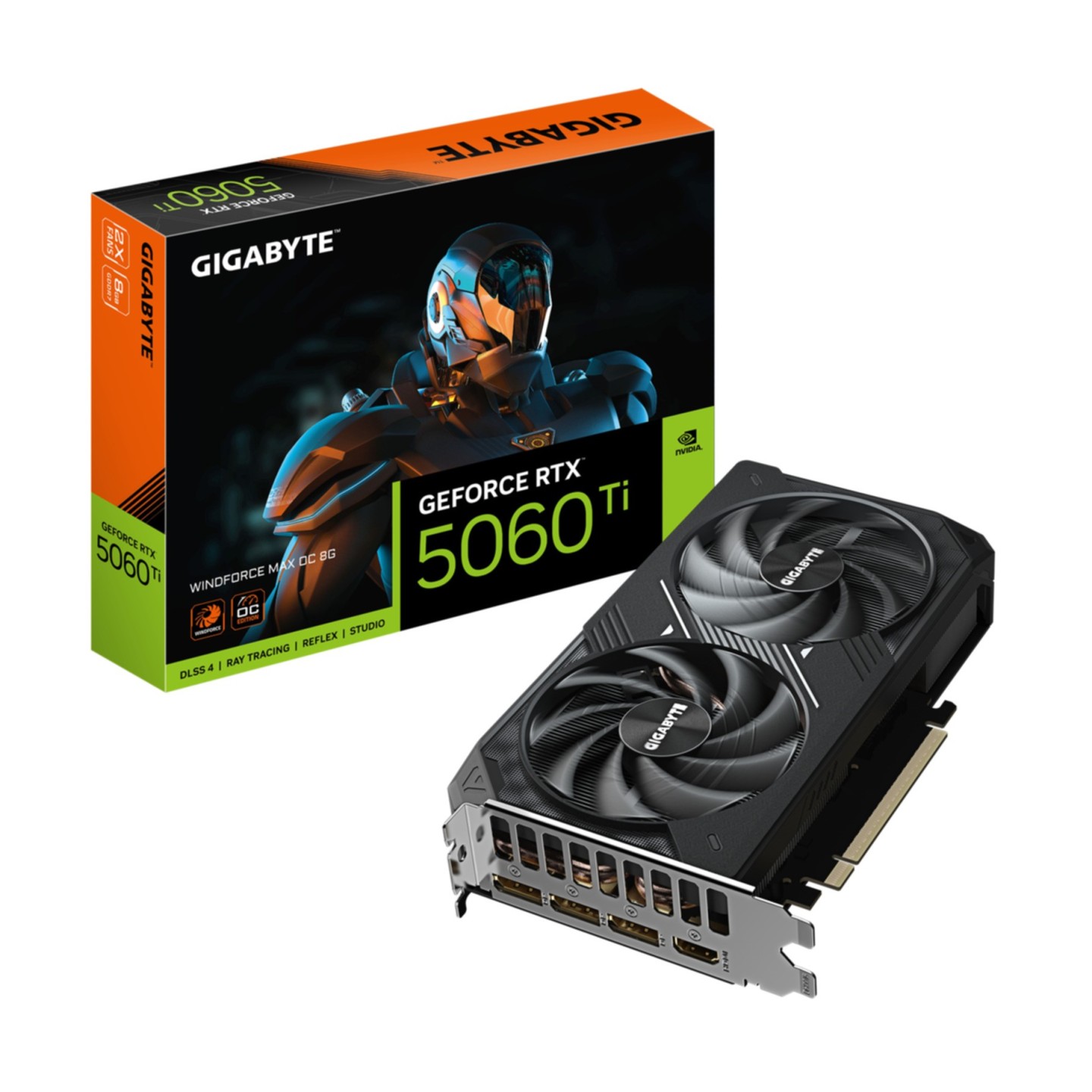

Gigabyte GeForce RTX 5060 Ti Windforce MAX OC 8GB GDDR7 Boost 2640MHz Black (Boxed)
Gigabyte GeForce RTX 5060 Ti Windforce MAX OC: 8GB GDDR7, boost 2640MHz, dual-fan cooling, 1x8-pin power. PCIe 5.0 x16, HDMI+3xDP. Compact black GPU for 1080p/1440p gaming with RT/DLSS support. Excellent value for mid-range builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort HDMI |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Standard (221-260 mm) |

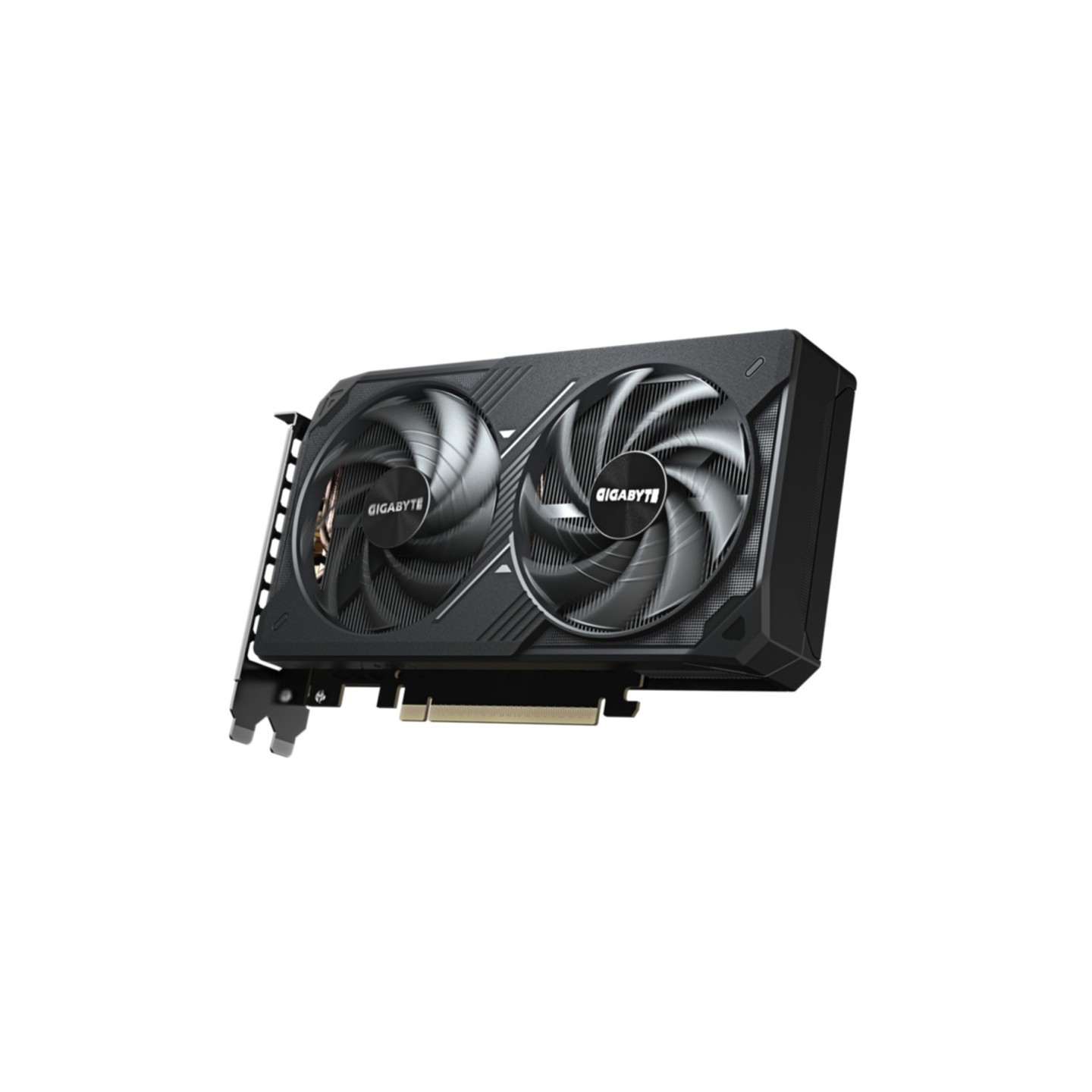

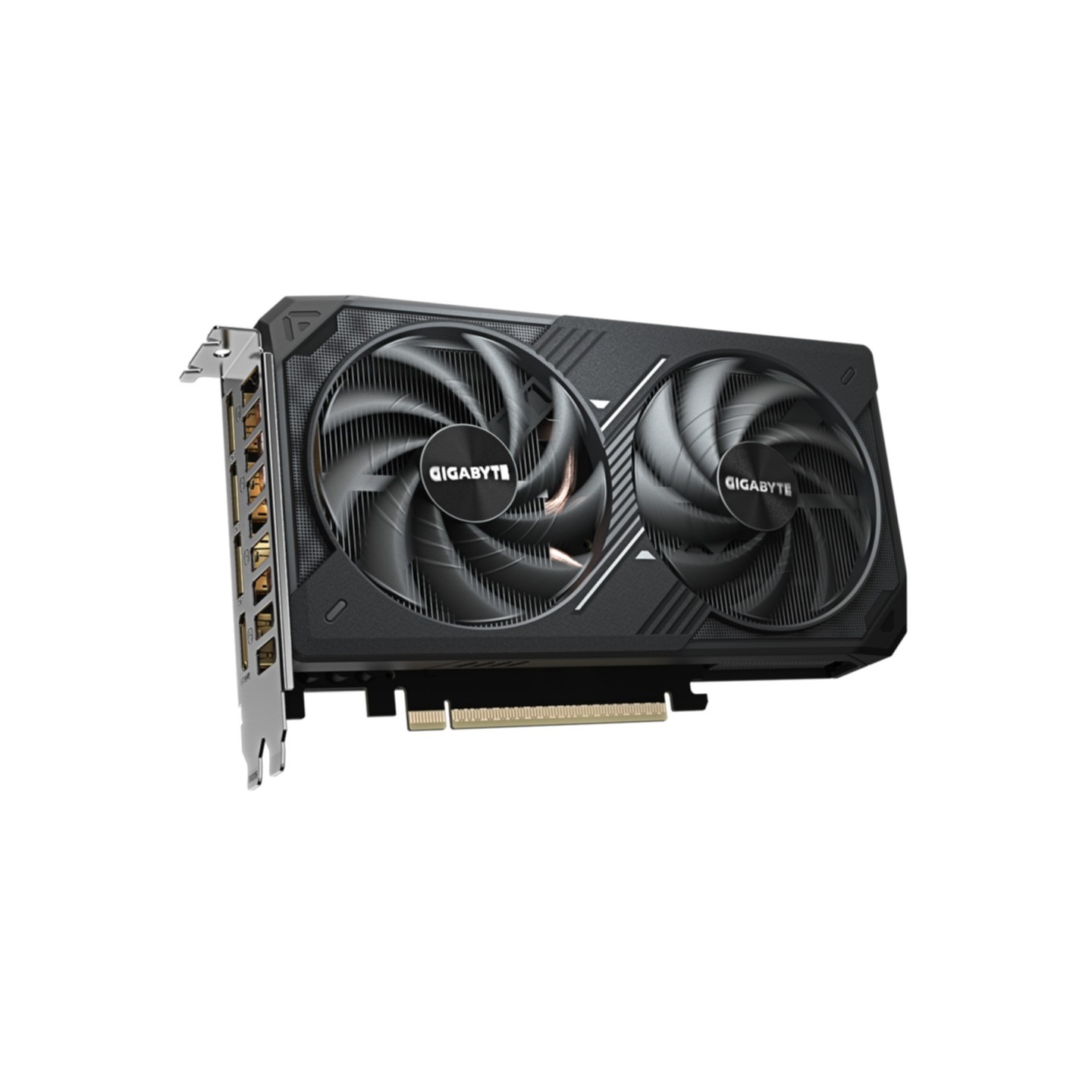

The Gigabyte GeForce RTX 5060 Ti Windforce MAX OC is a high-performance graphics card powered by NVIDIA's Blackwell architecture. Featuring 8GB of fast GDDR7 memory on a 128-bit bus, it delivers boost clocks up to 2640MHz for smooth 1080p and capable 1440p gaming. The dual-fan WINDFORCE cooling system with Hawk fans ensures quiet, efficient operation even under load.

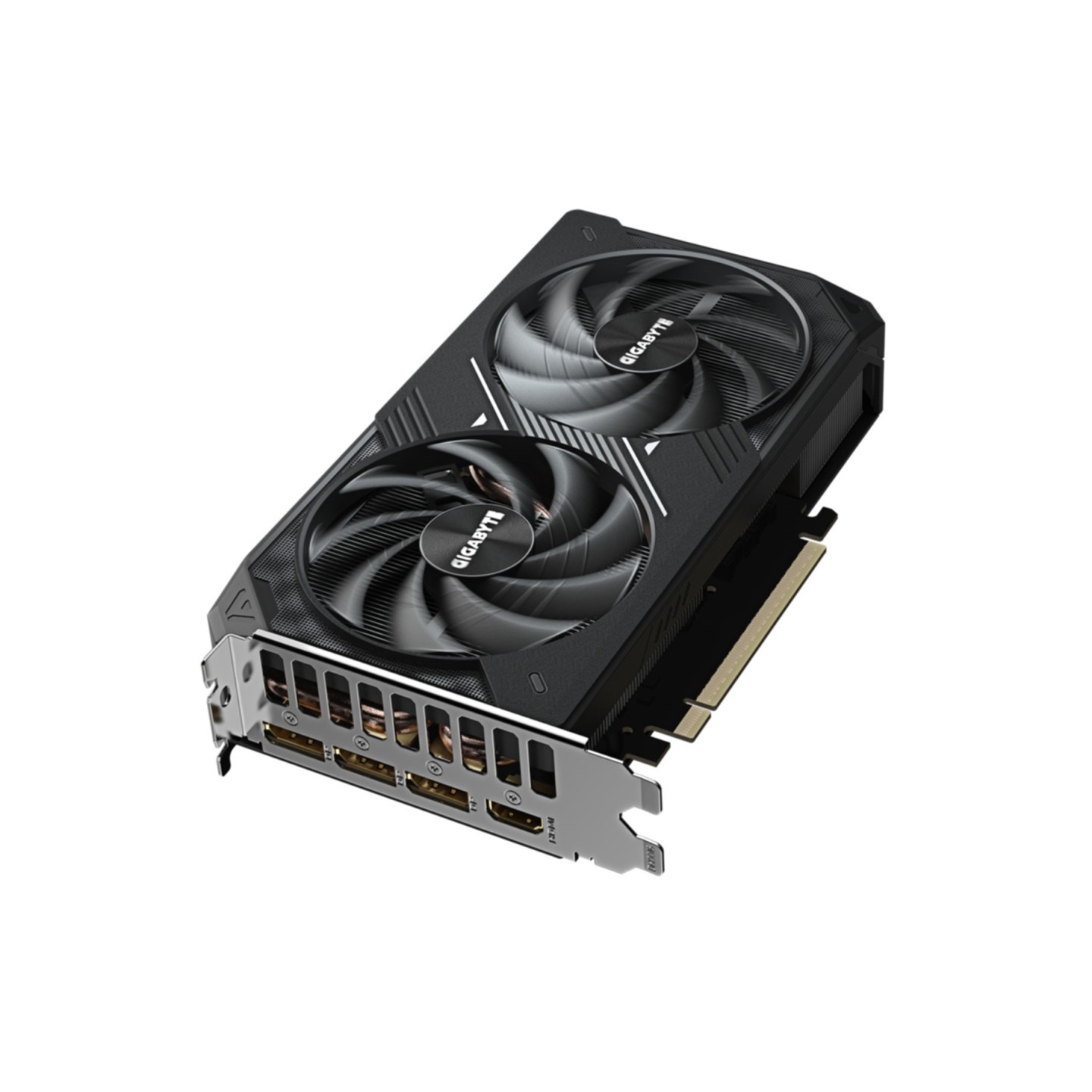

Equipped with 1x HDMI and 3x DisplayPort outputs, plus PCIe 5.0 x16 interface and a single 8-pin power connector, this card is easy to install in modern builds. It supports advanced features like ray tracing, DLSS, and Frame Generation for enhanced visuals and performance in demanding titles. Reviews praise its thermal efficiency and overclocking headroom.
- Boost Clock: 2640 MHz
- Memory: 8GB GDDR7 @ 28Gbps

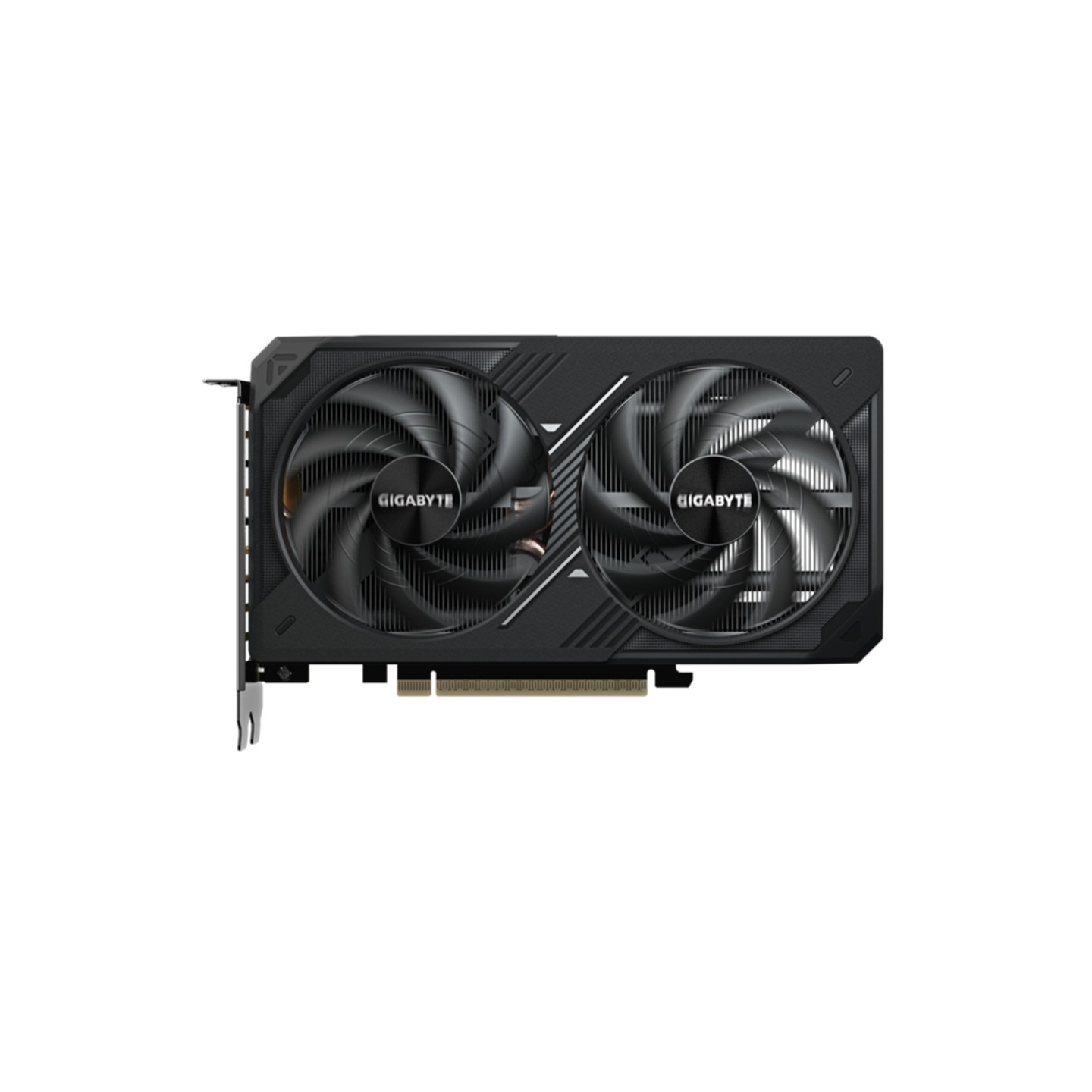

- Cooling: Dual active fans

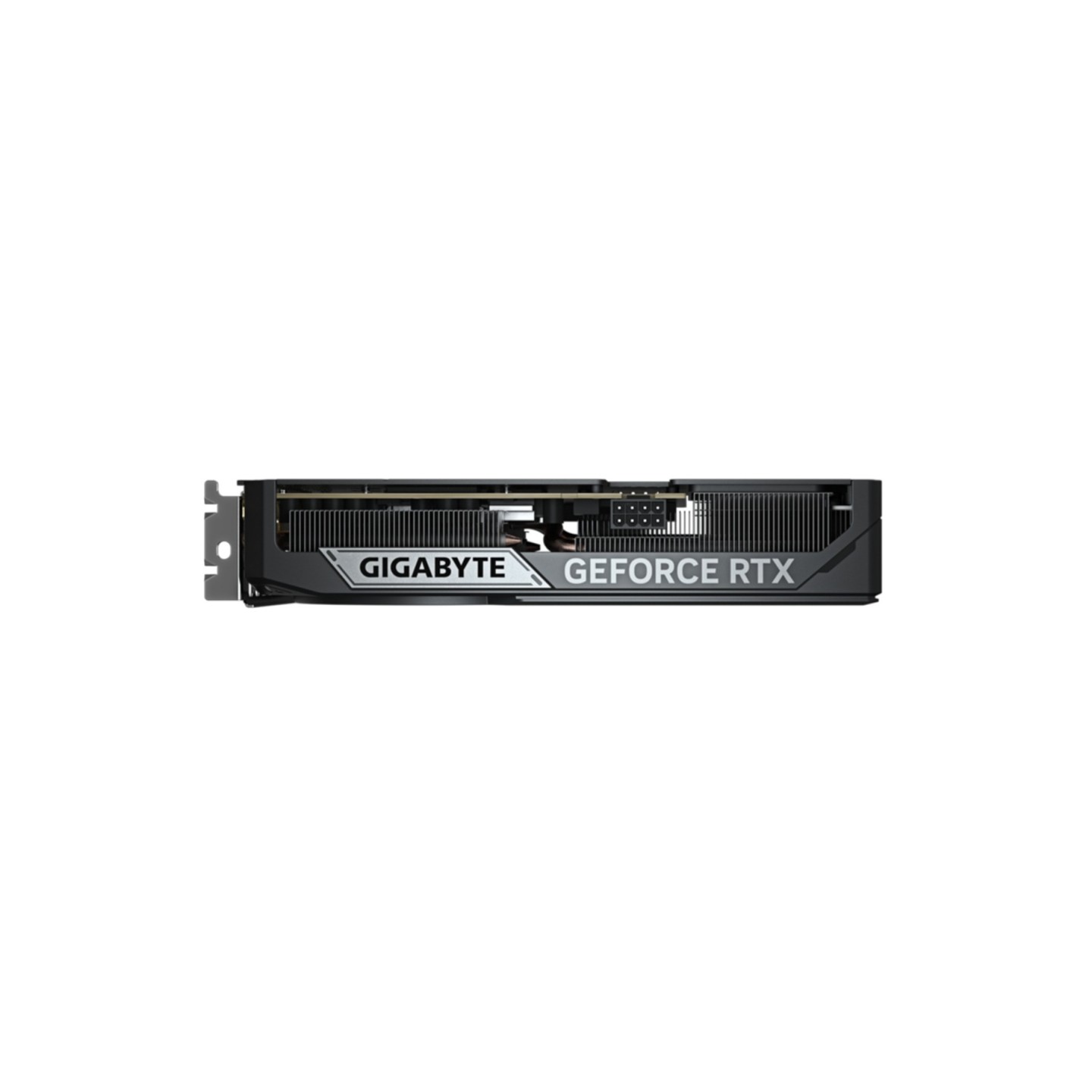

- Power: 1x 8-pin (TDP ~180W)
- Dimensions: Compact 2-slot design
- Color: Black
| Bus-Typ | PCI Express 5.0 |
| Bus-Version | 4.0 |
| Bus-Geschwindigkeit | x16 |
| Hersteller | NVIDIA |
| Serie | Geforce |
| Grafikchip Typ | GeForce RTX 5060 Ti |
| Chiptakt | 2587 MHz |
| Boosttakt | 2640 MHz |
| Shader | 4608 |
| 3D API | 12.0 |
| Speichergröße | 8 GB |
| Type | GDDR7 |
| Takt | 28000 MHz |
| Anbindung | 128 Bit |
| HDMI | 1 |
| Display Port | 3 |
| DUAL-Link DVI | Nein |
| Anschluss | 1x 8-pin |
| Breite | 120 mm |
| Höhe | 128 mm |
| Länge | 250 mm |
| Gewicht | 580 g |
| Slot | 2 |
| Kühlung | aktiv |
| Beleuchtungsfarbe | Multi |
| Besonderheiten | 2 Lüfter |
| Farbe | schwarz |
| TDP | 180 W |
| Memory Bandwidth | 448 GB/s |
