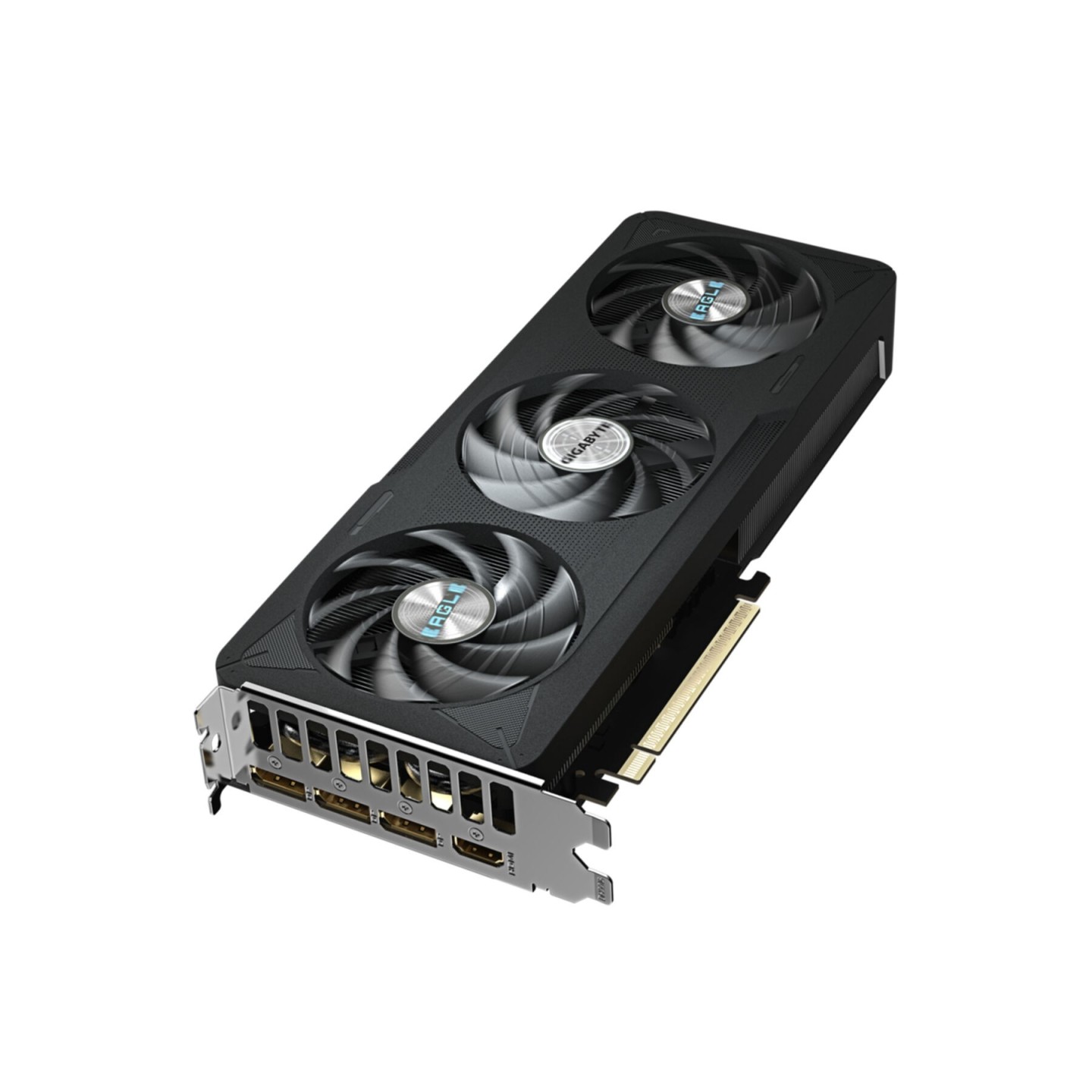

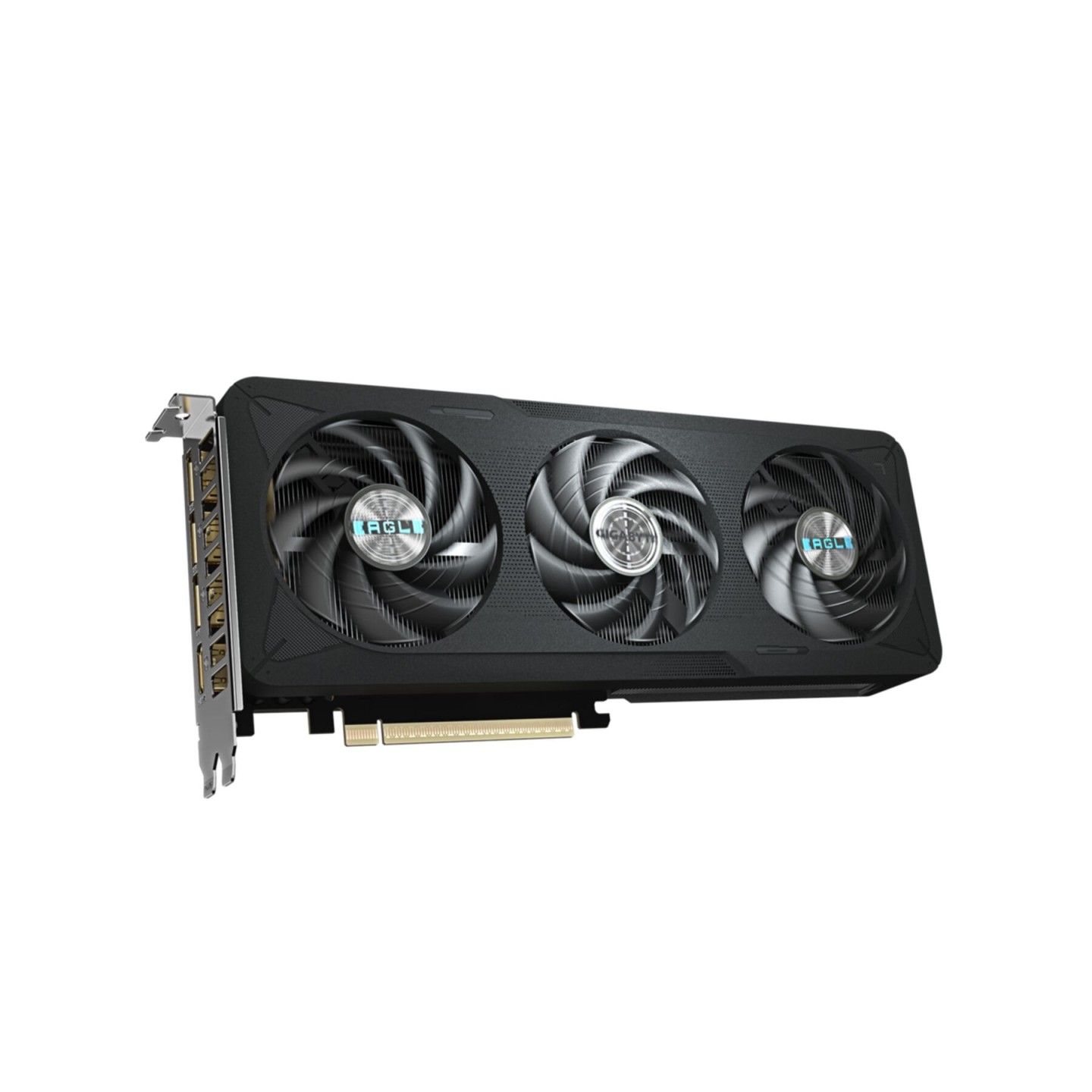

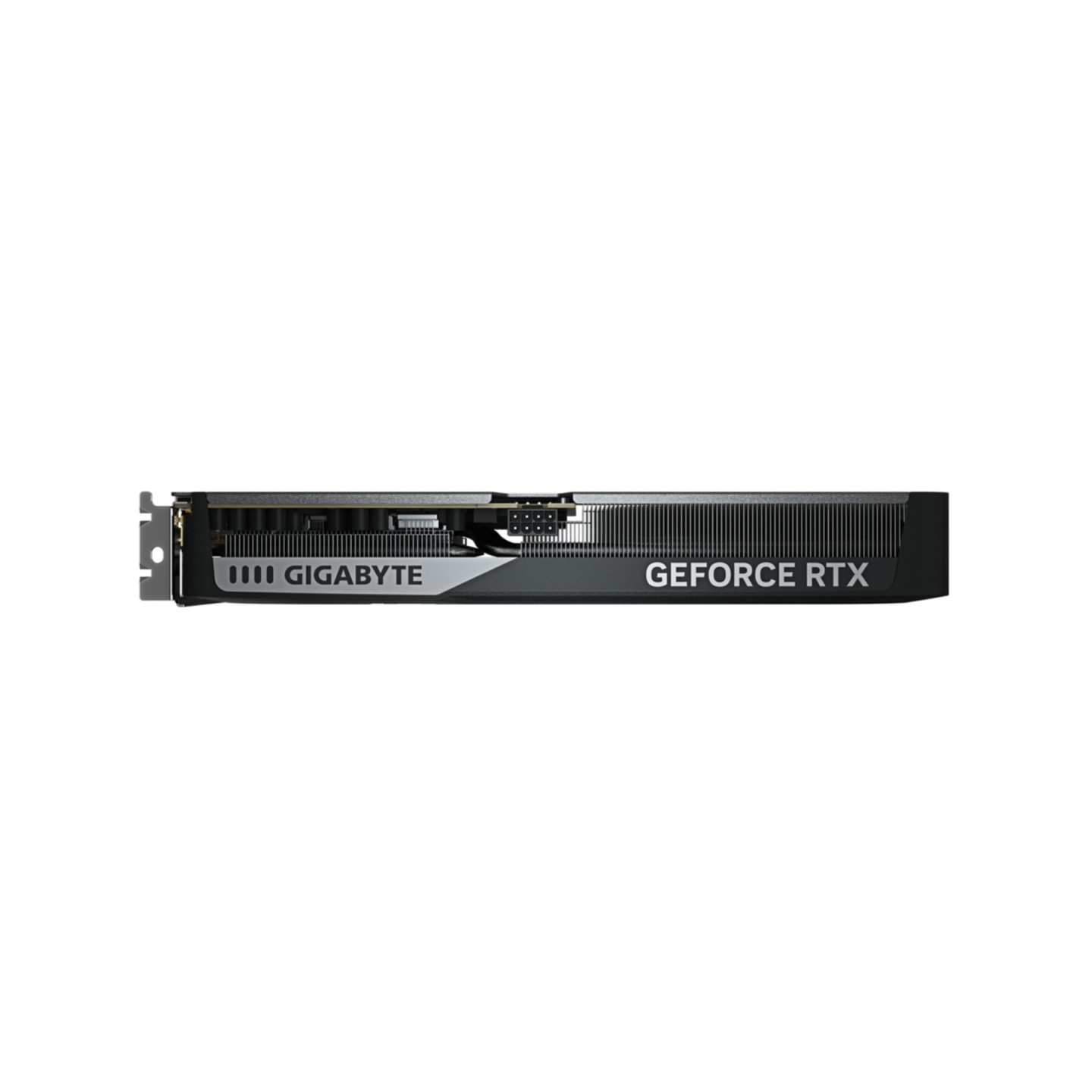

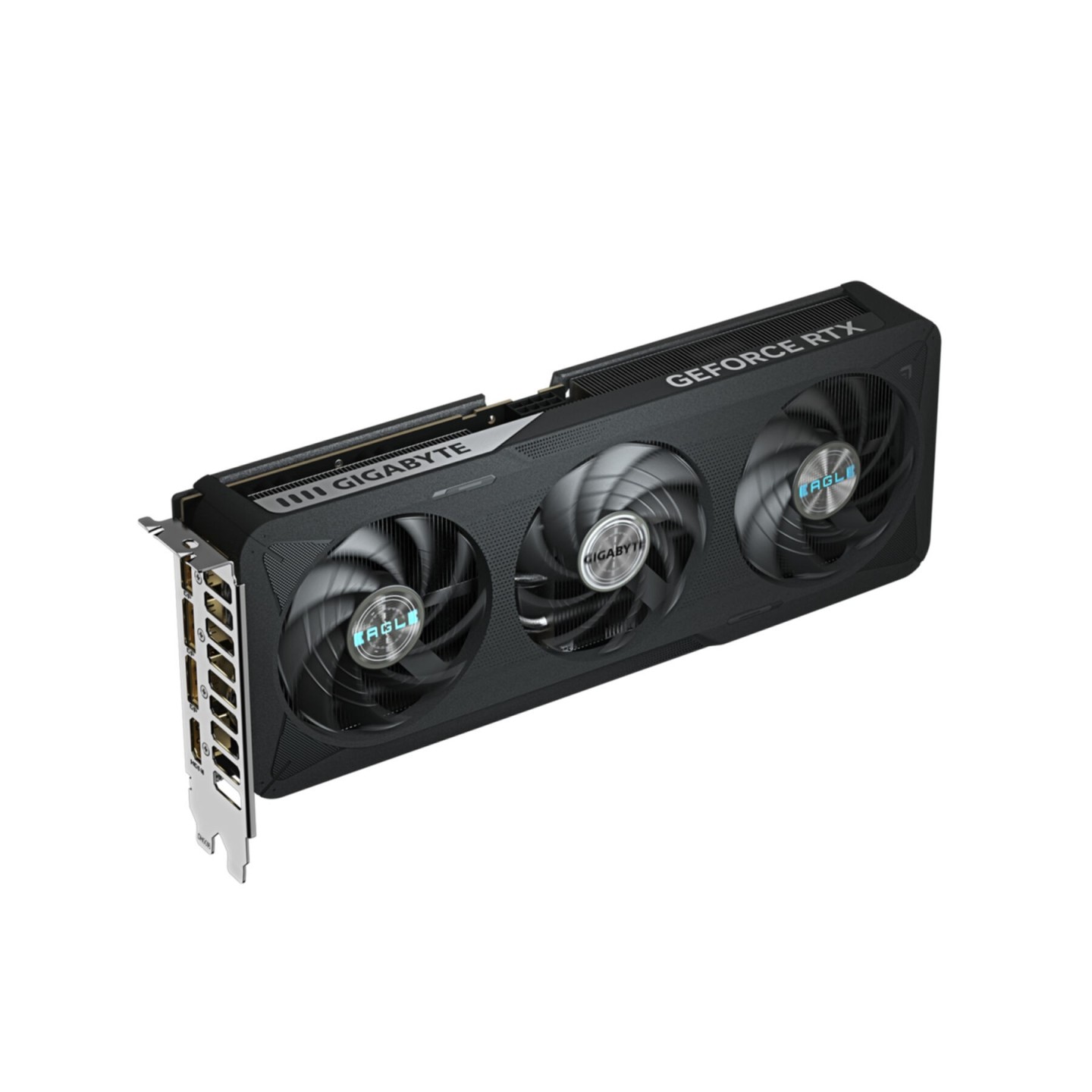

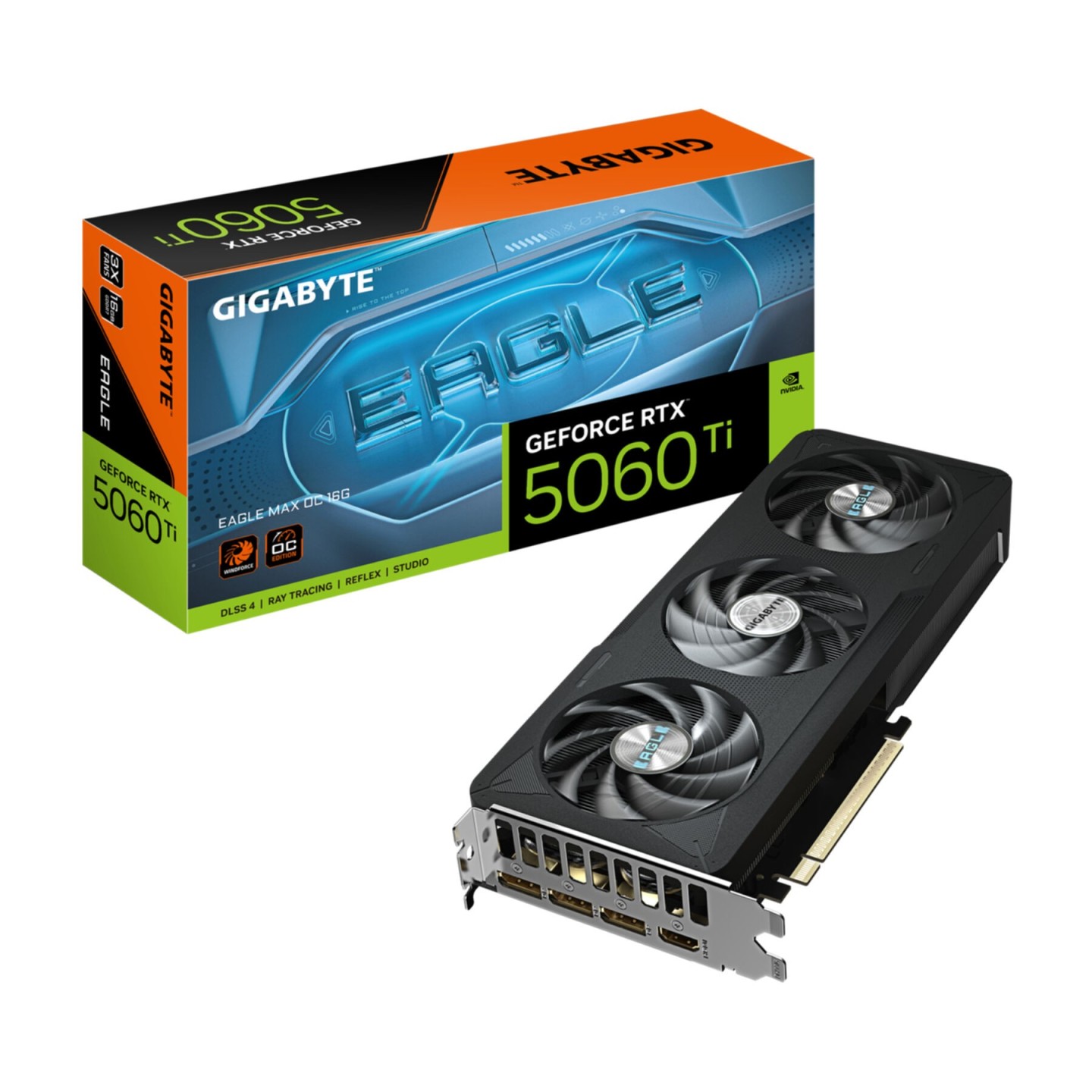

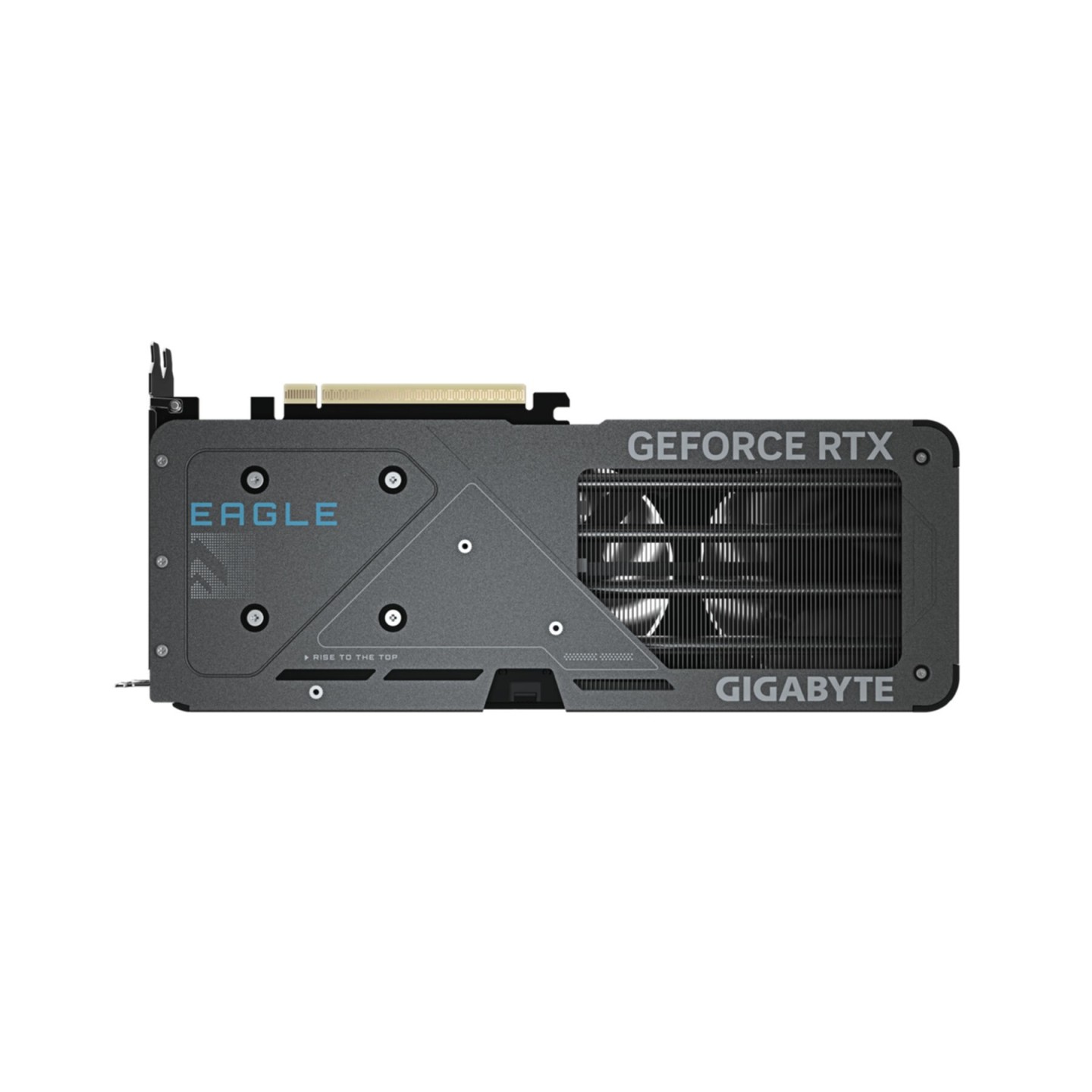

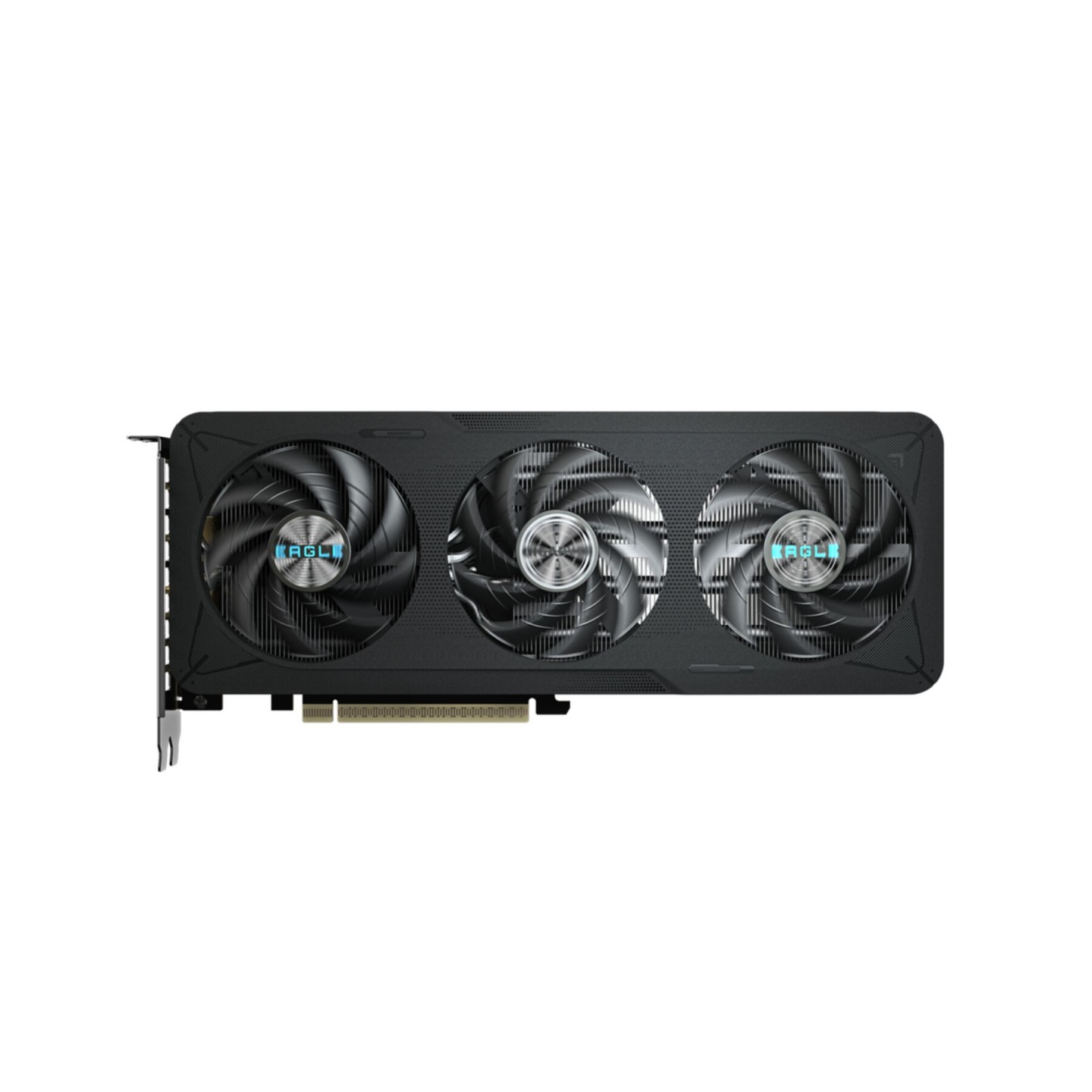

Gigabyte GeForce RTX 5060 Ti Eagle Max OC 16GB GDDR7 (Boxed)
Gigabyte RTX 5060 Ti Eagle Max OC 16GB GDDR7 graphics card with Blackwell architecture, 2617 MHz boost, WINDFORCE 3X cooling, PCIe 5.0, and DLSS 4 support for modern gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Mid Length (261-280 mm) |
The Gigabyte GeForce RTX 5060 Ti Eagle Max OC is a compact yet powerful graphics card built on NVIDIA's Blackwell architecture, delivering exceptional gaming performance at 1080p and 1440p resolutions. Featuring 16GB of GDDR7 memory and a 2617 MHz boost clock, this card combines raw performance with intelligent AI-enhanced technologies including DLSS 4 with Multi Frame Generation and NVIDIA Reflex 2 for reduced latency and improved responsiveness.
The card features Gigabyte's renowned WINDFORCE 3X cooling system with server-grade thermal conductive gel and a reinforced structure, ensuring optimal thermal performance in a compact 281mm form factor. With full ray tracing capabilities powered by fourth-generation RT Cores and fifth-generation Tensor Cores, the RTX 5060 Ti delivers cinematic-quality visuals with neural rendering technologies. The card supports PCIe 5.0, includes 3x DisplayPort 2.1 and 1x HDMI 2.1b outputs, and operates at just 135W TDP with a single 8-pin power connector, making it an efficient choice for modern gaming systems.
Professional reviews confirm this card delivers strong 1080p gaming performance with high frame rates across modern AAA titles, while offering impressive overclocking potential (7-12% performance gains). The compact design, excellent cooling, and high-end power delivery make it ideal for gamers seeking a balance of performance, efficiency, and build quality.
- NVIDIA Blackwell architecture with DLSS 4 and Multi Frame Generation
- 16GB GDDR7 memory with 128-bit interface and 28 Gbit/s data transfer
- WINDFORCE 3X cooling system with server-grade thermal gel
- PCIe 5.0 interface with 3x DisplayPort 2.1 + 1x HDMI 2.1b
- 135W TDP with single 8-pin power connector (650W PSU recommended)
- Compact 281mm length, full-height/half-length form factor
- NVIDIA G-SYNC support and 3-year warranty
| Graphics Processor | NVIDIA GeForce RTX 5060 Ti |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 4608 |
| Boost Clock | 2617 MHz |
| Memory Capacity | 16 GB |
| Memory Type | GDDR7 |
| Memory Bus | 128-bit |
| Memory Clock Speed | 28000 MHz |
| Data Transfer Rate | 28 Gbit/s |
| PCIe Interface | PCI Express 5.0 x16 |
| DisplayPort Outputs | 3x DisplayPort 2.1 |
| HDMI Outputs | 1x HDMI 2.1b |
| Maximum Resolution | 7680 x 4320 pixels |
| Maximum Displays | 4 |
| Power Connector | 1x 8-pin PCIe |
| Thermal Design Power (TDP) | 135 W |
| Minimum PSU Requirement | 650 W |
| Cooling System | GIGABYTE WINDFORCE 3X |
| Number of Fans | 3 |
| Cooling Type | Active |
| Form Factor | Full-Height/Half-Length (FH/HL) |
| Card Length | 281 mm |
| Card Height | 115 mm |
| Card Depth | 40 mm |
| Card Weight | 770 g |
| Color | Black |
| DirectX Support | 12.0 |
| OpenGL Support | 4.6 |
| NVIDIA G-SYNC | Yes |
| DLSS | DLSS 4 with Multi Frame Generation |
| Ray Tracing | Fourth-Generation RT Cores |
| Tensor Cores | Fifth-Generation |
| NVIDIA Reflex | Reflex 2 with Frame Warp |
| Overclocked Edition | Yes |
| Warranty | 3 years |
| Package Type | Retail Box |
| Package Dimensions (W x D x H) | 18.25 cm x 35.4 cm x 7.5 cm |
| Package Weight | 1.26 kg |
