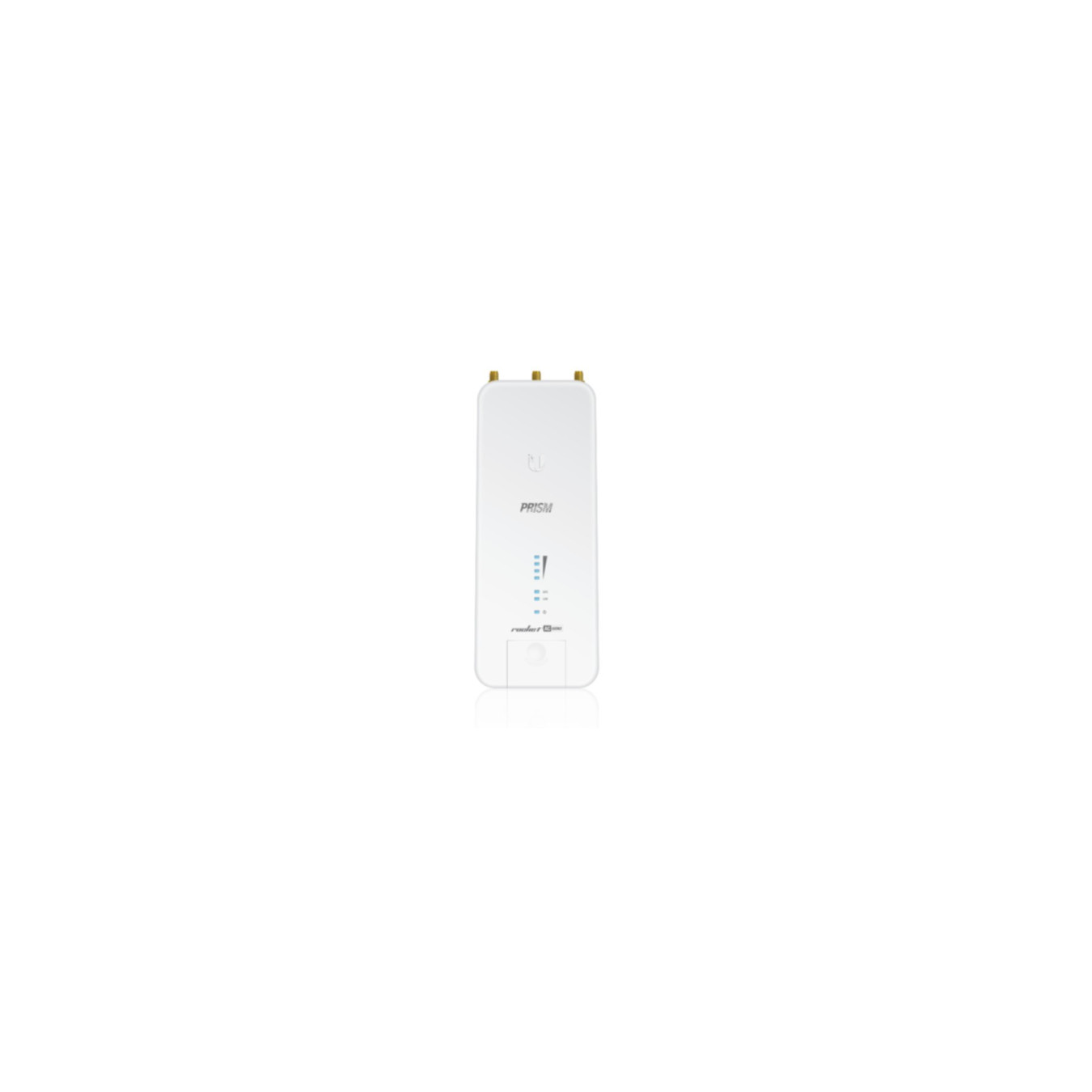

Ubiquiti Rocket Prism RP-5AC-Gen2 - Outdoor 5GHz Base Station with airPrism & GPS Sync
Outdoor 802.11ac base station with airPrism interference filtering, GPS synchronization, enhanced surge protection and mobile setup via built-in Wi-Fi management radio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Access Points - Placement | Outdoor |
|---|---|
| Access Points - Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| Access Points - Antennas | External (2) |
| Access Points - Ethernet Port | 1x1GbE |
| Access Points - Mounting | Pole (outdoor) |
| Access Points - Mesh | No |
Management Wi-Fi Radio
The Rocket® Prism AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The Rocket® Prism AC features enhanced protection against ESD events.
GPS Synchronization
The Rocket® Prism AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
Designed for High Performance
The Rocket® Prism AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.
Full-Band 5 and 2.4 GHz Coverage
The Rocket® Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.
The 2.4 GHz band is covered by the Rocket Prism 2AC.
| 5 GHz | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Security algorithms | WPA2-AES |
| DHCP client | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 24 V |
| Input current | 1 A |
| Power consumption (max) | 9.5 W |
| Product colour | White |
| LED indicators | LAN, Power, Signal strength |
| Built-in processor | Yes |
| Internal memory | 128 MB |
| Certification | FCC, IC, CE |
| Width | 88 mm |
| Depth | 40 mm |
| Height | 230 mm |
| Weight | 400 g |
| Bundled software | Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 80 °C |
| Harmonized System (HS) code | 85176990 |
