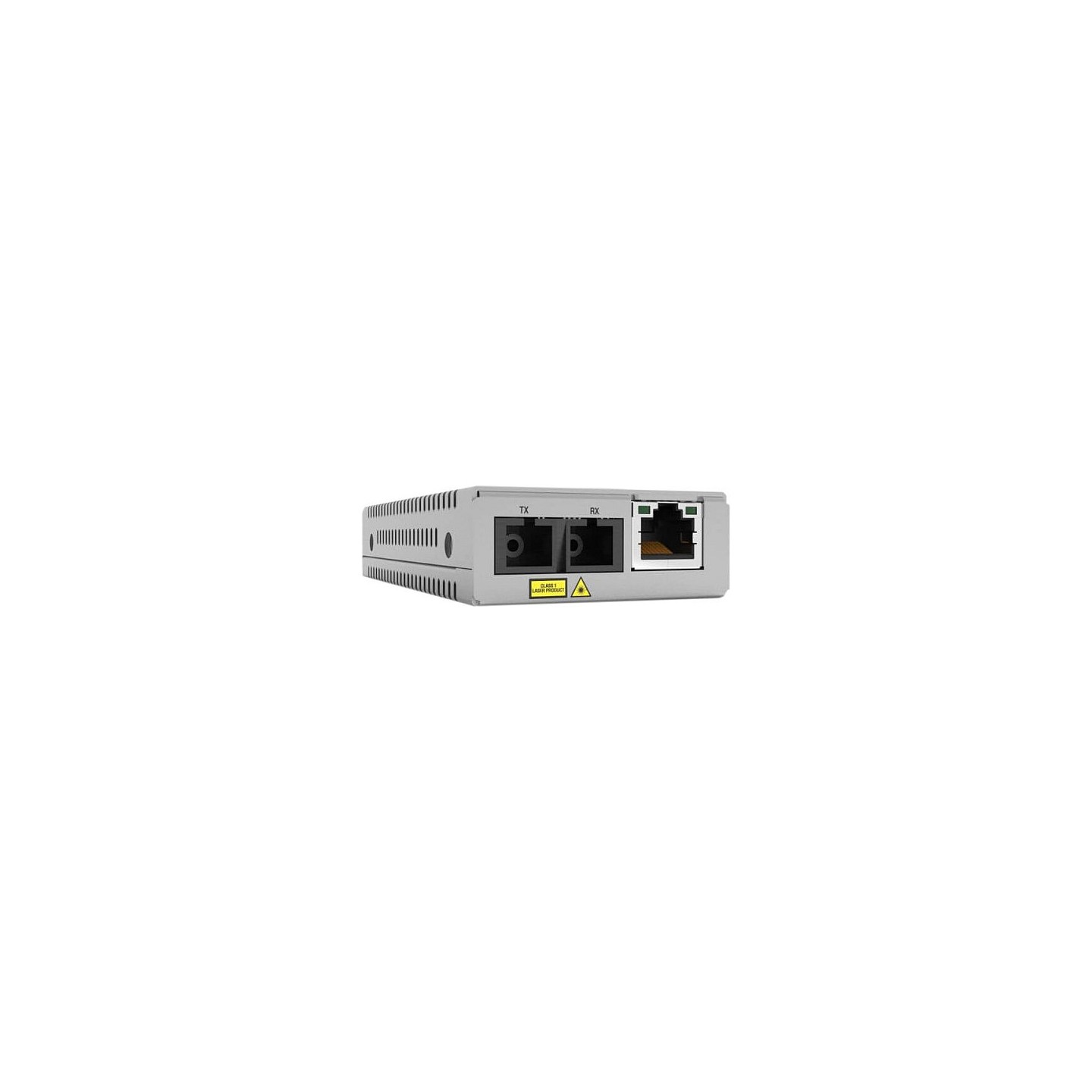

TAA 10 100TX TO 100X SC SINGLE
Allied Telesis AT-MMC200LX/SC-TAA-60. 100 Mbit/s. 10Base-T. 100Base-T. 100Base-LX. IEEE 802.1Q. Gigabit Ethernet. 10.100 Mbit/s
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Allied Telesis AT-MMC200LX/SC-TAA-60. Maximale Datenübertragungsrate: 100 Mbit/s. Converter Eingangsschnittstelle: 10Base-T. 100Base-T. Converter output Oberfläche: 100Base-LX. Maximal mögliche Übertragungsstrecke: 20000 m. Wellenlänge: 1310 nm. Unterstützte Faserkabeldurchmesser (Kern/Mantel): 9/125 µm. Produktfarbe: Grau. Optischer Kabelverbinder: SC. Übertragungstechnik: Kabelgebunden. Eingangsspannung: 12 V. Eingangsstrom: 0.14 A
| Maximale Datenübertragungsrate | 100 Mbit/s |
| Converter Eingangsschnittstelle | 10Base-T. 100Base-T |
| Converter output Oberfläche | 100Base-LX |
| Netzstandard | IEEE 802.1Q |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| Ethernet LAN Datentransferraten | 10.100 Mbit/s |
| Ethernet-Kabel Verkablungstechnologie | 100BASE-LX |
| Paketweiterleitungsrate (10 Mbit/s) | 14880 pps |
| Paketweiterleitungsrate (100 Mbit/s) | 148880 pps |
| Paketweiterleitungsrate (1 Gbit/s) | 1488000 pps |
| Feature | AC-Netzadapter |
| Jumbo-Frames | 10000 |
| Duplex-System | Voll |
| Maximal mögliche Übertragungsstrecke | 20000 m |
| Wellenlänge | 1310 nm |
| Unterstützte Faserkabeldurchmesser (Kern/Mantel) | 9/125 µm |
| Tx-Leistung (min) | -15 dBmW |
| Tx-Leistung (max) | -5 dBmW |
| Rx-Leistung (max) | -32 dBmW |
| Rx-Leistung (min) | -34 dBmW |
| Produktfarbe | Grau |
| Übertragungstechnik | Kabelgebunden |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl Faseranschlüsse | 2 |
| Optischer Kabelverbinder | SC |
| Eingangsspannung | 12 V |
| Eingangsstrom | 0.14 A |
| Breite | 56 mm |
| Tiefe | 101.6 mm |
| Höhe | 21.8 mm |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -30 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Höhe bei Betrieb | 0 - 3048 m |
| Sicherheit | UL60950-1. EN60950-1 |
