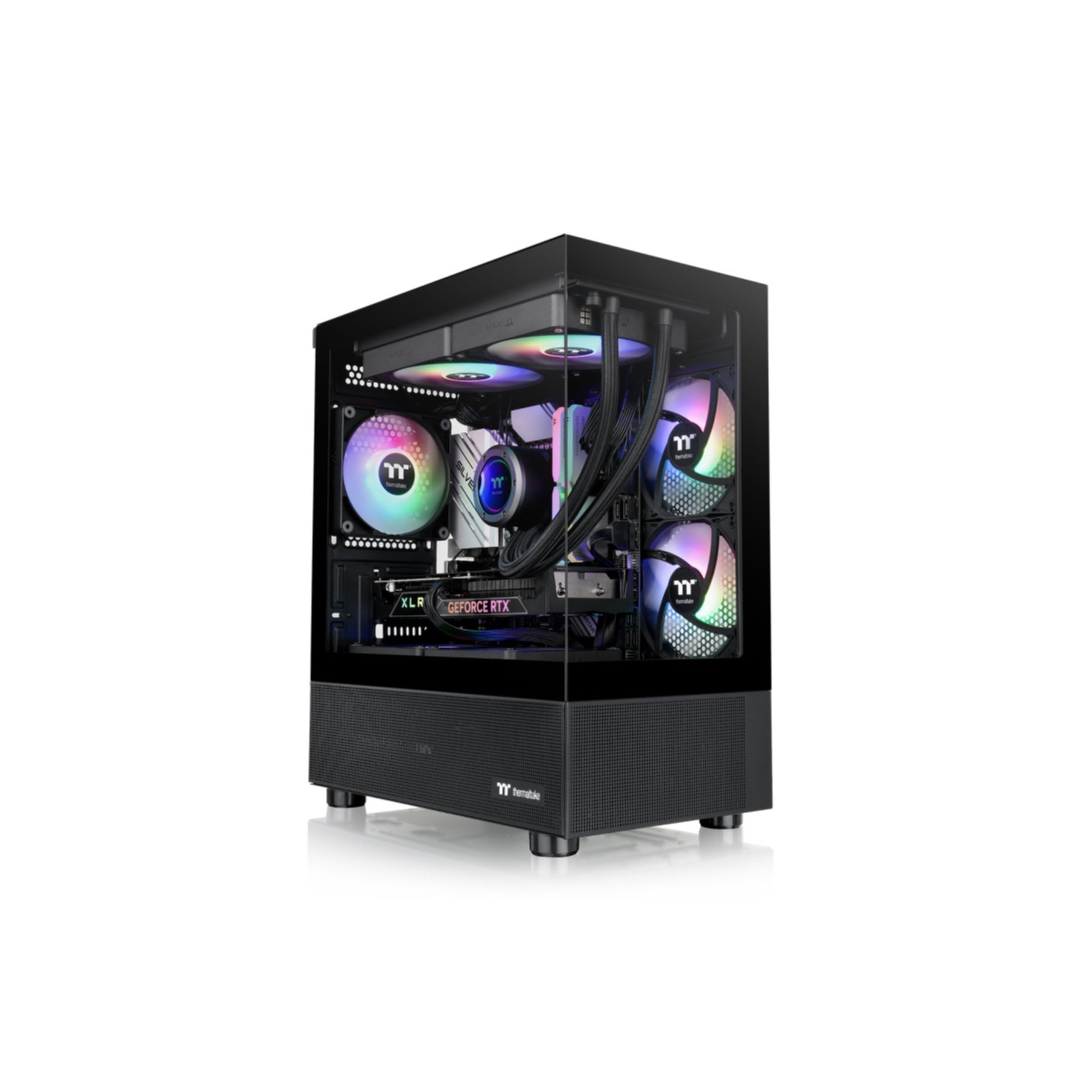

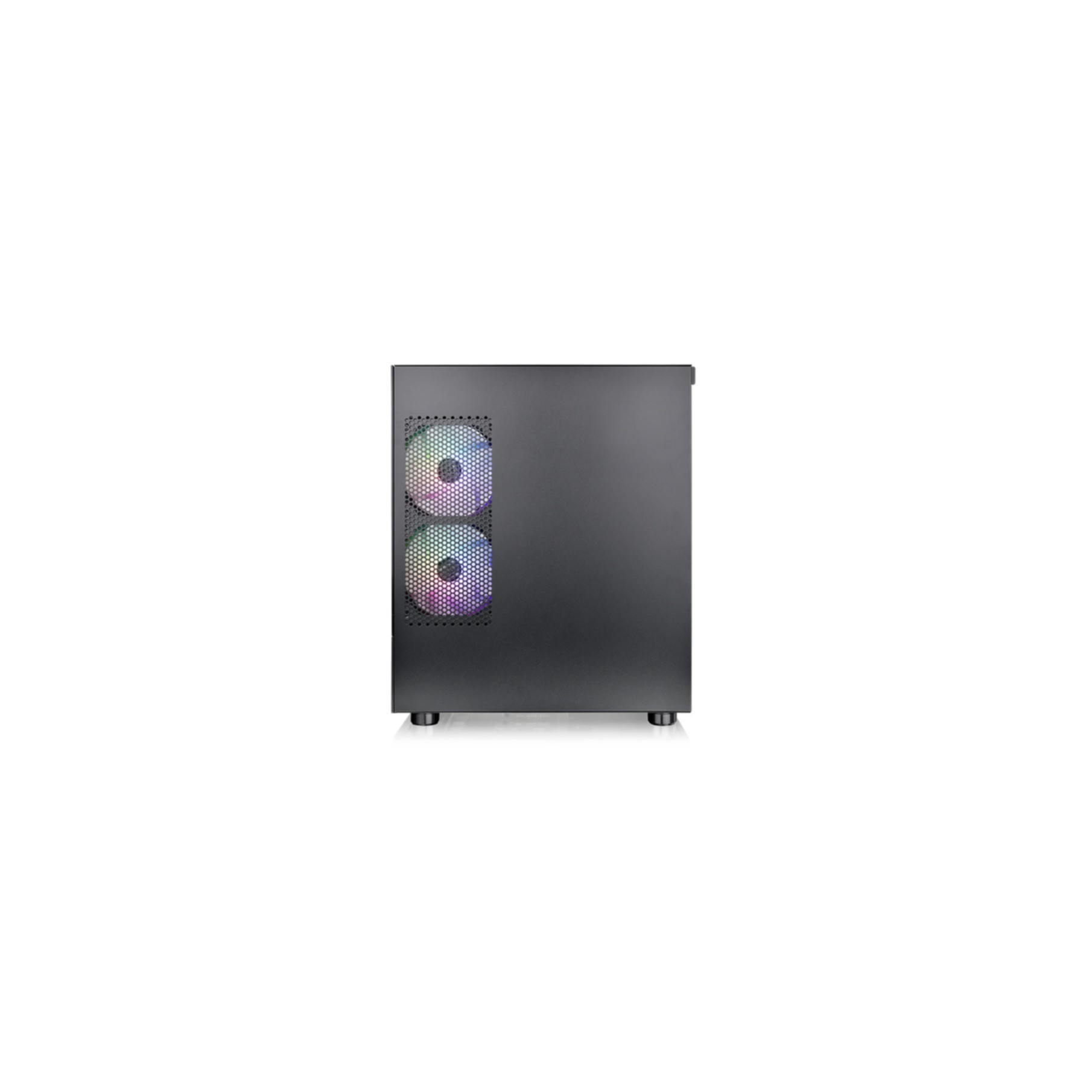

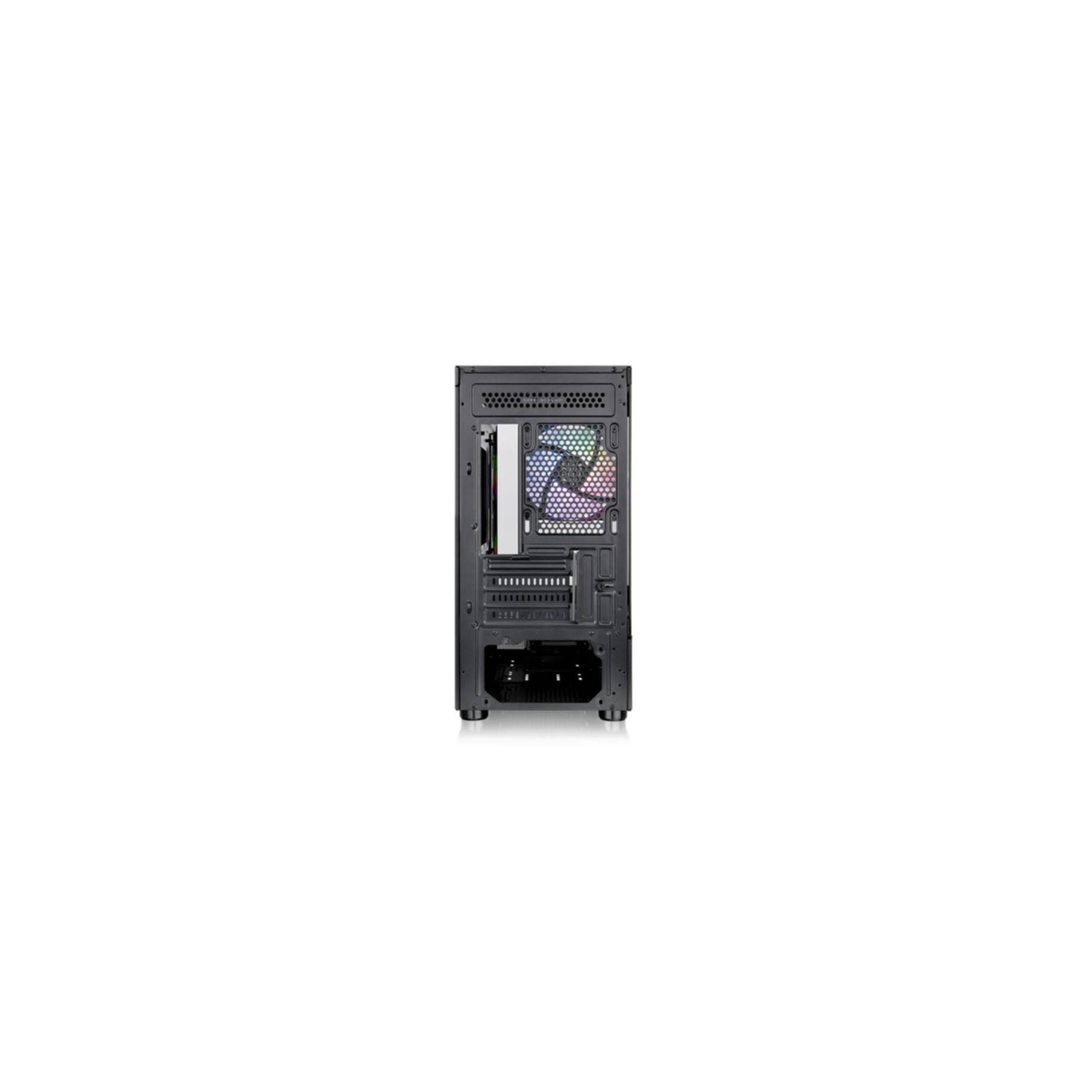

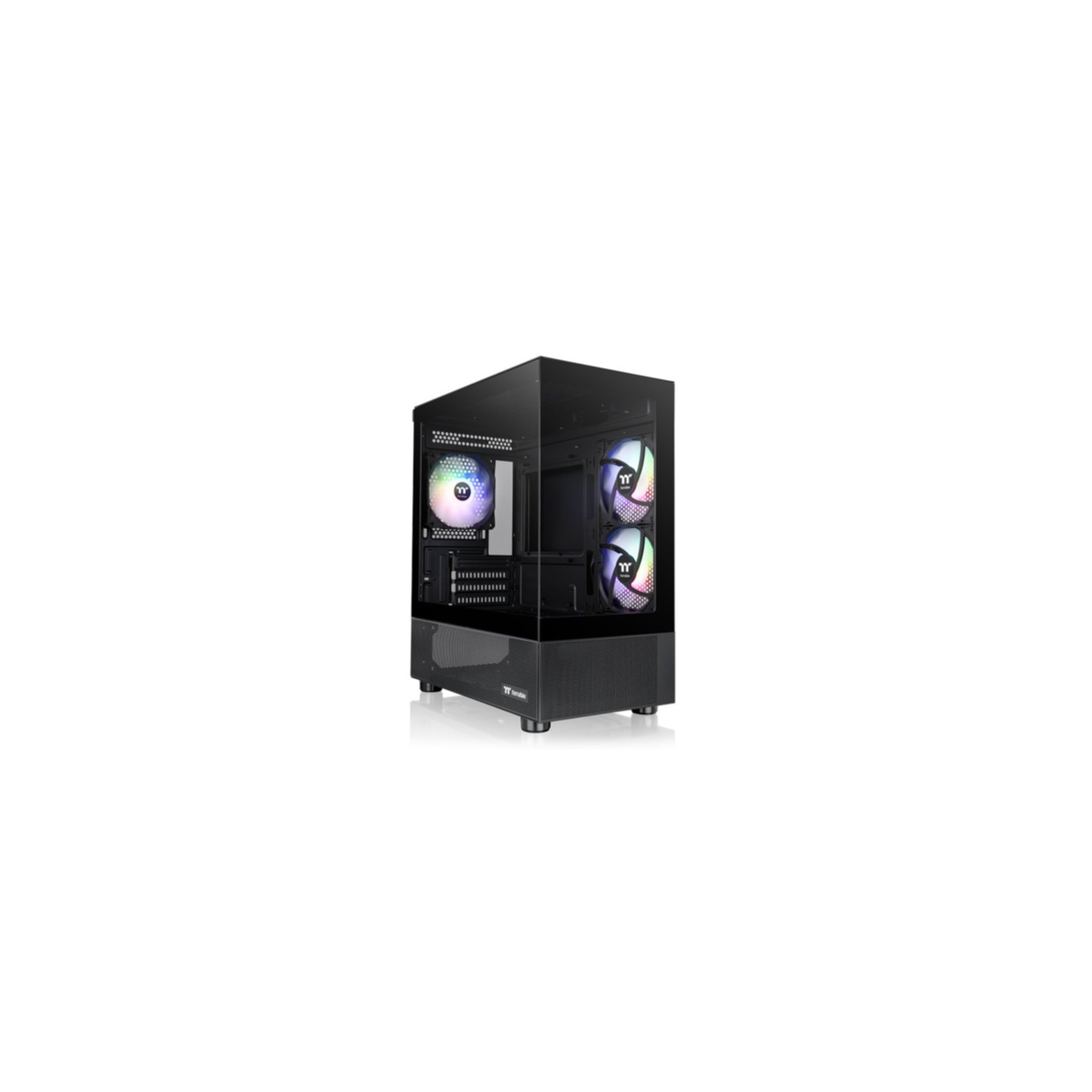

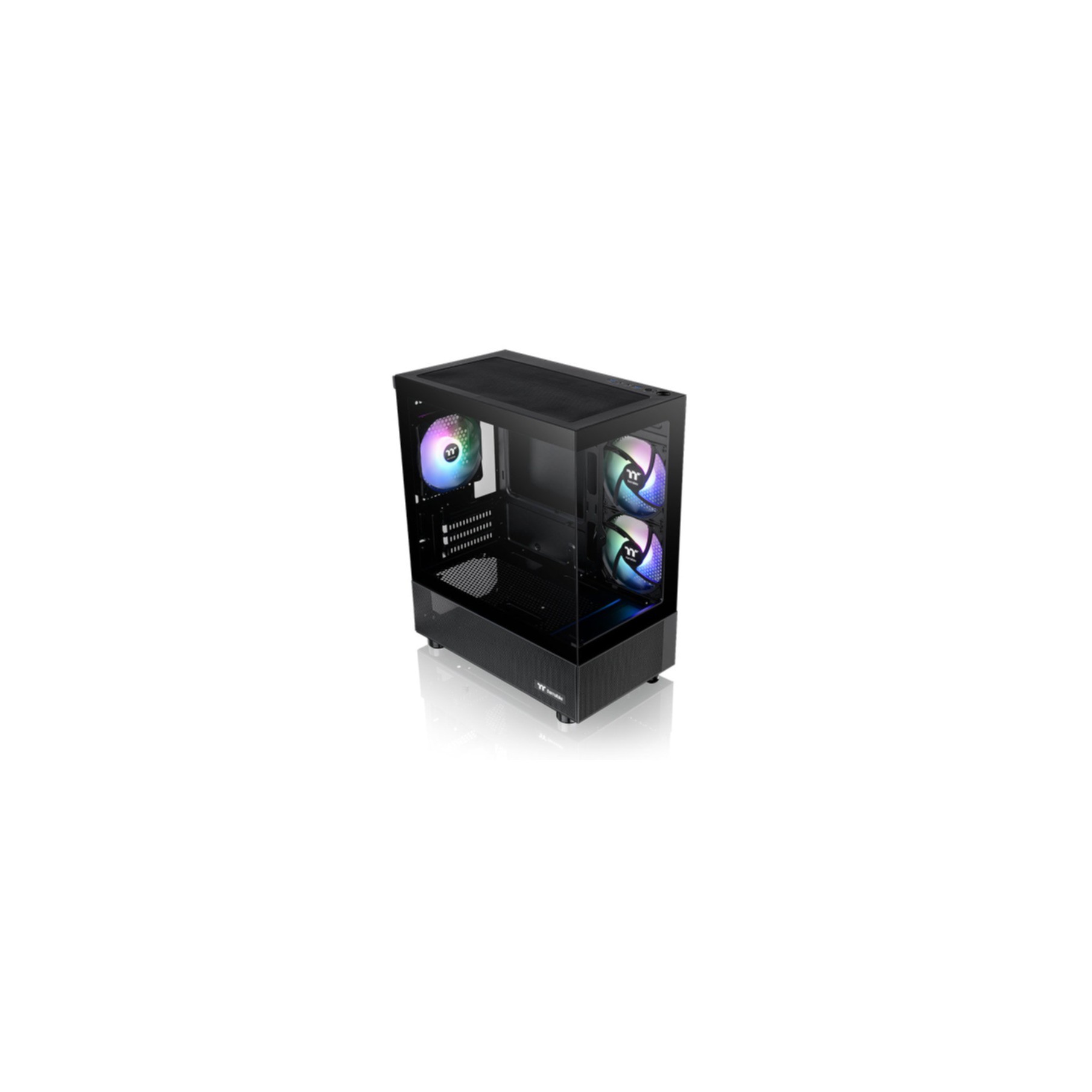

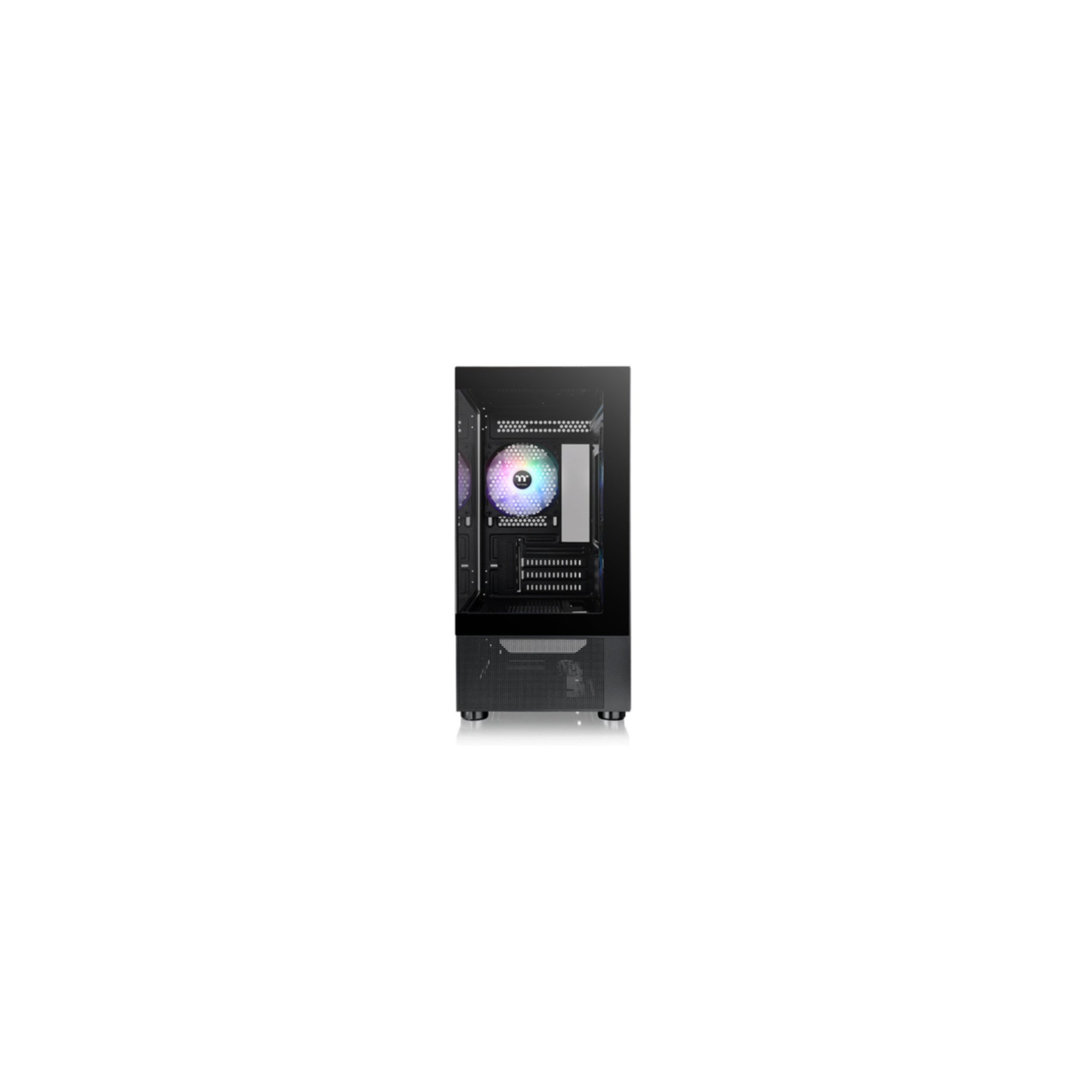

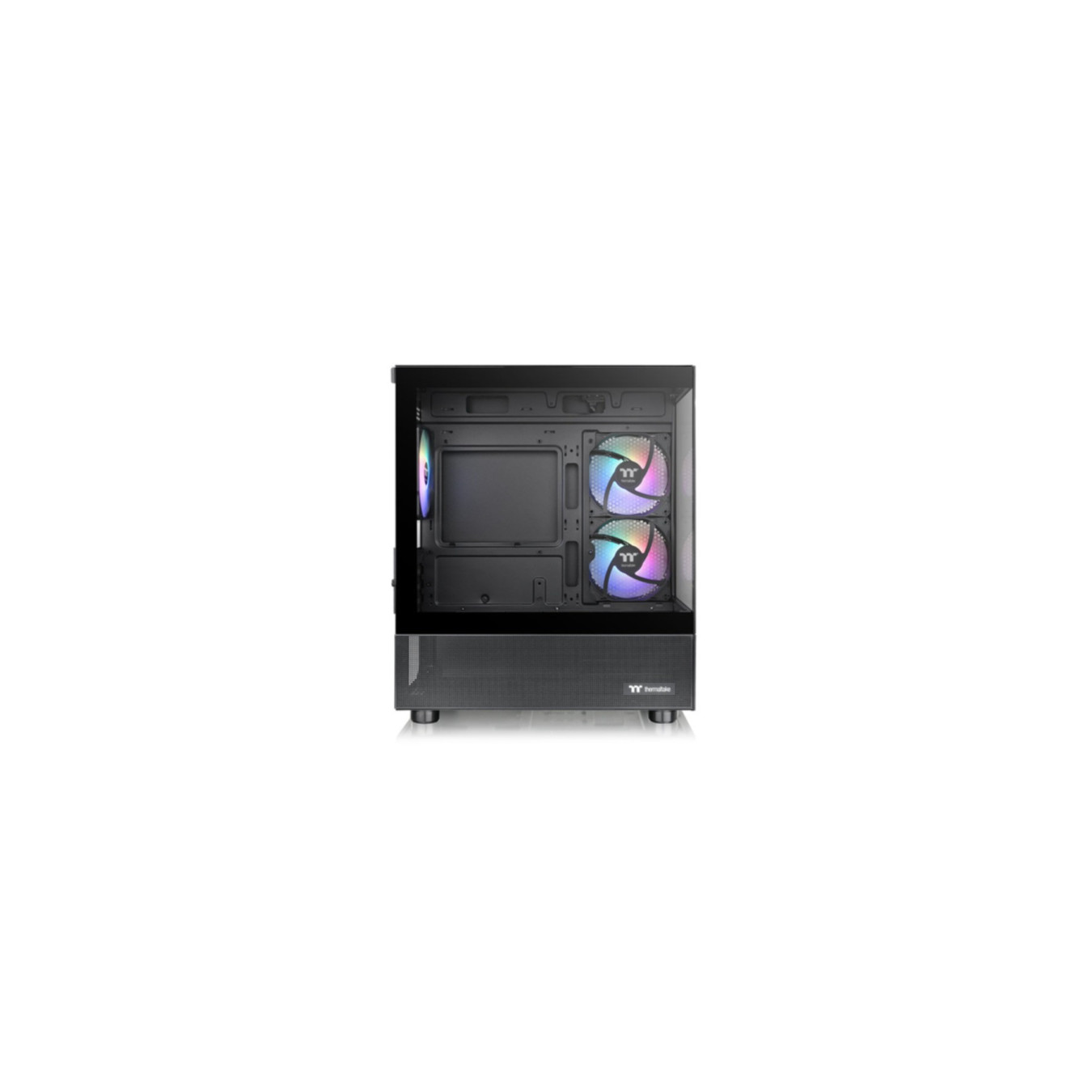

Thermaltake View 170 TG ARGB - Micro-ATX/Mini-ITX Micro Tower Case, Black, Tempered Glass, ARGB Fans
Micro-ATX / Mini-ITX micro tower with tempered glass side, ARGB lighting, 3x 120mm preinstalled fans, supports GPU up to 340mm, CPU cooler up to 160mm, 2x USB-A front ports.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PC Cases - Type | Micro-ATX Tower |
|---|---|
| PC Cases - Max GPU Length | 301-340 mm |
| PC Cases - CPU Cooler Clearance | 151-165 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | 2xUSB-A |
| PC Cases - GPU Orientation | Horizontal |
Built for amazing views thanks to the front and side tempered glass side panels the View 170 TG ARGB is sure to impress. Supporting M-ATX builds, mounting points for up to 7 fans, and a ventilated bottom shroud the View 170 TG ARGB brings flexibility in a small package.
View 170 TG ARGB Micro Chassis
Tempered Glass Front and Side
The View 170 TG ARGB comes equipped with two Tempered Glass panels located on the front and side of the case to provide the best viewing angles for your system inside.
Up to 280mm Radiator Support
Supporting up to 280mm radiators on the top of the chassis, the View 170 TG ARGB can meet the cooling needs for some of the more demanding systems all while maintaining a show appearance to show off your components. Check out the link below for some options from TT.
Three 120mm ARGB Lite Fans Pre-Installed
The View 170 TG ARGB comes with three 120mm ARGB Lite Fans pre-installed into the rear and side of the chassis. Lighting can be controlled through any supported ARGB software such as those from Asus, Gigabyte, MSI, and ASRock.
Space for Your Storage
The View 170 can support up to two 2.5” SSDs as well as one 3.5” HDD in total.
Handy I/O Ports
Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers.
| Material | SPCC, Tempered glass |
| Form factor | Micro Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 1 |
| Number of expansion slots | 4 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Reset button | Yes |
| On/off button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 34 cm |
| Maximum PSU length | 18 cm |
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | PS2 |
| Audio input | Yes |
| Audio output | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Side fans installed | 2x 120 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120, 140 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120, 140, 240, 280 mm |
| Supported HDD sizes | 2.5, 3.5" |
| Width | 212 mm |
| Depth | 377.5 mm |
| Height | 438 mm |
| Weight | 6.35 kg |
