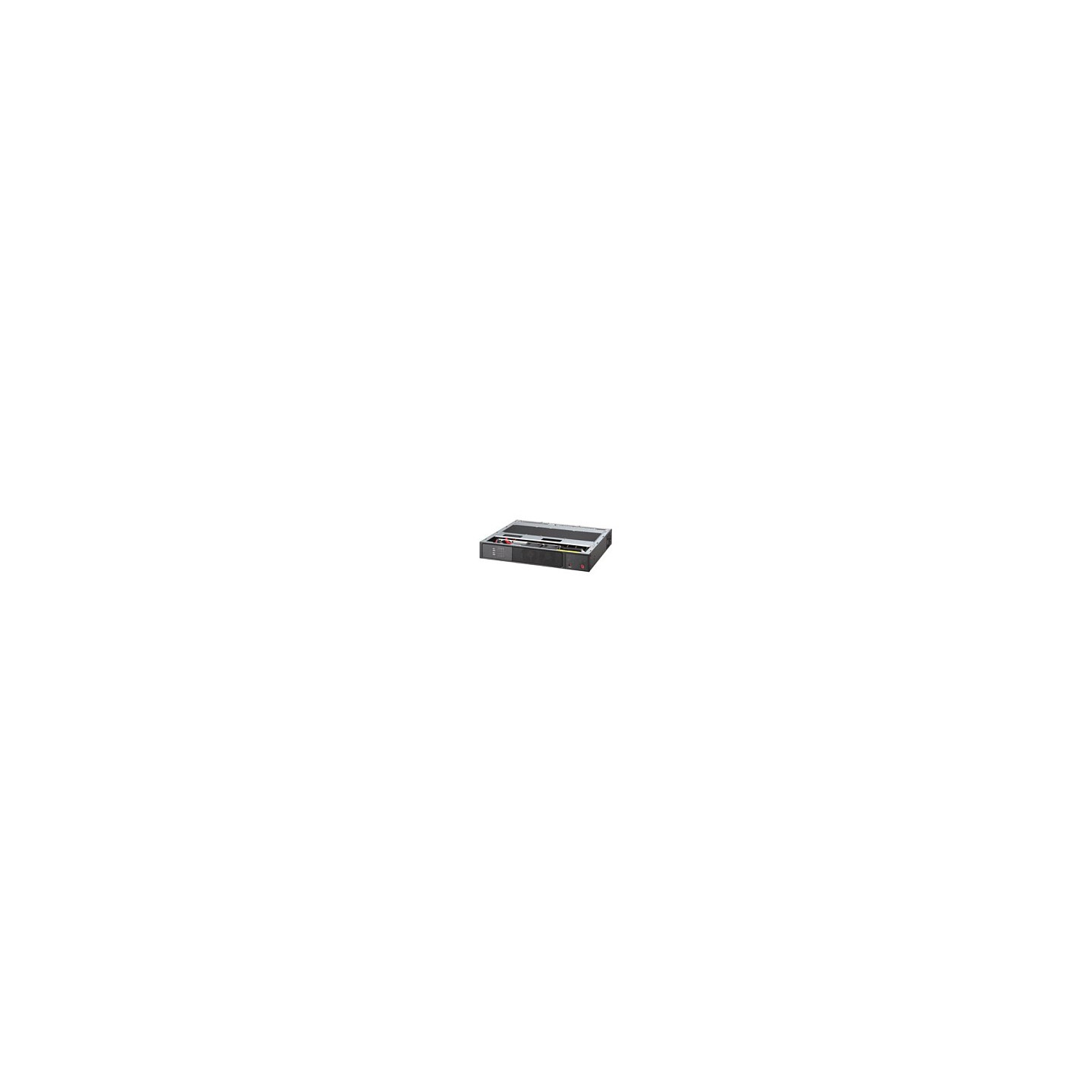

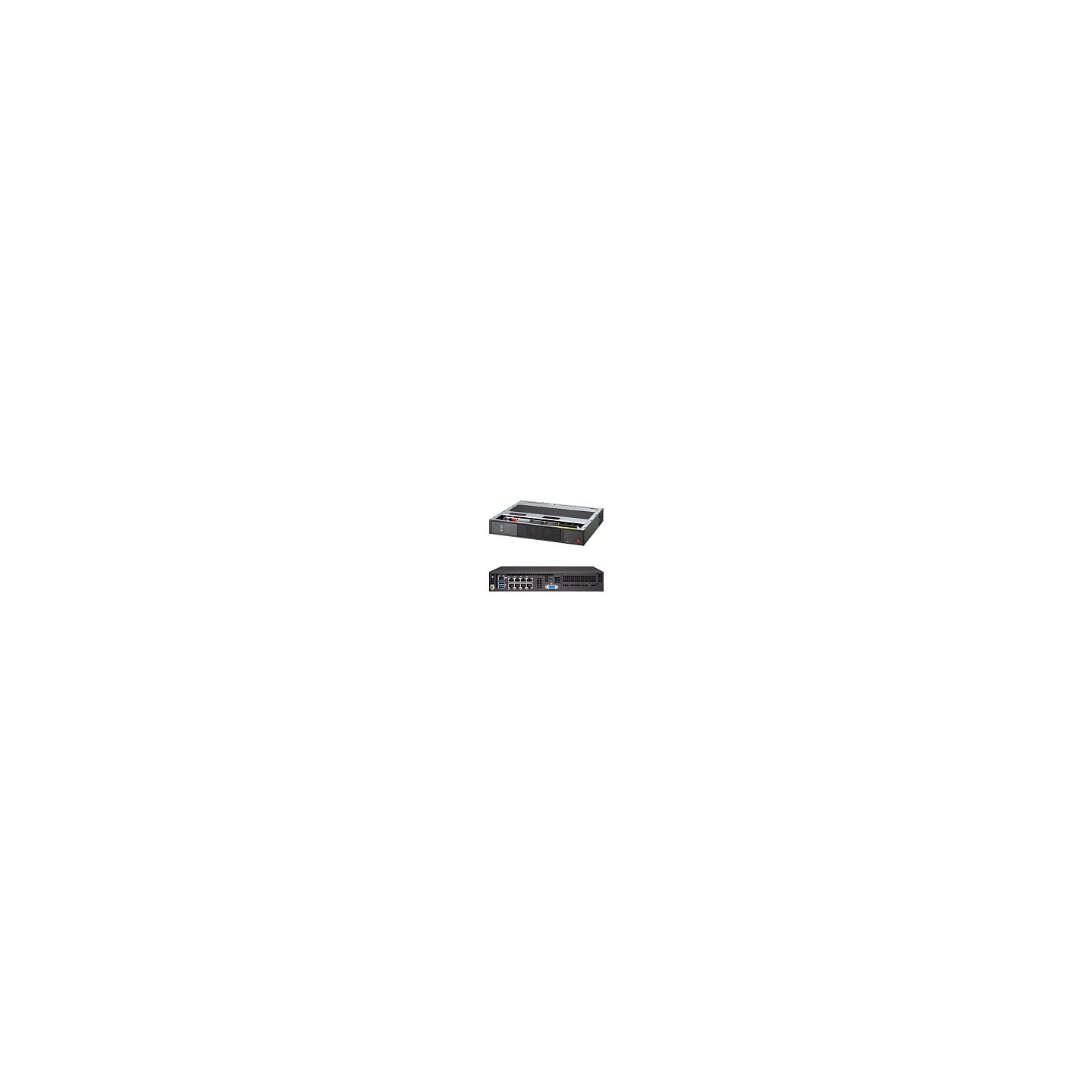

Barebone Supermicro SuperServer 1U Intel Atom C3558 (4C 4T) 2.2 GHz SYS-E300-9A-4CN8
Supermicro SYS-E300-9A-4CN8. Intel SoC. Intel Atom®. DDR4-SDRAM. 4GB. 8GB. 16GB. 32GB. 64GB. 256 GB. 256 GB
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Supermicro SYS-E300-9A-4CN8. Motherboard Chipsatz: Intel SoC. Prozessorfamilie: Intel Atom®. Unterstützte Arbeitsspeicher: DDR4-SDRAM. Unterstützte DIMM-Modulkapazitäten: 4GB. 8GB. 16GB. 32GB. 64GB. RAM-Speicher maximal: 256 GB. LAN-Controller: Intel® I350-AM4. Marvell 88E1543. BIOS-Typ: UEFI AMI. Produktfarbe: Schwarz. LED-Anzeigen: Aktivität. Leistung
| Motherboard Chipsatz | Intel SoC |
| Prozessorfamilie | Intel Atom® |
| Anzahl unterstützter Prozessoren | 1 |
| Zahl der DIMM Slots | 4 |
| Unterstützte Arbeitsspeicher | DDR4-SDRAM |
| Unterstützte DIMM-Modulkapazitäten | 4GB. 8GB. 16GB. 32GB. 64GB |
| RAM-Speicher maximal | 256 GB |
| Maximaler RDIMM Speicher | 256 GB |
| Maximaler UDIMM Speicher | 64 GB |
| Unterstützte RDIMM Taktraten | 1866.2133.2400 MHz |
| Unterstützte UDIMM Taktraten | 1866.2133.2400 MHz |
| Speicherspannung | 1.2 V |
| Feature | Ein-/Ausschalter |
| Anzahl der unterstützten Speicherlaufwerke | 1 |
| LAN-Controller | Intel® I350-AM4. Marvell 88E1543 |
| Anzahl USB 2.0 Anschlüsse | 2 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 8 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| SATA III Anschlüsse | 2 |
| Konformitätsbescheinigungen | RoHS |
| Warentarifnummer (HS) | 84714100 |
| BIOS-Typ | UEFI AMI |
| UEFI-Version | 2.4 |
| Systemverwaltung BIOS (SMBIOS) Version | 2.7.1 |
| Produktfarbe | Schwarz |
| LED-Anzeigen | Aktivität. Leistung |
| Stromversorgung | 84 W |
| Betriebstemperatur | 0 - 40 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 8 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 254 mm |
| Tiefe | 226 mm |
| Höhe | 43 mm |
| Gewicht | 1.56 kg |
| Verpackungsbreite | 381 mm |
| Verpackungstiefe | 142 mm |
| Verpackungshöhe | 276 mm |
| Paketgewicht | 3.4 kg |
