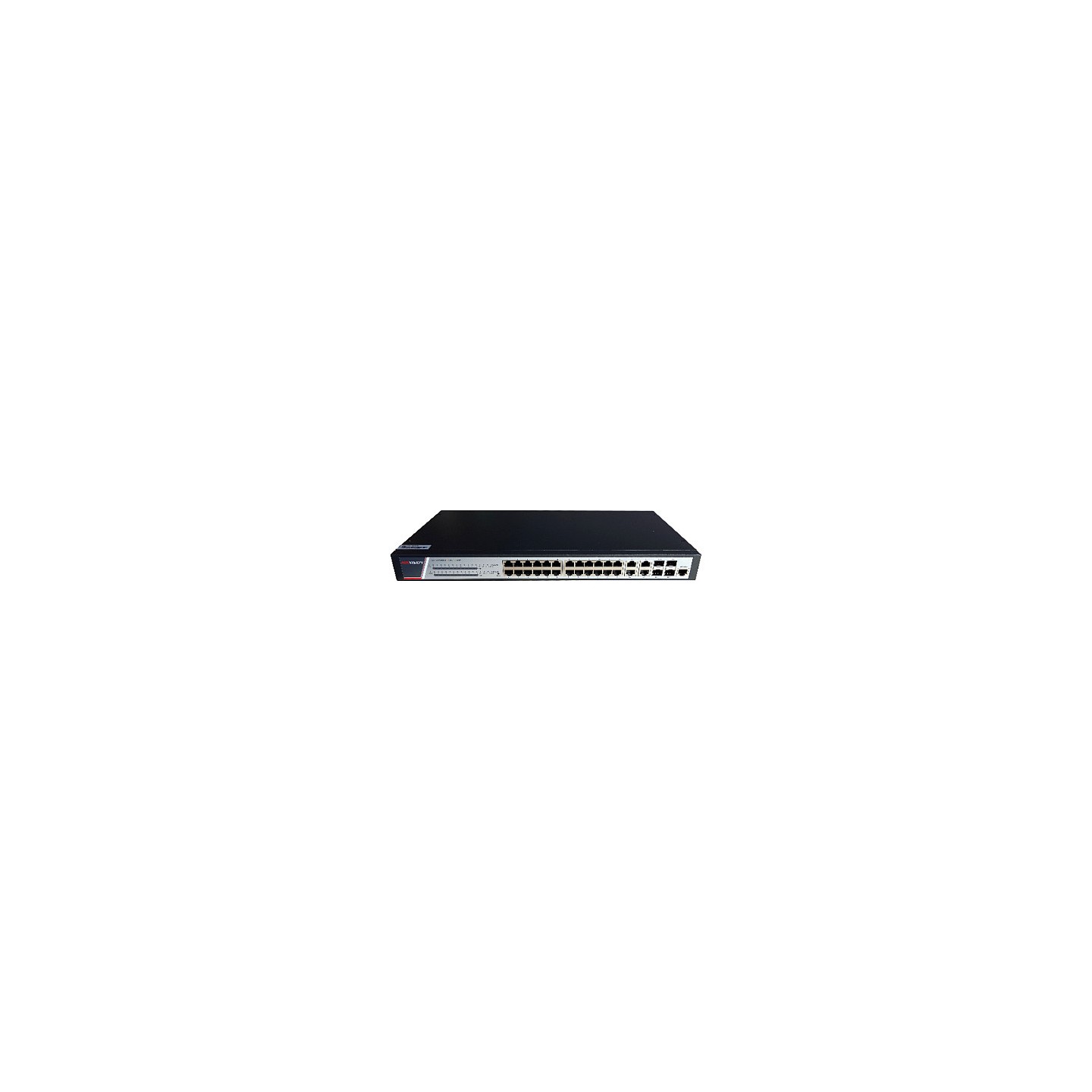

HIKVISION DS-3E2528P(B) Full managed Switch PoE
Hikvision DS-3E2528P(B). Managed. Gigabit Ethernet (10/100/1000). Power over Ethernet (PoE). Rack-Einbau
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Hikvision DS-3E2528P(B). Switch-Typ: Managed. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 24. Konsolen-Port: RJ-45. MAC-Adressentabelle: 8000 Eintragungen. Routing-/Switching-Kapazität: 336 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1s. IEEE 802.1w. IEEE 802.3af. IEEE 802.3at. Power over Ethernet (PoE). Rack-Einbau
| Switch-Typ | Managed |
| Feature | Power over Ethernet (PoE) |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 24 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 24 |
| Anzahl Combo-SPF-Anschlüsse | 4 |
| Konsolen-Port | RJ-45 |
| Netzstandard | IEEE 802.1D. IEEE 802.1s. IEEE 802.1w. IEEE 802.3af. IEEE 802.3at |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Virtuelle LAN-Funktionen | Private VLAN |
| Anzahl der VLANs | 4000 |
| VLAN-Zuordnungstyp | 1:1-VLAN-Mapping. N: 1-VLAN-Mapping |
| Ethernet-Kabel Verkablungstechnologie | 1000BASE-X |
| Routing-/Switching-Kapazität | 336 Gbit/s |
| Transferrate | 51 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Unterstützte Sicherheitsalgorithmen | SNMP. SNMPv3. SSH-2 |
| Authentifizierung | MAC-basierte Authentifizierung |
| Warteschleifenplanungs-Algorithmen | SP. WRR+SP. Weighted Round Robin (WRR) |
| Multicast Listener Discovery (MLD) Snooping | v1/v2 |
| Produktfarbe | Schwarz |
| LED-Anzeigen | PoE. Leistung. System |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Stromverbrauch (max.) | 387 W |
| Anzahl Power over Ethernet (PoE) Anschlüsse | 24 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 30 W |
| Gesamtleistung Power over Ethernet (PoE) | 370 W |
| Betriebstemperatur | -10 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 440 mm |
| Tiefe | 210 mm |
| Höhe | 44 mm |
| Gewicht | 3.1 kg |
