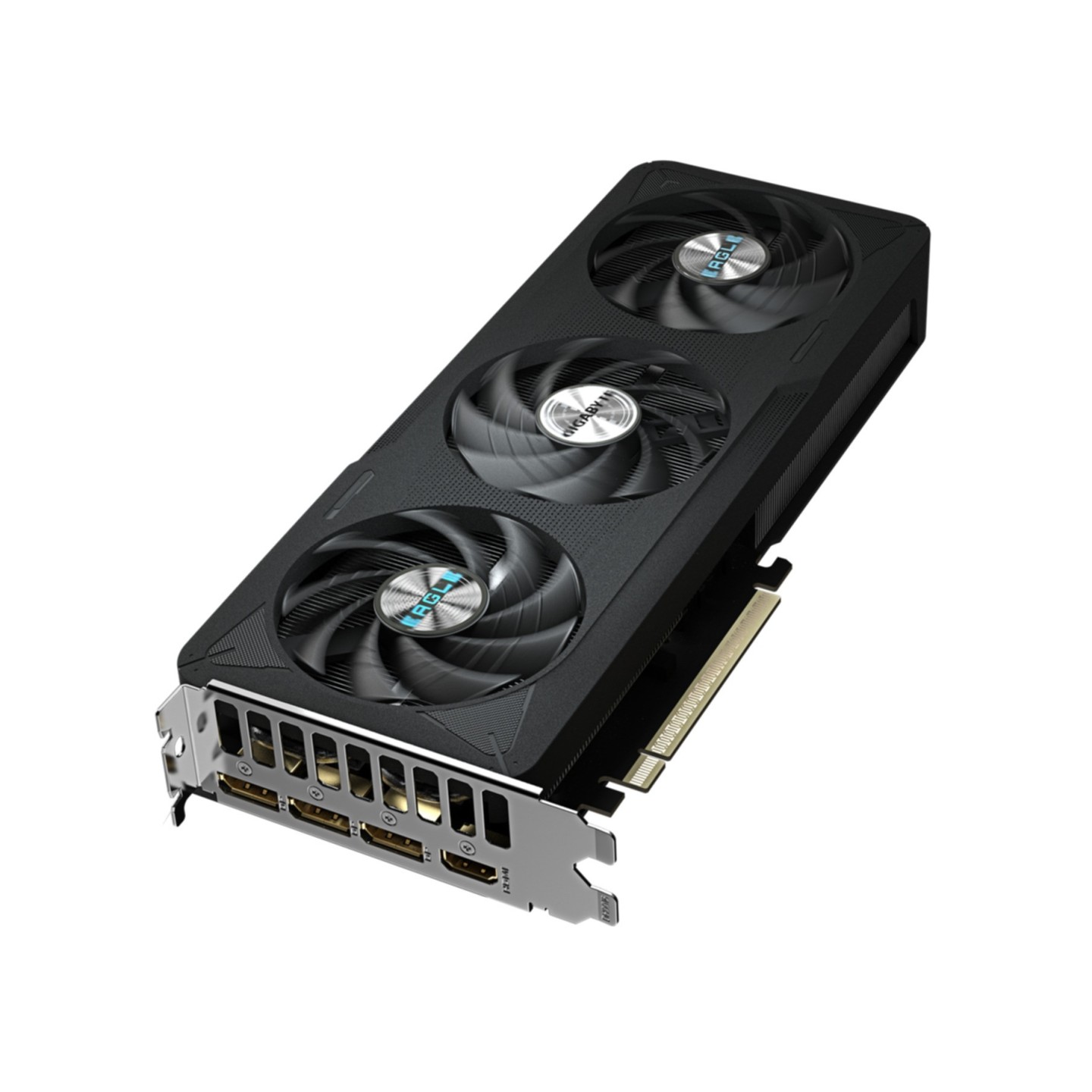

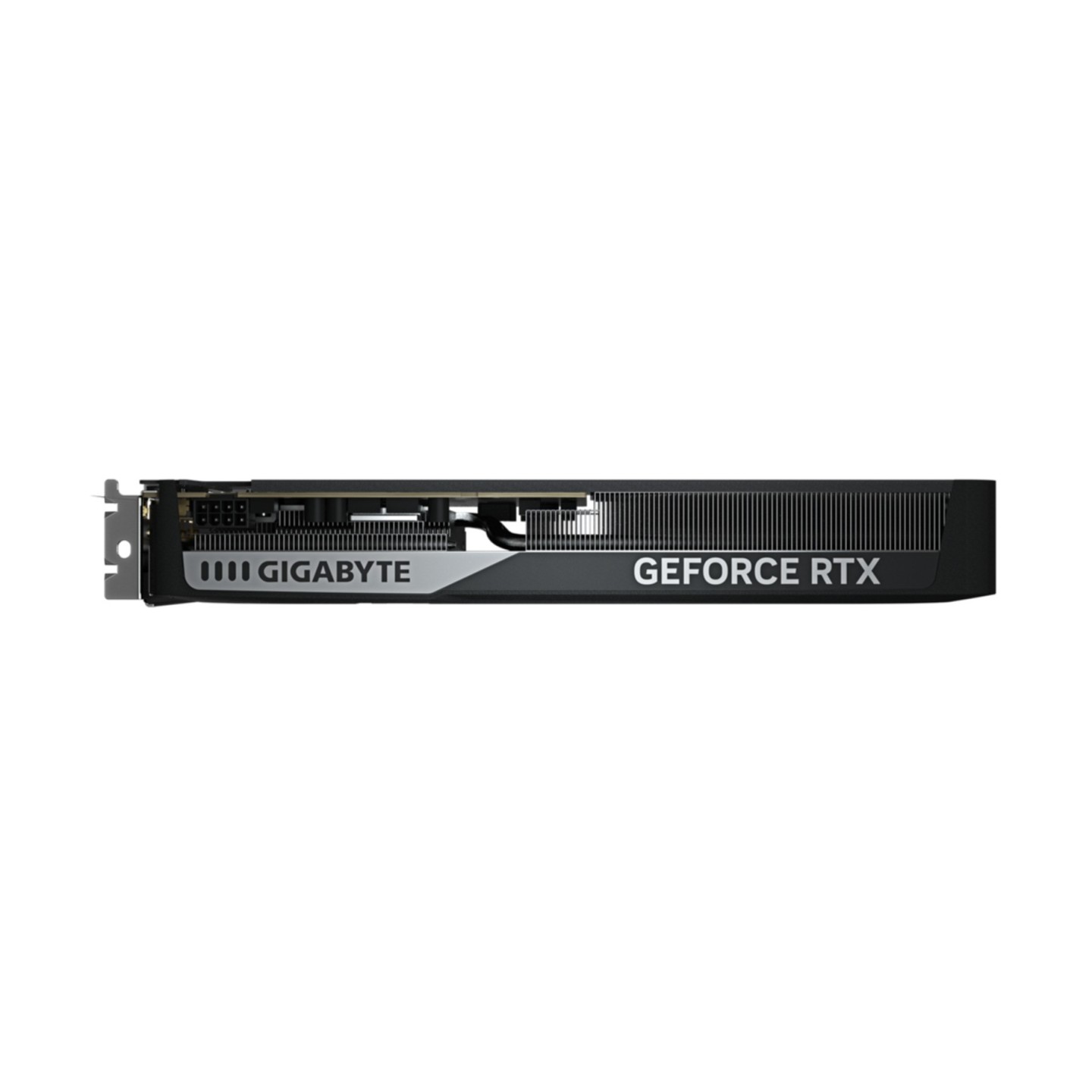

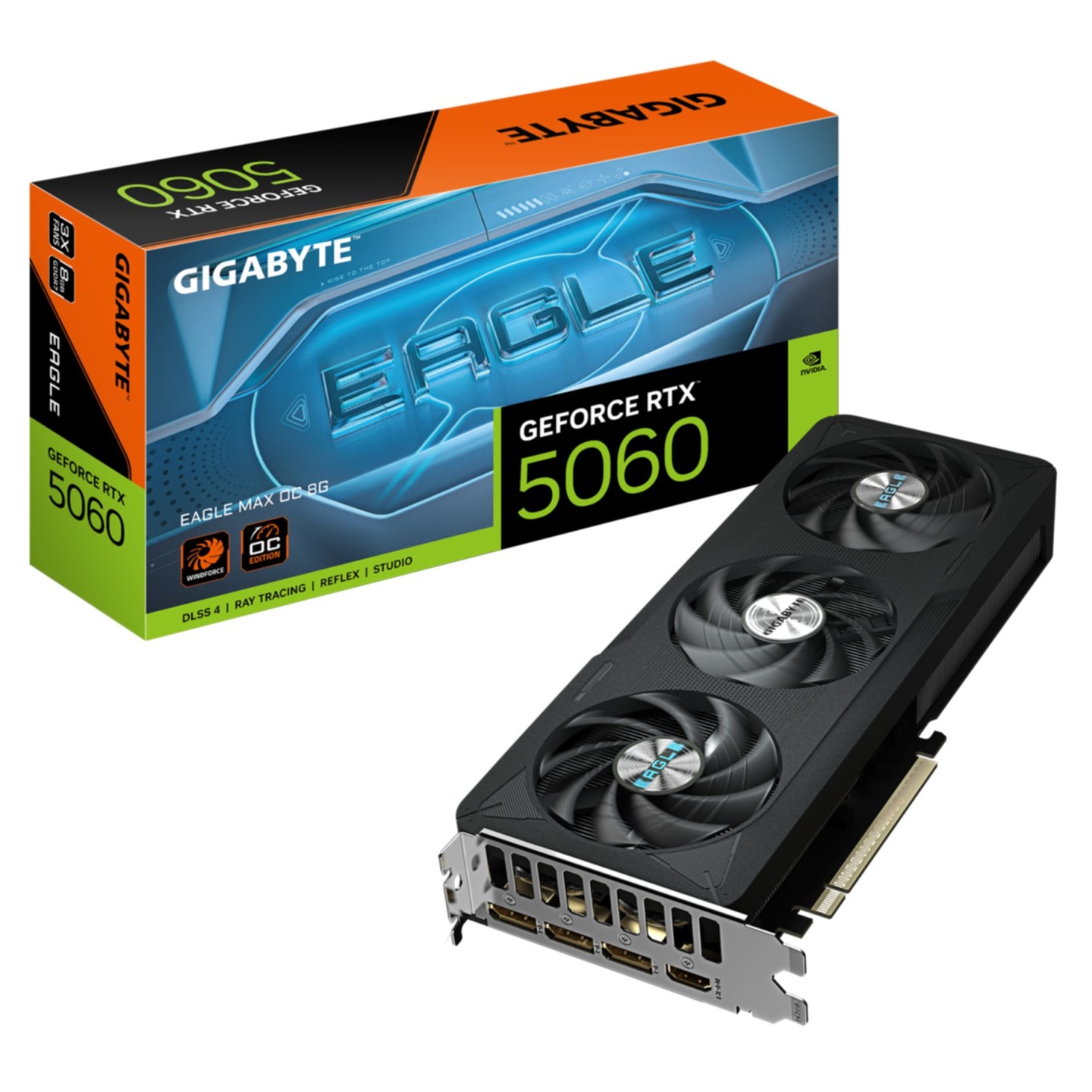

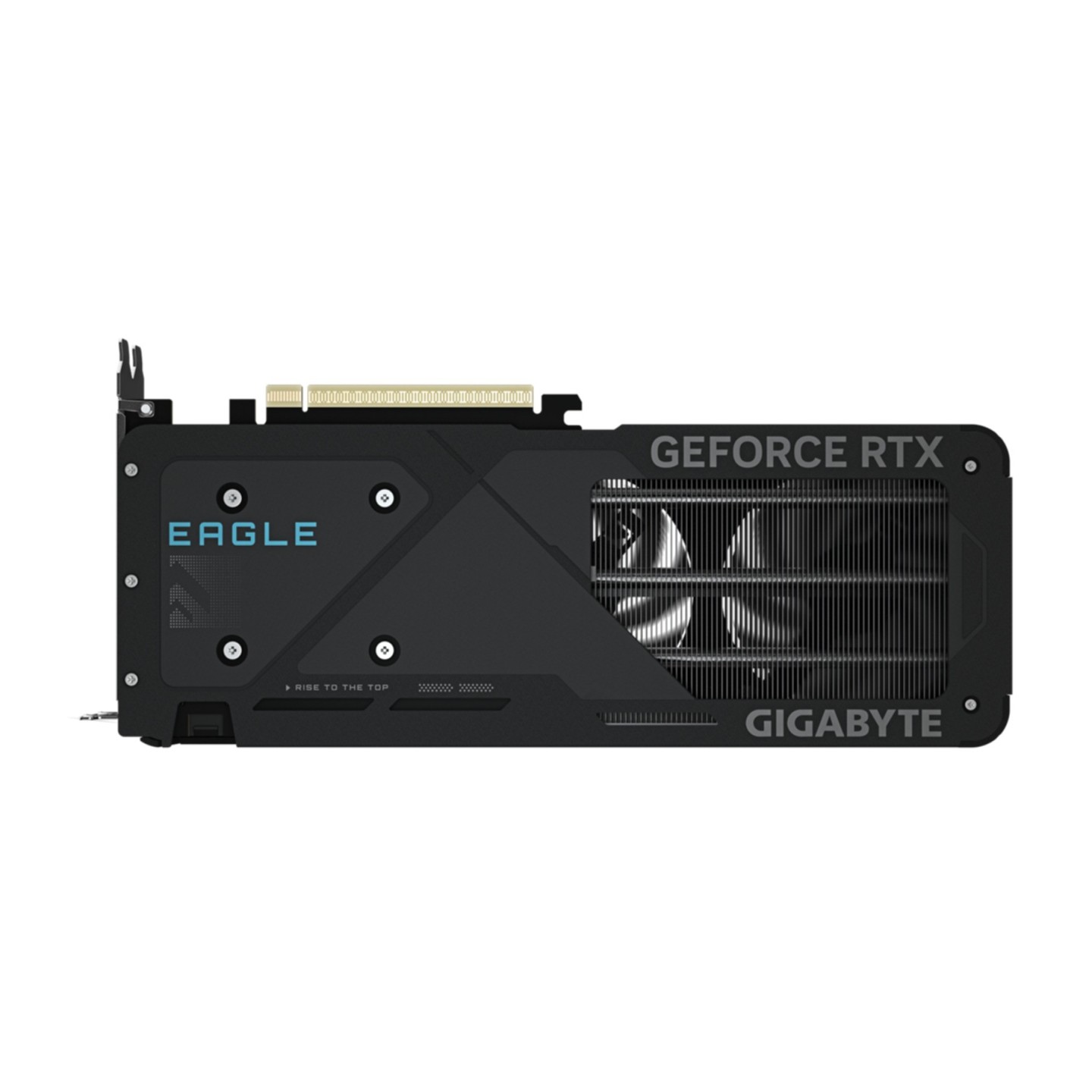

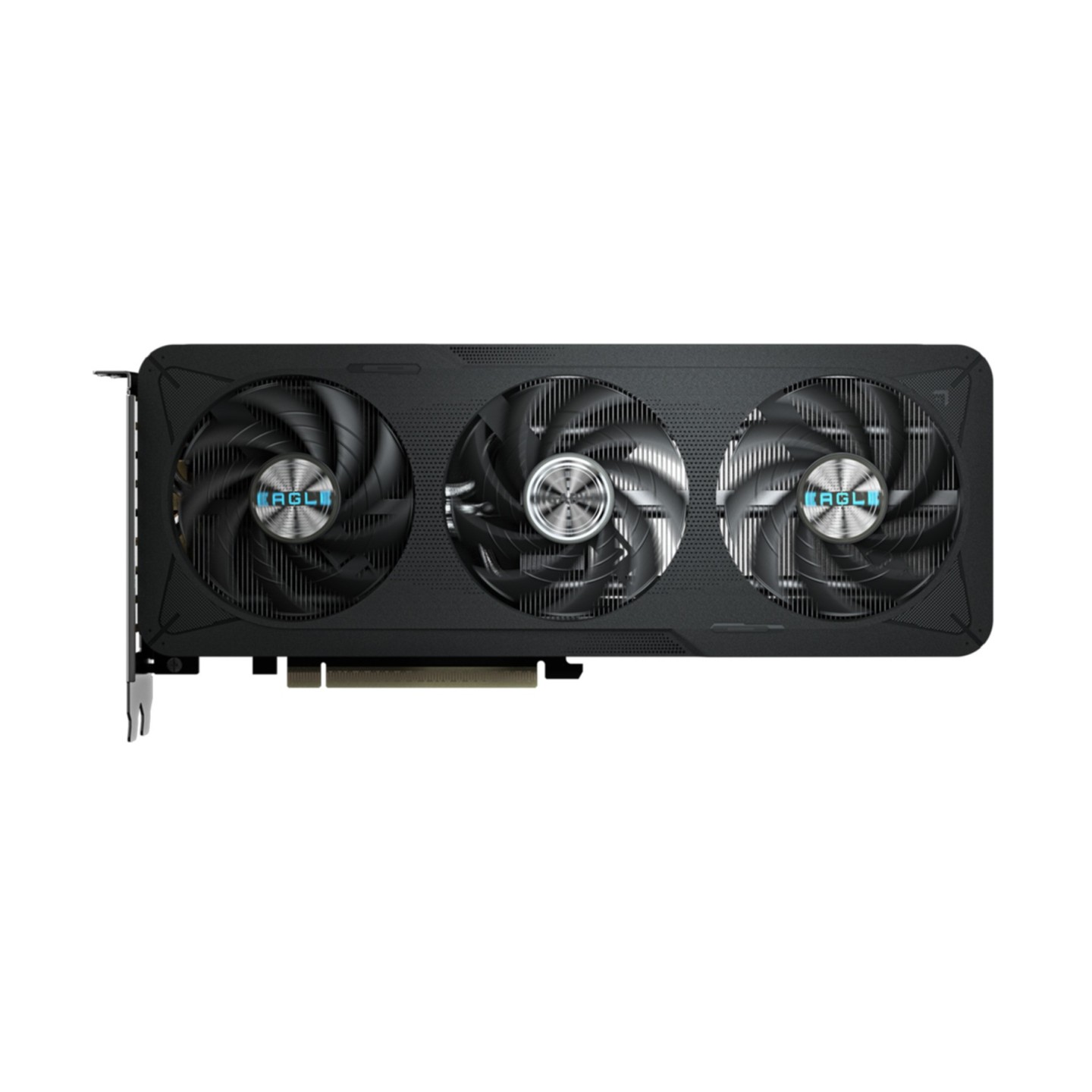

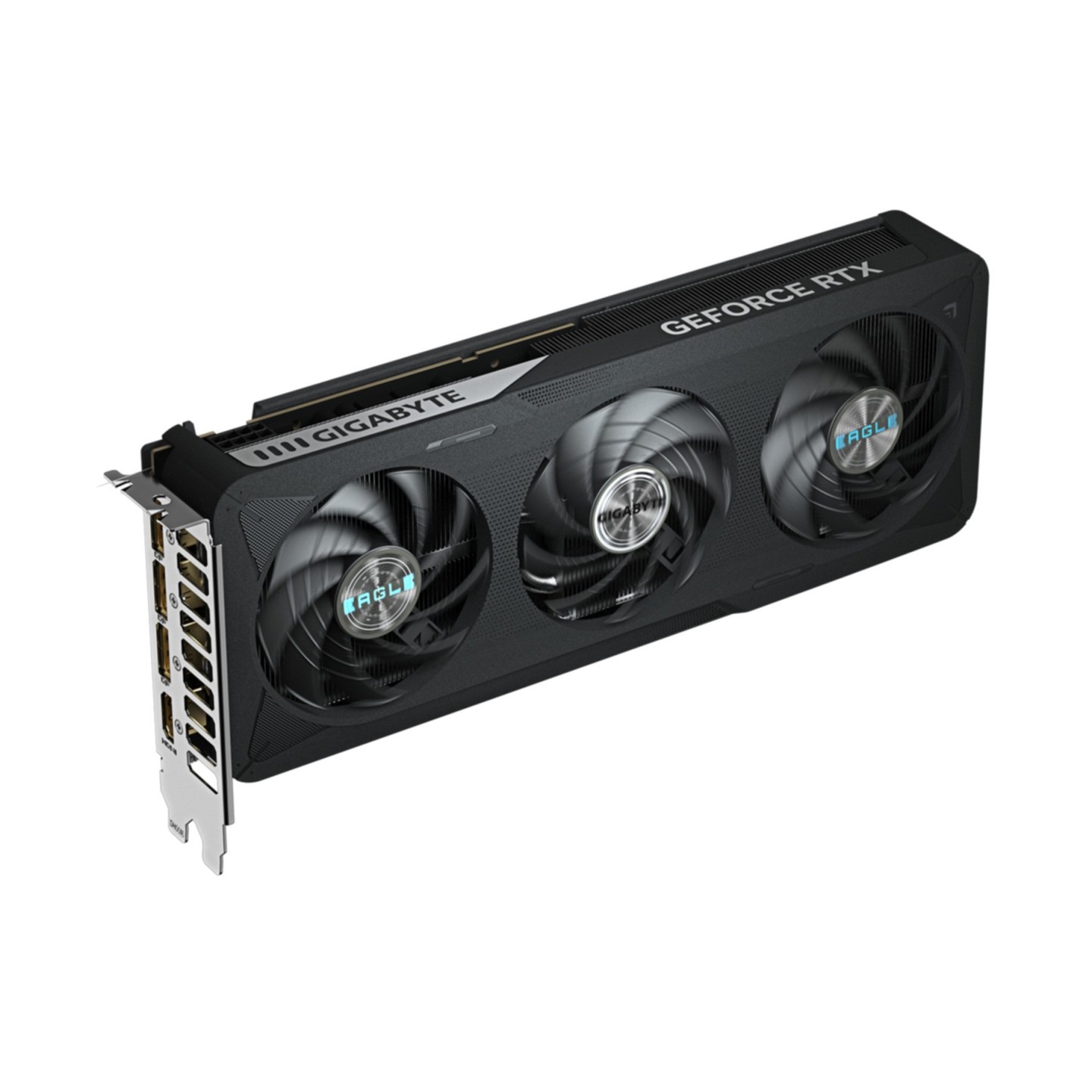

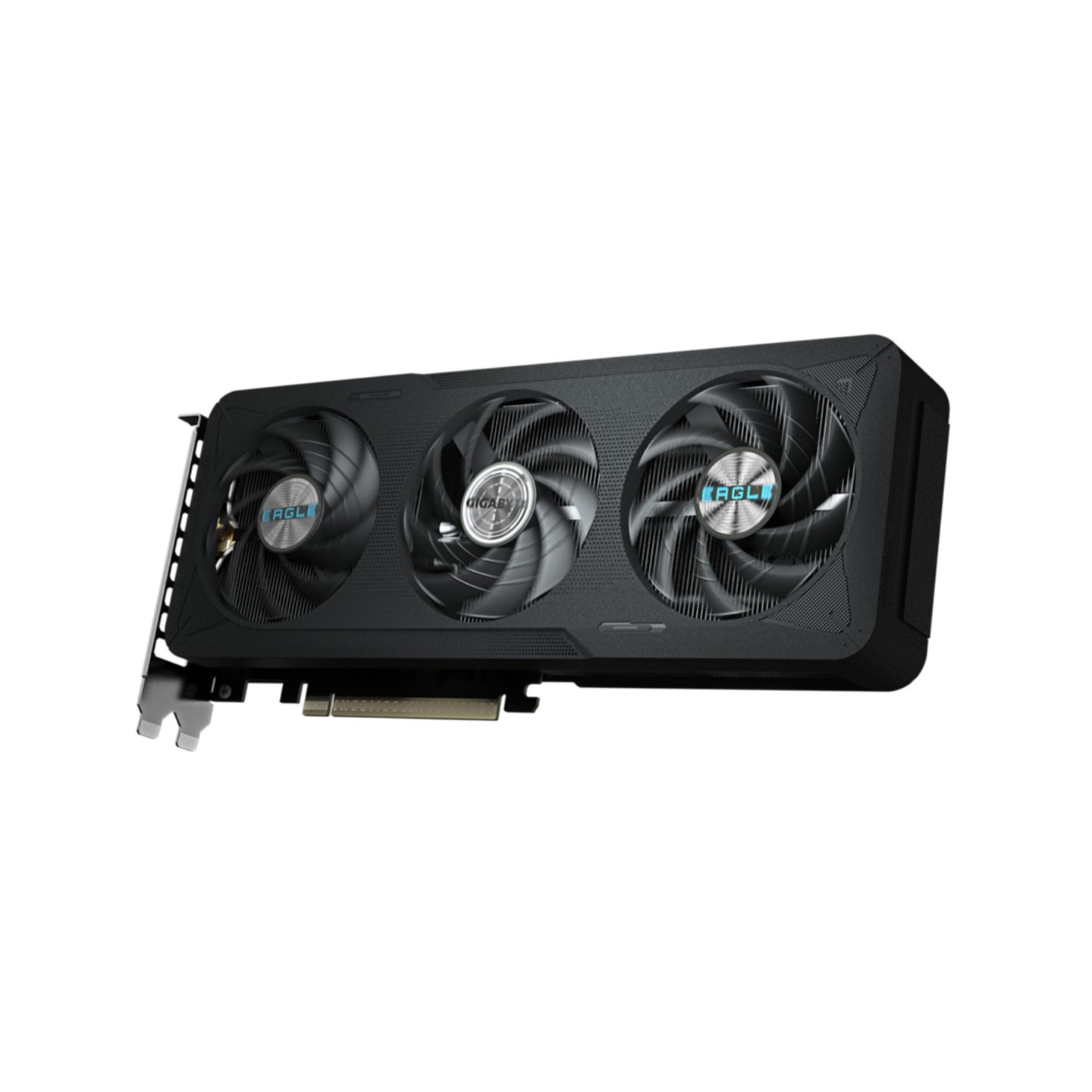

Gigabyte Eagle Max OC GeForce RTX 5060 8GB GDDR7 2640MHz Triple-Fan (Boxed)
Gigabyte Eagle Max OC RTX 5060: 8GB GDDR7, 2640MHz boost, PCIe 5.0 x8, triple WINDFORCE fans, 1xHDMI 2.1+3xDP 2.1, 1x8-pin power. Compact 2-slot for 1080p gaming with DLSS 4 & ray tracing.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x8 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Short (200-220 mm) |
The Gigabyte Eagle Max OC GeForce RTX 5060 is a factory-overclocked graphics card powered by NVIDIA's Blackwell architecture, delivering strong 1080p gaming performance with DLSS 4 AI upscaling, 4th-gen ray tracing cores, and dedicated AI tensor cores for enhanced frame rates and visuals in modern titles.
Featuring 8GB GDDR7 memory on a 128-bit bus, it boosts up to 2640 MHz with a single 8-pin power connector for easy compatibility. The triple-fan WINDFORCE cooling system with alternate spinning fans ensures quiet, efficient cooling even under load, while the 2-slot design fits most compact builds. Display outputs include 1x HDMI 2.1 and 3x DisplayPort 2.1 for high-refresh-rate monitors.
- Key Features: PCIe 5.0 x8 interface, 3840 CUDA cores, active cooling, metal backplate
- Ideal for: 1080p gaming, light 1440p with upscaling, content creation
- Power & Size: 1x 8-pin, ~220mm length, 700g weight
| Bus-Typ | PCI Express x8 5.0 |
| Bus-Version | 5.0 |
| Bus-Geschwindigkeit | x8 |
| Hersteller | NVIDIA |
| Serie | Geforce |
| Grafikchip Typ | GeForce RTX 5060 |
| Chiptakt | 2550 MHz |
| Boosttakt | 2640 MHz |
| Shader | 3840 |
| 3D API | 4.6 |
| Speichergröße | 8 GB |
| Type | GDDR7 |
| Takt | 28000 MHz |
| Anbindung | 128 Bit |
| HDMI | 1 (2.1) |
| Display Port | 3 (2.1) |
| DUAL-Link DVI | Nein |
| Anschluss | 1x 8-pin |
| Breite | 115 mm |
| Höhe | 128 mm |
| Länge | 220 mm |
| Gewicht | 700 g |
| Slot | 2 |
| Kühlung | aktiv |
| Beleuchtungsfarbe | Multi |
| Besonderheiten | 3 Lüfter |
| Farbe | schwarz |
