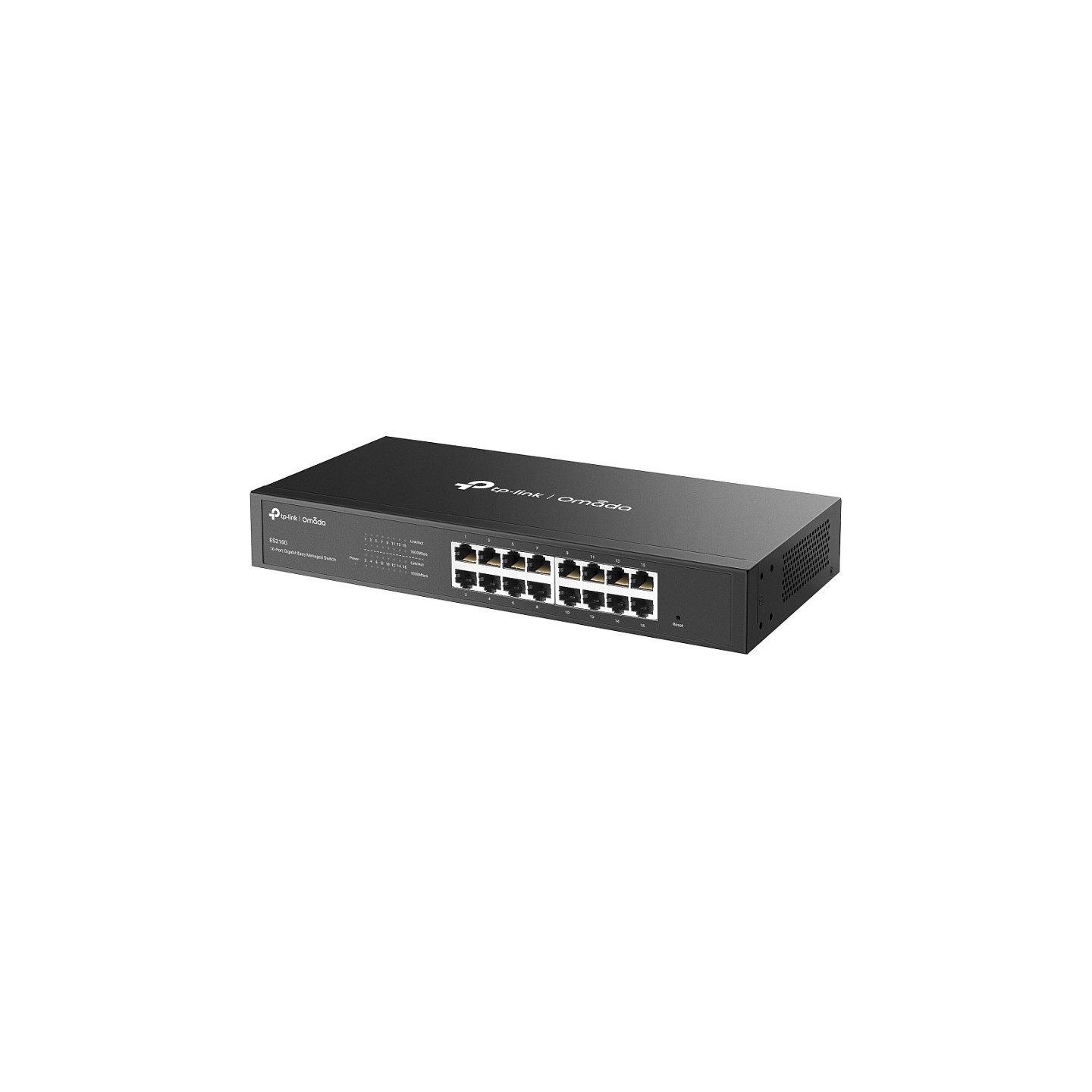

Omada ES216G 16-Port Gigabit Easy Managed Switch
TP-Link Omada ES216G. Managed. L2. Gigabit Ethernet (10/100/1000). Rack-Einbau
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
TP-Link Omada ES216G. Switch-Typ: Managed. Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 16. MAC-Adressentabelle: 8000 Eintragungen. Routing-/Switching-Kapazität: 32 Gbit/s. Netzstandard: IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.3ab. IEEE 802.3at. IEEE 802.3i. IEEE 802.3x. Netzstecker: AC-Eingangsbuchse. Rack-Einbau
| Switch-Typ | Managed |
| Switch-Ebene | L2 |
| Feature | Rackmontageset |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 16 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 16 |
| Netzstecker | AC-Eingangsbuchse |
| Netzstandard | IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.3ab. IEEE 802.3at. IEEE 802.3i. IEEE 802.3x |
| Virtuelle LAN-Funktionen | MTU VLAN. Port-based VLAN. Tagged VLAN |
| Anzahl der VLANs | 32 |
| Routing-/Switching-Kapazität | 32 Gbit/s |
| Transferrate | 23.8 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Jumbo-Frames | 15000 |
| Datenpaket-Pufferspeicher | 4 MB |
| DHCP-Funktionen | DHCP client |
| Warteschleifenplanungs-Algorithmen | Weighted Round Robin (WRR) |
| Produktfarbe | Schwarz |
| Flash-Speicher | 64 MB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 2131140 h |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Stromverbrauch (max.) | 8.4 W |
| Druckanstieg-Schutzspannung | 6 kV |
| Betriebstemperatur | -5 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Wärmeableitung | 28.52 BTU/h |
| Breite | 294 mm |
| Tiefe | 140 mm |
| Höhe | 44 mm |
| Mitgelieferte Kabel | AC |
| Verpackungsart | Box |
| Konformitätsbescheinigungen | CE. Eidgenössische Kommunikationskommission (FCC). RoHS |
