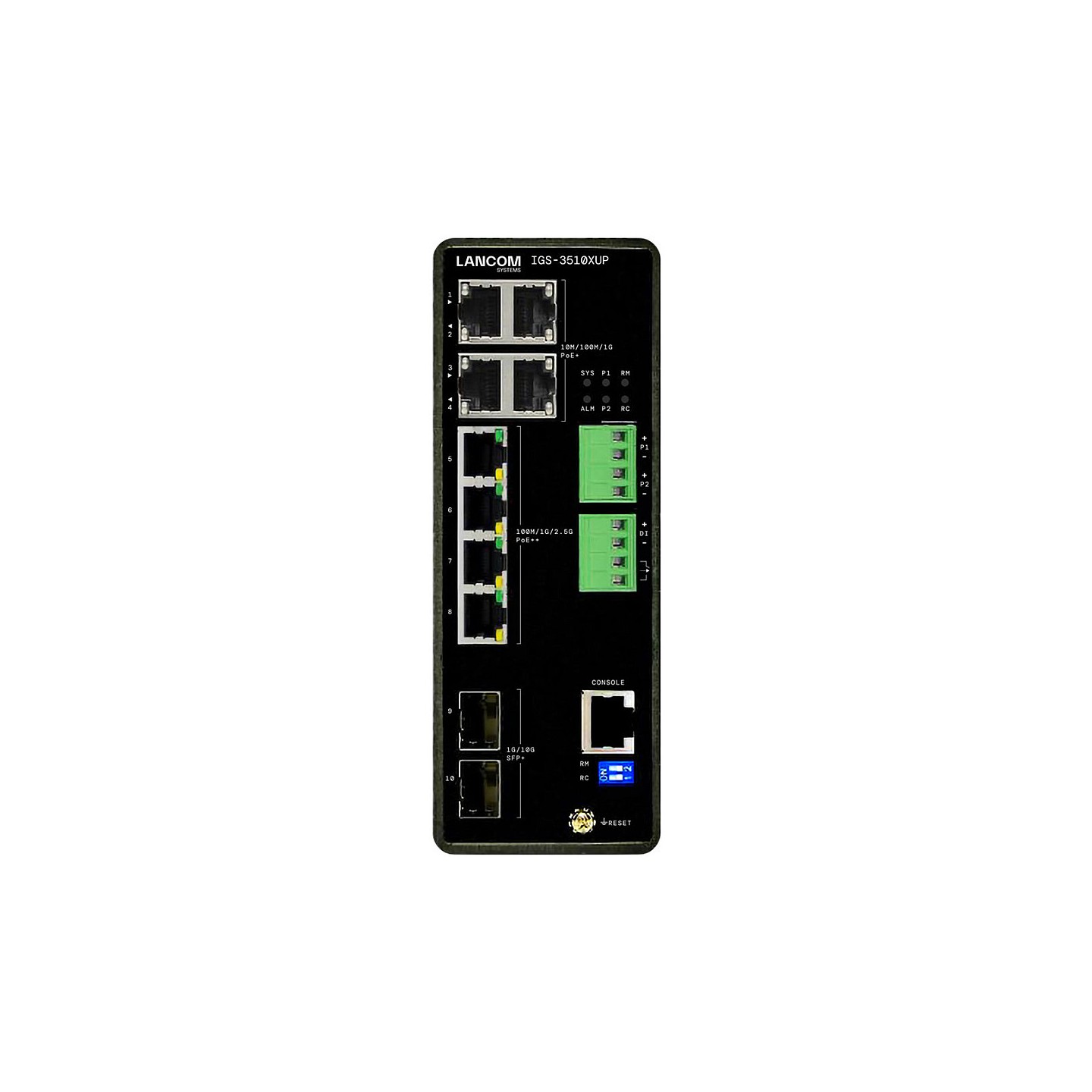

IGS-3510XUP
LANCOM IGS-3510XUP. Managed. L3. 2.5G Ethernet (100/1000/2500). Power over Ethernet (PoE)
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LANCOM IGS-3510XUP. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: 2.5G Ethernet (100/1000/2500). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Konsolen-Port: RJ-45. MAC-Adressentabelle: 16000 Eintragungen. Routing-/Switching-Kapazität: 68 Gbit/s. Netzstandard: IEEE 802.1AX. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1ad. IEEE 802.1ak. IEEE 802.1p..... Power over Ethernet (PoE)
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Schnellstartübersicht |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | 2.5G Ethernet (100/1000/2500) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 4 |
| Anzahl 2.5G Ethernet (Kupfer)-Ports | 4 |
| Menge Modul-Steckplätze SFP+ | 2 |
| Konsolen-Port | RJ-45 |
| Virtuelle LAN-Funktionen | IP subnet–based VLAN. MAC address-based VLAN. MVRP. Port-based VLAN. Private VLAN. Tagged VLAN. VLAN Identifier ( VLAN ID). Voice VLAN |
| Anzahl der VLANs | 4093 |
| Routing-/Switching-Kapazität | 68 Gbit/s |
| Durchgang | 51 Mpps |
| MAC-Adressentabelle | 16000 Eintragungen |
| Anzahl der statischen Routen | 128 |
| Jumbo-Frames | 10240 |
| DHCP-Funktionen | DHCP Option 66. DHCP Option 67. DHCP Option 82. DHCP client. DHCP relay. DHCP server. DHCP snooping |
| Authentifizierung | Gast VLAN |
| Autentifizierungstyp | IEEE 802.1x. RADIUS. TACACS+ |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| Energiequelle | DC/PoE |
| Stromverbrauch (max.) | 375 W |
| Anzahl Power over Ethernet plus (PoE+) Anschlüsse | 8 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 90 W |
| Gesamtleistung Power over Ethernet (PoE) | 360 W |
| Betriebstemperatur | -40 - 60 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Wärmeableitung | 51 BTU/h |
| Breite | 70 mm |
| Tiefe | 130 mm |
| Höhe | 168 mm |
| Gewicht | 900 g |
| Mitgelieferte Kabel | Seriell |
| Konformitätsbescheinigungen | CE. Eidgenössische Kommunikationskommission (FCC) |
| Zolltarifnummer (TARIC) | 85176200 |
| Ursprungsland | Taiwan |
