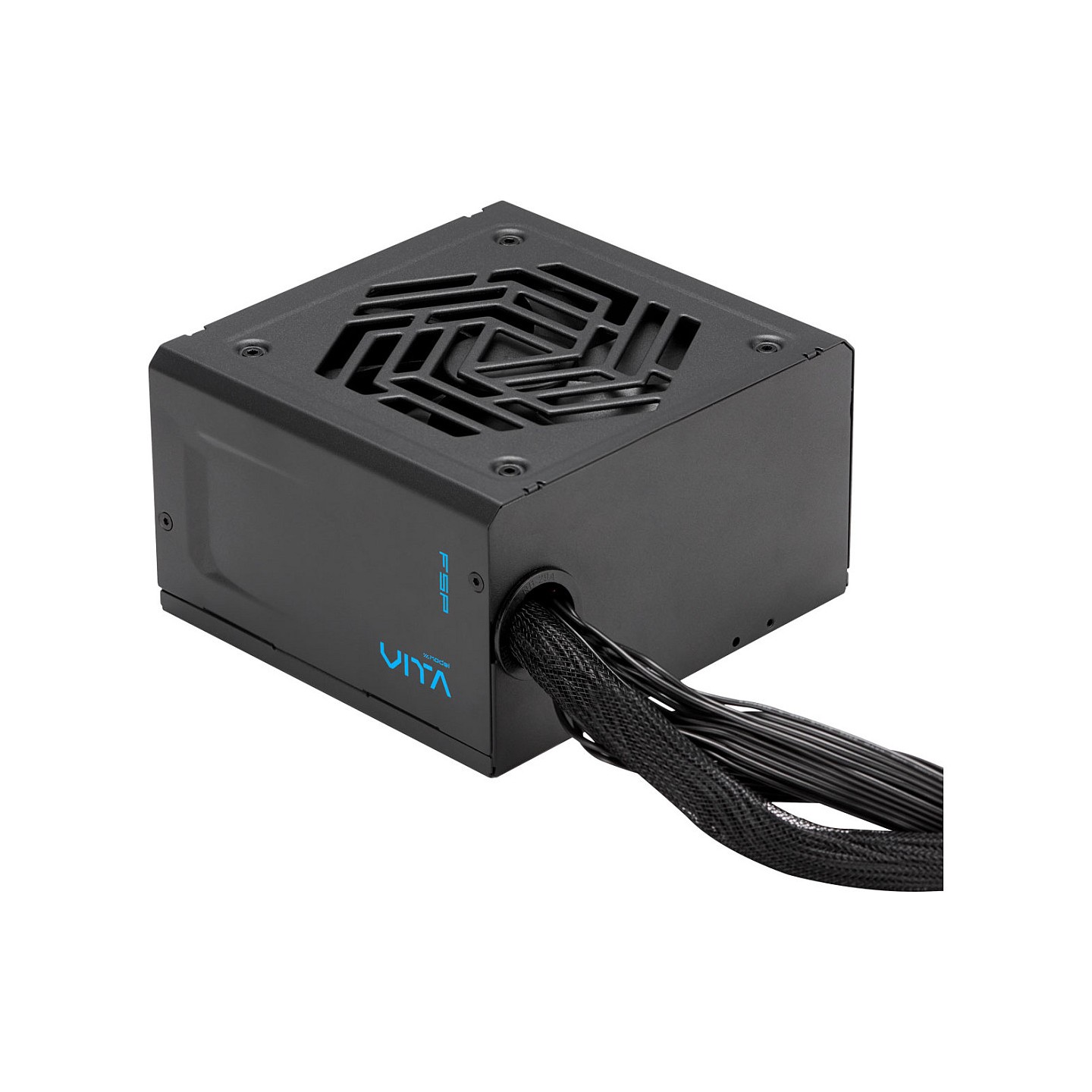

850W FSP VITA-850BD 80+ Bronze ATX 3.1 Gen 5.1 (Boxed)
FSP VITA-850BD 850W 80+ Bronze ATX 3.1 PSU. Non-modular, single +12V rail, active PFC, 120mm sleeve fan. Supports modern GPUs with 4x PCIe 6+2pin. Full protections, 88%+ efficiency. Black, compact 140x150x86mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The FSP VITA-850BD is a reliable 850W power supply unit compliant with ATX 3.1 and PCIe Gen 5.1 standards, featuring 80 PLUS Bronze certification for 230V EU (≥88% efficiency at typical load). It delivers stable power via a powerful single +12V rail, ideal for gaming PCs and workstations with high-demand GPUs and CPUs.
Non-modular design with all-black cables includes 20+4pin ATX, 4+4pin EPS12V CPU, 4x PCIe 6+2pin (for GPUs), 8x SATA, 4x Molex peripherals. Active PFC, DC-to-DC +5V/3.3V design ensures voltage stability. Equipped with 120mm sleeve bearing fan for active cooling and full protection suite: OVP/OCP/OPP/OTP/SCP/UVP/SIP/NLO. Compact dimensions: 140 x 150 x 86 mm.
- ATX 3.1 Compliant - Ready for latest hardware
- 80+ Bronze EU - High efficiency, low heat
- Single +12V Rail - 70.83A max for powerful components
- Full Protections - Comprehensive safety features
- 5-Year Warranty - FSP reliability guarantee
| Total Power | 850 W |
| AC Input Voltage | 200-240 V |
| AC Input Frequency | 50-60 Hz |
| Input Current | 5.5-6 A |
| PFC | Active |
| Combined Power (+12V) | 850 W |
| Max Output Current (+12V) | 70.83 A |
| Efficiency | ≥88% at typical load |
| 80 Plus Certification | 80 PLUS Bronze 230V EU |
| Form Factor | ATX |
| ATX Version | 3.1 |
| EPS Version | 2.92 |
| Modularity | Non-modular |
| Fan Type | Sleeve Bearing, 120mm |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Color | Black |
| Main Connectors | 20+4 pin ATX, 4+4 pin EPS |
| PCIe Connectors | 4x 6+2 pin |
| SATA Connectors | 8 |
| Molex Connectors | 4x 4-pin |
| Protections | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| Warranty | 5 Years |
| Fan Bearing | Sleeve |
