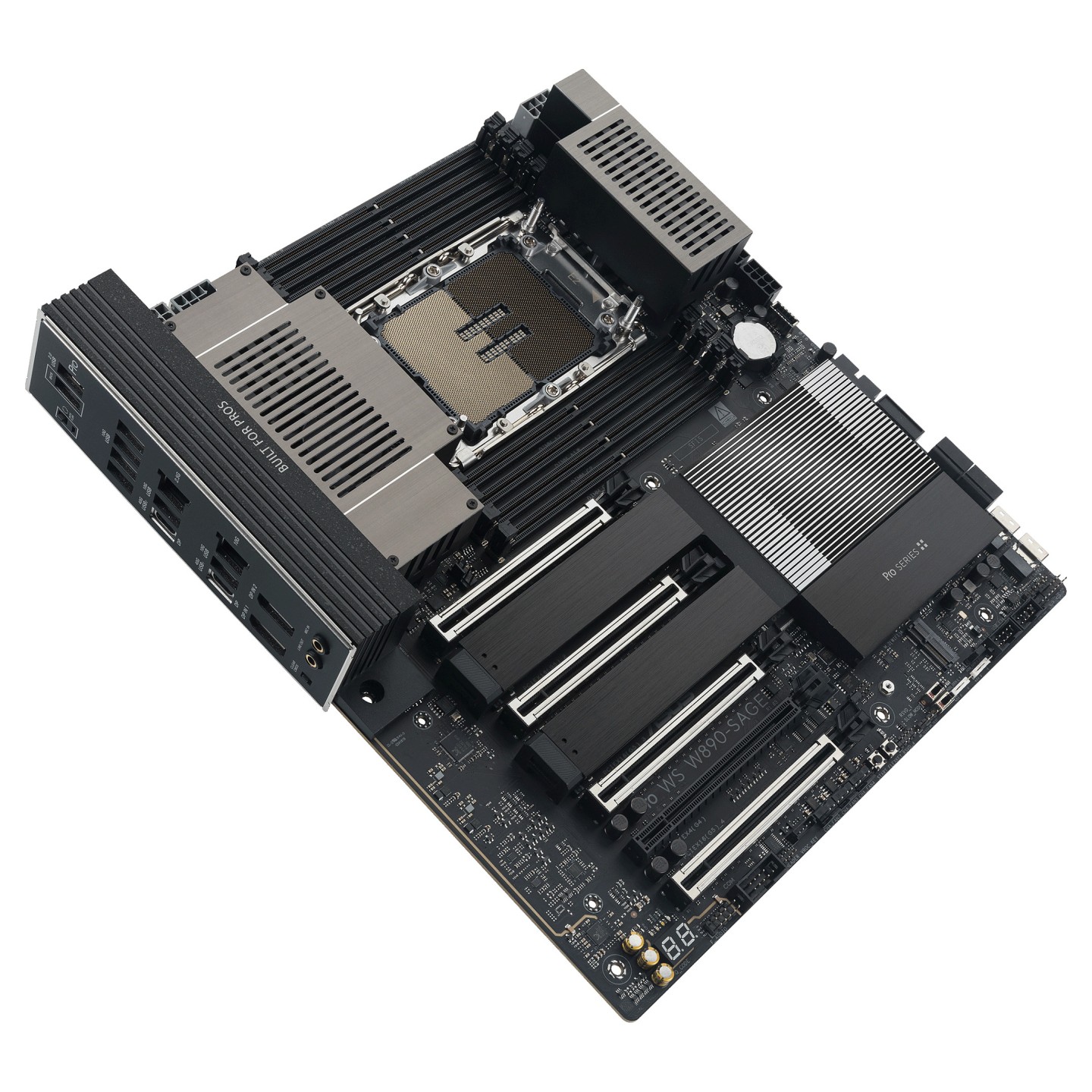

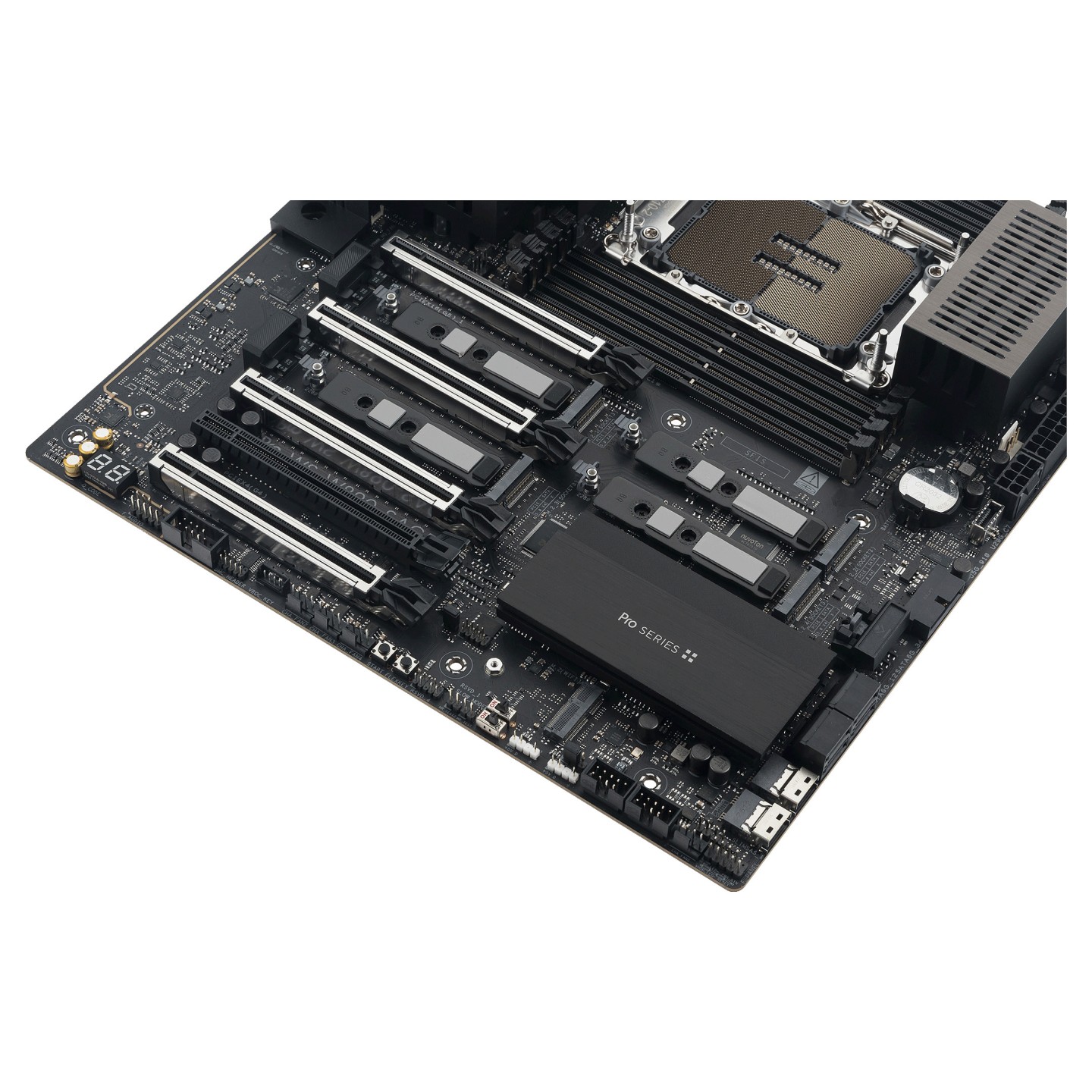

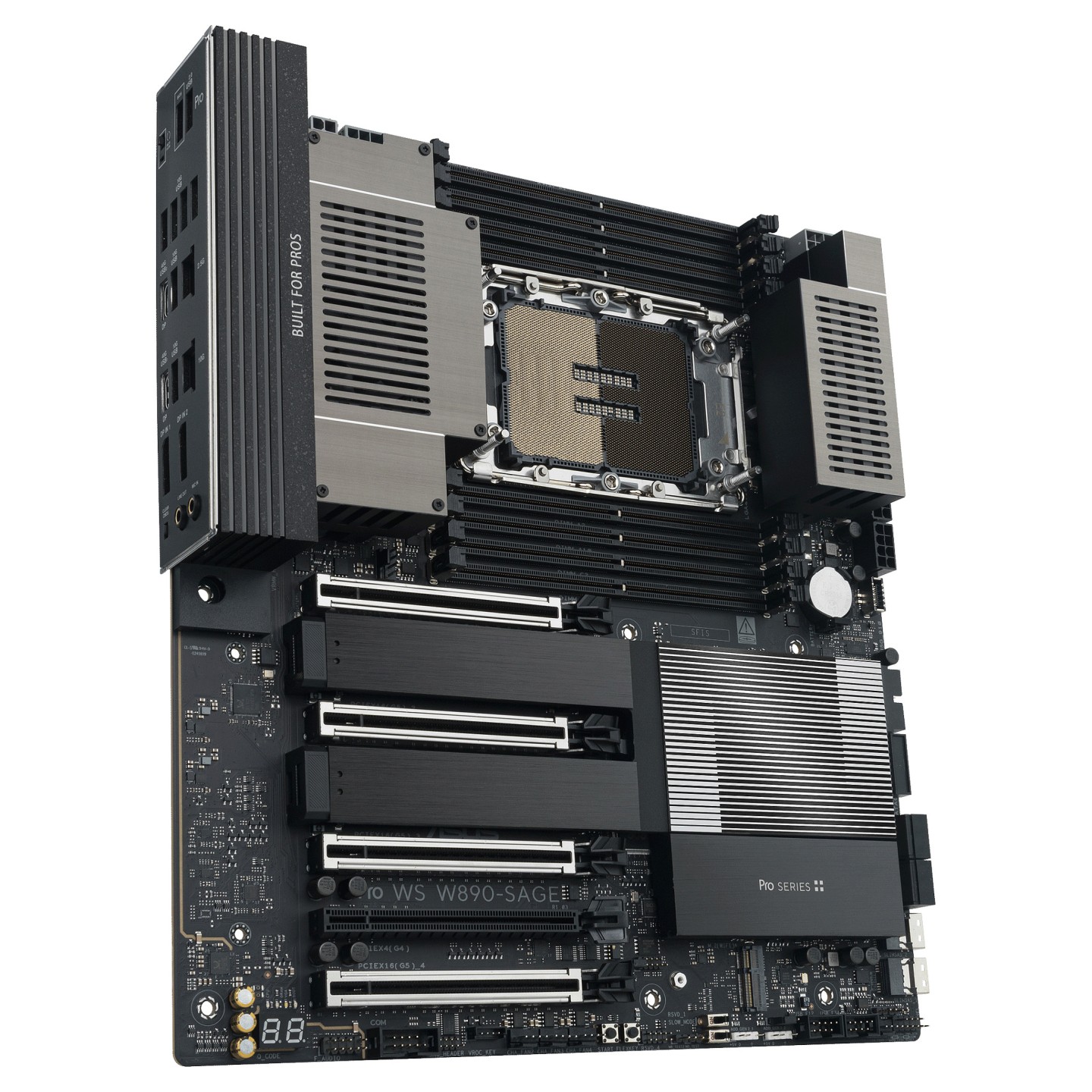

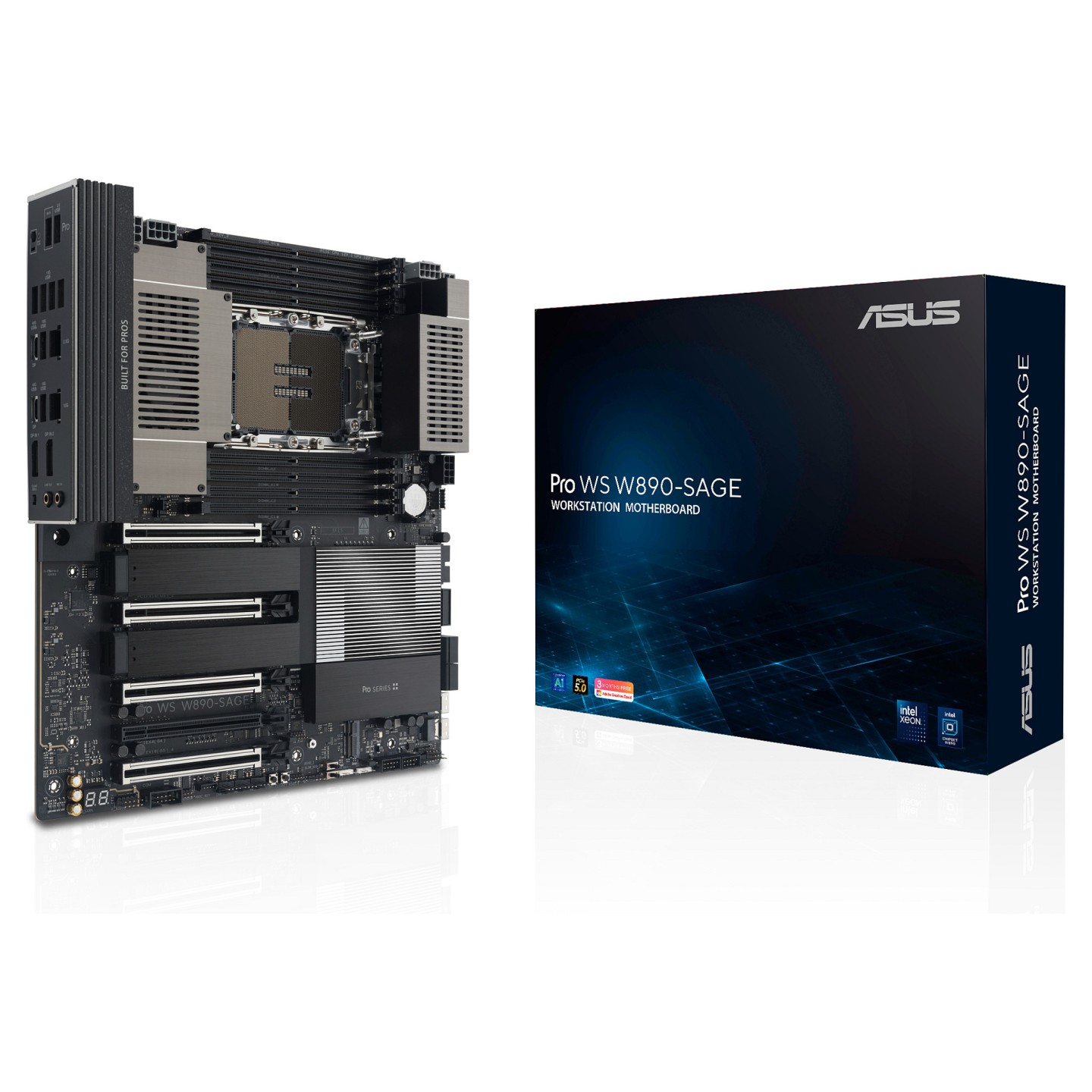

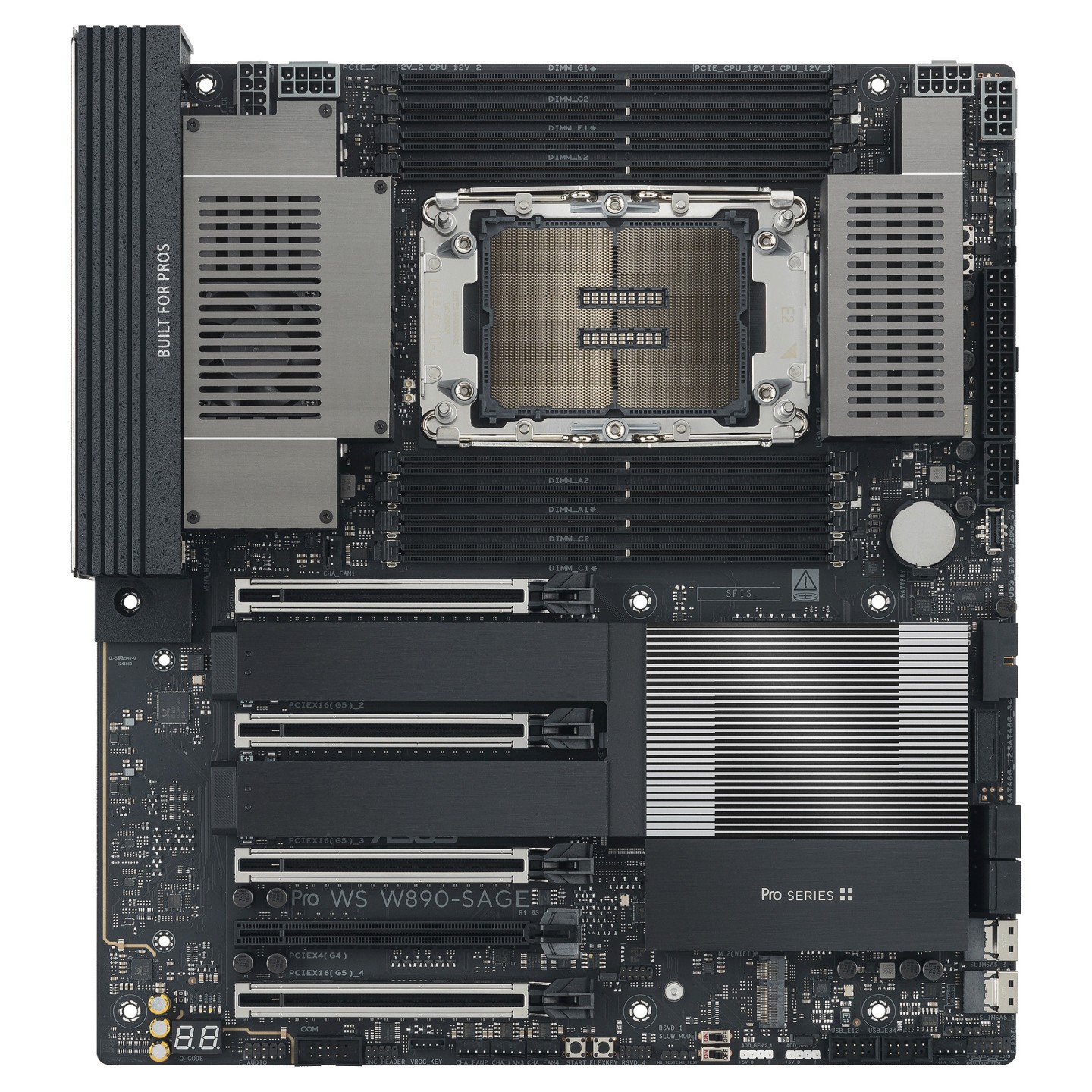

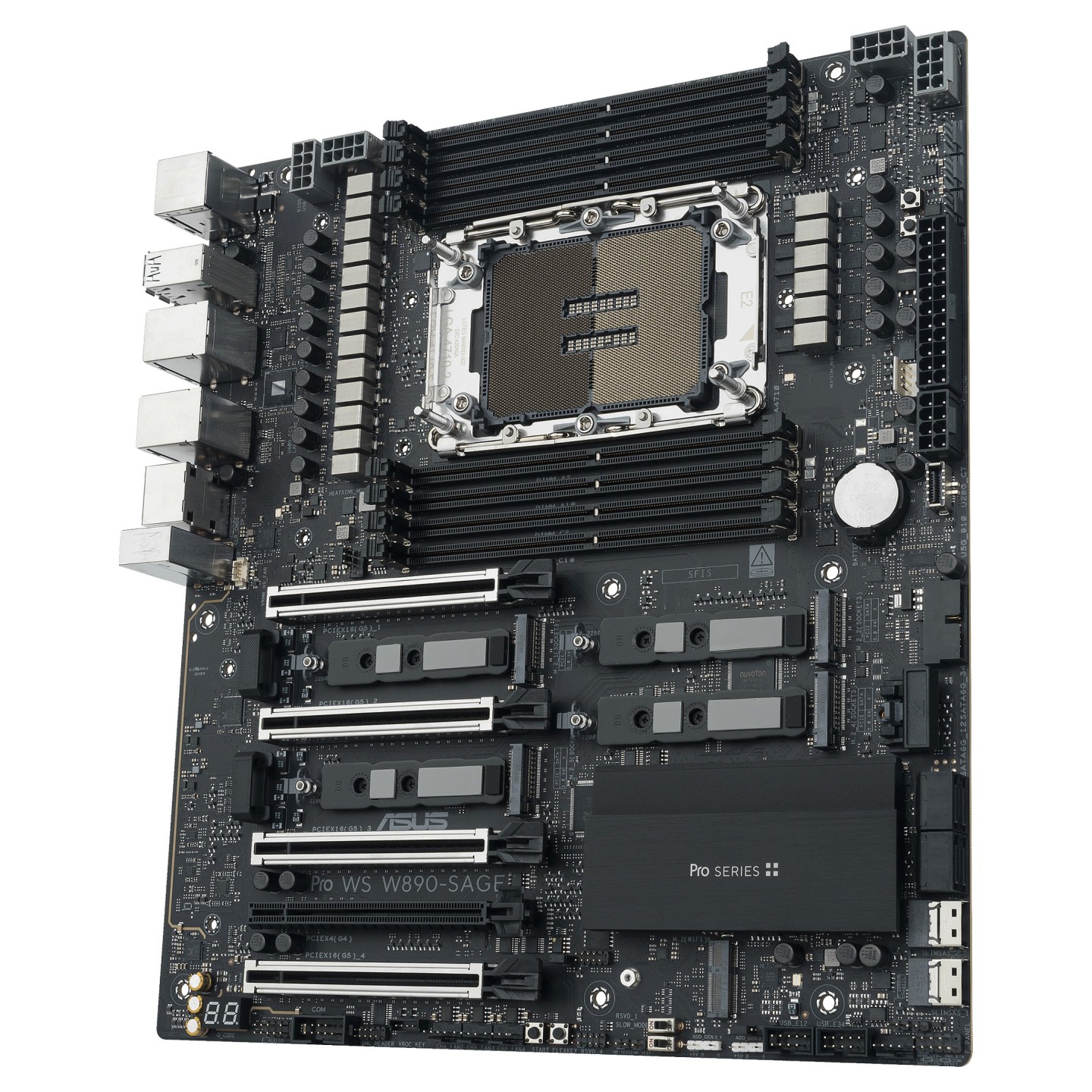

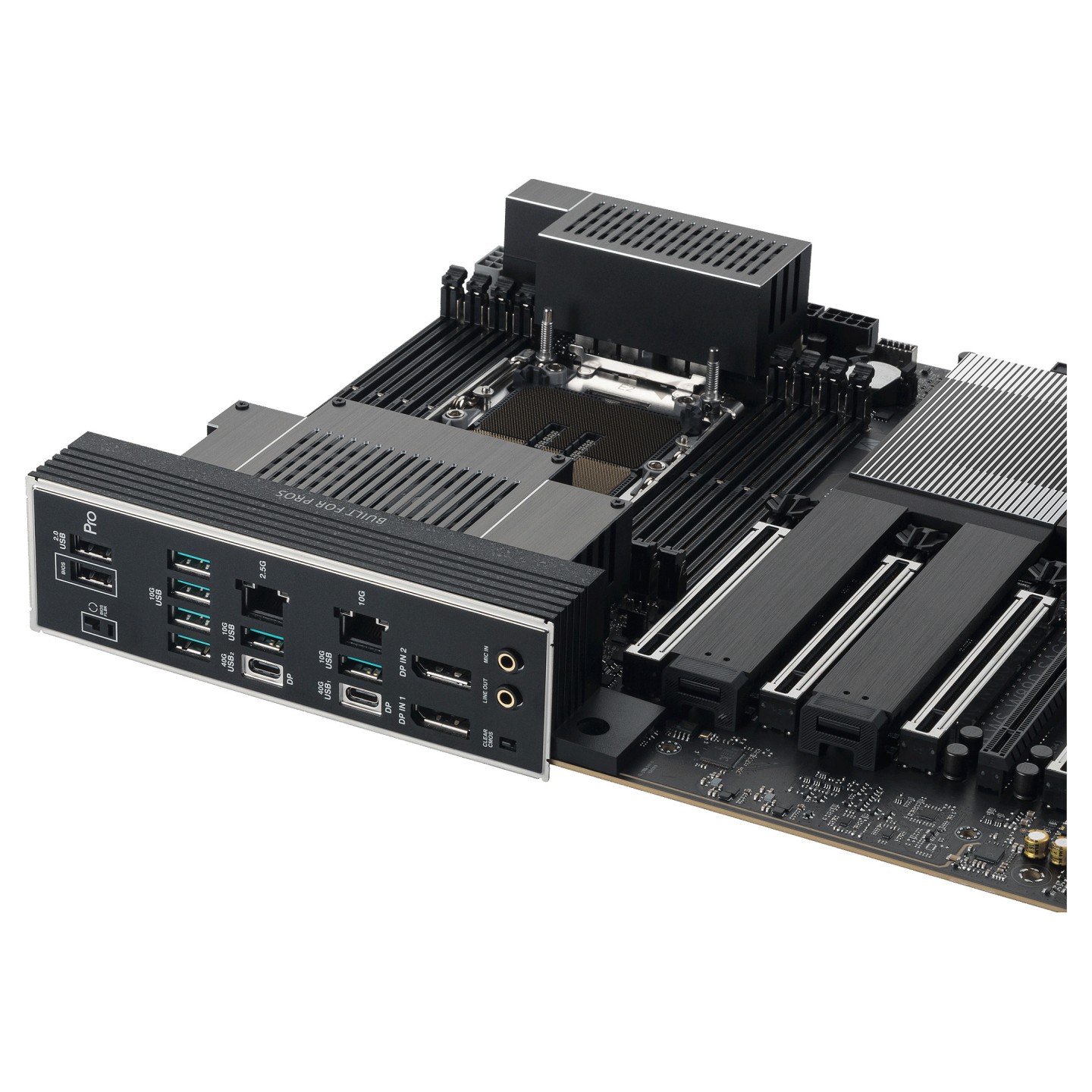

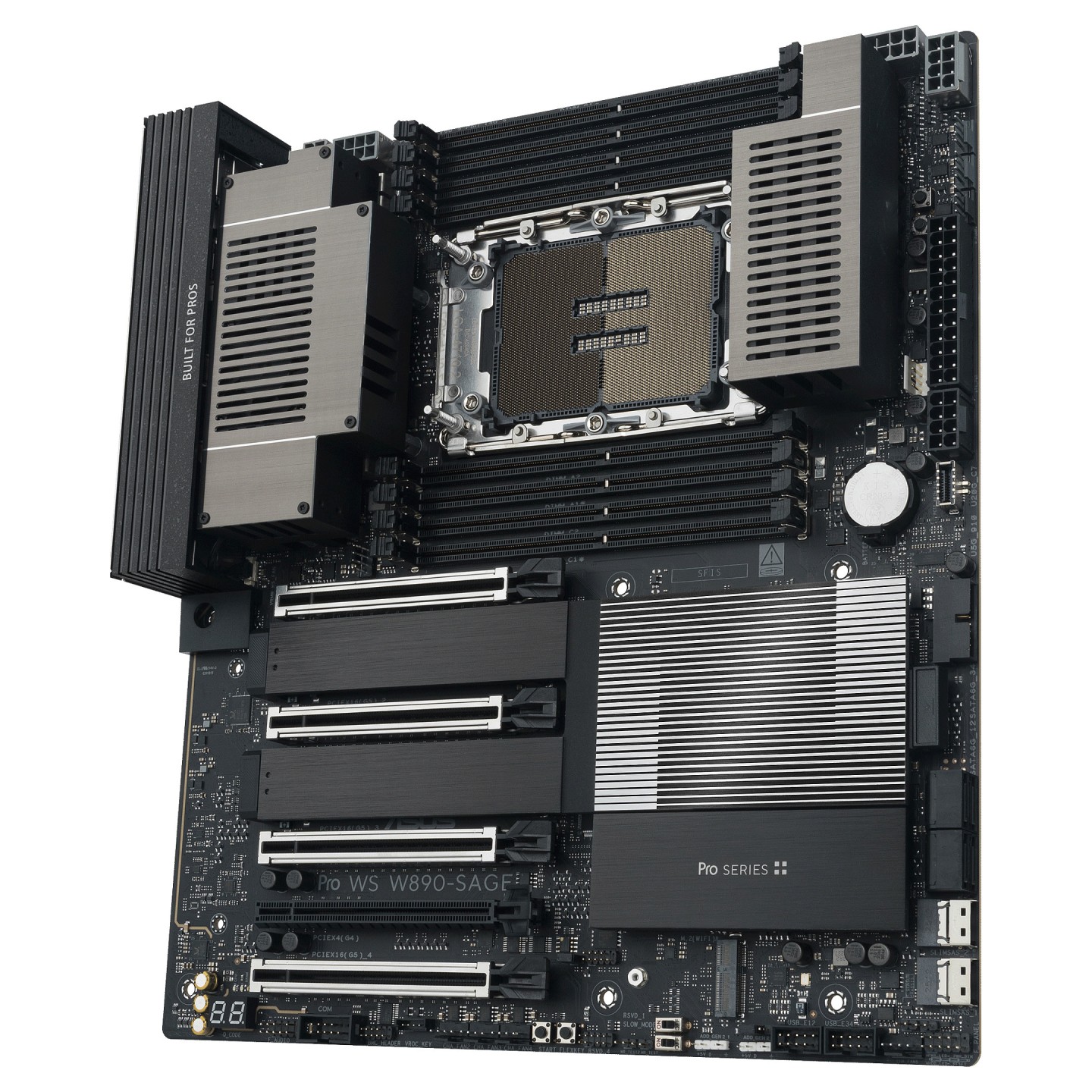

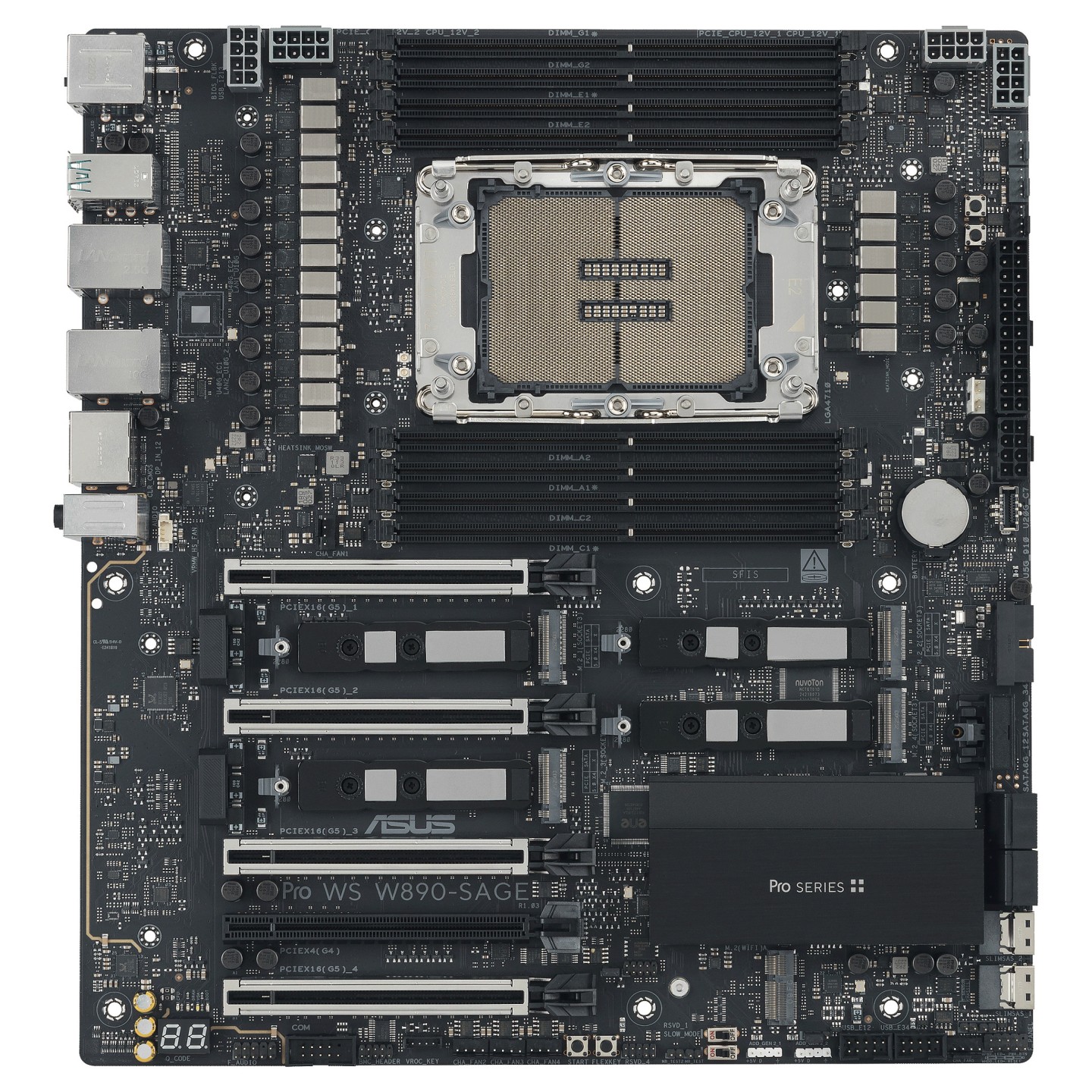

PRO WS W890E-SAGE (INTEL.4710.DDR5.EBB)
ASUS PRO WS W890-SAGE. Intel. LGA 4710-2. Intel® Xeon®. LGA 4710-2. DDR5-SDRAM. DIMM
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
ASUS PRO WS W890-SAGE. Prozessorhersteller: Intel. Prozessorsockel: LGA 4710-2. Kompatible Prozessoren: Intel® Xeon®. Unterstützte Arbeitsspeicher: DDR5-SDRAM. Arbeitsspeicher Typ: DIMM. Speicherkanäle: Vierfach-Kanal. Unterstützte Speicherlaufwerk-Schnittstellen: M.2. SATA III. SlimSAS. Unterstützte Speicherlaufwerke: HDD & SSD. RAID Level: 0. 5. 1. 10. Maximale Auflösung: 7680 x 4320 Pixel. Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet. 10 Gigabit Ethernet
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 4710-2 |
| Kompatible Prozessoren | Intel® Xeon® |
| Unterstützte Prozessorsteckplätze | LGA 4710-2 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 8 |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Vierfach-Kanal |
| ECC-Kompatibilität | ECC |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2. SATA III. SlimSAS |
| Maximale unterstützte Anzahl der HDD | 4 |
| Anzahl der unterstützten Speicherlaufwerke | 10 |
| Feature | Schrauben enthalten |
| RAID Level | 0. 5. 1. 10 |
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| Maximale Auflösung | 7680 x 4320 Pixel |
| Anzahl USB 2.0 Schnittstellen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse | 1 |
| SATA III Anschlüsse | 4 |
| Anzahl der CPU-Lüfteranschlüsse | 2 |
| Zahl der Chassisventilatorstecker | 5 |
| Anzahl der EPS-Stromanschlüsse (4--polig) | 5 |
| Zahl der COM Stecker | 1 |
| Integrierte SAS ports | 2 |
| Anzahl der Wasserpumpenanschlüsse | 1 |
| Anzahl der Temperatursensor-Header | 1 |
| Anzahl der RGB-LED-Stiftleisten | 2 |
| Anzahl USB 2.0 Anschlüsse | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 6 |
| Anzahl USB4 Gen 3×2-Ports | 2 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Anzahl DisplayPort Anschlüsse | 2 |
| DisplayPorts-Version | 1.4 |
| Kopfhörerausgänge | 1 |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet. 10 Gigabit Ethernet |
| Motherboard Chipsatz | Intel W890 |
| Audio-Chip | Realtek ALC1220P |
| Audio Kanäle | 7.1 Kanäle |
| Produktfarbe | Schwarz |
| Komponente für | Arbeitsstation |
| Motherboardformfaktor | CEB |
| Motherboard Chipsatz Familie | Intel |
| Kühlung | Passiv |
| Energiequelle | ATX |
| Unterstützt Windows-Betriebssysteme | Windows 11 |
| PCI Express x16-Steckplätze (Gen 4.x) | 1 |
| PCI Express x16-Steckplätze (Gen 5.x) | 4 |
| Anzahl der M.2 (M)-Steckplätze | 4 |
| 1. M.2 größte Schlüsselgröße | 2280 |
| 1. M.2 höchste PCI Express-Generation | 5.0 |
| 2. M.2 größte Schlüsselgröße | 2280 |
| 2. M.2 höchste PCI Express-Generation | 5.0 |
| 3. M.2 größte Schlüsselgröße | 2280 |
| 3. M.2 höchste PCI Express-Generation | 5.0 |
| 4. M.2 größte Schlüsselgröße | 2280 |
| 4. M.2 höchste PCI Express-Generation | 5.0 |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 512 Mbit |
| Verpackungsbreite | 376 mm |
| Verpackungstiefe | 320 mm |
| Verpackungshöhe | 100 mm |
| Paketgewicht | 4.12 kg |
| Breite | 305 mm |
| Tiefe | 280 mm |
| Höhe | 50 mm |

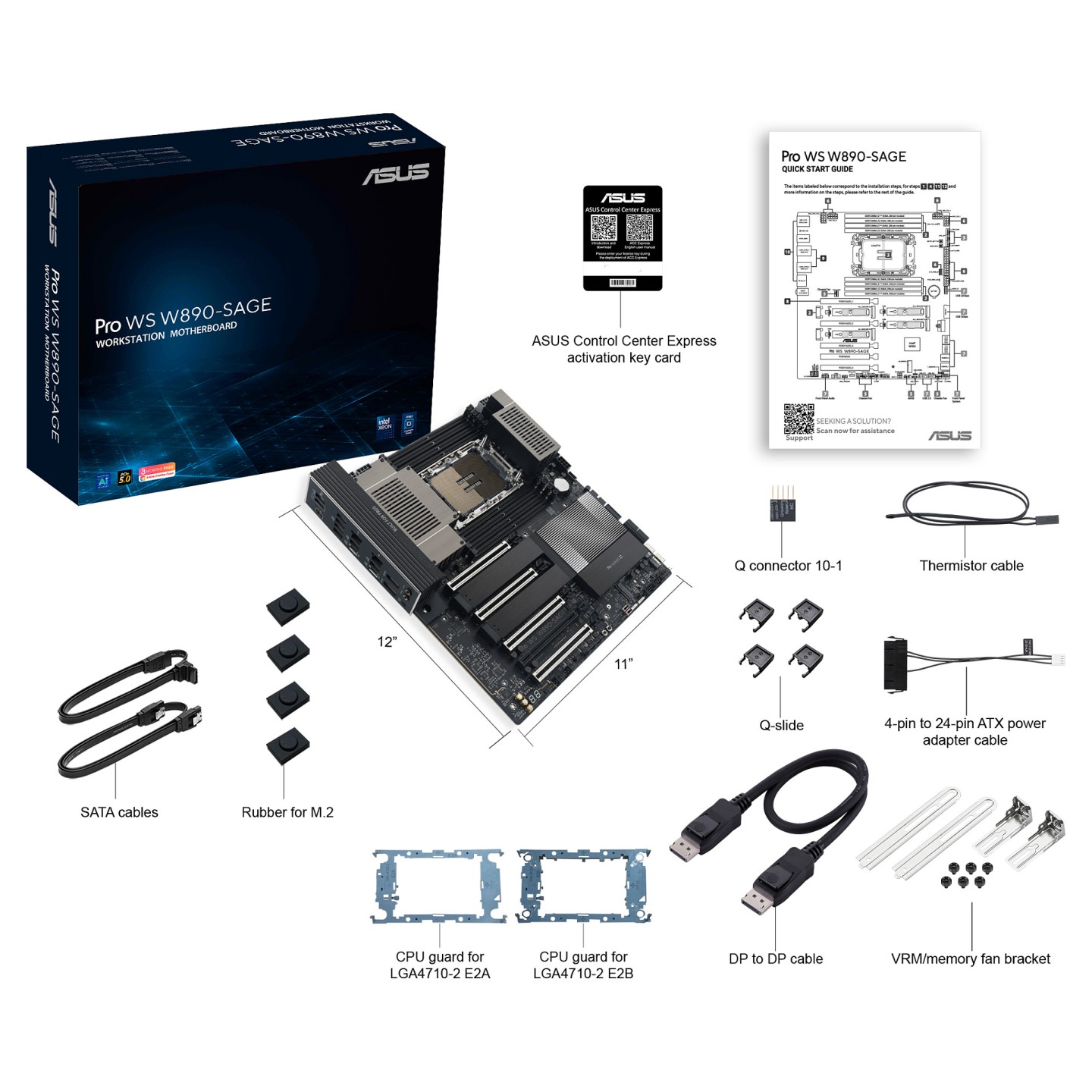

| Mitgelieferte Kabel | SATA. DisplayPort |
| Gewicht | 2.75 kg |
| Anzahl der M.2 (E) Slots | 1 |
