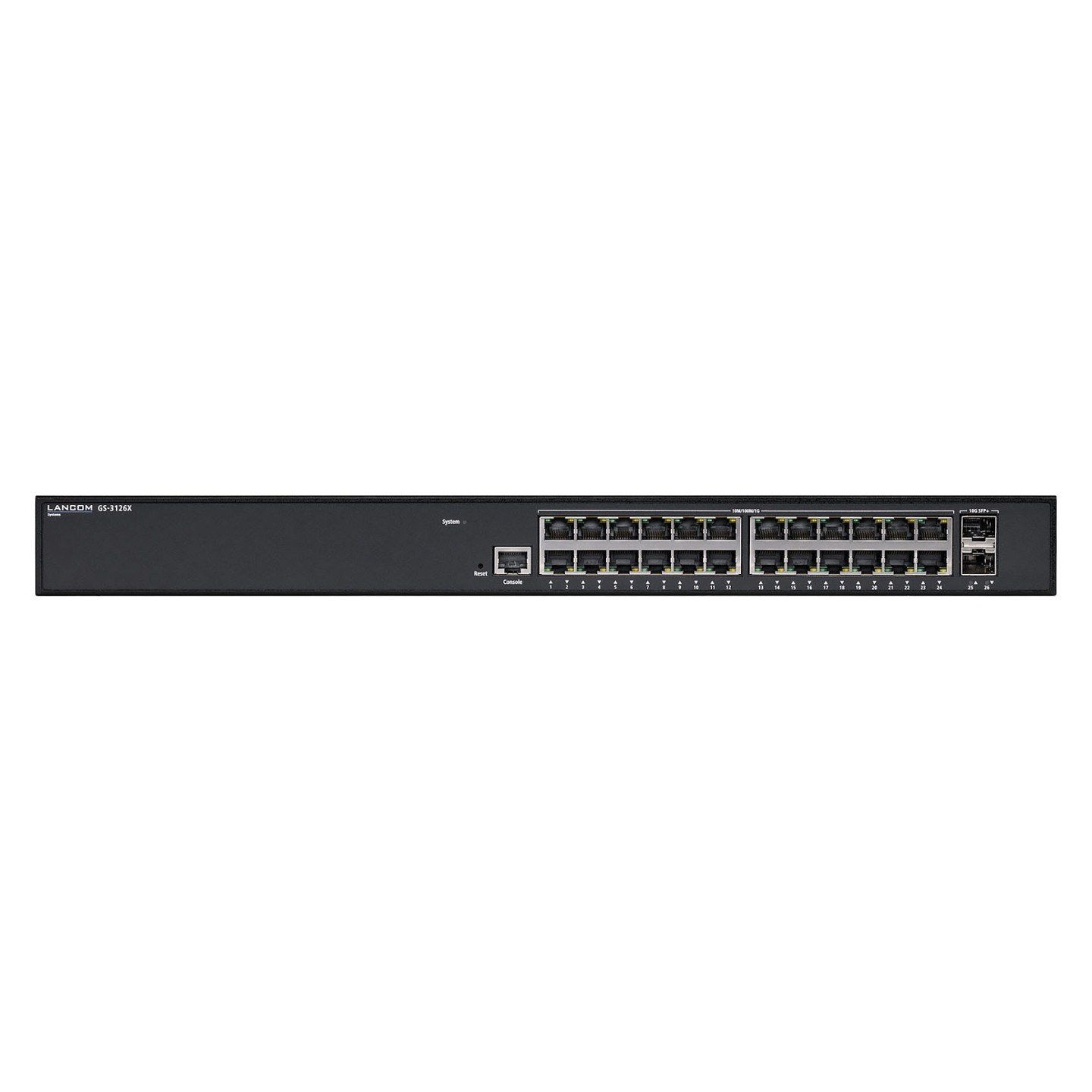

LANCOM GS-3126X Layer 3 lite Zugriffsschalter 24 Ethernet-Ports und 2 SFP+ Ports 1G 10G
LANCOM GS-3126X. Managed. L3. Gigabit Ethernet (10/100/1000). Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LANCOM GS-3126X. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 24. Konsolen-Port: RJ-45. MAC-Adressentabelle: 32000 Eintragungen. Routing-/Switching-Kapazität: 88 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1ad. IEEE 802.1ak. IEEE 802.1p. IEEE 802.1s. IEEE.... Netzstecker: AC-Eingangsbuchse. Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Montageblöcke enthalten |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 24 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 24 |
| Menge Modul-Steckplätze SFP+ | 2 |
| Optischer Kabelverbinder | SFP+ |
| Konsolen-Port | RJ-45 |
| Netzstecker | AC-Eingangsbuchse |
| Virtuelle LAN-Funktionen | IP subnet–based VLAN. MAC address-based VLAN. MVRP. Port-based VLAN. Private VLAN. Tagged VLAN. VLAN Identifier ( VLAN ID). Voice VLAN |
| Anzahl der VLANs | 4096 |
| Routing-/Switching-Kapazität | 88 Gbit/s |
| Durchgang | 130 Mpps |
| MAC-Adressentabelle | 32000 Eintragungen |
| Anzahl der statischen Routen | 128 |
| Jumbo-Frames | 10240 |
| DHCP-Funktionen | DHCP Option 66. DHCP Option 67. DHCP Option 82. DHCP client. DHCP relay. DHCP server. DHCP snooping |
| Unterstützte Sicherheitsalgorithmen | SNMPv3 |
| Authentifizierung | Gast VLAN |
| Autentifizierungstyp | IEEE 802.1x. RADIUS. TACACS+ |
| Formfaktor | 1U |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| LED-Anzeigen | Aktivität. Link. Geschwindigkeit. System |
| Anzahl Lüfter | 1 Lüfter |
| Geräuschpegel | 34 dB |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Stromverbrauch (max.) | 30 W |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Wärmeableitung | 102 BTU/h |
| Breite | 442 mm |
| Tiefe | 211 mm |
| Höhe | 44 mm |
| Gewicht | 2.7 kg |
| Mitgelieferte Kabel | AC. Seriell |
| Verpackungsbreite | 470 mm |
| Verpackungstiefe | 540 mm |
| Verpackungshöhe | 985 mm |
| Paketgewicht | 3.6 kg |
| Konformitätsbescheinigungen | CE. Eidgenössische Kommunikationskommission (FCC) |
| Zolltarifnummer (TARIC) | 85176200 |
| Ursprungsland | Taiwan |
| Warentarifnummer (HS) | 85176990 |
