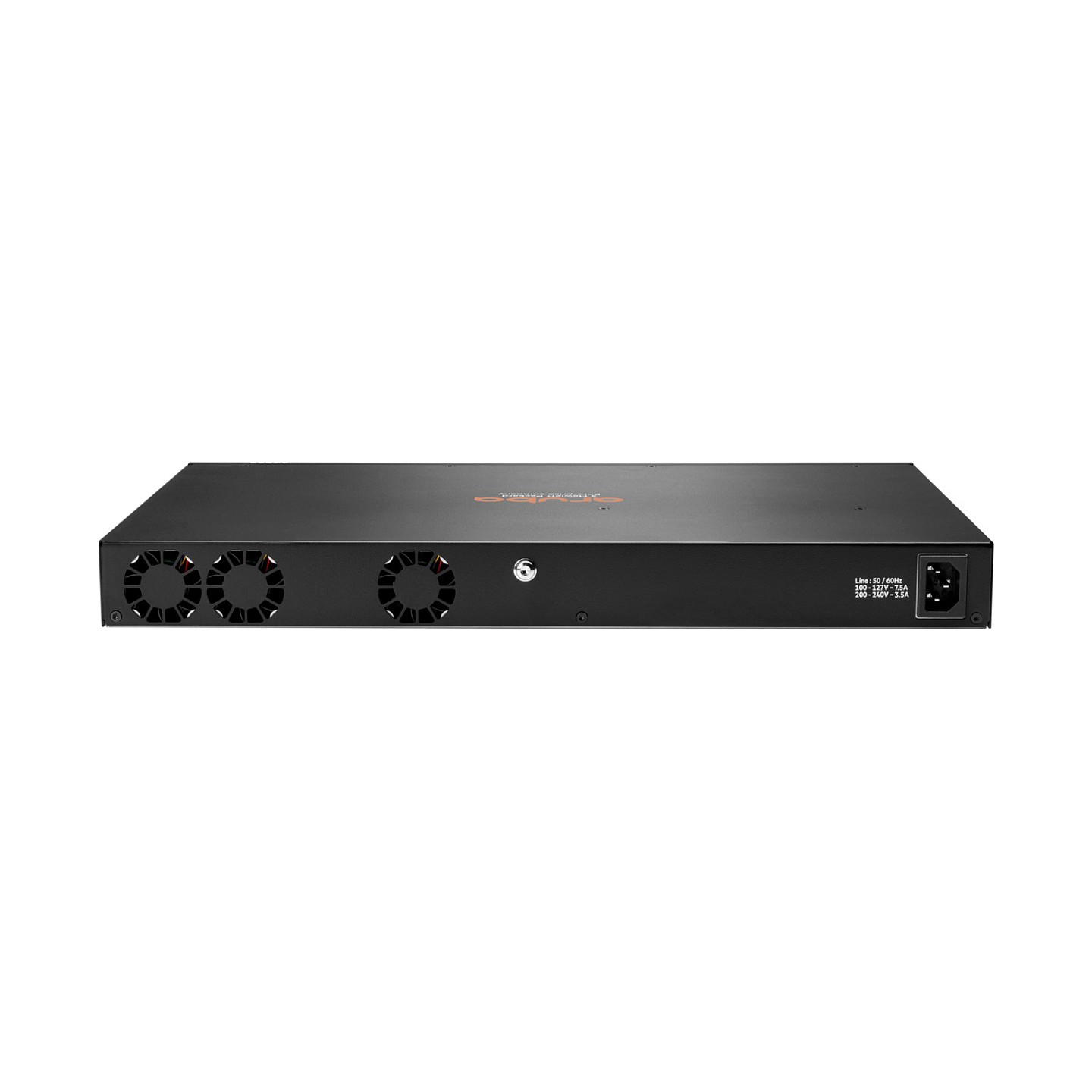

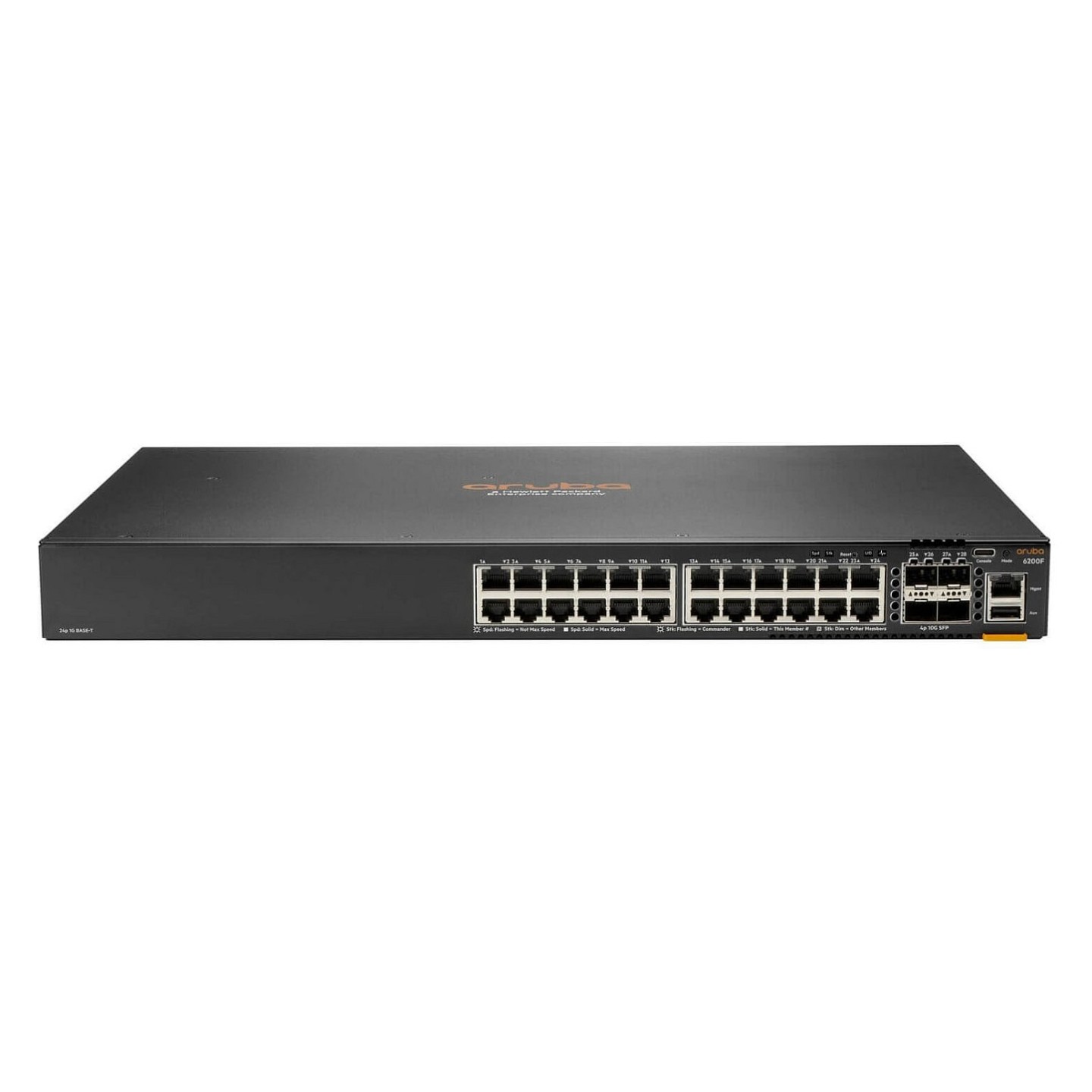

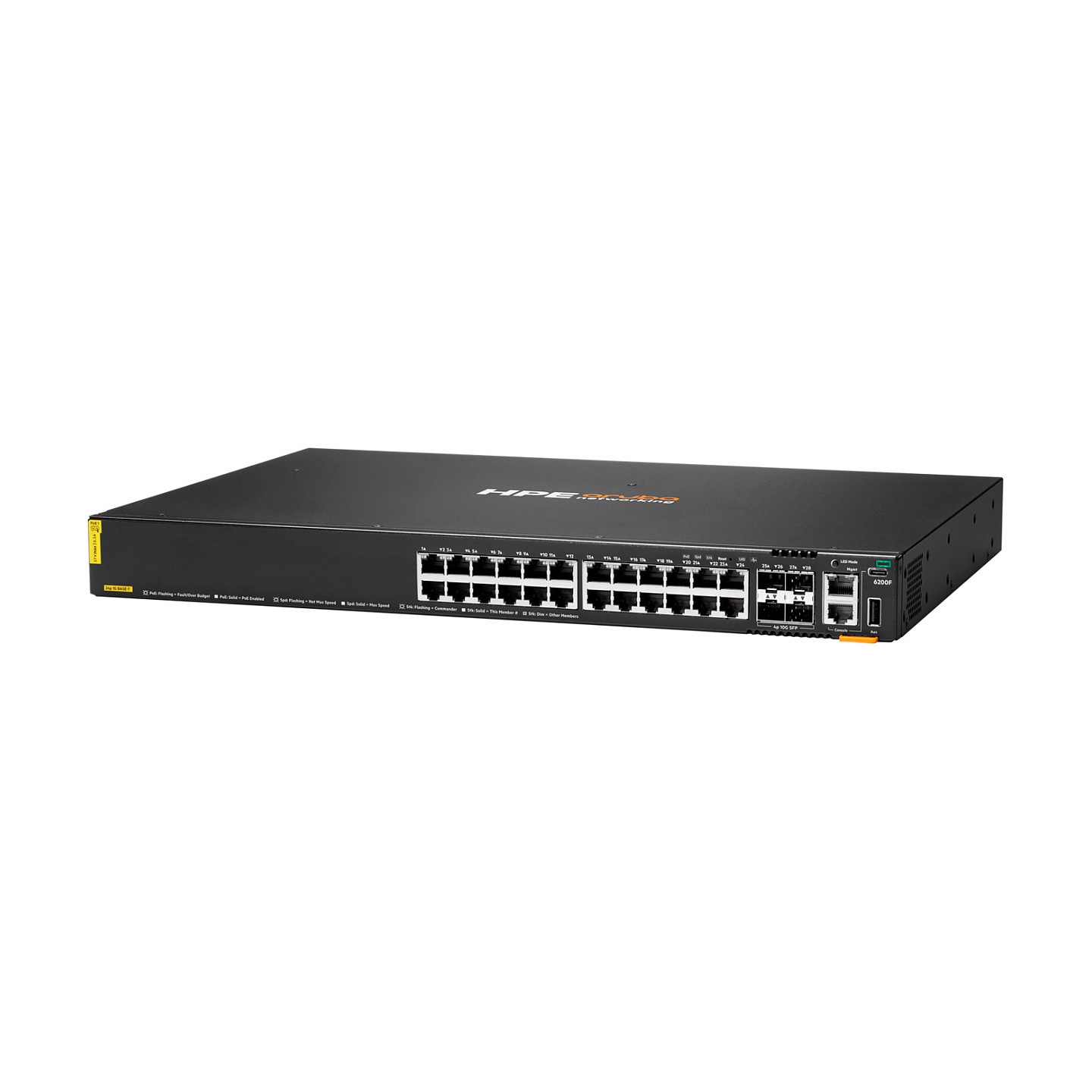

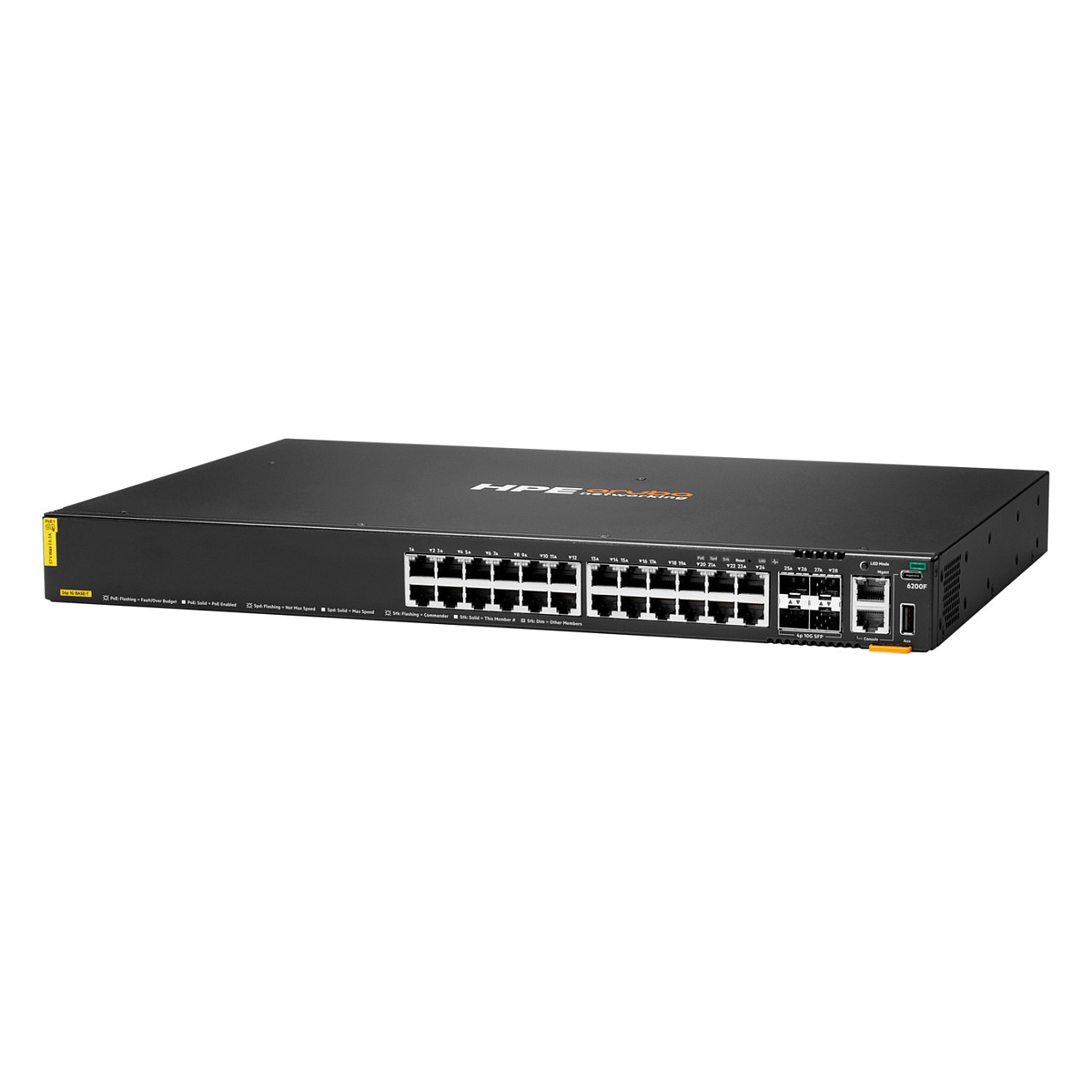

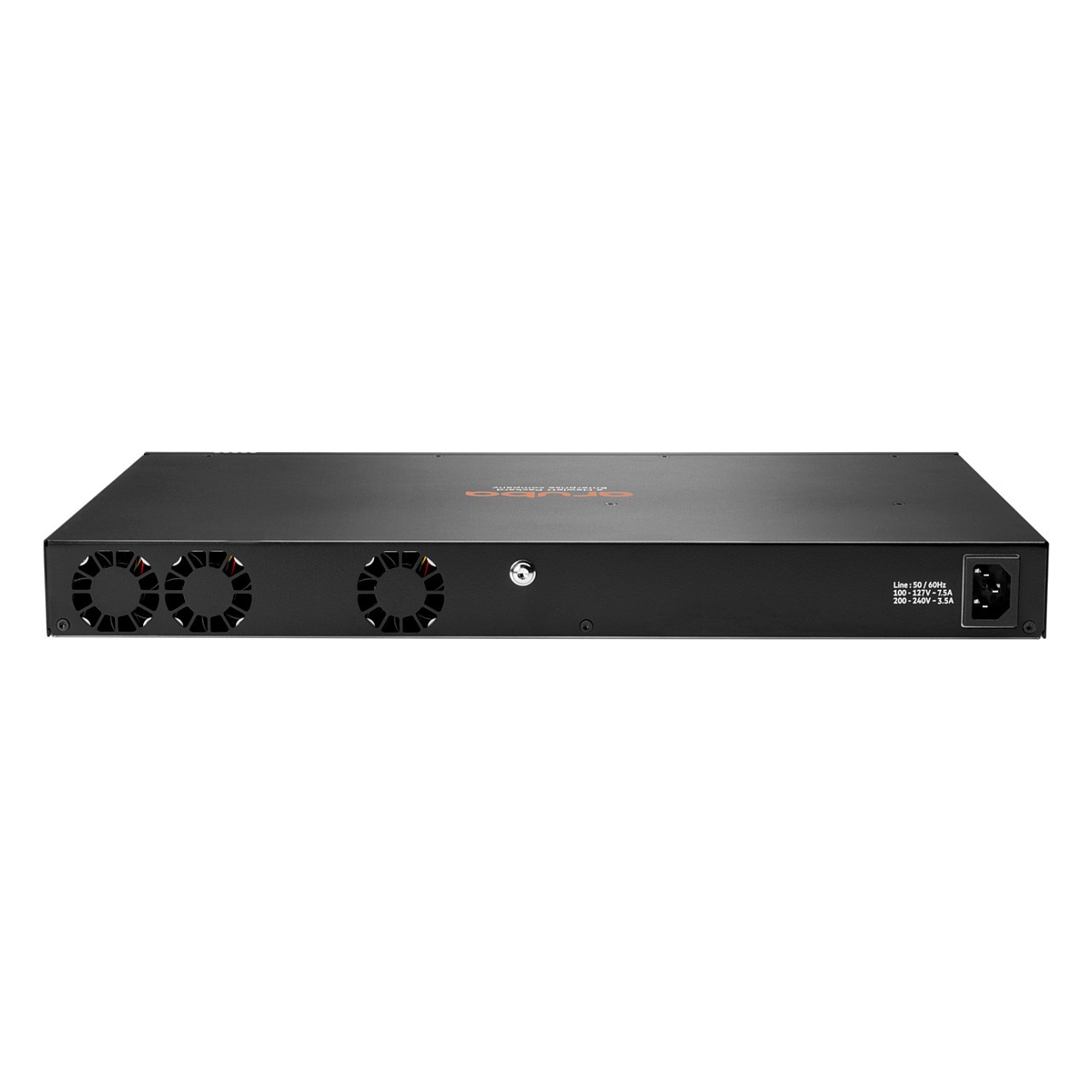

HPE Aruba Networking CX 6200F 24G Class-4 PoE 4SFP+ 370W Switch (EN)
HPE Aruba Networking CX 6200F 24G Class-4 PoE 4SFP+ 370W. Managed. L3. Gigabit Ethernet (10/100/1000). Power over Ethernet (PoE). Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
HPE Aruba Networking CX 6200F 24G Class-4 PoE 4SFP+ 370W. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 24. Konsolen-Port: RJ-45/USB Type-C. MAC-Adressentabelle: 32768 Eintragungen. Routing-/Switching-Kapazität: 128 Gbit/s. Netzstandard: IEEE 802.1AX. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1ak. IEEE 802.1p. IEEE 802.1s. IEEE.... Power over Ethernet (PoE). Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Power over Ethernet (PoE) |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 24 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge Modul-Steckplätze SFP+ | 4 |
| Konsolen-Port | RJ-45/USB Type-C |
| Transmissionsentfernung (max) | 10 km |
| Routing-/Switching-Kapazität | 128 Gbit/s |
| Durchgang | 95.2 Mpps |
| MAC-Adressentabelle | 32768 Eintragungen |
| Wartezeit (1 Gbps) | 2.28 µs |
| Wartezeit (10 Gbps) | 1.46 µs |
| Datenpaket-Pufferspeicher | 8 MB |
| Authentifizierung | MAC-basierte Authentifizierung. Webbasierte Authentifizierung |
| Autentifizierungstyp | RADIUS. TACACS+ |
| Formfaktor | 1U |
| Physisches Stacking (Einheiten) | 8 |
| Prozessor | ARM Cortex-A72 |
| Prozessortaktfrequenz | 1800 MHz |
| Speichertyp | SDRAM / Flash |
| Speicherkapazität | 8192 MB |
| Flash-Speicher | 16384 MB |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Stromverbrauch (Standardbetrieb) | 65 W |
| Gesamtleistung Power over Ethernet (PoE) | 370 W |
| Betriebstemperatur | 0 - 45 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Höhe bei Betrieb | 0 - 3048 m |
| Breite | 442 mm |
| Tiefe | 327 mm |
| Höhe | 43.9 mm |
| Gewicht | 5.1 kg |
