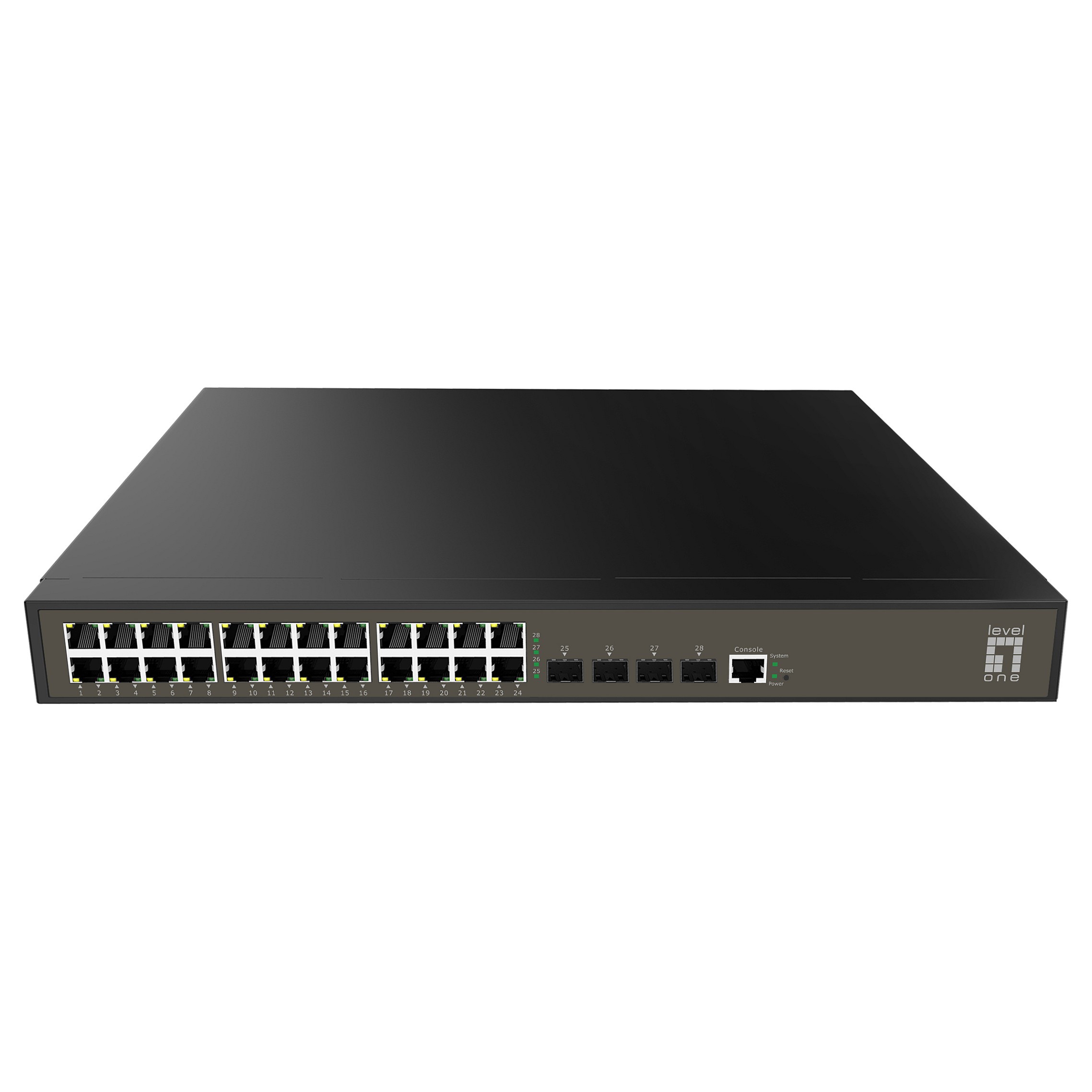

Switch 24x GE GEL-2871 4xGSFP 19'
LevelOne GEL-2871. Managed. L2+. Gigabit Ethernet (10/100/1000). Gigabit Ethernet. Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne GEL-2871. Switch-Typ: Managed. Switch-Ebene: L2+. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 24. Schalttyp optisches Modul: Gigabit Ethernet. MAC-Adressentabelle: 16000 Eintragungen. Routing-/Switching-Kapazität: 1000 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1s. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE.... Netzstecker: AC-Eingangsbuchse. Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L2+ |
| Feature | Ablageschienen |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 24 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 24 |
| Menge SFP-Modul-Steckplätze | 4 |
| Netzstecker | AC-Eingangsbuchse |
| Netzstandard | IEEE 802.1D. IEEE 802.1Q. IEEE 802.1s. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Ethernet LAN Datentransferraten | 1000 Mbit/s |
| QinQ-Implementierung | Flexible QinQ. QinQ. Basic QinQ |
| Virtuelle LAN-Funktionen | Port-based VLAN. Private VLAN. Protocol-based VLAN. Tagged VLAN |
| Ethernet-Kabel Verkablungstechnologie | 1000BASE-LHX. 1000BASE-LX. 1000BASE-SX. 1000BASE-ZX |
| Schalttyp optisches Modul | Gigabit Ethernet |
| Routing-/Switching-Kapazität | 1000 Gbit/s |
| MAC-Adressentabelle | 16000 Eintragungen |
| Jumbo-Frames | 10000 |
| Datenpaket-Pufferspeicher | 12 MB |
| DHCP-Funktionen | DHCP client. DHCP snooping |
| Authentifizierung | MAC-basierte Authentifizierung. Port-basierte Authentifizierung |
| Autentifizierungstyp | RADIUS |
| Formfaktor | 1U |
| Produktfarbe | Schwarz |
| LED-Anzeigen | Aktivität. Link. Leistung |
| Speicherkapazität | 256 MB |
| Flash-Speicher | 512 MB |
| Geräuschpegel | 45 dB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 534.057 h |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Wärmeableitung | 136.48 BTU/h |
| Breite | 440 mm |
| Tiefe | 245 mm |
| Höhe | 44 mm |
| Gewicht | 2.77 kg |
| Mitgelieferte Kabel | AC |
| Verpackungsart | Box |
| Verpackungsbreite | 525 mm |
| Verpackungstiefe | 390 mm |
| Verpackungshöhe | 95 mm |
| Paketgewicht | 3.7 kg |
| Zertifizierung | FCC Part 15 Subpart BCE MarkEN IEC 62368-1EN 55032EN 55035EN 61000-3-2/3RoHS |
| Ursprungsland | China |
