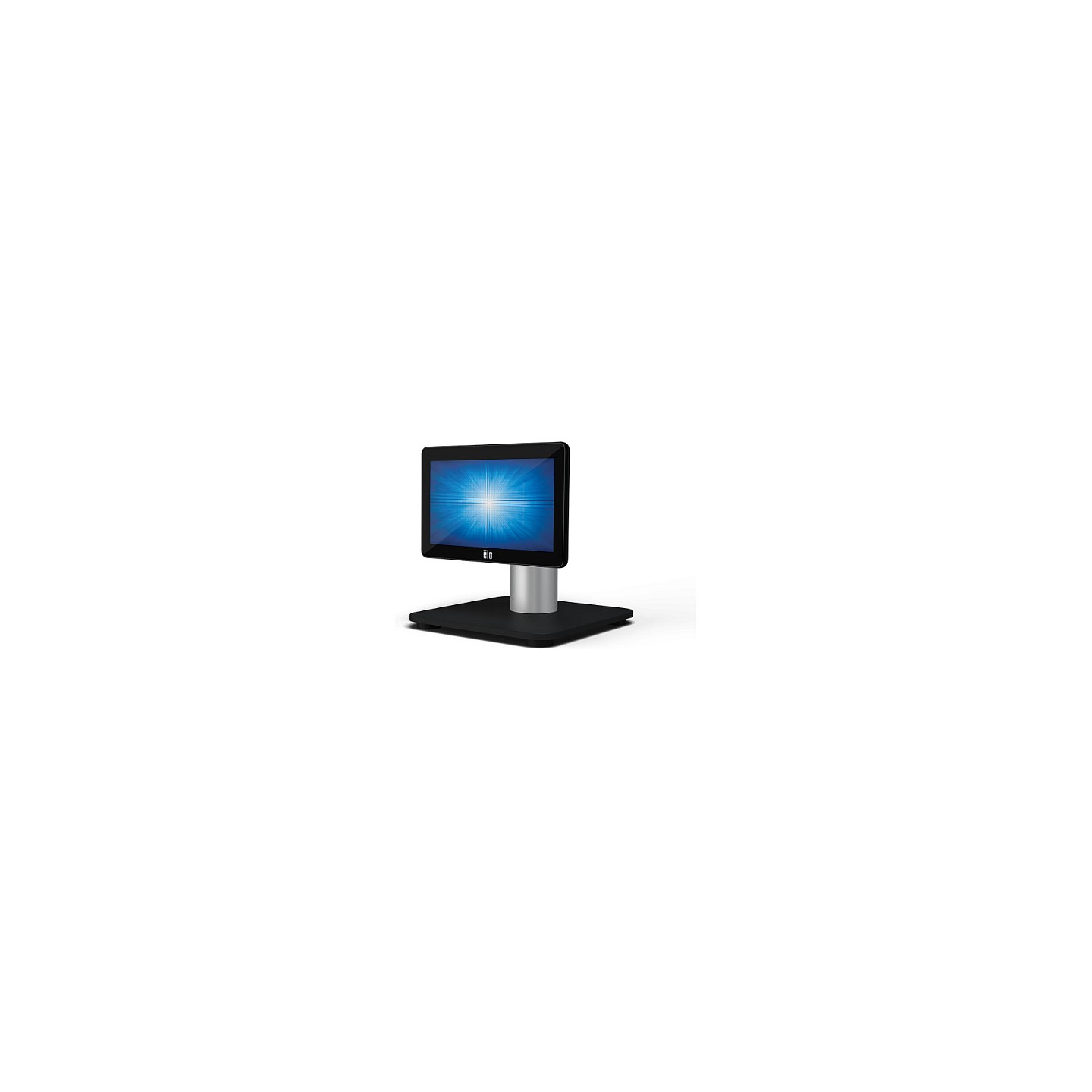

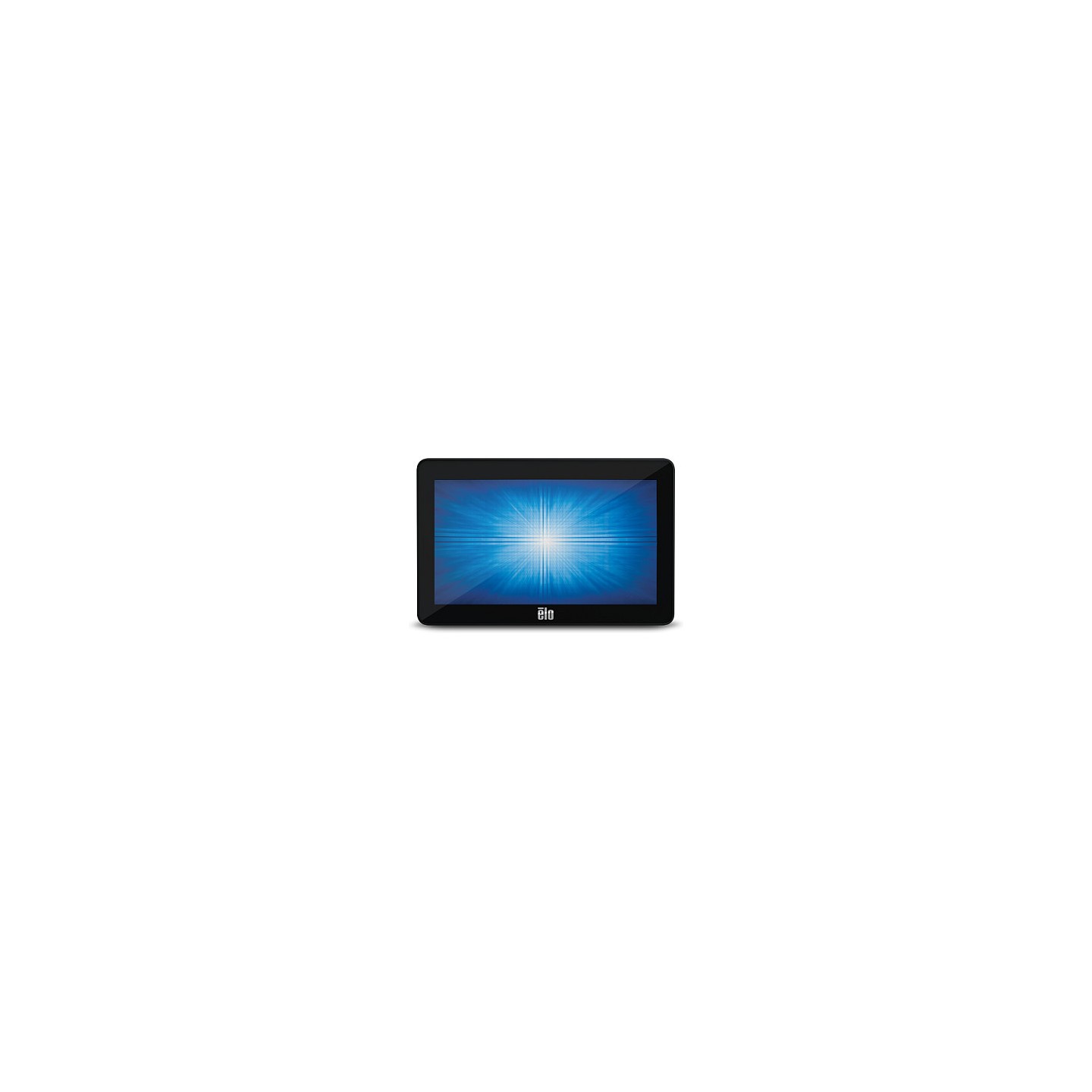

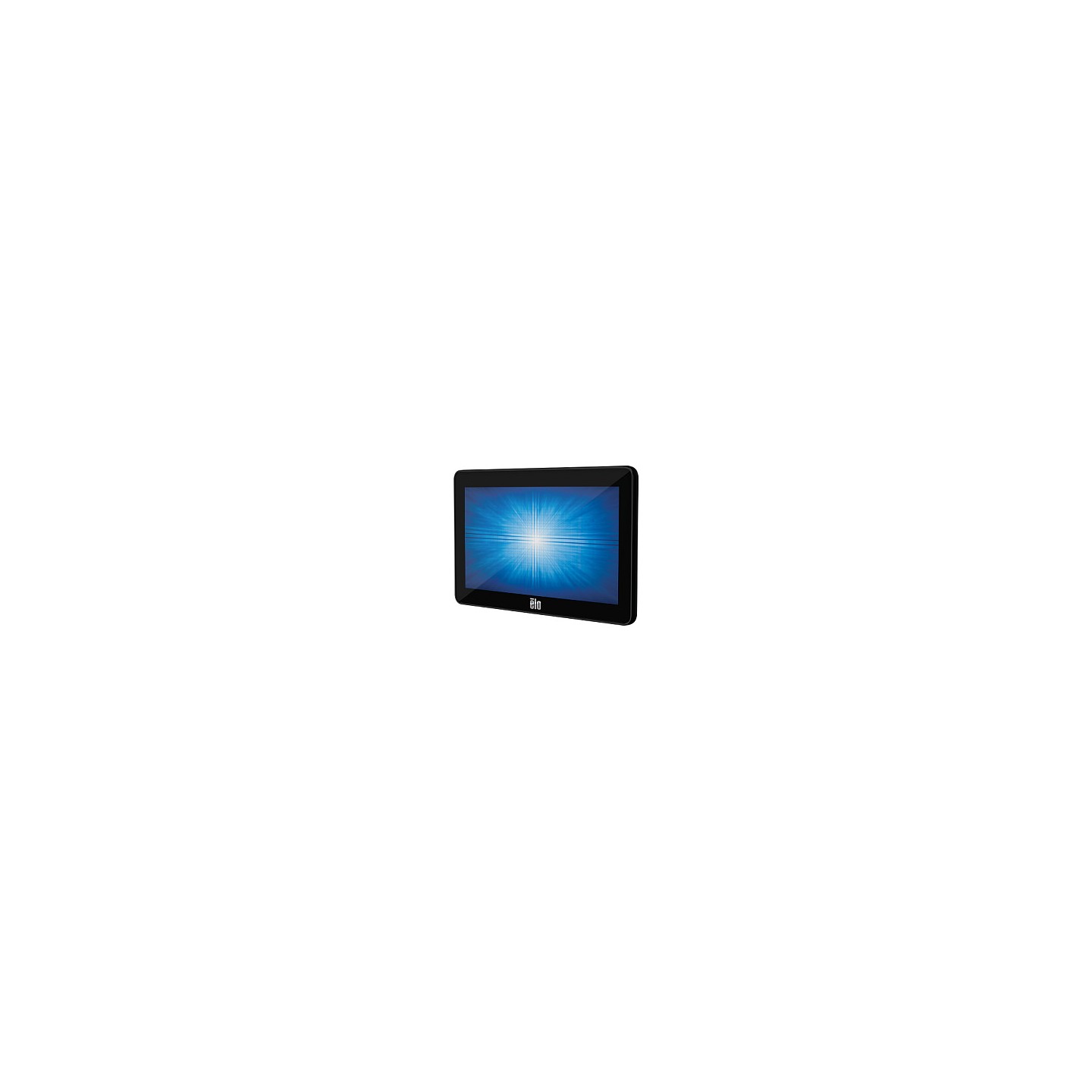

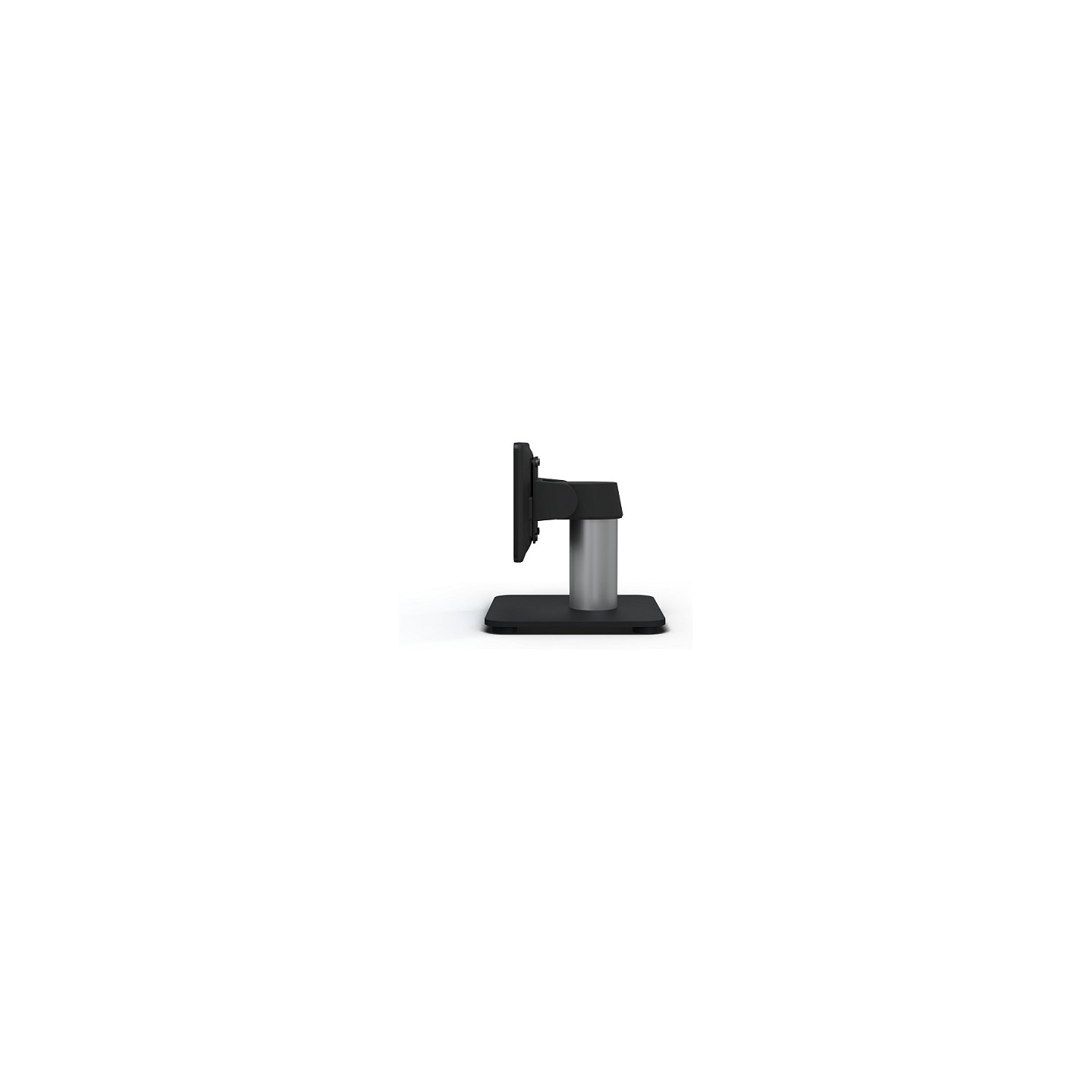

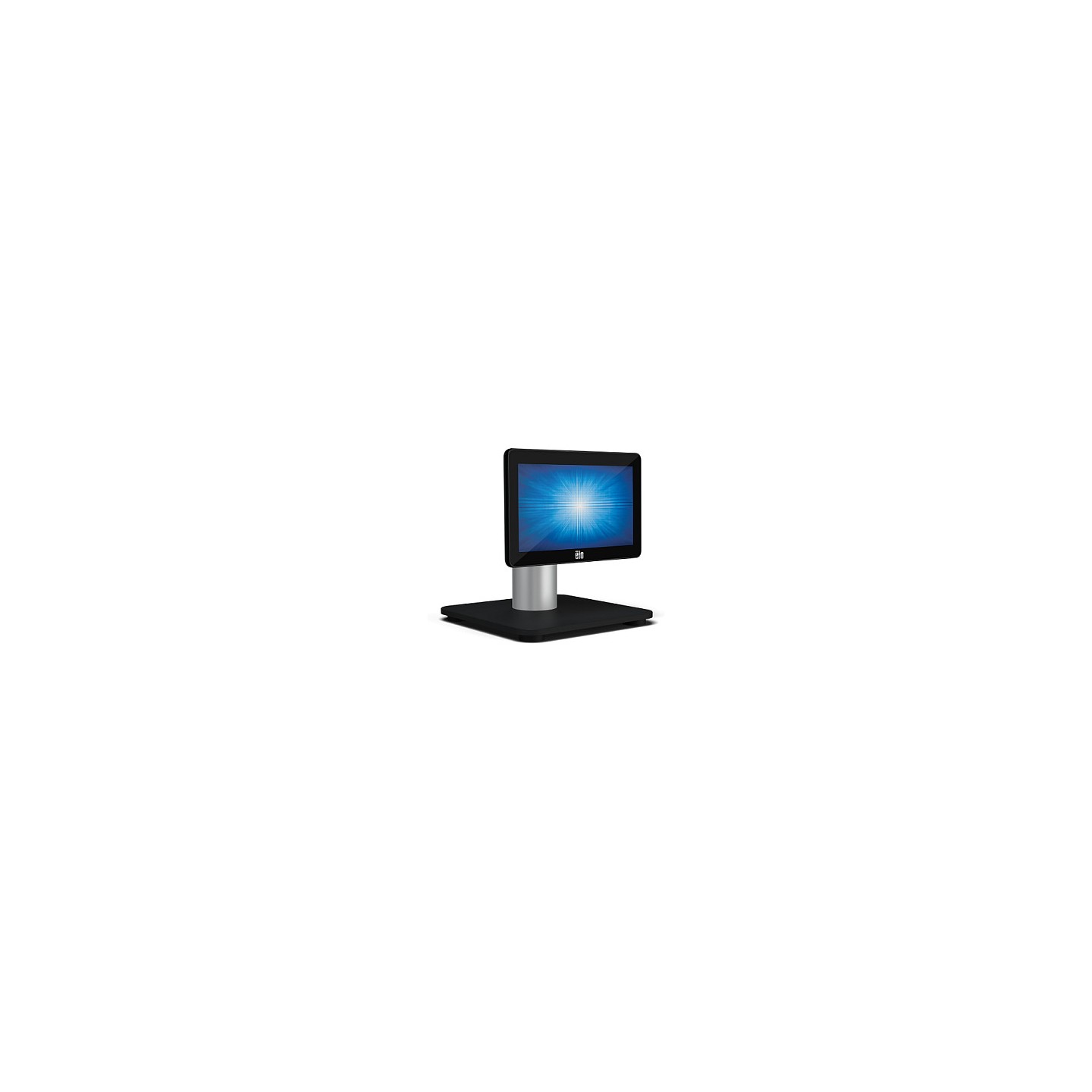

Elo Touch Solutions 7' Elo 0702L (E796382)
Elo Touch Solutions 0702L. 17.8 cm (7"). LCD/TFT. 800 x 480 Pixel
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Elo Touch Solutions 0702L. Bildschirmdiagonale: 17.8 cm (7"). Bildschirmtechnologie: LCD/TFT. Display-Auflösung: 800 x 480 Pixel. Helligkeit: 500 cd/m². Touchscreen. Produktfarbe: Schwarz
| Bildschirmdiagonale | 17.8 cm (7") |
| Bildschirmtechnologie | LCD/TFT |
| Display-Auflösung | 800 x 480 Pixel |
| Helligkeit | 500 cd/m² |
| Feature | Schnellstartübersicht |
| Touchscreen Technologie | Projizierts Kapazitivsystem |
| Anzahl der gleichzeitigen Touchpoints | 10 |
| Reaktionszeit | 25 ms |
| Kontrastverhältnis | 500:1 |
| Bildwinkel. horizontal | 150° |
| Bildwinkel. vertikal | 120° |
| Anzahl der Farben des Displays | 16.2 Millionen Farben |
| Produktfarbe | Schwarz |
| Bildschirmform | Flach |
| Panel-Montage-Schnittstelle | 75 x 75 mm |
| Internationale Schutzart (IP-Code) | IP54. IP65 |
| Stromverbrauch (Standardbetrieb) | 3.7 W |
| Stromverbrauch (aus) | 1.9 W |
| Verpackungsbreite | 232 mm |
| Verpackungstiefe | 95 mm |
| Verpackungshöhe | 170 mm |
| Paketgewicht | 650 g |
| Mitgelieferte Kabel | Mikro-USB |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 20 - 80% |
| Temperaturbereich bei Lagerung | -20 - 60 °C |
| Luftfeuchtigkeit bei Lagerung | 10 - 95% |
| Zertifizierung | cUL. IC. CCC. CE. FCC. UL. VCCI. CB. RCM. NOM |
| Warentarifnummer (HS) | 85285210 |
| Anzahl Mikro-USB-Anschlüsse | 1 |
| Maximale Bildwiederholrate | 60 Hz |
| Seitenverhältnis | 5:3 |
| Display. sichtbarer Bereich BxH | 154.08 x 85.92 mm |
| Höhe (ohne Standfuß) | 17.7 mm |
| Gewicht (ohne Standfuß) | 350 g |
| Tiefe (ohne Standfuß) | 117.2 mm |
