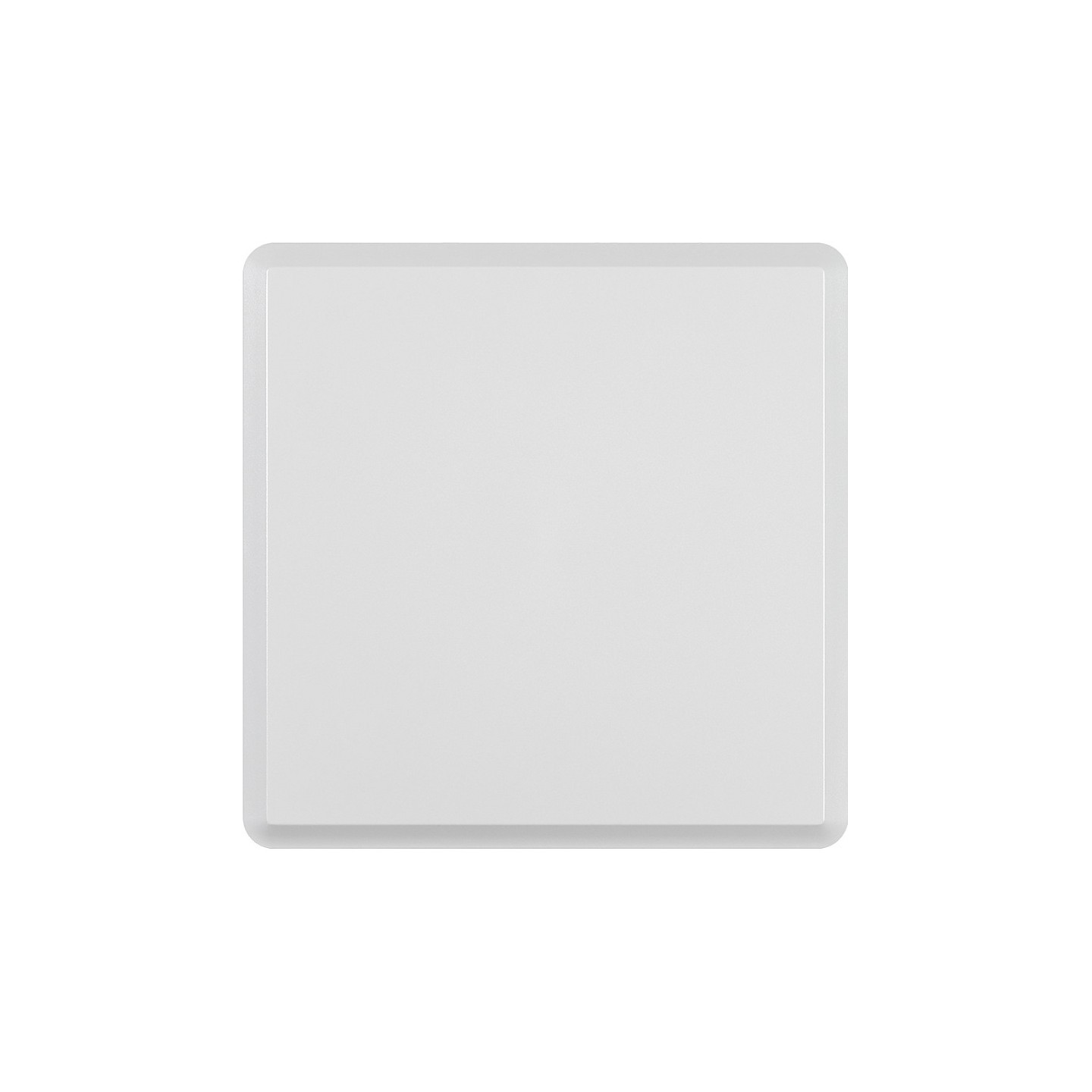

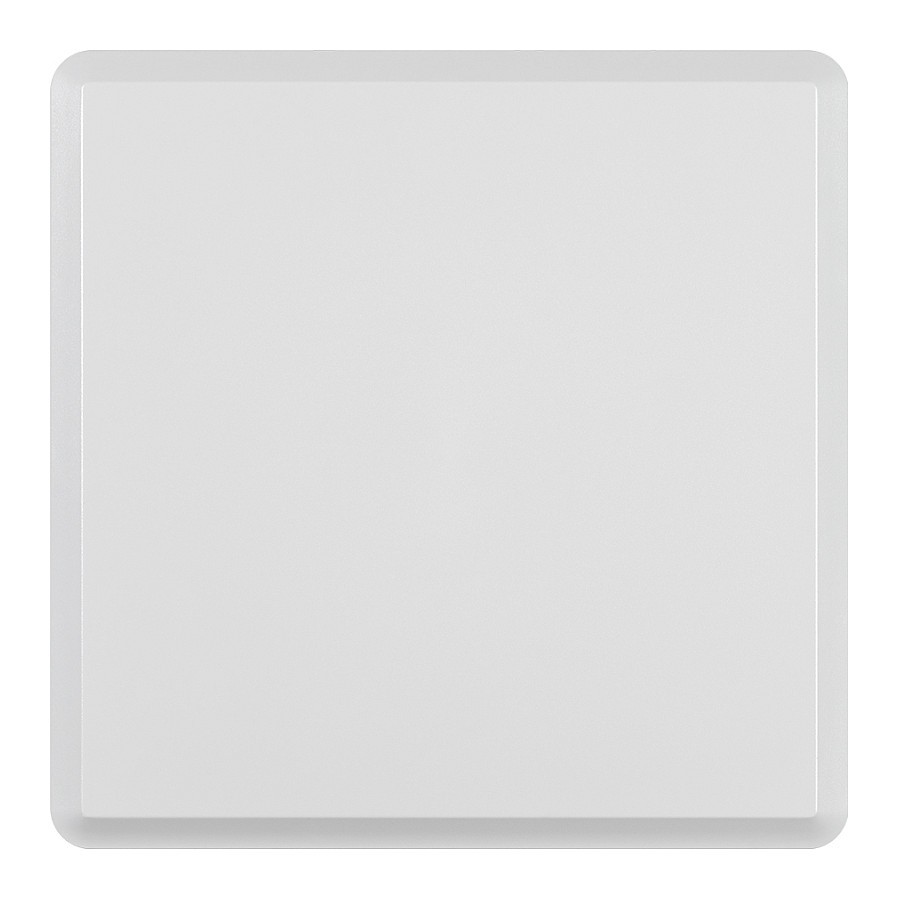

AirLancer ON-D8a
AirLancer ON-D8a. 21 dBi. 4.9 - 5.9 GHz. 50 Ohm. 8°. 8°. Richtantenne
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
AirLancer ON-D8a. Antenne Zunahmeniveau (max): 21 dBi. Frequenzband: 4.9 - 5.9 GHz. Impedanz: 50 Ohm. Antennentyp: Richtantenne. Antenne Steckertyp: N-Typ. Polarisation: Doppelte lineare Polarisation. Breite: 370 mm. Tiefe: 30 mm. Höhe: 370 mm. Verpackungsbreite: 385 mm. Verpackungstiefe: 385 mm. Verpackungshöhe: 105 mm. Menge pro Packung: 1 Stück(e)
| Frequenzband | 4.9 - 5.9 GHz |
| Impedanz | 50 Ohm |
| Horizontale Lichtstrahlbreite | 8° |
| Vertikale Lichtstrahlbreite | 8° |
| Antenne Zunahmeniveau (max) | 21 dBi |
| Antennentyp | Richtantenne |

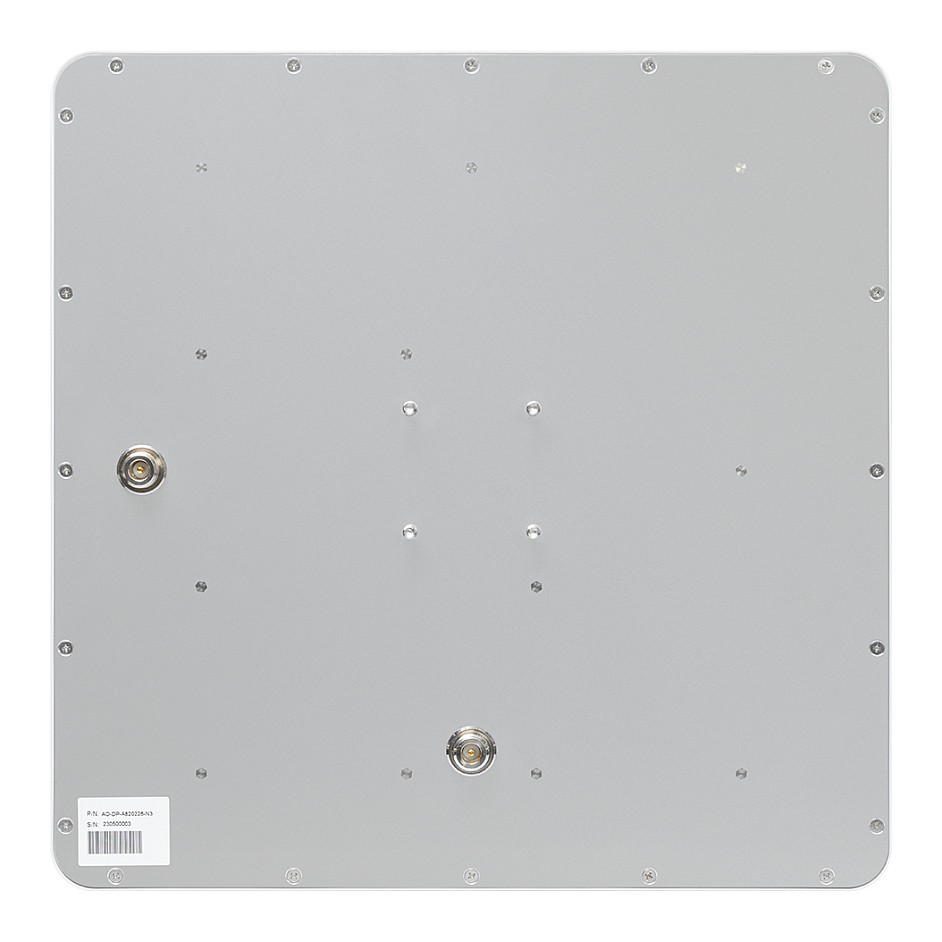

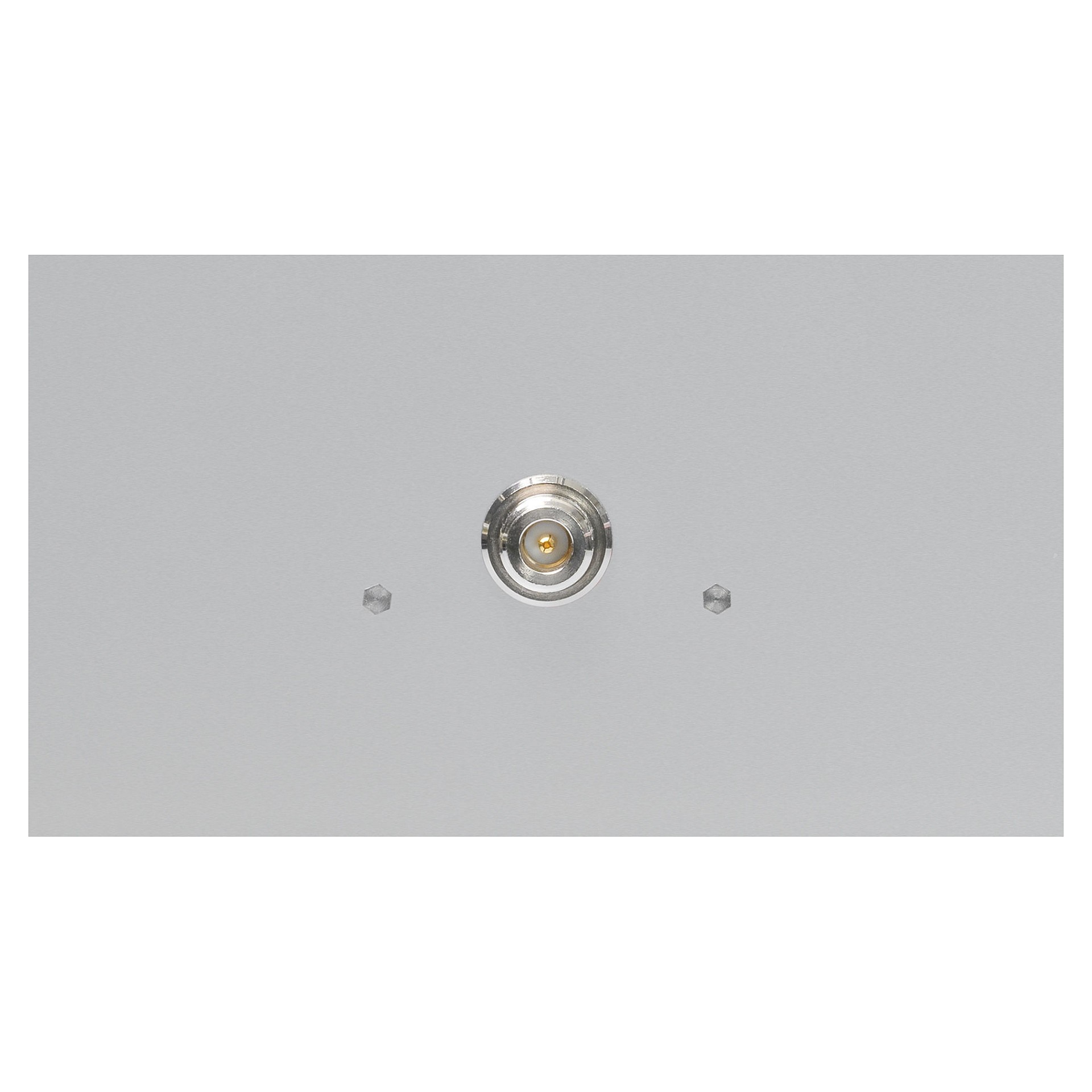

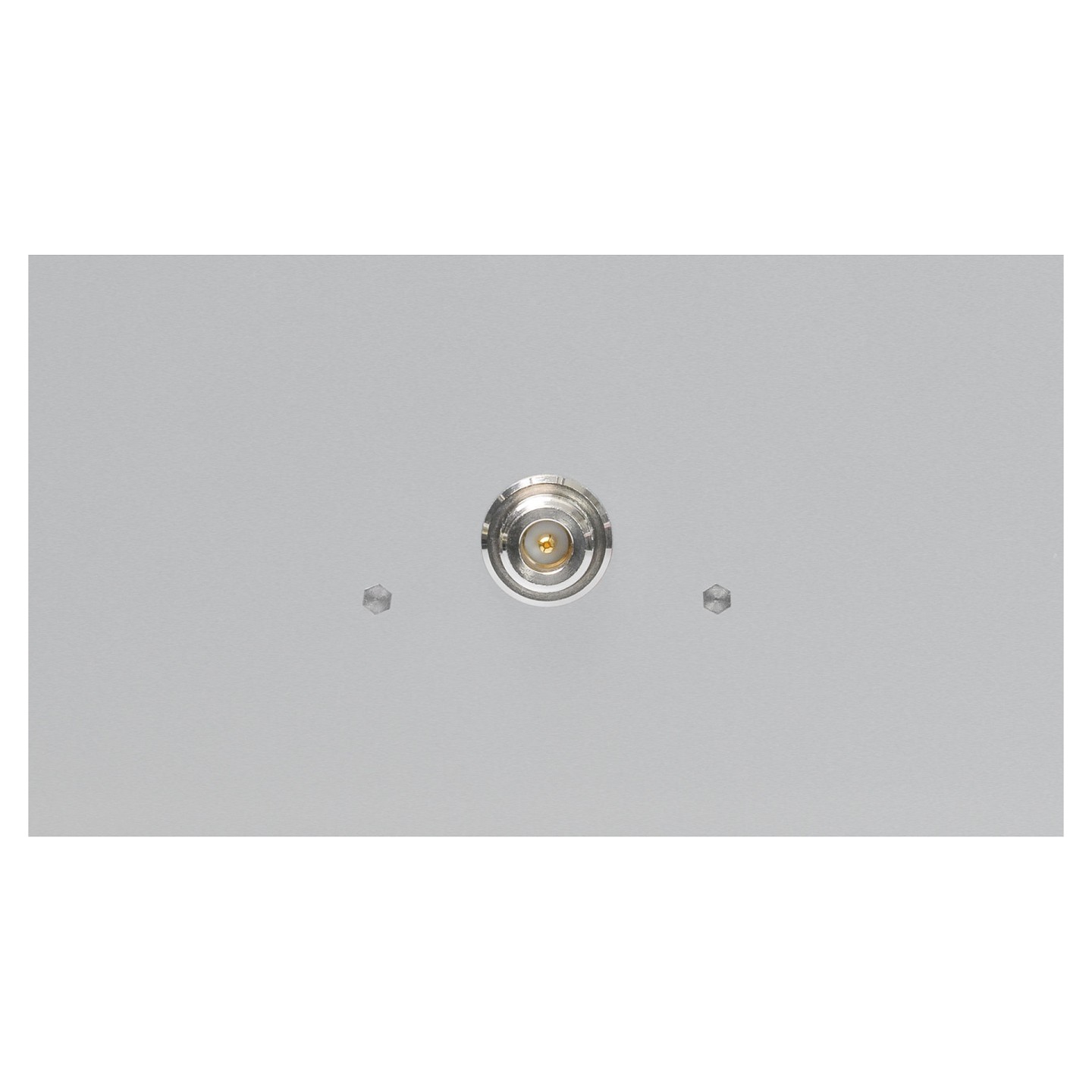

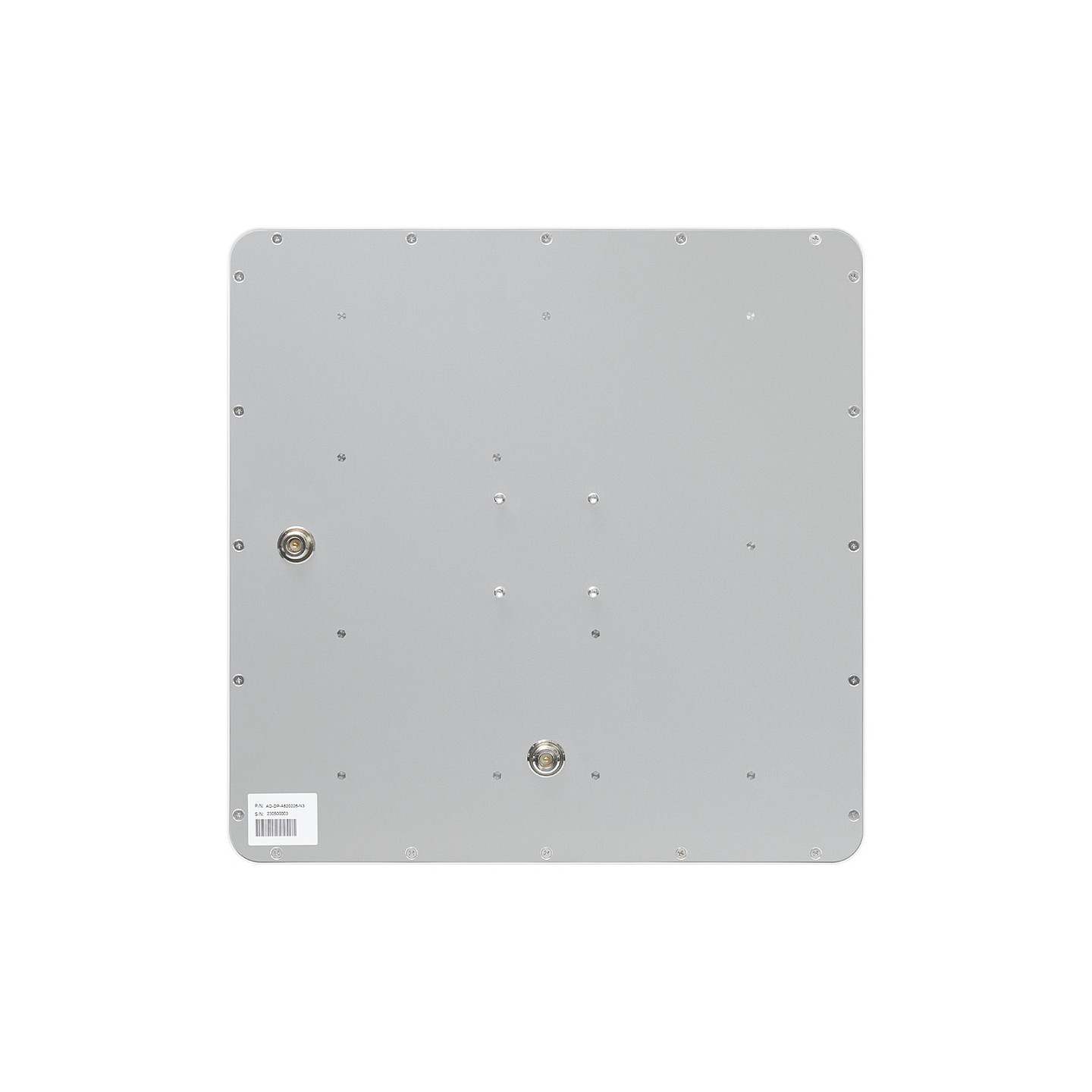

| Antenne Steckertyp | N-Typ |
| Polarisation | Doppelte lineare Polarisation |
| Spannung Stellung-Welle Verhältnis (VSWR) | 1.5:1 - 2.0:1 |
| Produktfarbe | Hellgrau |
| Gehäusematerial | Kunststoff |

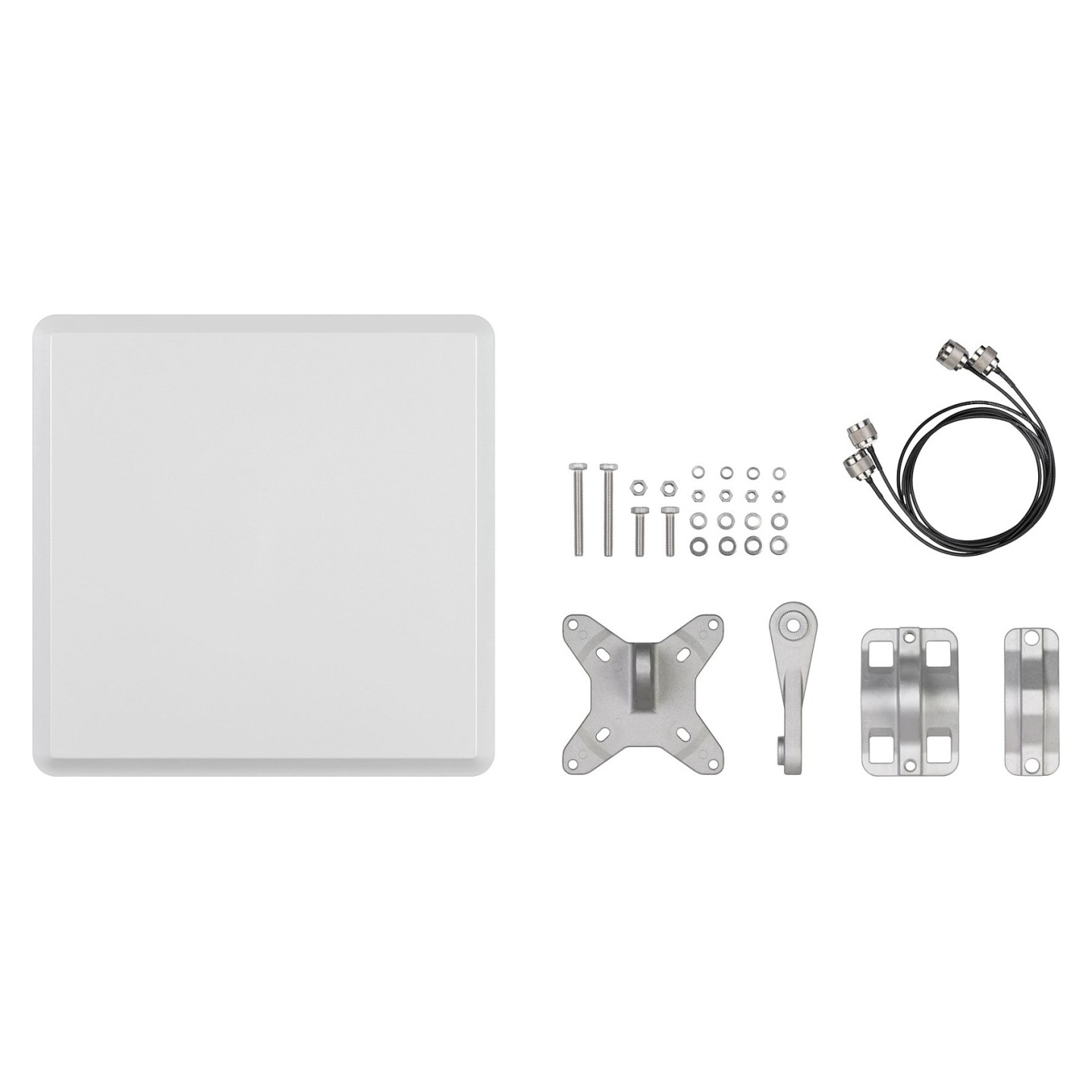

| Feature | Montageset |
| Kabellänge | 1 m |
| Kabeltyp | NP-NP |
| Montage | Wand- / Mast |
| Zweck | Innen & Außen |
| Kompatible Produkte | AirLancer NJ-NP. AirLancer AN-RPSMA-NJ. AirLancer SurgeProtect |
| Betriebstemperatur | -40 - 85 °C |
| Breite | 370 mm |
| Tiefe | 30 mm |
| Höhe | 370 mm |
| Gewicht | 1.9 kg |
| Verpackungsbreite | 385 mm |
| Verpackungstiefe | 385 mm |
| Verpackungshöhe | 105 mm |
| Paketgewicht | 2.8 kg |
| Menge pro Packung | 1 Stück(e) |
| Zolltarifnummer (TARIC) | 85177000 |
| Ursprungsland | Taiwan |
