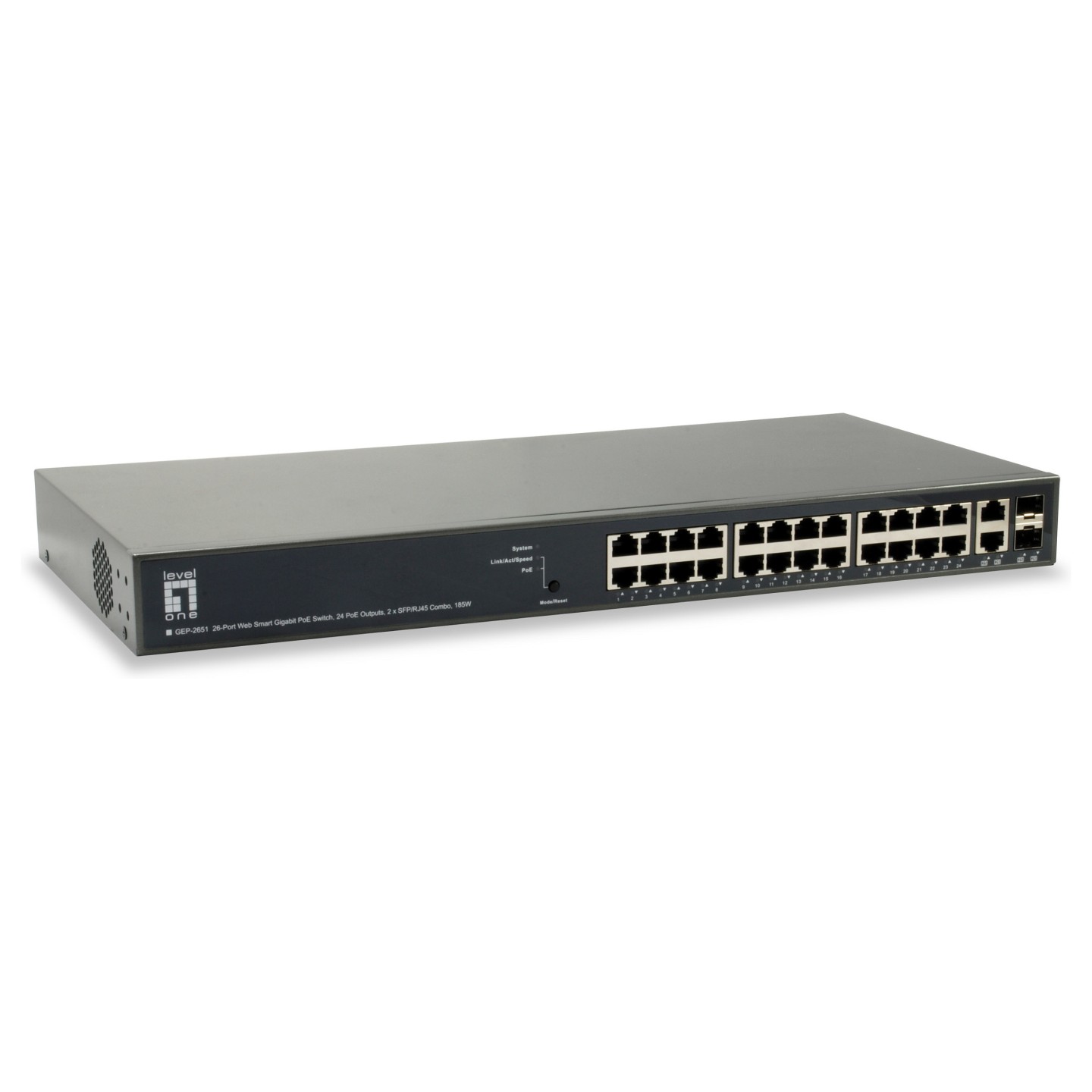

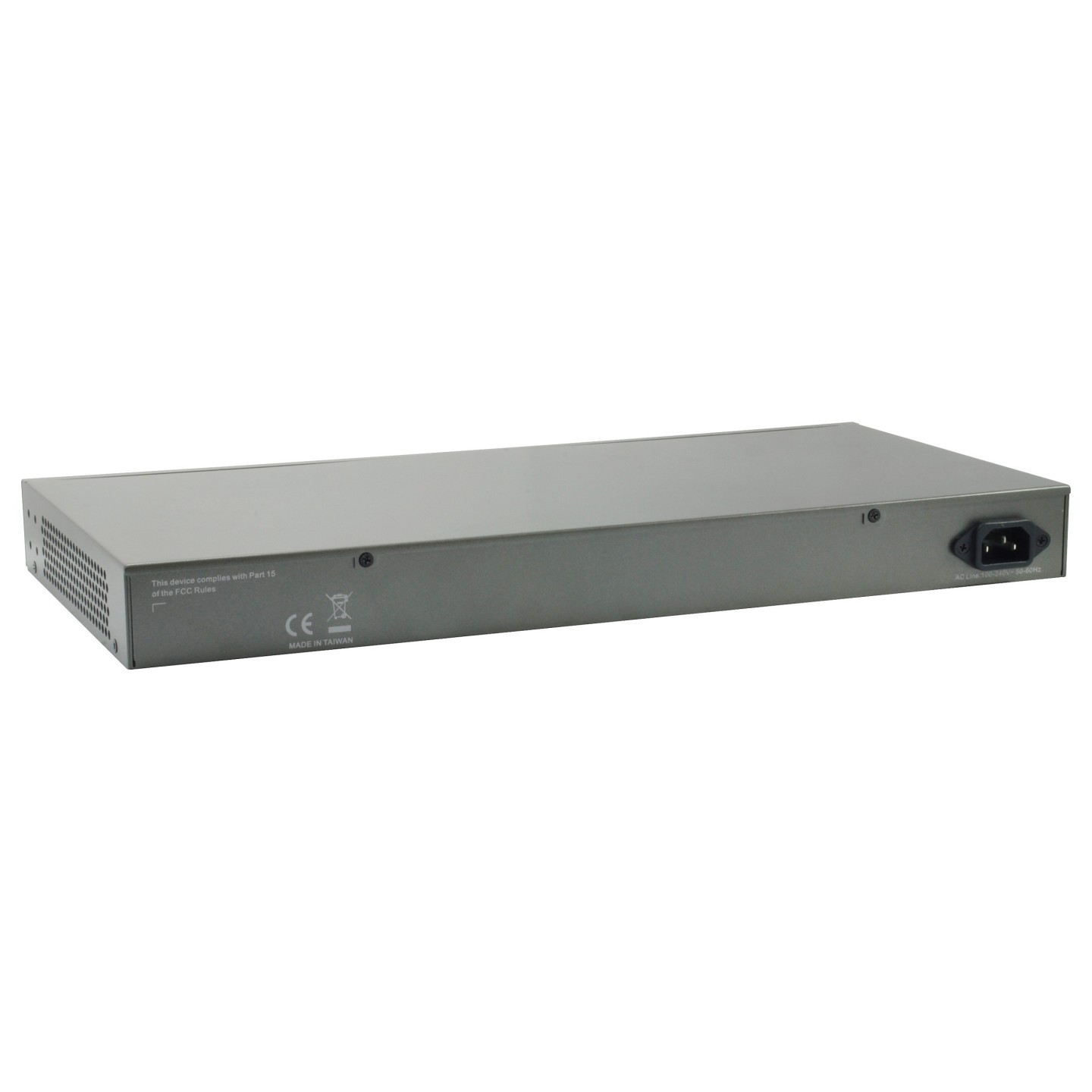

Switch 26x GE GEP-2651 2xGSFP 19' 185W 24xPoE+
LevelOne GEP-2651. Managed. L3. Gigabit Ethernet (10/100/1000). Power over Ethernet (PoE). Rack-Einbau
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne GEP-2651. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 24. MAC-Adressentabelle: 8000 Eintragungen. Routing-/Switching-Kapazität: 52 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE 802.3ab. IEEE.... Power over Ethernet (PoE). Rack-Einbau
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Betriebsanleitung |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 24 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 24 |
| Anzahl Combo-SPF-Anschlüsse | 2 |
| Kupfer Ethernet Verkabelungstechnologie | 100BASE-TX. 1000BASE-T |
| Virtuelle LAN-Funktionen | Tagged VLAN. MAC address-based VLAN. Port-based VLAN |
| Anzahl der VLANs | 256 |
| Ethernet-Kabel Verkablungstechnologie | 1000BASE-X |
| Routing-/Switching-Kapazität | 52 Gbit/s |
| Transferrate | 38.7 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Jumbo-Frames | 9600 |
| DHCP-Funktionen | DHCP server. DHCP snooping. DHCP client |
| Unterstützte Sicherheitsalgorithmen | 802.1x RADIUS |
| Unterstützte Netzwerkprotokolle | IPv4/IPv6 |
| Produktfarbe | Schwarz |
| LED-Anzeigen | Aktivität. Link. PoE. Geschwindigkeit |
| Sicherheit | UL 60950-1. 2nd Edition. 2014-10-14. CAN/CSA C22.2 No. 60950-1-07. 2nd Edition. 2014-10 |
| Speicherkapazität | 128 MB |
| Flash-Speicher | 32 MB |
| Puffergröße | 512 KB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 211272 h |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Stromverbrauch (Standardbetrieb) | 18.29 W |
| Anzahl Power over Ethernet plus (PoE+) Anschlüsse | 24 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 30 W |
| Gesamtleistung Power over Ethernet (PoE) | 185 W |
| Betriebstemperatur | 0 - 45 °C |
| Temperaturbereich bei Lagerung | -20 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 10 - 90% |
| Breite | 442 mm |
| Tiefe | 211 mm |
| Höhe | 44 mm |
| Gewicht | 3.1 kg |
| Mitgelieferte Kabel | AC |
| Verpackungsbreite | 300 mm |
| Verpackungstiefe | 520 mm |
| Verpackungshöhe | 90 mm |
| Paketgewicht | 3.5 kg |
| Zertifizierung | CE. FCC Part 15 Class A. RoHS |
| Ursprungsland | Taiwan |
| Breite des Versandkartons | 482 mm |
| Länge des Versandkartons | 540 mm |
| Höhe des Versandkartons | 324 mm |
| Warentarifnummer (HS) | 85176990 |
| Gewicht Versandkarton | 21 kg |
| Anzahl Produkte pro Versandkarton | 5 Stück(e) |
