Antenne omni-direktional innen außen 2.4GHzDualBand
LevelOne OAN-4058. 8 dBi. 2.4 - 5 GHz. IEEE 802.11a. IEEE 802.11ac. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. 5 / 8 dBi. 5 dBi. 8 dBi
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne OAN-4058. Antenne Zunahmeniveau (max): 8 dBi. Frequenzband: 2.4 - 5 GHz. Netzstandard: IEEE 802.11a. IEEE 802.11ac. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. Antennentyp: Omnidirektionale Antenne. Antenne Steckertyp: N-Typ. Steckerverbindergeschlecht: Weiblich. Breite: 22 mm. Tiefe: 203 mm. Höhe: 22 mm. Verpackungsbreite: 70 mm. Verpackungstiefe: 60 mm. Verpackungshöhe: 265 mm. Menge pro Packung: 1 Stück(e)
| Frequenzband | 2.4 - 5 GHz |
| Netzstandard | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n |
| Verstärkung dBi (bei Antennenkabel) | 5 / 8 dBi |
| Antenna Zuwachs (2.4 GHz) | 5 dBi |
| Antenna Zuwachs (5 GHz) | 8 dBi |
| Impedanz | 50 Ohm |
| Horizontale beam Weite (2.4 GHz) | 360° |
| Vertikale beam Weite (2.4 GHz) | 51.7° |
| Horizontale beam Weite (5 GHz) | 360° |
| Vertikale beam Weite (5 GHz) | 27.7° |
| Antenne Zunahmeniveau (max) | 8 dBi |
| Antennentyp | Omnidirektionale Antenne |

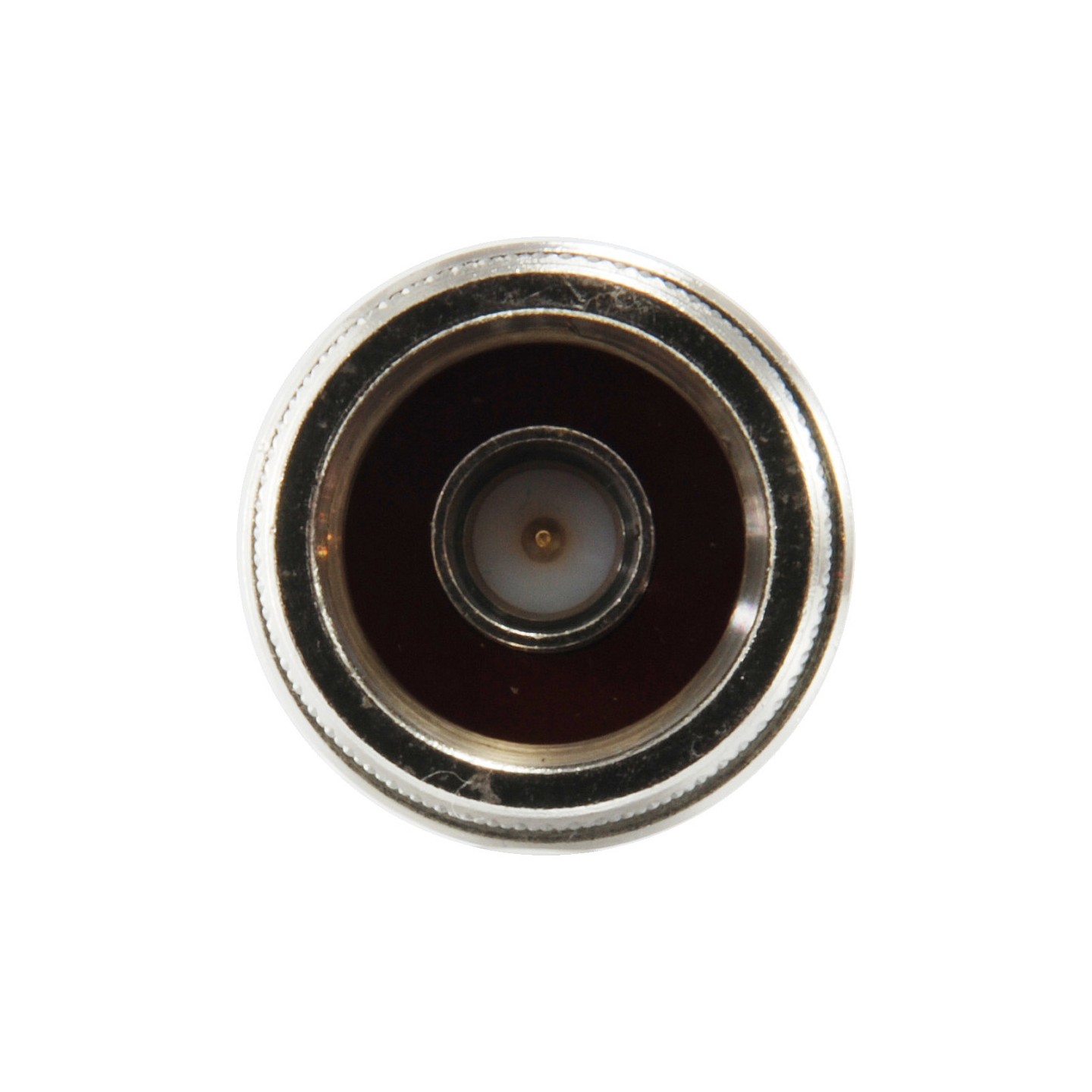

| Antenne Steckertyp | N-Typ |
| Steckerverbindergeschlecht | Weiblich |
| Polarisation | Vertikale Polarisation |
| Spannung Stellung-Welle Verhältnis (VSWR) | 2 |
| Produktfarbe | Weiß |
| Betriebstemperatur | -30 - 60 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Breite | 22 mm |
| Tiefe | 203 mm |
| Höhe | 22 mm |
| Gewicht | 860 g |
| Verpackungsbreite | 70 mm |
| Verpackungstiefe | 60 mm |
| Verpackungshöhe | 265 mm |
| Paketgewicht | 192 g |
| Verpackungsart | Sichtverpackung |
| Menge pro Packung | 1 Stück(e) |
| Warentarifnummer (HS) | 85177100 |
| Ursprungsland | Taiwan |
| Breite des Versandkartons | 480 mm |
| Länge des Versandkartons | 560 mm |
| Höhe des Versandkartons | 290 mm |
| Gewicht Versandkarton | 11 kg |
| Volumen Hauptkarton | 50 cm³ |
| Anzahl Produkte pro Versandkarton | 50 Stück(e) |
