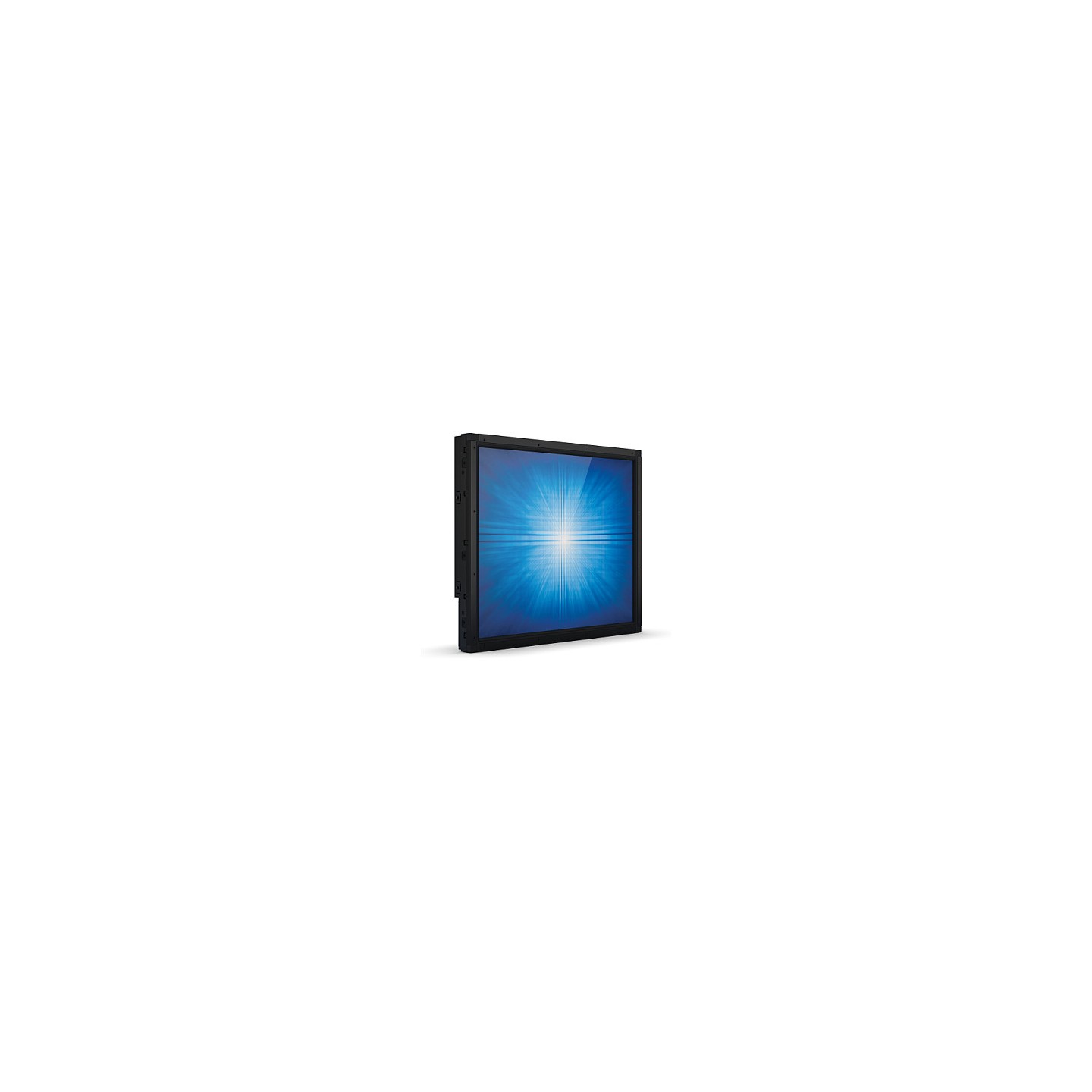

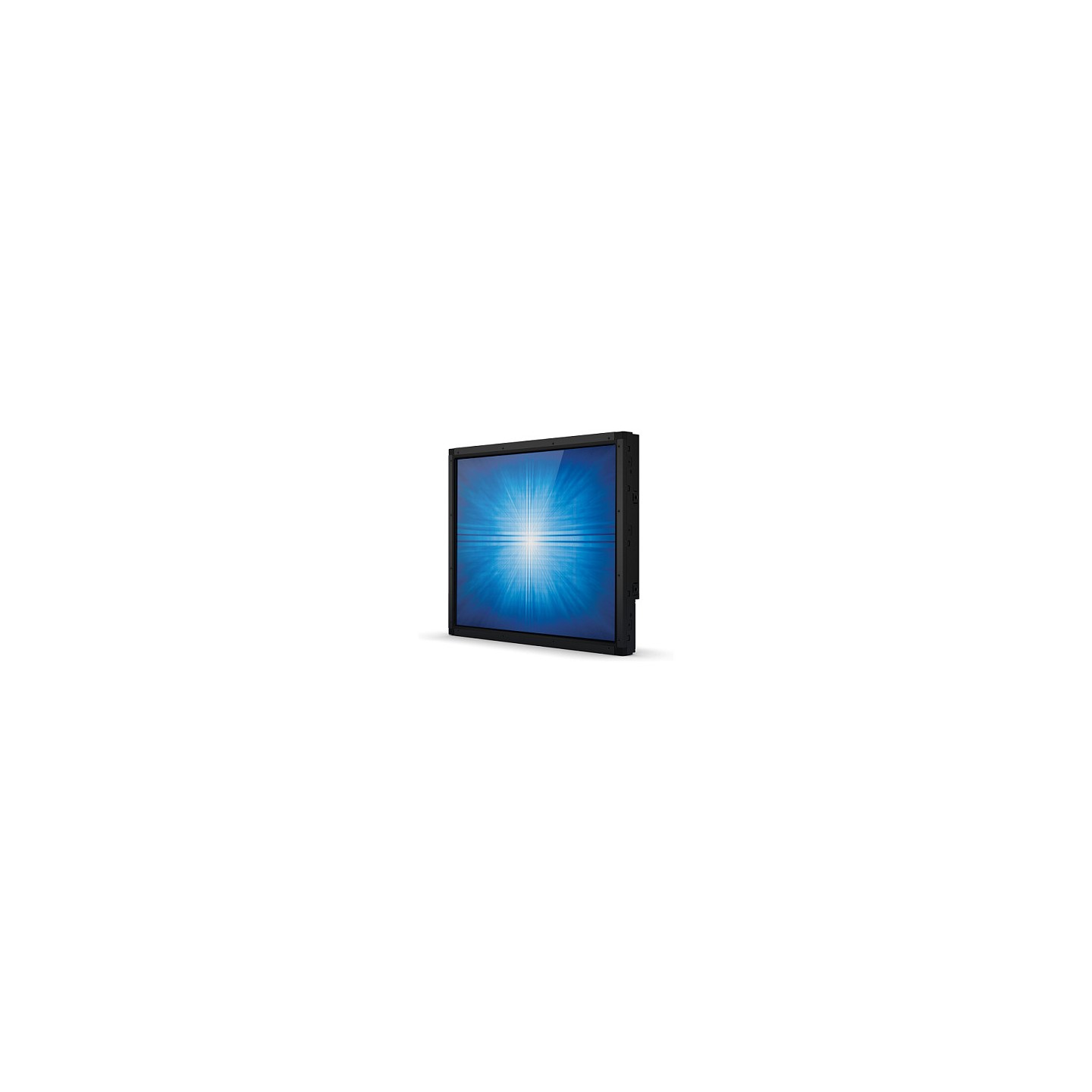

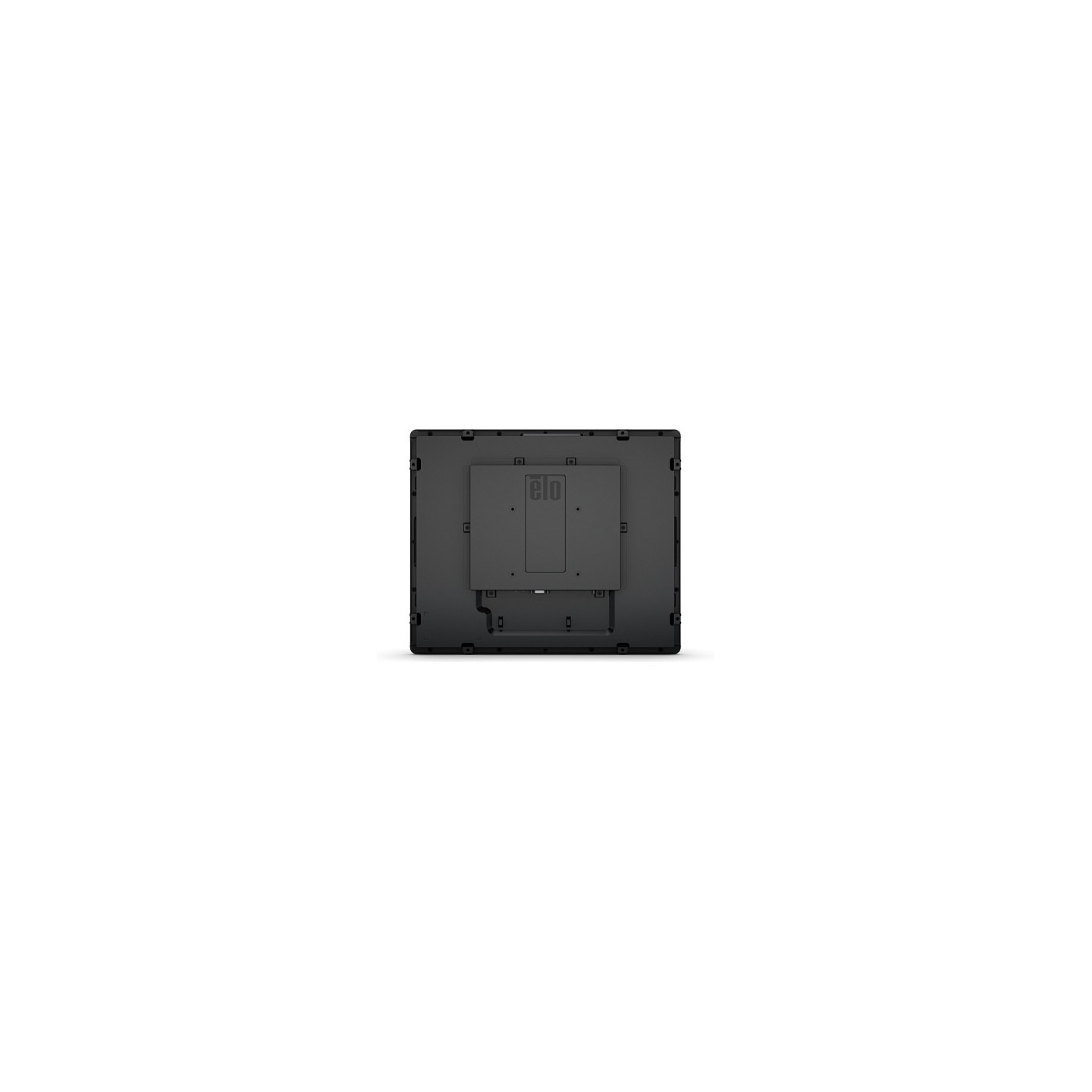

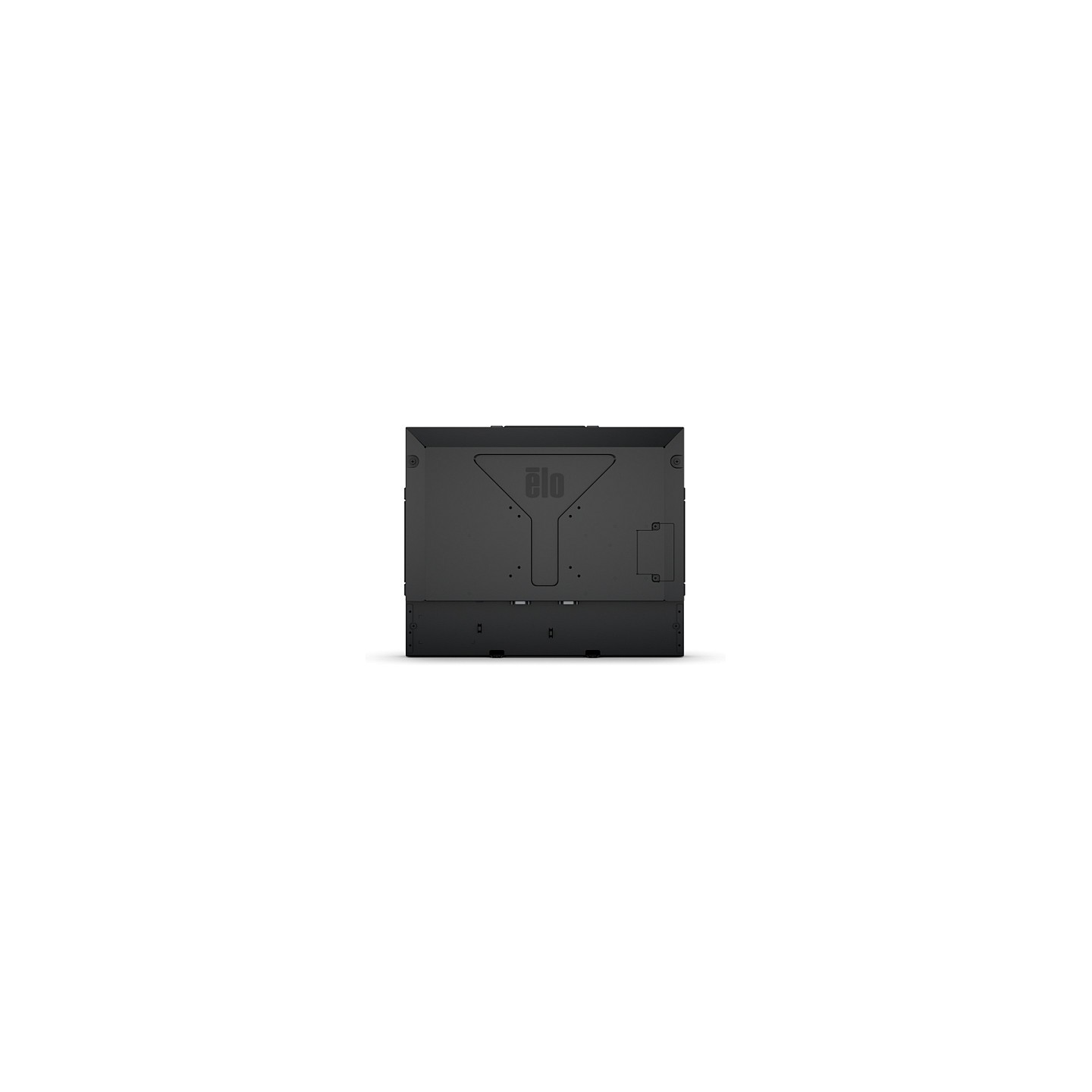

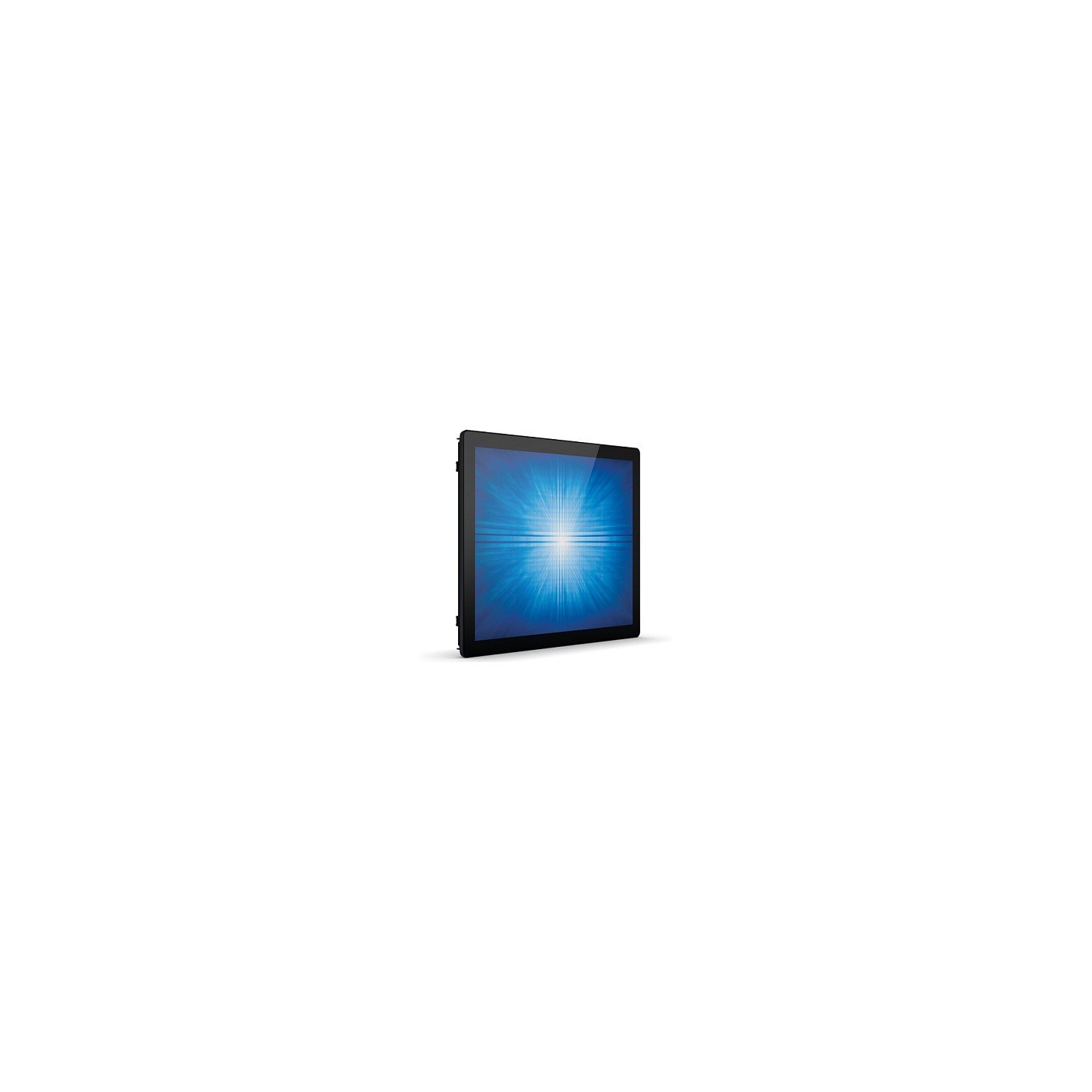

Elo Touch Solutions 19' Elo Open-Frame OpenFrame Touchmonitors 1990L (E330817)
Elo Touch Solutions 1990L. 48.3 cm (19"). LED. 1280 x 1024 Pixel
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Elo Touch Solutions 1990L. Bildschirmdiagonale: 48.3 cm (19"). Bildschirmtechnologie: LED. Display-Auflösung: 1280 x 1024 Pixel. Helligkeit: 225 cd/m². Touchscreen. Produktfarbe: Schwarz
| Bildschirmdiagonale | 48.3 cm (19") |
| Bildschirmtechnologie | LED |
| Display-Auflösung | 1280 x 1024 Pixel |
| Helligkeit | 225 cd/m² |
| Feature | Wandmontage |
| Touchscreen Technologie | Projizierts Kapazitivsystem |
| Reaktionszeit | 5 ms |
| Kontrastverhältnis | 1000:1 |
| Bildwinkel. horizontal | 170° |
| Bildwinkel. vertikal | 160° |
| Anzahl der Farben des Displays | 16.78 Millionen Farben |
| Horizontaler Scanbereich | 30 - 82 kHz |
| Vertikaler Scanbereich | 50 - 75 Hz |
| Unterstützte Grafik-Auflösungen | 640 x 480 (VGA). 720 x 400. 800 x 600 (SVGA). 1024 x 768 (XGA). 1280 x 1024 (SXGA). 1280 x 800 (WXGA) |
| Anzahl DisplayPort Anschlüsse | 1 |
| Produktfarbe | Schwarz |
| Bildschirmform | Flach |
| Panel-Montage-Schnittstelle | 100 x 100 mm |
| Anzahl OSD-Sprachen | 8 |
| Menüsprachen | Vereinfachtes Chinesisch. Traditionelles Chinesisch. Deutsch. Englisch. Spanisch. Französisch. Italienisch. Japanisch |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 50000 h |
| Stromverbrauch (Standardbetrieb) | 22 W |
| Stromverbrauch (Standby) | 1.5 W |
| Stromverbrauch (aus) | 0.5 W |
| AC Eingangsspannung | 230 V |
| AC Eingangsfrequenz | 50 Hz |
| Verpackungsbreite | 526 mm |
| Verpackungstiefe | 450 mm |
| Verpackungshöhe | 190 mm |
| Paketgewicht | 7 kg |
| Mitgelieferte Kabel | HDMI. USB. VGA |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 20 - 80% |
| Temperaturbereich bei Lagerung | -20 - 60 °C |
| Luftfeuchtigkeit bei Lagerung | 10 - 95% |
| Höhe bei Betrieb | 0 - 3.048 m |
| Warentarifnummer (HS) | 85285210 |
| Seitenverhältnis | 5:4 |
| Display. sichtbarer Bereich BxH | 376.32 x 301.06 mm |
| Höhe (ohne Standfuß) | 342.7 mm |
| Gewicht (ohne Standfuß) | 4.6 kg |
| Tiefe (ohne Standfuß) | 50 mm |
| Netzteiltyp | Gleichstrom |
