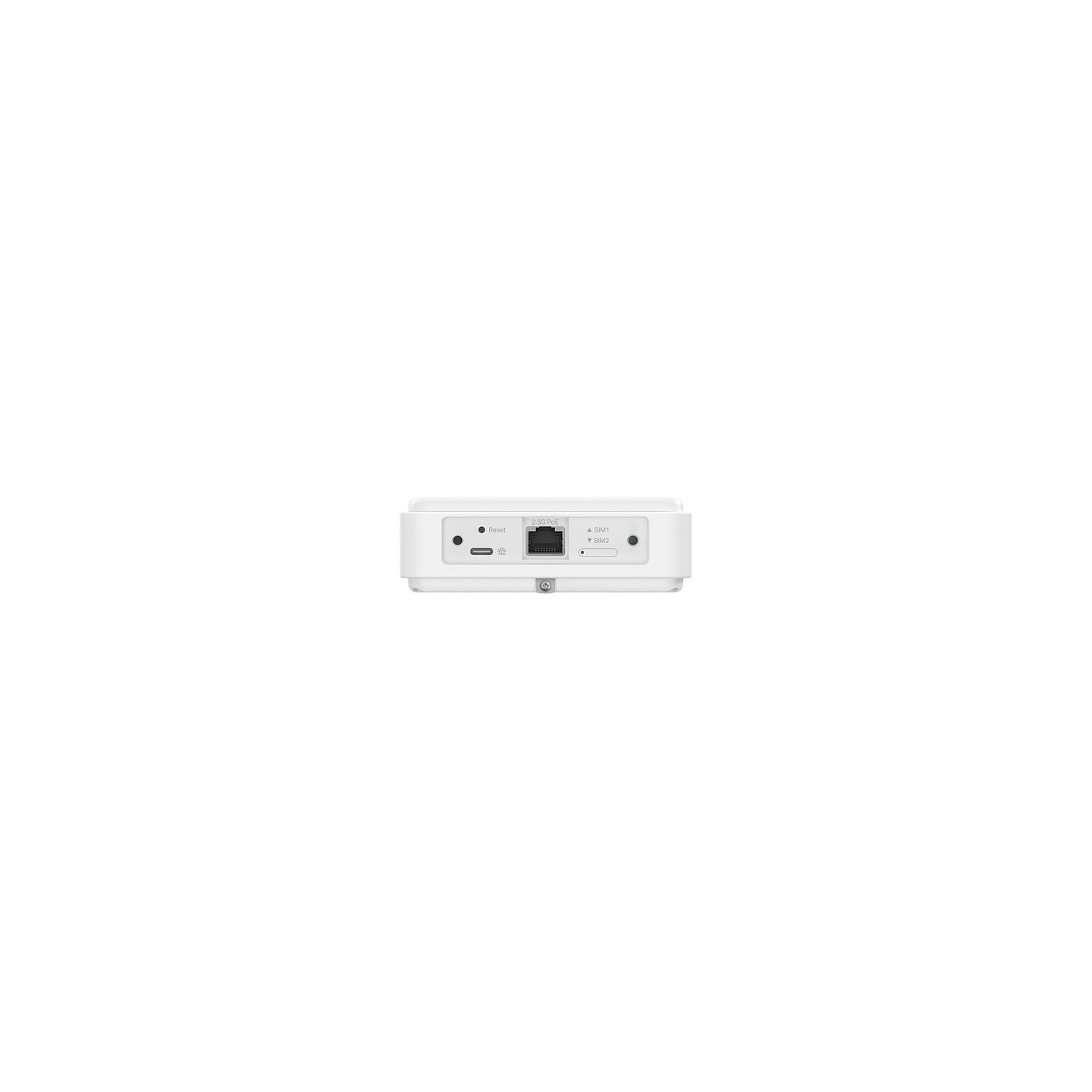

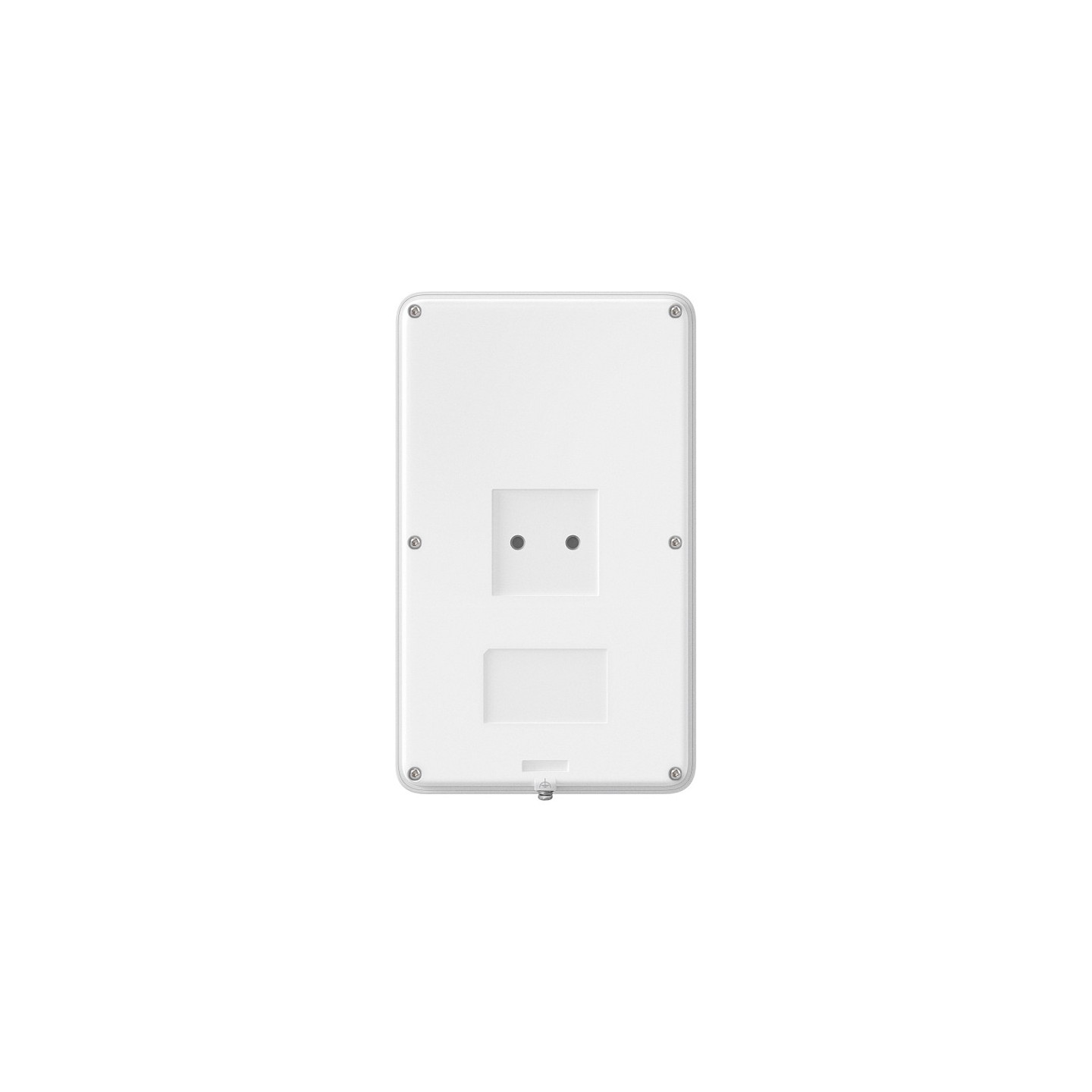

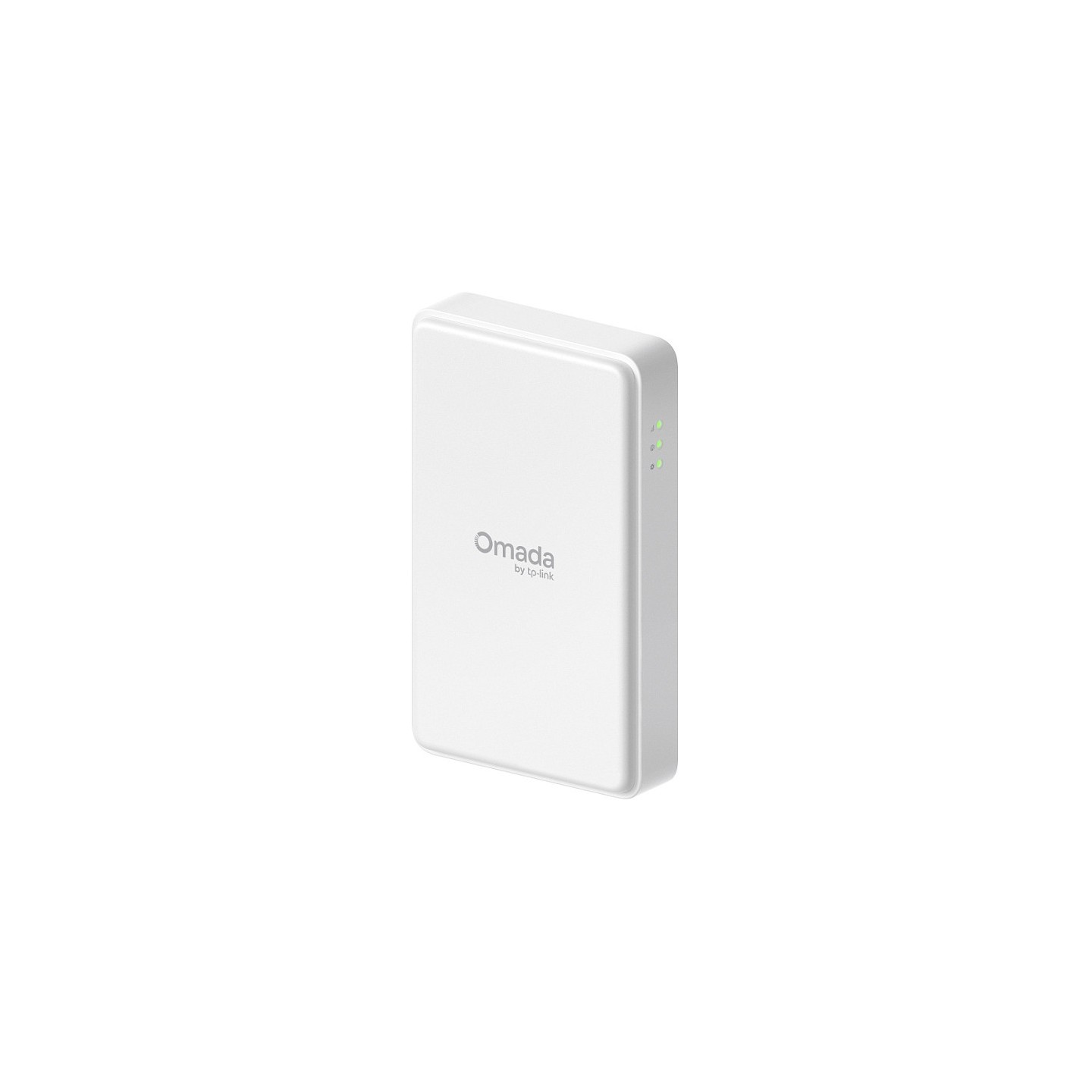

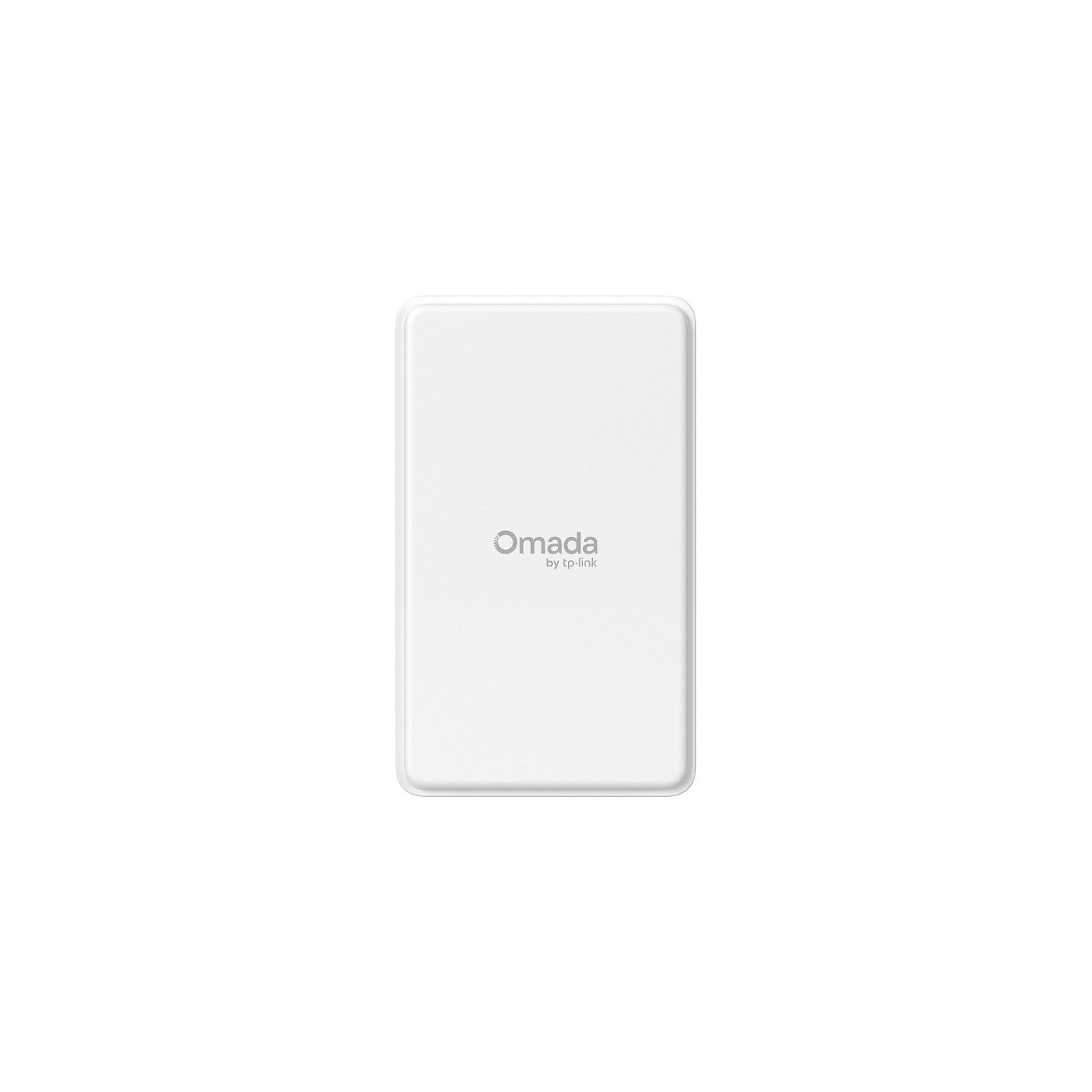

Omada ER701-5G-Outdoor 5G Outdoor Gateway
OMADA ER701-5G-Outdoor. Gateway für Mobilfunknetzwerk. Weiß. Stangen-/Wand-/Fenstermontage. Netzwerk. Signalstärke. System. 2.5 Gigabit Ethernet. 10.100.1000.2500 Mbit/s
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
OMADA ER701-5G-Outdoor. Gerätetyp: Gateway für Mobilfunknetzwerk. Produktfarbe: Weiß. Montage: Stangen-/Wand-/Fenstermontage. Schnittstellentyp Ethernet-LAN: 2.5 Gigabit Ethernet. Ethernet LAN Datentransferraten: 10.100.1000.2500 Mbit/s. Netzstandard: IEEE 802.1Q. IEEE 802.3at. WLAN-Standards: 802.11b. 802.11g. Wi-Fi 4 (802.11n). WLAN-Band: Einzelband (2.4GHz). Datennetzwerk: 3G. 4G. 5G. 3G-Standards: WCDMA. 4G-Standards: LTE-TDD & LTE-FDD. Unterstützte Sicherheitsalgorithmen: WPA-Personal. WPA2-Personal
| Gerätetyp | Gateway für Mobilfunknetzwerk |
| Produktfarbe | Weiß |
| Montage | Stangen-/Wand-/Fenstermontage |
| Feature | Unterstützt Mac-Betriebssysteme |
| LED-Anzeigen | Netzwerk. Signalstärke. System |
| Schnittstellentyp Ethernet-LAN | 2.5 Gigabit Ethernet |
| Ethernet LAN Datentransferraten | 10.100.1000.2500 Mbit/s |
| Netzstandard | IEEE 802.1Q. IEEE 802.3at |
| WLAN-Standards | 802.11b. 802.11g. Wi-Fi 4 (802.11n) |
| WLAN-Band | Einzelband (2.4GHz) |
| Datennetzwerk | 3G. 4G. 5G |
| 3G-Standards | WCDMA |
| 4G-Standards | LTE-TDD & LTE-FDD |
| 5G-Standard | NR |
| unterstützte 3G-Bandbreiten | 850.900.2100 MHz |
| unterstützte 4G-Bandbreiten | 700.800.850.900.1500.1800.2100.2600 MHz |
| 5G-Bänder unterstützt | 700.800.850.900.1450.1500.1800.2100.2300.2500.2600.3500.3700 MHz |
| Anzahl SIM-Karten | 2 |
| SIM-Kartentyp | NanoSIM |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Unterstützte Sicherheitsalgorithmen | WPA-Personal. WPA2-Personal |
| Konformitätsbescheinigungen | BSMI. CE. NCC. RoHS |
| Antennentyp | Intern & extern |
| Anzahl der Antennen | 10 |
| Internationale Schutzart (IP-Code) | IP66 |
| Unterstützt Windows-Betriebssysteme | Windows 10. Windows 11. Windows 2000. Windows 7. Windows 8. Windows 8.1. Windows 98SE. Windows NT. Windows Vista. Windows XP |
| Energiequelle | PoE |
| Ausgangsspannung | 42 - 57 V |
| Betriebstemperatur | -30 - 60 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Breite | 110 mm |
| Tiefe | 36 mm |
| Höhe | 183 mm |
