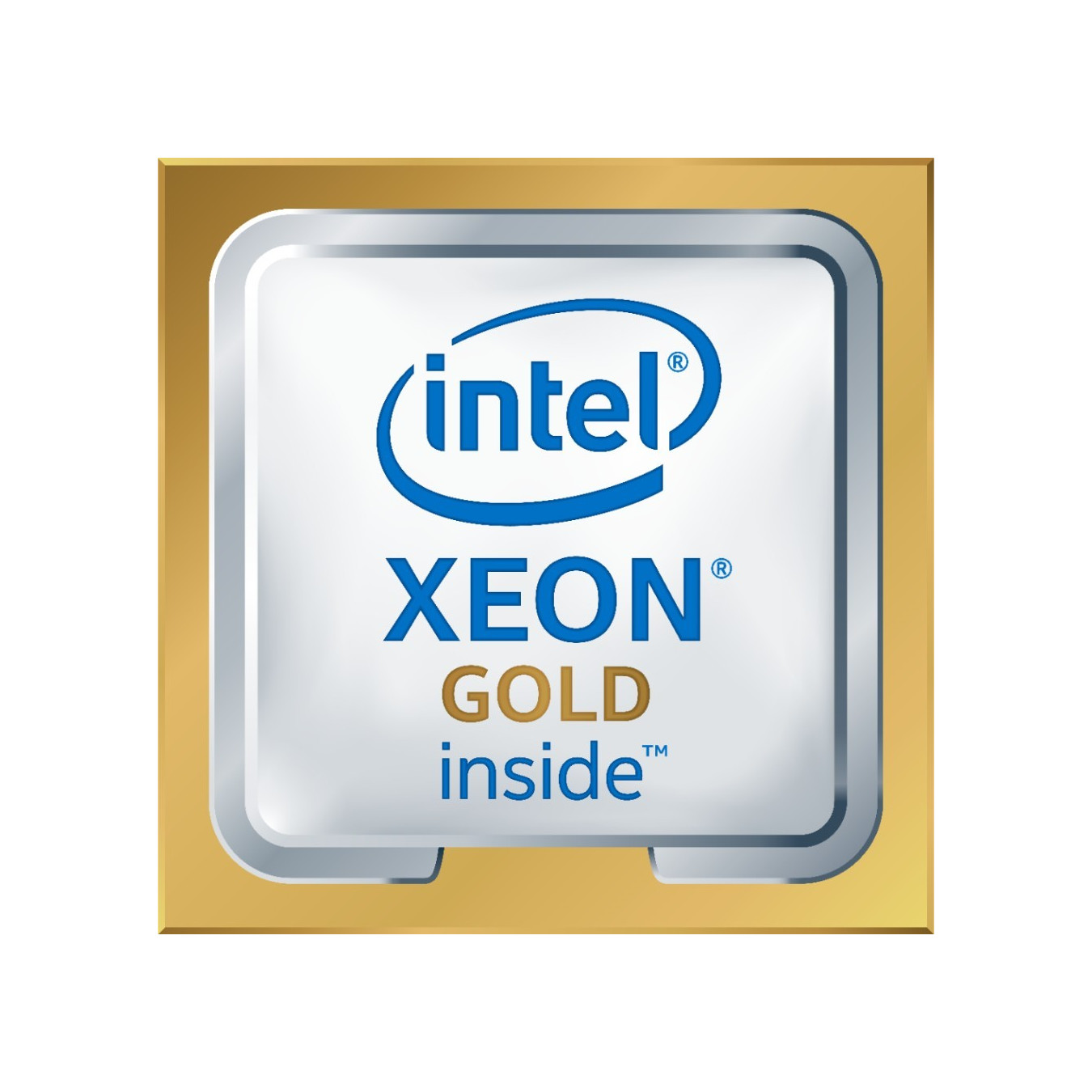

Intel Xeon Gold 6248 - 20 cores / 40 threads, 2.5GHz (3.9GHz Turbo) - LGA3647, 27.5MB Cache, 150W, DDR4 (Tray)
Intel Xeon Gold 6248 server CPU — 20 cores / 40 threads, 2.5GHz base (3.9GHz boost), 27.5MB cache, 150W TDP, hexa-channel DDR4, LGA3647 (tray).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| CPU (Processors) - Unlocked/Overclockable | No |
|---|---|
| CPU (Processors) - Cooler Included | No |
Intel Xeon 6248. Processor family: Intel® Xeon® Gold. Processor socket: LGA 3647 (Socket P). Processor lithography: 14 nm. Memory channels: Hexa-channel. Maximum internal memory supported by processor: 1.02 TB. Memory types supported by processor: DDR4-SDRAM. Market segment: Server. Supported instruction sets: SSE4.2. AVX. AVX 2.0. AVX-512. Scalability: 4S. Package width: 43 mm. Package depth: 137 mm. Package height: 112 mm. Processor package size: 76mm x 56.5mm
| Processor manufacturer | Intel |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 6248 |
| Processor base frequency | 2.5 GHz |
| Processor family | Intel® Xeon® Gold |
| Processor cores | 20 |
| Processor socket | LGA 3647 (Socket P) |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor threads | 40 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.9 GHz |
| Processor cache | 27.5 MB |
| Thermal Design Power (TDP) | 150 W |
| Package type | Box. Tray |
| Processor codename | Cascade Lake |
| Processor ARK ID | 192446 |
| Maximum internal memory supported by processor | 1.02 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2933 MHz |
| Memory channels | Hexa-channel |
| Feature | Intel® Optane™ DC Persistent Memory technology |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | SSE4.2. AVX. AVX 2.0. AVX-512 |
| Scalability | 4S |
| PCI Express CEM revision | 3.0 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Intel® Turbo Boost Technology | 2.0 |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Tcase | 86 °C |
| Launch date | Q2'19 |
| Product type | Processor |
| Status | Launched |
| Supported memory types | DDR4-SDRAM |
| Memory speed (max) | 2933 MHz |
| Number of UPI links | 3 |
| Servicing status | Baseline Servicing |
| Harmonized System (HS) code | 85423119 |
| Package width | 43 mm |
| Package depth | 137 mm |
| Package height | 112 mm |
| Package weight | 201 g |
| Processor package size | 76mm x 56.5mm |
| Maximum internal memory | 1 TB |
