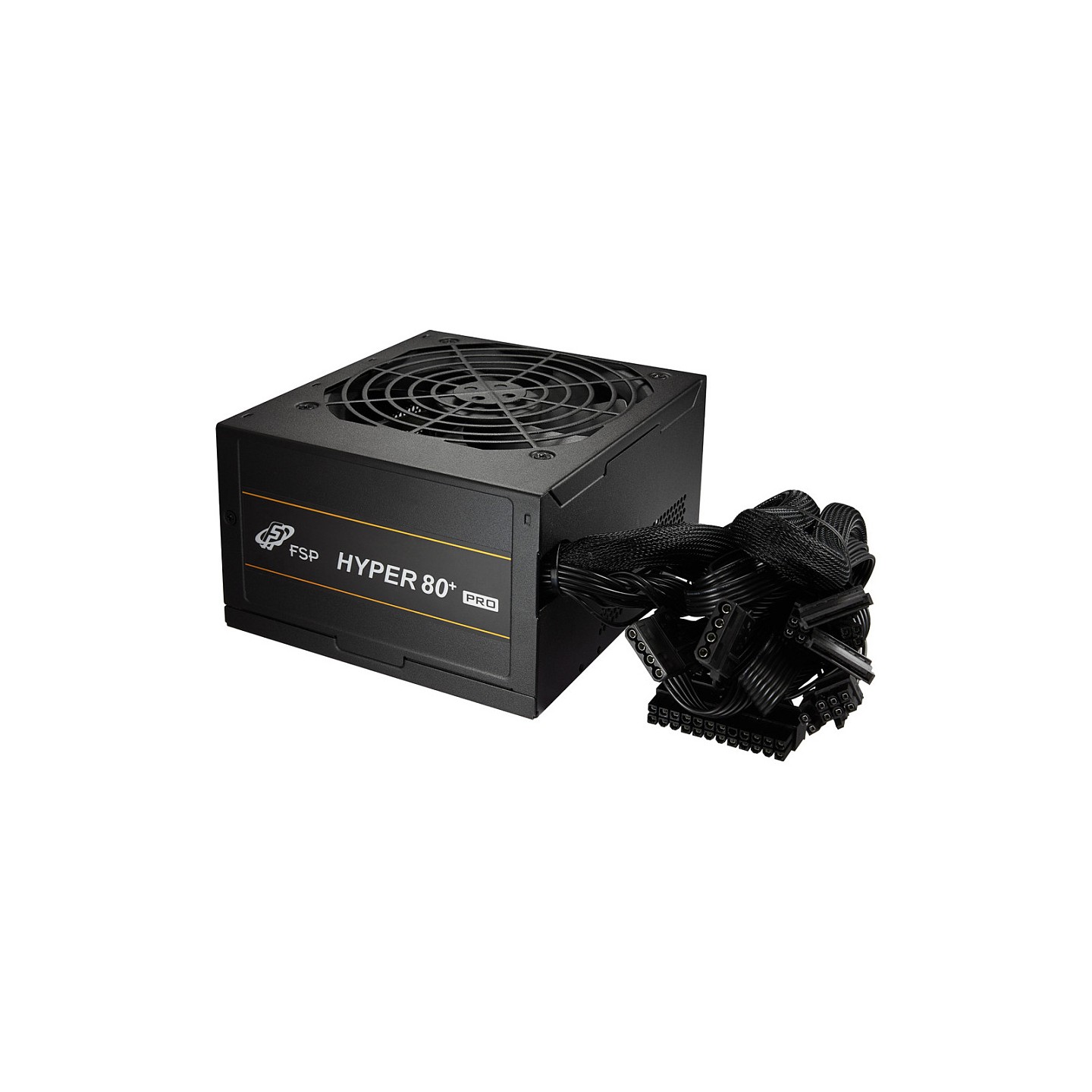

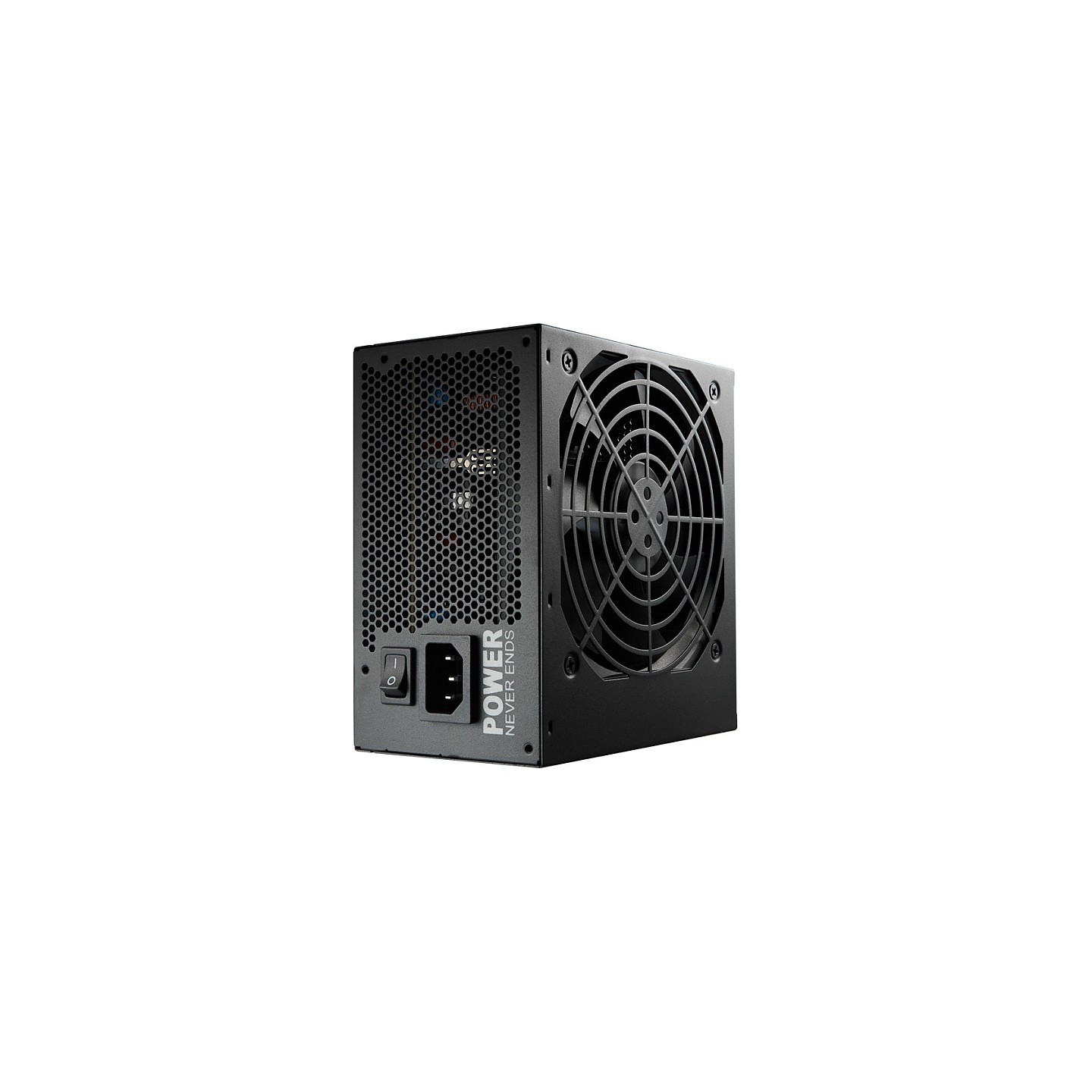

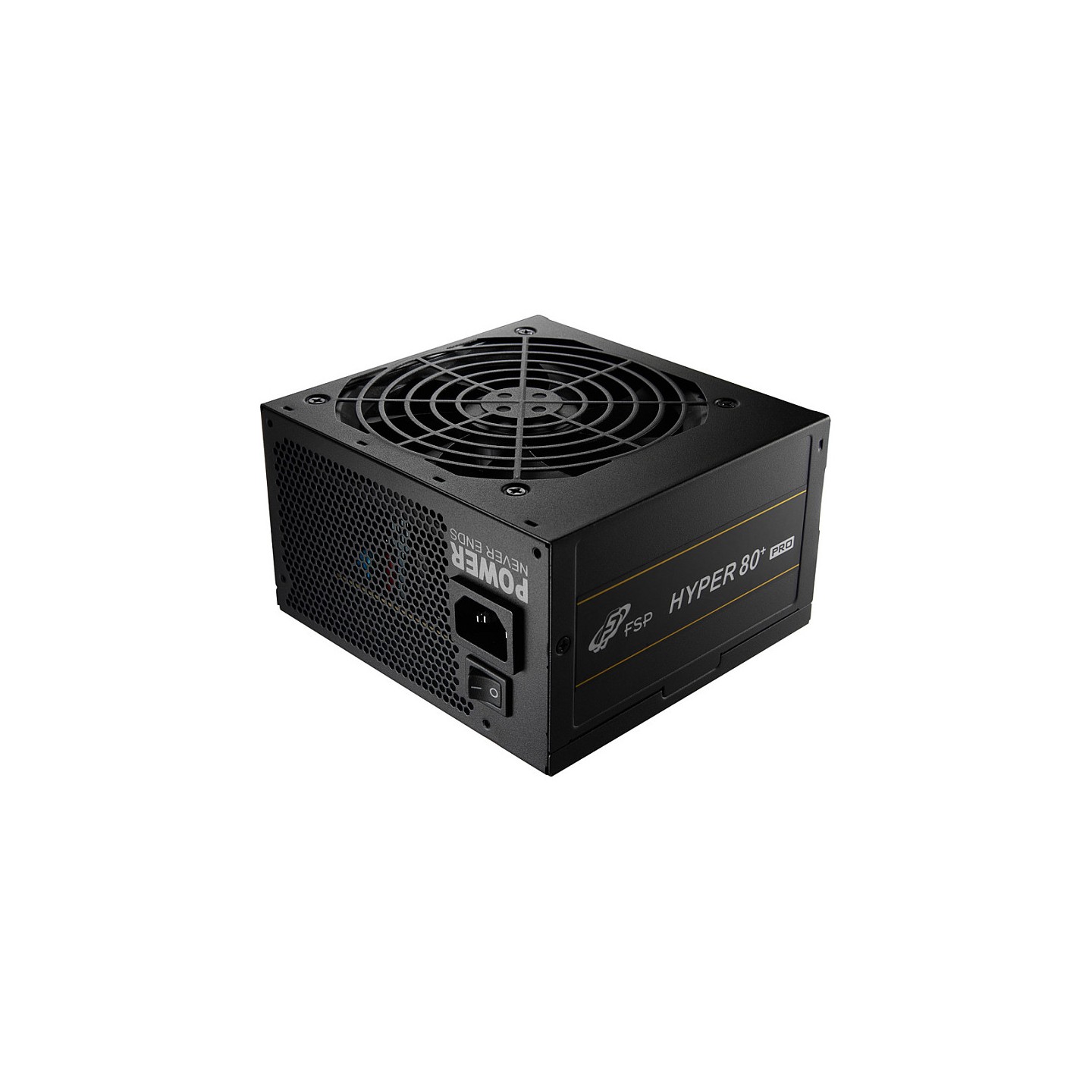

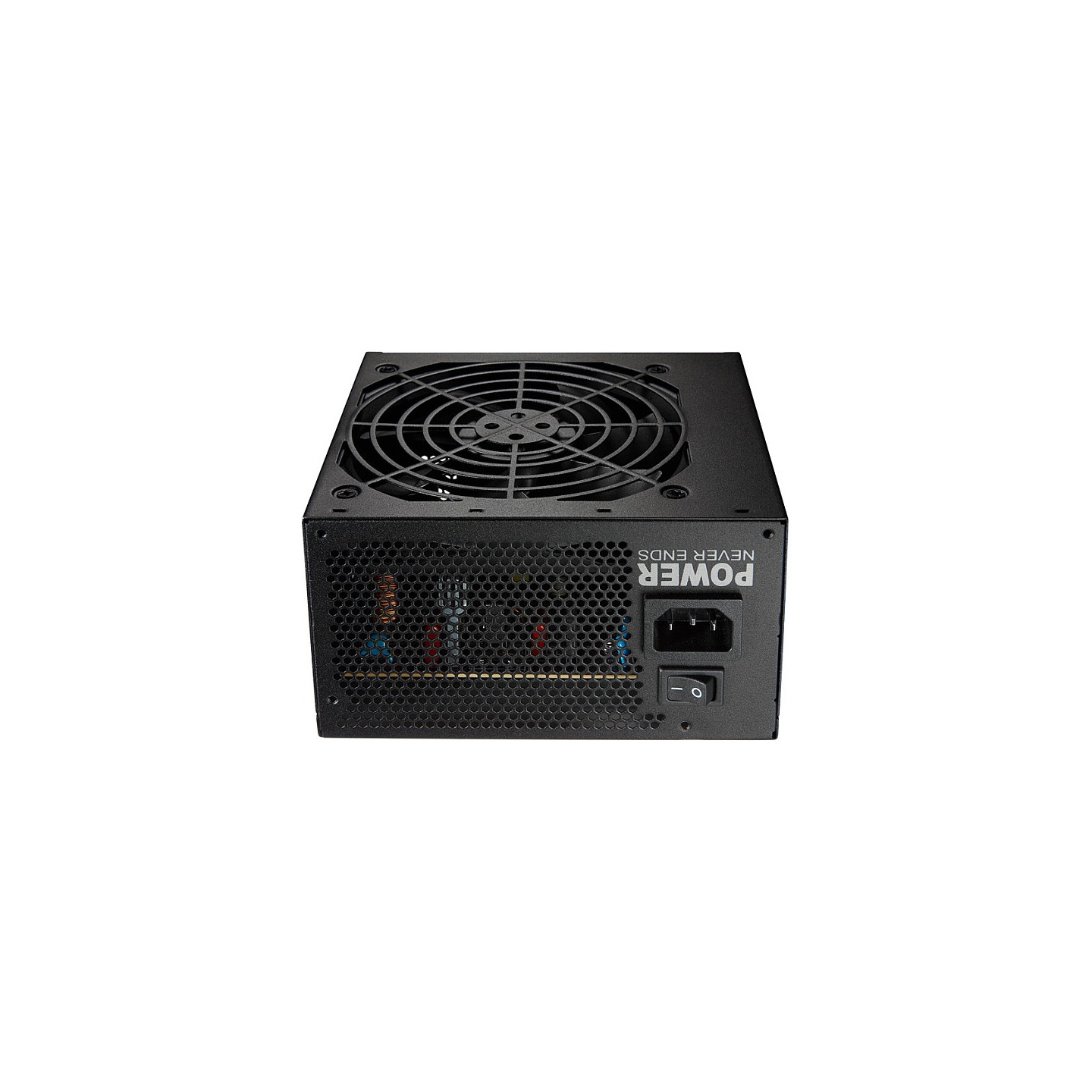

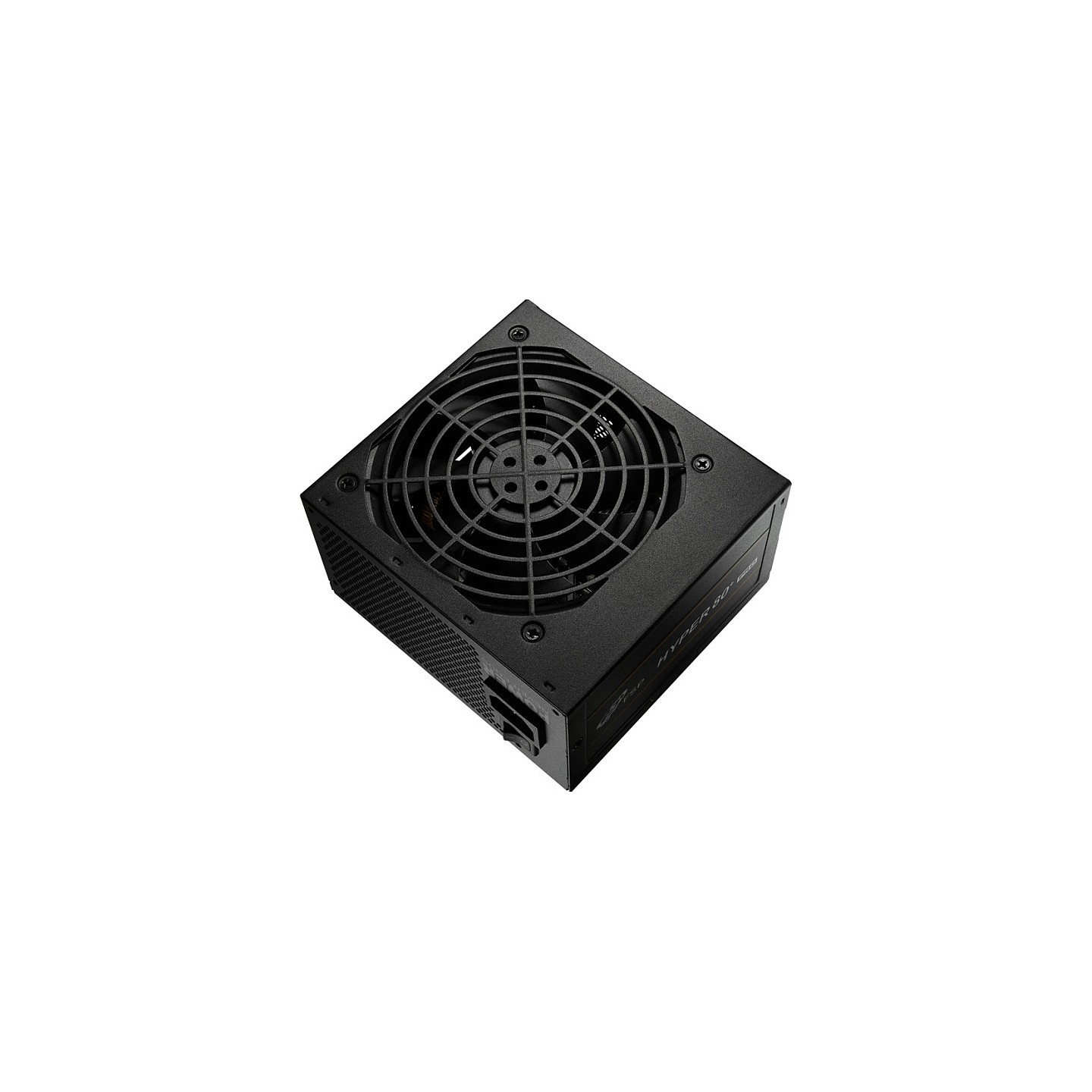

550W FSP Hyper PRO 80+ Bronze ATX 3.1 - 80PLUS Bronze PSU (Boxed)
FSP Hyper PRO 550W 80+ Bronze ATX 3.1 PSU. Non-modular, active 120mm fan cooling. Supports 549.6W on +12V rail, 2x PCIe 6+2pin, 1x EPS 4+4pin. Black ATX design with 85% efficiency for reliable PC power.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 500 - 599 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The FSP Hyper PRO 550W 80+ Bronze is a reliable ATX 3.1 compliant power supply unit designed for modern PC builds. Delivering 550W total power with 85% efficiency at typical loads, it features a powerful 549.6W on the +12V rail suitable for mid-range gaming systems and workstations. The non-modular design ensures all essential cables are included: 24-pin ATX motherboard connector, 1x 4+4pin EPS for CPU, 2x 6+2pin PCIe for GPUs, 5x SATA, 2x Molex, and 1x floppy adapter.
Equipped with a quiet 120mm active fan and comprehensive protections (OCP, OPP, OVP, SCP), this black PSU measures 150x86x140mm and weighs 1.25kg net. It operates on 200-240V input with 0.9 power factor and active PFC. Certified IEC 62368 and ErP compliant for energy efficiency.
- Key Connectors: 1x 24-pin ATX, 1x 4+4pin EPS/ATX12V, 2x 6+2pin PCIe, 5x SATA, 2x 4-pin Molex, 1x Floppy
- Protections: Over Current, Over Load, Over Voltage, Short Circuit
- Cooling: 120mm fan, active cooling
- Efficiency: 80 PLUS Bronze (85% at 50% load)
| Total Power | 550 W |
| Input Voltage | 200 - 240 V |
| Input Current | 4.5 A |
| Power Factor | 0.9 |
| PFC | Active |
| +12V Rail Power | 549.6 W |
| Max +12V Current | 45.8 A |
| Max +3.3V Current | 16 A |
| Max +5V Current | 16 A |
| Max -12V Current | 0.3 A |
| Max +5Vsb Current | 2.5 A |
| Hold-up Time | 17 ms |
| Efficiency | 85% |
| Protections | Over Current, Over Load, Over Voltage, Short Circuit |
| Motherboard Connector | 24-pin ATX |
| SATA Connectors | 5 |
| Molex 4-pin | 2 |
| PCIe 6+2pin | 2 |
| Floppy Connector | 1 |
| EPS Connector | 1x 4+4pin (EPS 2.92) |
| Modularity | Non-modular |
| 80 Plus Certification | 80 PLUS Bronze |
| Form Factor | ATX |
| ATX Version | 2.4 / ATX 3.1 |
| Color | Black |
| Cooling | Active, 120 mm fan |
| Fan Count | 1 |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.25 kg |
| Certifications | IEC 62368, ErP |
