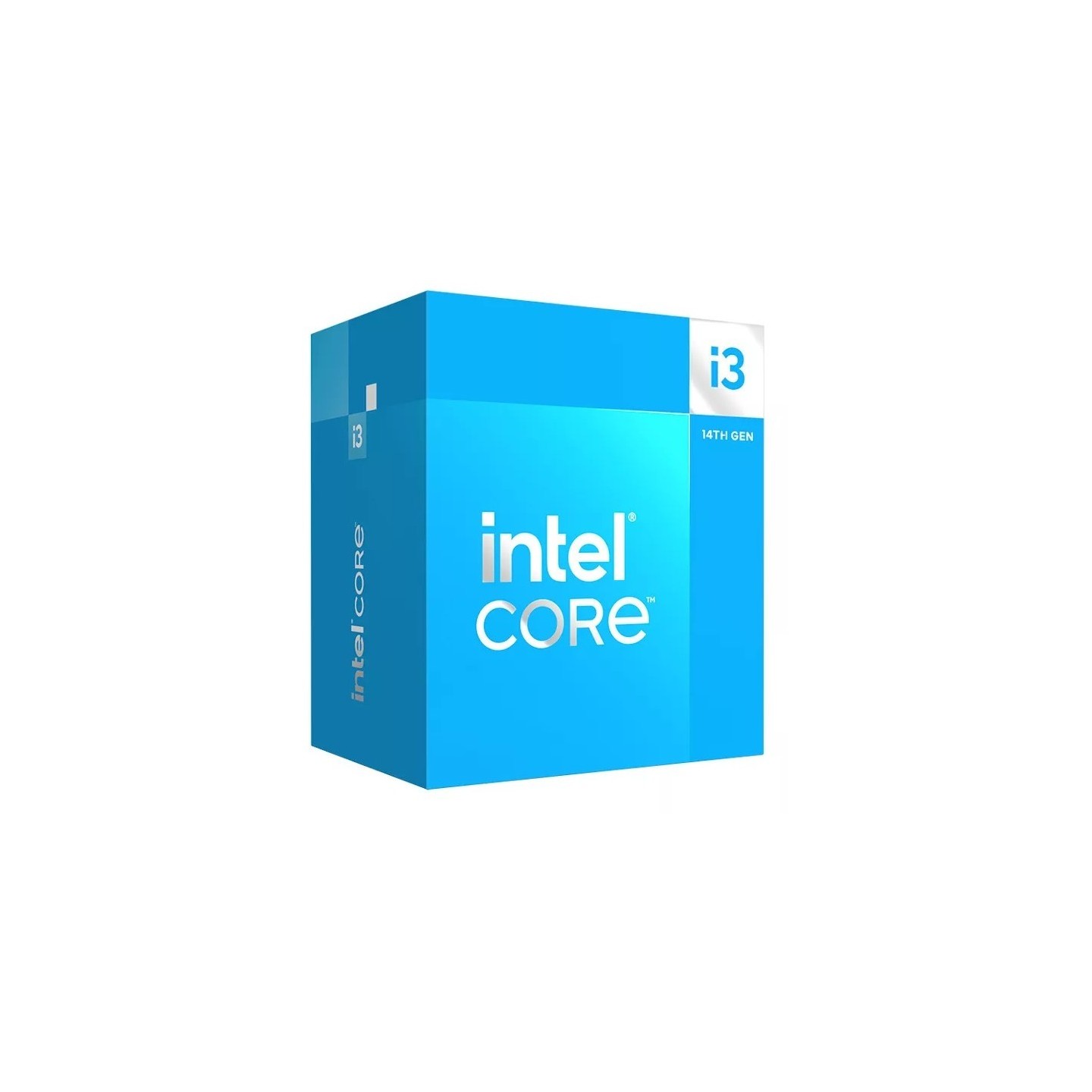

Intel Core i3-14100F LGA1700 4C/8T 3.5–4.7GHz DDR4/DDR5 PCIe 5.0 No iGPU (Boxed)
Intel Core i3-14100F 14th Gen desktop CPU with 4 cores/8 threads, 3.5-4.7 GHz, LGA1700 socket, DDR4/DDR5 support, 58W base TDP, no integrated graphics. Boxed retail package.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| CPU (Processors) - Socket | Intel LGA1700 |
|---|---|
| CPU (Processors) - Processor Family | Intel Core i3 |
| CPU (Processors) - Cores | 4 |
| CPU (Processors) - Threads | 8 |
| CPU (Processors) - TDP | 46-65W |
| CPU (Processors) - Integrated Graphics | No (Discrete GPU Required) |
| CPU (Processors) - Memory Support | DDR4 DDR5 |
| CPU (Processors) - Unlocked/Overclockable | No |
| CPU (Processors) - Cooler Included | Yes |
The Intel Core i3-14100F is a 14th generation desktop processor featuring 4 performance cores and 8 threads, delivering reliable performance for everyday computing and entry-level gaming. With a base frequency of 3.5 GHz and boost capability up to 4.7 GHz, this processor provides responsive multitasking and smooth application performance. The LGA1700 socket ensures compatibility with modern Intel 700-series motherboards.
This processor supports both DDR4-3200 and DDR5-4800 memory standards, offering flexibility in system configuration. With a base TDP of 58W and maximum turbo TDP of 110W, the i3-14100F is energy-efficient and suitable for compact builds. The processor includes 12MB of L3 cache and supports up to 192GB of system memory across dual-channel configuration. Note that this model does not include integrated graphics, requiring a discrete graphics card for display output.
Key specifications and features:
- 4 cores / 8 threads with Intel Turbo Boost Technology 2.0
- Base frequency: 3.5 GHz, Boost: 4.7 GHz
- 12MB Smart Cache (L3)
- LGA1700 socket compatibility
- DDR4-3200 and DDR5-4800 memory support
- 58W base power consumption, 110W max turbo
- 10nm process technology (Intel 7)
- No integrated graphics (discrete GPU required)
- PCIe 4.0/5.0 support with 20 lanes
- Boxed retail package with standard cooler mounting hardware
| Processor Manufacturer | Intel |
| Processor Family | Intel Core i3 |
| Processor Generation | 14th Gen (Raptor Lake) |
| Processor Model | i3-14100F |
| Processor Cores | 4 |
| Processor Threads | 8 |
| Performance Cores | 4 |
| Efficient Cores | 0 |
| Base Frequency | 3.5 GHz |
| Boost Frequency | 4.7 GHz |
| L1 Cache | 320 KB (80 KB per core) |
| L2 Cache | 5120 KB (1280 KB per core) |
| L3 Cache | 12 MB (Shared) |
| Cache Type | Smart Cache |
| Socket | LGA1700 |
| Fabrication Process | 10 nm (Intel 7) |
| Die Size | 163 mm² |
| Processor Package Size | 45 x 37.5 mm |
| Base Power (TDP) | 58 W |
| Maximum Turbo Power | 110 W |
| Maximum Temperature | 100°C |
| Memory Support | DDR4-3200, DDR5-4800 |
| Memory Channels | 2 (Dual-Channel) |
| Maximum Memory | 192 GB |
| Memory Bandwidth | 76.8 GB/s |
| ECC Support | No |
| Integrated Graphics | None (No iGPU) |
| PCIe Lanes | 20 (PCIe 4.0/5.0) |
| PCIe Configurations | 1x16+1x4, 2x8+1x4 |
| DMI Revision | 4.0 |
| Instruction Set Extensions | SSE4.1, SSE4.2, AVX, AVX2 |
| Turbo Boost Technology | 2.0 |
| Hyper-Threading | Yes |
| 64-bit Support | Yes |
| AES-NI | Yes |
| Enhanced SpeedStep (EIST) | Yes |
| Speed Shift | Yes |
| Thermal Monitoring | Yes |
| Deep Learning Boost | Yes |
| Stepping | H0 |
| Intel ARK ID | 236786 |
| Launch Date | Q1 2024 |
| Status | Launched |
| Package Type | Boxed |
| GeekBench 6 Single-Core | 2429 |
| GeekBench 6 Multi-Core | 8880 |
