Intel Core i3 - i3-14100F - LGA1700, 4C/8T 3.5–4.7GHz, DDR4/DDR5, PCIe 5.0, No iGPU

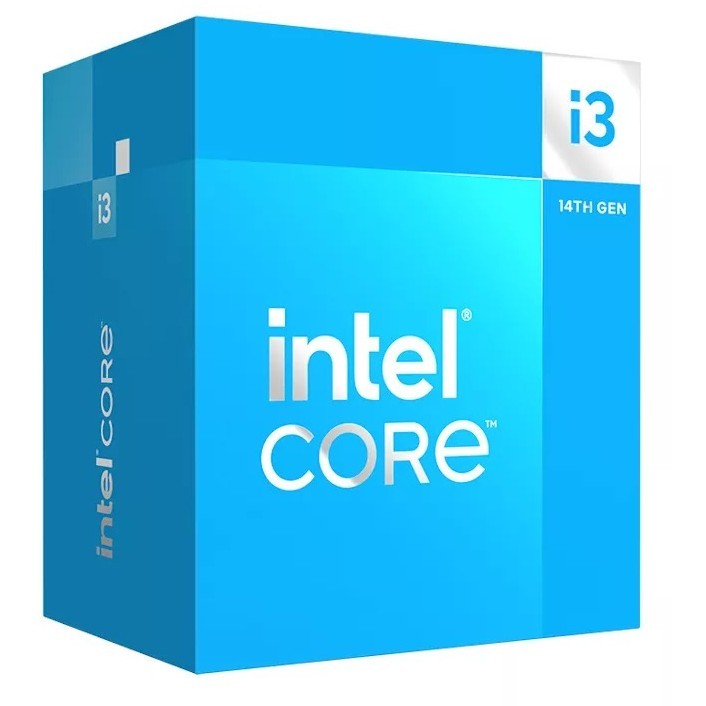

Intel Core i3-14100F boxed LGA1700 CPU — 14th Gen, 4 cores/8 threads, 3.5 GHz base / 4.7 GHz boost, DDR4 & DDR5 support, PCIe 4.0/5.0, no integrated graphics.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| CPU (Processors) - Series / Family | Intel Core i3 |
|---|---|
| CPU (Processors) - Socket | LGA1700 |
| CPU (Processors) - Cores | 4 |
| CPU (Processors) - Threads | 8 |
| CPU (Processors) - Integrated Graphics | None |
| CPU (Processors) - Memory Support | DDR5 |
| CPU (Processors) - PCIe Version | PCIe 5.0 |
| CPU (Processors) - Unlocked/Overclockable | No |
Intel Core i3-14100F. Processor family: Intel® Core™ i3. Processor socket: LGA 1700. Package type: Box. Memory channels: Dual-channel. Maximum internal memory supported by processor: 192 GB. Memory types supported by processor: DDR4-SDRAM. DDR5-SDRAM. Market segment: Desktop. Use conditions: PC/Client/Tablet. PCI Express slots version: 4.0. 5.0. Processor package size: 45 x 37.5 mm. L2 cache: 5120 KB. Maximum internal memory: 192 GB
| Processor manufacturer | Intel |
| Processor generation | Intel® Core™ i3 (14th gen) |
| Processor model | i3-14100F |
| Processor family | Intel® Core™ i3 |
| Processor cores | 4 |
| Processor socket | LGA 1700 |
| Processor threads | 8 |
| Processor operating modes | 64-bit |
| Performance cores | 4 |
| Processor boost frequency | 4.7 GHz |
| Performance-core boost frequency | 4.7 GHz |
| Performance-core base frequency | 3.5 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Package type | Box |
| Feature | Intel® Standard Manageability (ISM) |
| Processor base power | 58 W |
| Maximum turbo power | 110 W |
| Stepping | H0 |
| Maximum number of DMI lanes | 8 |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Processor codename | Raptor Lake |
| Processor ARK ID | 236786 |
| Maximum internal memory supported by processor | 192 GB |
| Memory types supported by processor | DDR4-SDRAM. DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory bandwidth (max) | 76.8 GB/s |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
| Market segment | Desktop |
| Use conditions | PC/Client/Tablet |
| Maximum number of PCI Express lanes | 20 |
| PCI Express slots version | 4.0. 5.0 |
| PCI Express configurations | 1x16+1x4. 2x8+1x4 |
| Supported instruction sets | AVX 2.0. SSE4.1. SSE4.2 |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Direct Media Interface (DMI) Revision | 4.0 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Intel® Turbo Boost Technology | 2.0 |
| Tjunction | 100 °C |
| Harmonized System (HS) code | 8542310001 |
| Launch date | Q1'24 |
| Status | Launched |
| Processor package size | 45 x 37.5 mm |
| L2 cache | 5120 KB |
| Maximum internal memory | 192 GB |
