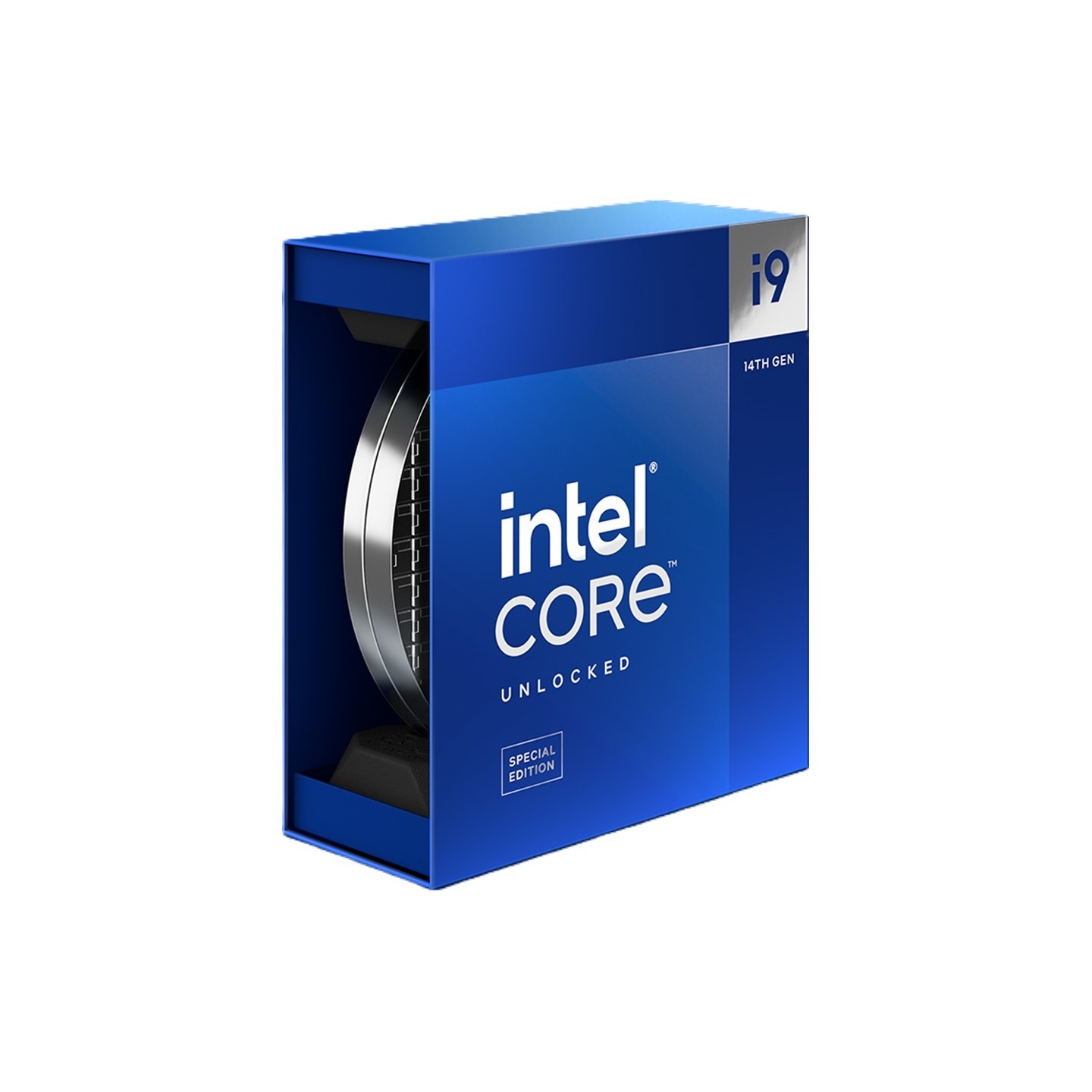

Intel Core i9-14900KS - LGA1700, 24 cores (8P+16E) 32 threads, up to 6.2GHz Turbo, Intel UHD 770 - Boxed
Intel Core i9-14900KS (14th gen) boxed CPU — LGA1700, 24 cores/32 threads, up to 6.2 GHz, Intel UHD Graphics 770, supports DDR4/DDR5 and PCIe 5.0.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| CPU (Processors) - Series / Family | Intel Core i9 |
|---|---|
| CPU (Processors) - Socket | LGA1700 |
| CPU (Processors) - Cores | 24 |
| CPU (Processors) - Threads | 32 |
| CPU (Processors) - Integrated Graphics | Intel UHD |
| CPU (Processors) - Memory Support | DDR5 |
| CPU (Processors) - Unlocked/Overclockable | Yes |
Intel Core i9-14900KS. Processor family: Intel® Core™ i9. Processor socket: LGA 1700. Package type: Box. Memory channels: Dual-channel. Maximum internal memory supported by processor: 192 GB. Memory types supported by processor: DDR4-SDRAM. DDR5-SDRAM. On-board graphics card model: Intel UHD Graphics 770. On-board graphics card outputs supported: Embedded DisplayPort (eDP) 1.4b. DisplayPort 1.4a. HDMI 2.1. On-board graphics card base frequency: 300 MHz. Market segment: Desktop. Use conditions: PC/Client/Tablet. PCI Express slots version: 4.0. 5.0. Intel® Turbo Boost Max Technology 3.0 frequency: 5.9 GHz. Intel® Thermal Velocity Boost Frequency: 6.2 GHz
| Processor manufacturer | Intel |
| Processor generation | Intel® Core™ i9 (14th gen) |
| Processor model | i9-14900KS |
| Processor family | Intel® Core™ i9 |
| Processor cores | 24 |
| Processor socket | LGA 1700 |
| Processor threads | 32 |
| Processor operating modes | 64-bit |
| Performance cores | 8 |
| Efficient cores | 16 |
| Processor boost frequency | 6.2 GHz |
| Performance-core boost frequency | 5.7 GHz |
| Performance-core base frequency | 3.2 GHz |
| Efficient-core boost frequency | 4.5 GHz |
| Efficient-core base frequency | 2.4 GHz |
| Processor cache | 36 MB |
| Processor cache type | Smart Cache |
| Package type | Box |
| Processor base power | 150 W |
| Maximum turbo power | 253 W |
| Stepping | B0 |
| Maximum number of DMI lanes | 8 |
| Memory bandwidth supported by processor (max) | 89.6 GB/s |
| Processor codename | Raptor Lake |
| Processor ARK ID | 237504 |
| Maximum internal memory supported by processor | 192 GB |
| Memory types supported by processor | DDR4-SDRAM. DDR5-SDRAM |
| Memory channels | Dual-channel |
| Feature | Intel vPro® Essentials Platform Eligibility |
| Memory bandwidth (max) | 89.6 GB/s |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP) 1.4b. DisplayPort 1.4a. HDMI 2.1 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1650 MHz |
| Number of displays supported (on-board graphics) | 4 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card maximum resolution (DisplayPort) | 7680 x 4320 pixels |
| On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 5120 x 3200 pixels |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2160 pixels |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 120 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
| On-board graphics card ID | 0xA780 |
| Discrete graphics card model | Not available |
| Number of execution units | 32 |
| Multi-Format Codec Engines | 2 |
| Market segment | Desktop |
| Use conditions | PC/Client/Tablet |
| Maximum number of PCI Express lanes | 20 |
| PCI Express slots version | 4.0. 5.0 |
| PCI Express configurations | 1x16+1x4. 2x8+1x4 |
| Supported instruction sets | AVX 2.0. SSE4.1. SSE4.2 |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Direct Media Interface (DMI) Revision | 4.0 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Turbo Boost Max Technology 3.0 frequency | 5.9 GHz |
| Intel® Thermal Velocity Boost Frequency | 6.2 GHz |
| Tjunction | 100 °C |
| OpenCL version | 3.0 |
| Launch date | Q1'24 |
| Status | Launched |
| Harmonized System (HS) code | 8542310001 |
| Processor package size | 45 x 37.5 mm |
| L2 cache | 32768 KB |
| Maximum internal memory | 192 GB |
| Graphics output | eDP 1.4b. DP 1.4a. HDMI 2.1 |
