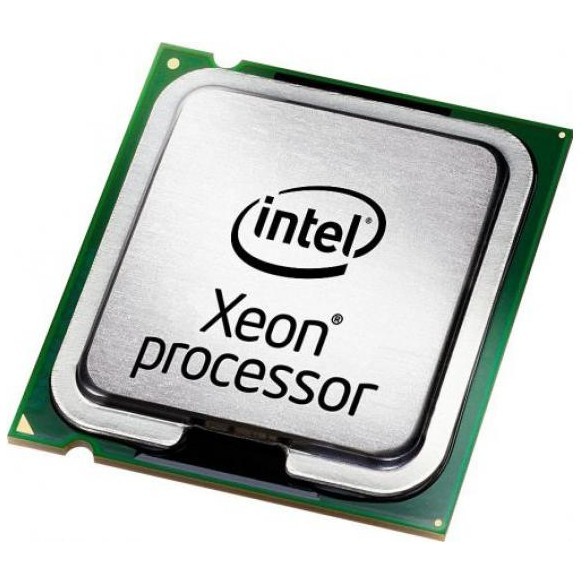

Intel Xeon E5-4650 - E5-4650 - 8C/16T 2.7 GHz (3.3 GHz Turbo), LGA2011, Quad-Channel DDR3, Server CPU
Intel Xeon E5-4650 server processor — 8 cores / 16 threads, 2.7 GHz base (3.3 GHz Turbo), LGA2011, quad-channel DDR3 support, designed for 4-socket servers (E5-4600 series).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| CPU (Processors) - Series / Family | Intel Xeon E |
|---|---|
| CPU (Processors) - Cores | 8 |
| CPU (Processors) - Threads | 16 |
| CPU (Processors) - Integrated Graphics | None |
| CPU (Processors) - Memory Support | DDR3 |
| CPU (Processors) - Unlocked/Overclockable | No |
Intel Xeon E5-4650. Processor family: Intel® Xeon® E5 Family. Processor socket: LGA 2011 (Socket R). Processor lithography: 32 nm. Memory channels: Quad-channel. Maximum internal memory supported by processor: 1.5 TB. Memory types supported by processor: DDR3-SDRAM. Market segment: Server. Supported instruction sets: AVX. Scalability: 4S. Intel® Turbo Boost Technology 2.0 frequency: 3.3 GHz. Processor package size: 52.5mm x 45mm
| Processor manufacturer | Intel |
| Processor model | E5-4650 |
| Processor base frequency | 2.7 GHz |
| Processor family | Intel® Xeon® E5 Family |
| Processor cores | 8 |
| Processor socket | LGA 2011 (Socket R) |
| Component for | Server/workstation |
| Processor lithography | 32 nm |
| Processor series | Intel Xeon E5-4600 |
| Processor threads | 16 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.3 GHz |
| Processor cache | 20480 KB |
| Processor cache type | Smart Cache |
| L3 cache speed | 2.7 GHz |
| Thermal Design Power (TDP) | 130 W |
| Package type | Box |
| Feature | Intel Virtualization Technology for Directed I/O (VT-d) |
| VID Voltage Range | 0.6 - 1.35 V |
| Stepping | C2 |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| Processor codename | Sandy Bridge EP |
| Processor code | SR0QR |
| Processor ARK ID | 64622 |
| Maximum internal memory supported by processor | 1.5 TB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800.1066.1333.1600 MHz |
| Memory channels | Quad-channel |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX |
| Scalability | 4S |
| CPU configuration (max) | 4 |
| PCI Express CEM revision | 3.0 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Turbo Boost Technology 2.0 frequency | 3.3 GHz |
| Intel Identity Protection Technology version | 0.00 |
| Born on date | Q2'12 |
| Bus bandwidth | 8 |
| Bus type units | GT/s |
| Launch date | Q2'12 |
| Processor core voltage | 0.6-1.35 V |
| Product name | Intel Xeon E5-4650 (20M Cache. 2.70 GHz. 8.00 GT/s Intel QPI) |
| Product type | Processor |
| Status | Discontinued |
| Maximum memory | 384 GB |
| Processor brand name | Intel Xeon |
| Supported memory types | DDR3-SDRAM |
| Last change | 63903513 |
| Product family | Intel Xeon Processor E5 Family |
| Bus speed | 8 GT/s |
| Harmonized System (HS) code | 8542310001 |
| Processor package size | 52.5mm x 45mm |
| Intel® Virtualization Technology (Intel® VT) | VT-d. VT-x |
| Compatibility | Intel S4600LT2. S4600LH2. R2208LT2HKC4. R2304LT2HVC. R2304LH2HKC. R2208LH2HKC2 |
| Maximum internal memory | 393216 MB |
| Cache memory | 20 MB |
