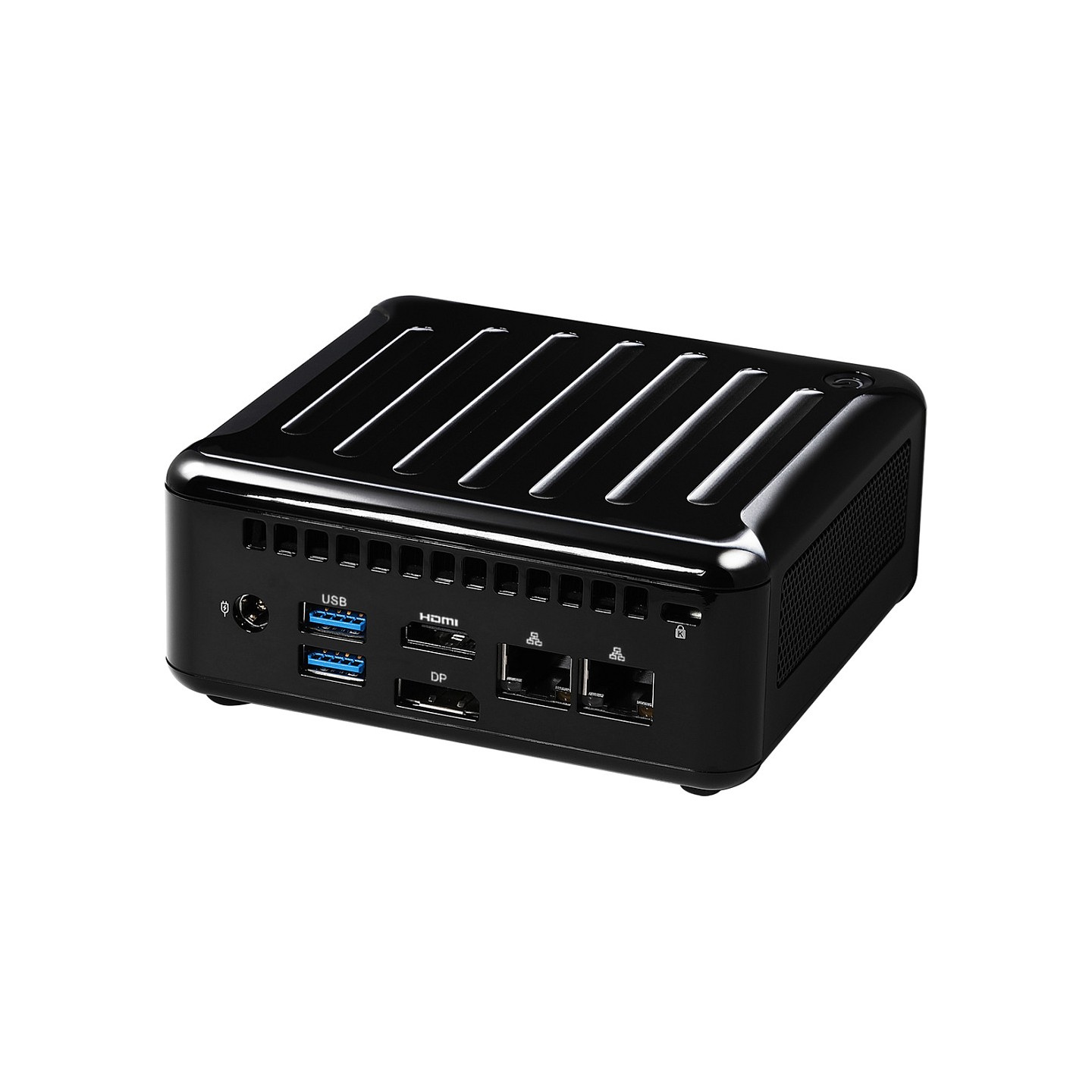

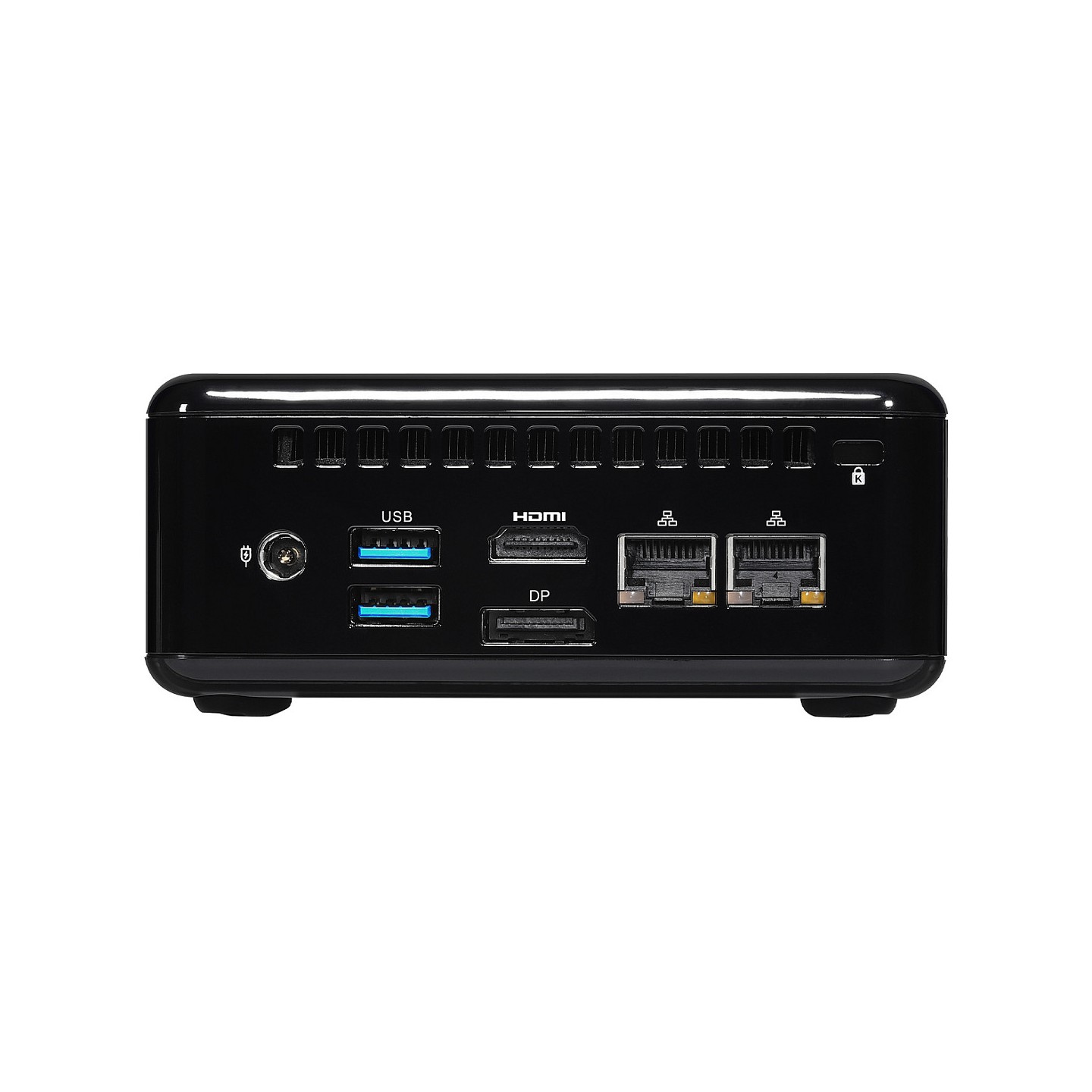

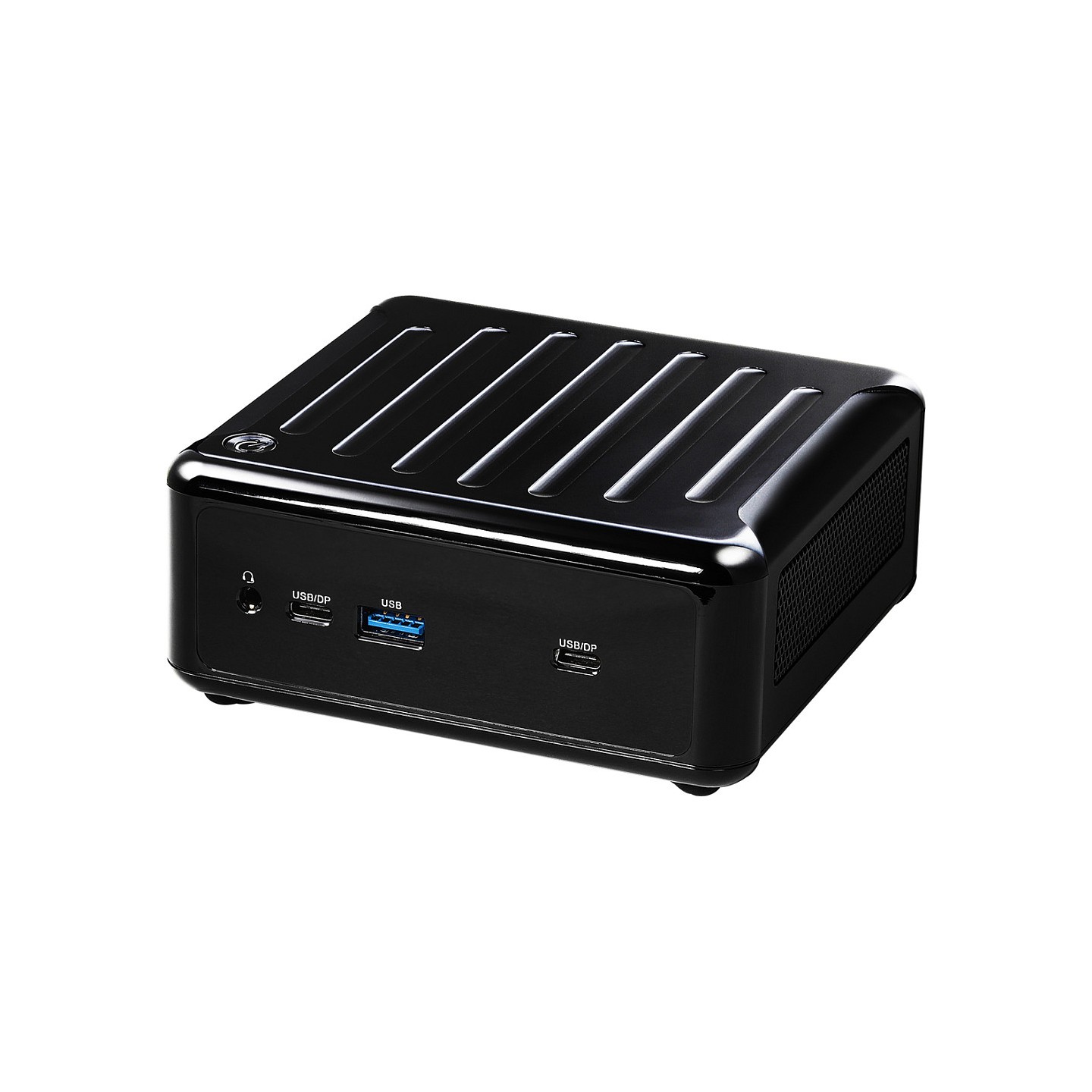

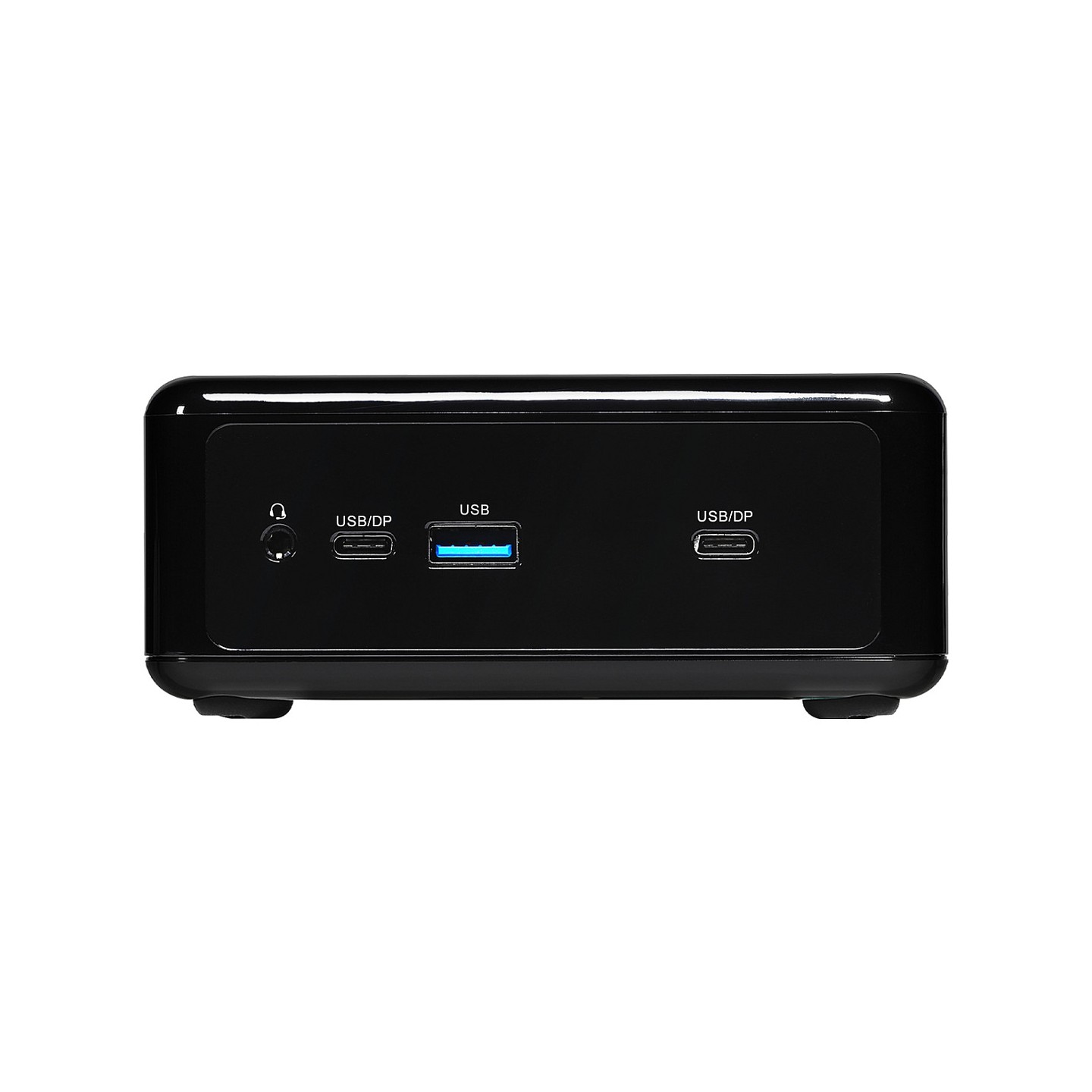

ASRock Barebone NUC-Box-1260P HDMI USB-C DP 2xLAN DDR4 retail
Asrock NUC BOX-1260P. Workstation Barebone. DDR4-SDRAM. Ethernet/LAN. Wi-Fi 6E (802.11ax). 90 W
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Asrock NUC BOX-1260P. Produkttyp: Workstation Barebone. BIOS-Typ: AMI. Unterstützte Arbeitsspeicher: DDR4-SDRAM. Anzahl der Speichersteckplätze: 2. RAM-Speicher maximal: 64 GB. Unterstützte Speicherlaufwerke: HDD & SSD. Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 2. WLAN-Standards: Wi-Fi 6E (802.11ax). Bluetooth-Version: 5.2. Stromversorgung: 90 W
| Prozessorhersteller | Intel |
| Prozessorfamilie | Intel® Core™ i7 |
| Prozessorgeneration | Intel® Core™ i7 Prozessoren der 12. Generation |
| Prozessor | i7-1260P |
| Anzahl Prozessorkerne | 4 |
| Prozessor-Threads | 8 |
| Prozessor Boost-Frequenz | 4.7 GHz |
| Prozessor-Taktfrequenz | 3.4 GHz |
| Feature | Intel® Virtualization Technologie (VT-X) |
| Prozessor-Cache | 18 MB |
| CPU Konfiguration (max) | 1 |
| Arbeitsspeicher Typ | SO-DIMM |
| Anzahl der Speichersteckplätze | 2 |
| RAM-Speicher maximal | 64 GB |
| Unterstützte Arbeitsspeichergeschwindigkeit | 3200 MHz |
| Unterstützte Arbeitsspeicher | DDR4-SDRAM |
| Speicherkanäle | Zweikanalig |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| unterstützte Speicherlaufwerksgrößen | M.2 |
| Grafikkarte-Familie | Intel |
| Eingebautes Grafikkartenmodell | Intel Iris Xe Graphics |
| Top WLAN-Standard | Wi-Fi 6E (802.11ax) |
| WLAN-Standards | Wi-Fi 6E (802.11ax) |
| LAN-Controller | Intel I225-LM |
| Bluetooth-Version | 5.2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 2 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 2.0b |
| Anzahl DisplayPort Anschlüsse | 1 |
| DisplayPorts-Version | 1.4a |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Produktfarbe | Schwarz |
| Produkttyp | Workstation Barebone |
| BIOS-Typ | AMI |
| BIOS-Speichergröße | 256 Mbit |
| Trusted Platform Module (TPM) Version | 2.0 |
| Audio-Chip | Realtek ALC233 |
| Konformitätsbescheinigungen | CE. Eidgenössische Kommunikationskommission (FCC). RoHS |
| Unterstützt Windows-Betriebssysteme | Windows 10. Windows 11 |
| Netzteiltyp | Externer AC-Adapter |
| Stromversorgung | 90 W |
| Betriebstemperatur | 0 - 40 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Breite | 110 mm |
| Tiefe | 117.5 mm |
