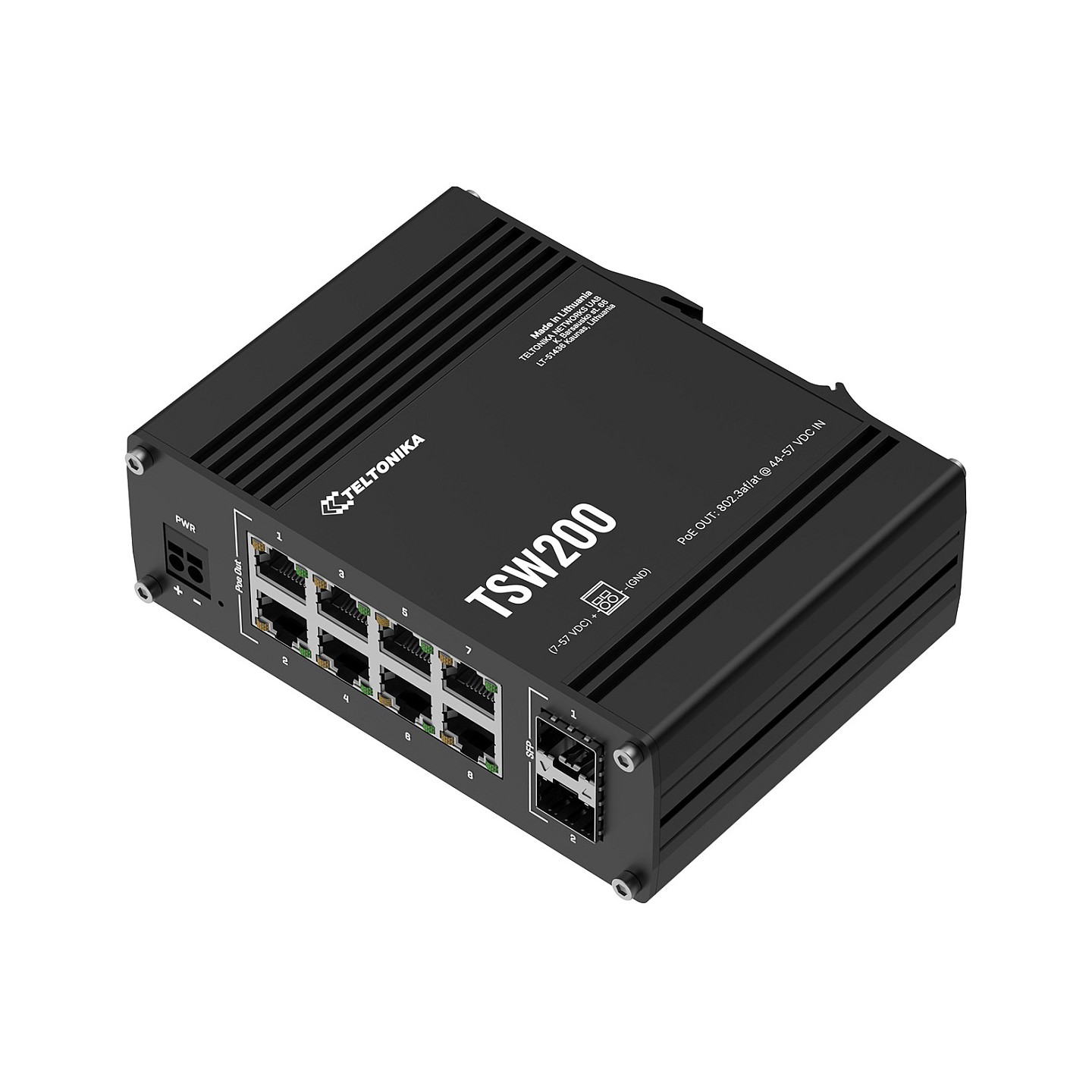

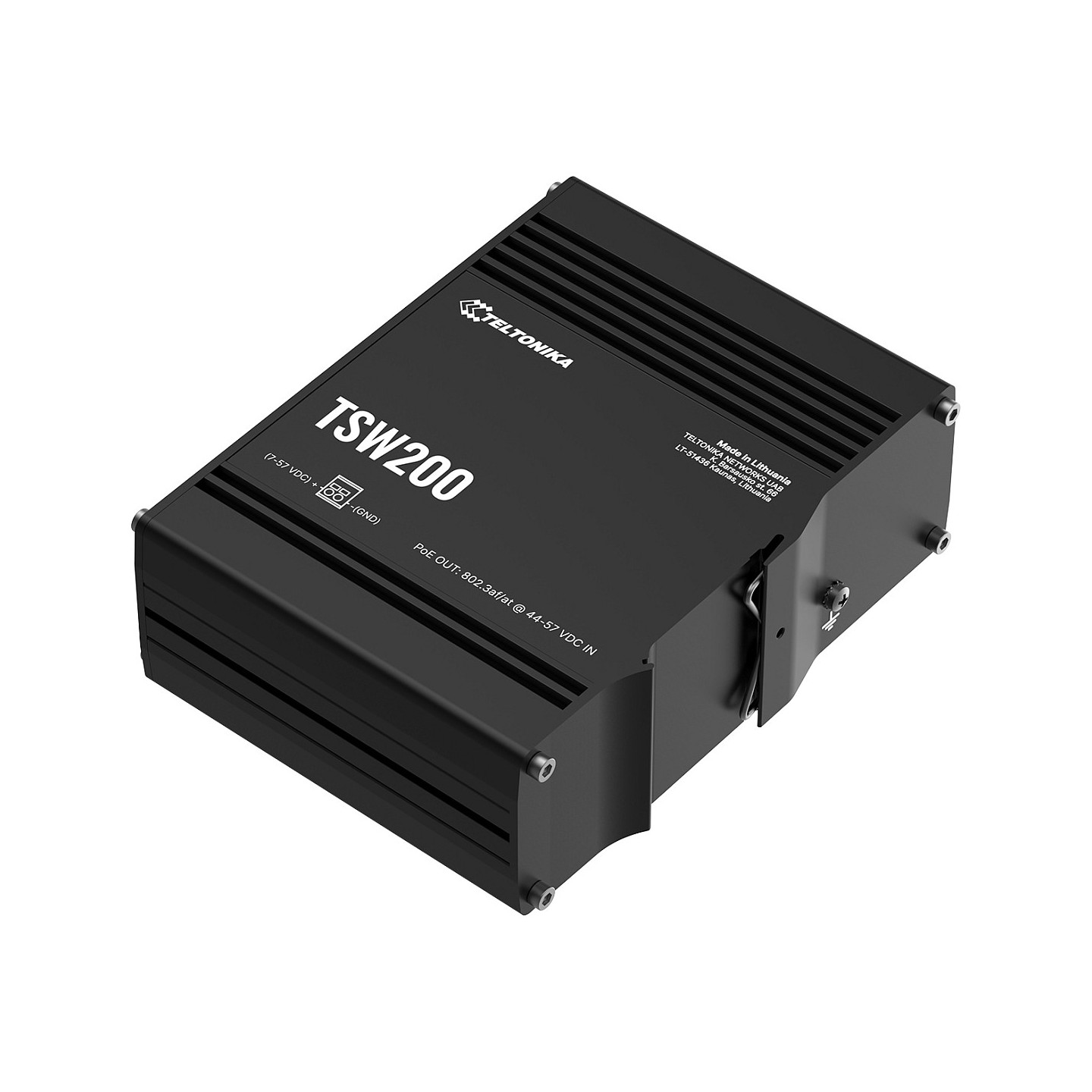

Teltonika · Switch · TSW200 · 8 Port Gigabit Industrial unmanaged PoE+ Switch. 2 SFP
Teltonika TSW200. Unmanaged. Gigabit Ethernet (10/100/1000). Power over Ethernet (PoE). Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Teltonika TSW200. Switch-Typ: Unmanaged. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. MAC-Adressentabelle: 2000 Eintragungen. Routing-/Switching-Kapazität: 20 Gbit/s. Netzstandard: IEEE 802.3i. IEEE 802.3u. IEEE 802.3ab. IEEE 802.3x. IEEE 802.3az. IEEE 802.3af. IEEE 802.3at. DC input Spannung: 7 - 57 V. Netzstecker: DC-Anschluss. Power over Ethernet (PoE). Wandmontage
| Switch-Typ | Unmanaged |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 2 |
| Netzstecker | DC-Anschluss |
| Netzstandard | IEEE 802.3i. IEEE 802.3u. IEEE 802.3ab. IEEE 802.3x. IEEE 802.3az. IEEE 802.3af. IEEE 802.3at |
| Feature | Schnellstartübersicht |
| Routing-/Switching-Kapazität | 20 Gbit/s |
| MAC-Adressentabelle | 2000 Eintragungen |
| Jumbo-Frames | 9216 |
| Datenpaket-Pufferspeicher | 0.128 MB |
| Produktfarbe | Schwarz |
| Gehäusematerial | Aluminium |
| Internationale Schutzart (IP-Code) | IP30 |
| Energiequelle | Gleichstrom |
| DC input Spannung | 7 - 57 V |
| Stromverbrauch (max.) | 5.5 W |
| Power-over-Ethernet (PoE)-Typ unterstützt | Active PoE. PoE+ |
| Power over Ethernet (PoE) Modi | Alternative A. Alternative B |
| Anzahl Power over Ethernet plus (PoE+) Anschlüsse | 8 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 30 W |
| Gesamtleistung Power over Ethernet (PoE) | 240 W |
| Betriebstemperatur | -40 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Breite | 132 mm |
| Tiefe | 95.1 mm |
| Höhe | 44.2 mm |
| Gewicht | 517 g |
| Verpackungsart | Box |
| Konformitätsbescheinigungen | CE. UKCA. Eidgenössische Kommunikationskommission (FCC). Industry Canada (IC). CB |
